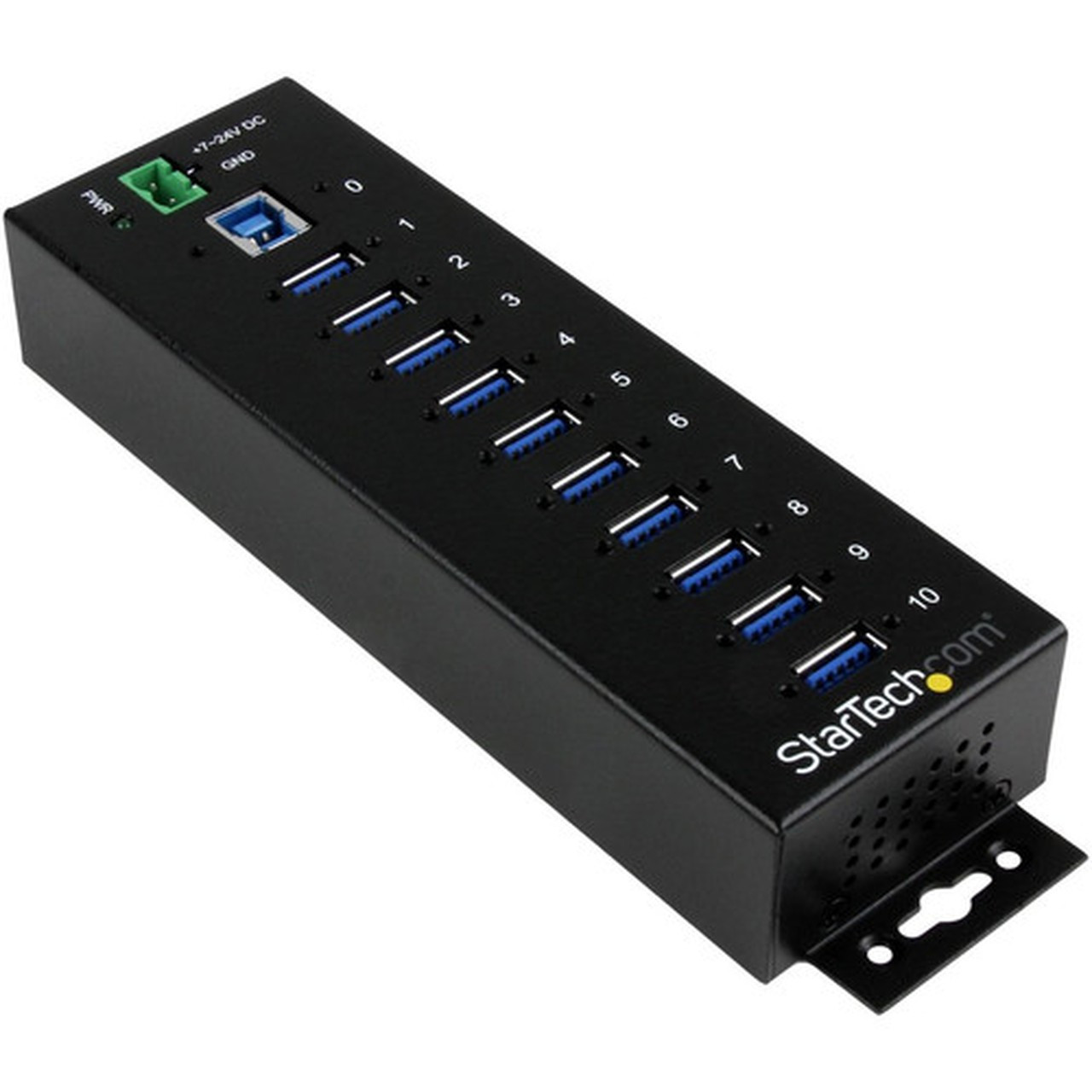

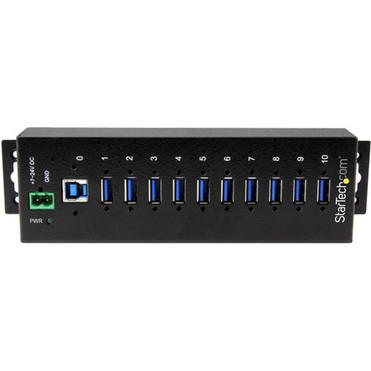

StarTech.com ST1030USBM 10-Port Industrial USB 3.0 Hub - ESD & Surge Protection - DIN Rail or Surface-Mountable Metal Housing
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This USB hub operates as a powered device with flexible 7–24VDC input options through the included terminal block or an optional 65W external power adapter. The power design supports the USB Battery Charging Specification 1.2, enabling faster charging of compatible mobile devices while maintaining data connectivity.
The hub maintains full USB 3.0 specification compliance with 5Gbps data transfer rates across all ten ports simultaneously. The industrial construction ensures reliable operation in environments with electrical noise, vibration, or temperature variations that would challenge consumer-grade USB hubs.
Relevant factors for this section include Host Interface, Total Number of USB Ports, Number of USB 3.0 Ports. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This industrial USB hub distinguishes itself through professional-grade protection features and installation flexibility that standard USB hubs lack. The combination of high-level ESD protection, surge suppression, and rugged metal construction creates a reliable connectivity solution for critical infrastructure.
Comprehensive Device Protection
The integrated 15kV air/8kV contact ESD protection and 350W surge protection shield both the hub and connected devices from electrostatic discharge and power surges that can damage sensitive electronics.
- Protects upstream host and downstream devices
- Meets industrial environment requirements
- Prevents data corruption from electrical events
Flexible Installation Options

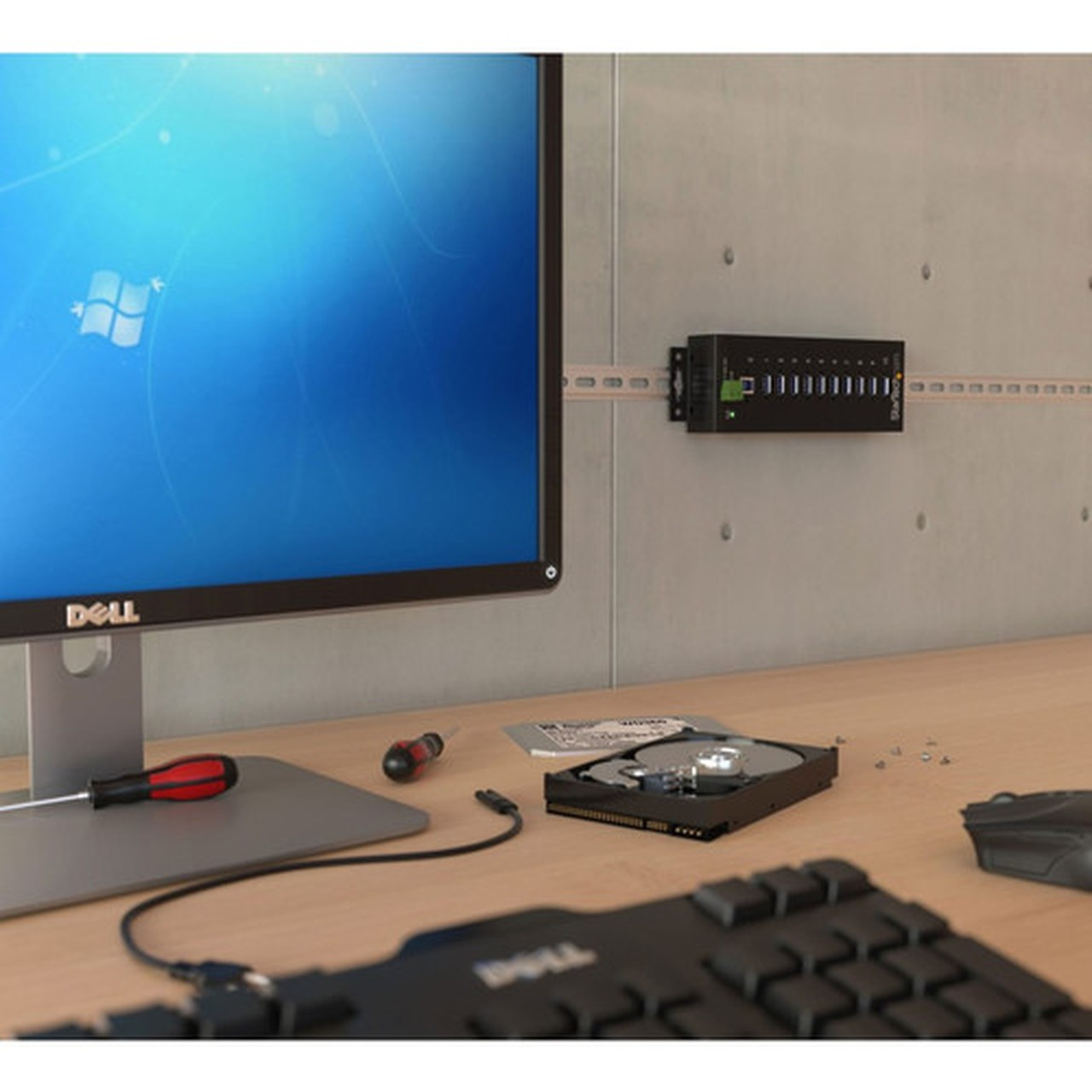

Built-in mounting brackets and included DIN rail mounting kit enable secure installation on walls, under desks, in server racks, or on standard DIN rails commonly used in industrial control panels.
- DIN rail or surface mounting
- No tools required for basic installation
- Compact footprint saves space
Professional Support & Compliance
Backed by a 2-year warranty and free lifetime 24/5 multi-lingual technical support, this hub meets TAA compliance requirements and environmental standards including EU RoHS, REACH, and WEEE directives.
- 2-year manufacturer warranty
- TAA compliant for government contracts
- Environmentally certified construction
Deployment / Use Cases
The ST1030USBM industrial USB hub serves critical connectivity needs in environments where reliability, protection, and flexible installation are paramount. Its rugged design and comprehensive protection make it ideal for expanding USB connectivity in industrial automation systems, manufacturing facilities, and server rooms.
In industrial settings, the hub can connect multiple USB devices such as barcode scanners, label printers, measurement instruments, and human-machine interface panels while protecting them from electrical interference. For IT infrastructure, it provides reliable port expansion for server KVM systems, backup devices, security cameras, and network management consoles in rack-mounted or wall-mounted configurations.
Industrial Automation
Connect multiple USB industrial devices in manufacturing or process control environments where electrical noise and physical durability are concerns.
- Factory floor equipment connectivity
- PLC programming stations
- Quality control measurement devices
Server Room & Data Center
Expand USB ports for server management, KVM systems, and peripheral devices in rack-mounted or under-desk installations.
- Server console management
- Backup device connectivity
- Network equipment configuration
Physical Profile
The hub features a compact black metal housing measuring 7.80" × 2.20" × 1.20" (198.12 × 55.88 × 30.48 mm) with a weight of 12.59 oz (357 g). The industrial-grade metal construction provides durability and effective heat dissipation while maintaining a small footprint suitable for space-constrained installations. The design includes integrated mounting points for versatile placement in various environments.
- Width
- 2.20" (55.88 mm)
- Height
- 1.20" (30.48 mm)
- Weight
- 12.59 oz (357 g)
- Length
- 7.80" (198.12 mm)
What's in the Box
The package includes all necessary components for immediate deployment of the industrial USB hub in various installation scenarios.
Highlights
- Adds ten USB 3.0 (5Gbps) ports through a single host connection
- 15kV air/8kV contact ESD protection safeguards connected devices
- 350W surge protection on both upstream and downstream ports
- Rugged metal housing for industrial environment durability
- DIN rail or surface mounting with included installation hardware
- Powered hub with 7–24VDC input via terminal block or 65W adapter
- Supports USB Battery Charging Specification 1.2 for faster charging
- TAA compliant for government and institutional procurement
- 2-year warranty with free lifetime 24/5 technical support
- EU RoHS, REACH, and WEEE environmental compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | ST1030USBM |
| Brand Name | StarTech.com |
| Product Name | 10-Port Industrial USB 3.0 Hub |
| Packaged Quantity | 1 Each |
| Product Type | USB Hub |
| Technical Information | |
| Host Interface | USB 3.0 Type A |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 3.0 Ports | 10 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | External |
| Height | 1.20" (30.48 mm) |
| Width | 2.20" (55.88 mm) |
| Length | 7.80" (198.12 mm) |
| Weight (Approximate) | 12.59 oz (357 g) |
| Miscellaneous | |
| Package Contents | 10-Port Industrial USB 3.0 Hub USB 3.0 Host Cable DIN Rail Mounting Kit Terminal Block (2 wire) Instruction Manual |
| Platform Supported | PC |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What type of USB ports does this hub provide?
The ST1030USBM provides ten USB 3.0 ports, all supporting the USB 3.2 Gen 1 specification with 5Gbps data transfer rates. These are full-featured USB 3.0 ports that maintain backward compatibility with USB 2.0 and 1.1 devices while delivering maximum performance for modern USB 3.0 peripherals.
How does the ESD and surge protection work?
This industrial hub includes comprehensive electrical protection with 15kV air gap and 8kV contact ESD (electrostatic discharge) protection that prevents damage from static electricity. Additionally, it provides 350W surge protection on both the upstream connection to your host computer and downstream connections to attached devices, safeguarding all connected equipment from power surges and transient voltage events.
What power options are available for this USB hub?
The hub operates as a powered device with two input options: it accepts 7–24VDC through the included terminal block for direct wiring to industrial power sources, or it can use an optional 65W external power adapter. This flexible power design ensures reliable operation in various environments and supports the USB Battery Charging Specification 1.2 for charging compatible devices.
How can I mount this industrial USB hub?
The hub offers versatile mounting options with built-in brackets for surface mounting and an included DIN rail mounting kit. You can securely install it on walls, under desks, in server racks, or on standard DIN rails commonly used in industrial control panels. The compact metal housing and integrated mounting points make installation straightforward in both IT and industrial environments.
What warranty and support comes with this product?
StarTech.com backs this industrial USB hub with a 2-year limited warranty and provides free lifetime 24/5 multi-lingual technical assistance. The product is TAA compliant for government procurement and meets environmental standards including EU RoHS, REACH, and WEEE directives for responsible manufacturing and disposal.
What types of environments is this hub designed for?
This industrial-grade USB hub is specifically designed for server rooms, data centers, manufacturing facilities, and industrial automation environments where reliability, electrical protection, and flexible installation are critical. The rugged metal construction, comprehensive ESD/surge protection, and DIN rail mounting capability make it suitable for locations with electrical noise, vibration, or space constraints that challenge standard USB hubs.
