StarTech.com 1U Server Rack Mount Shelf - 7in Deep Fixed Steel Universal Tray for 19" AV, Data & Network Equipment Rack/ Cabinet - - a (CABSHELF1U)
- 1U 7in Depth Universal Fixed Rack Mount Shelf - 33lbs / 15kg
- 4 x M6 Cage Nut
- 4 x M6 Screws
Marketing Information:

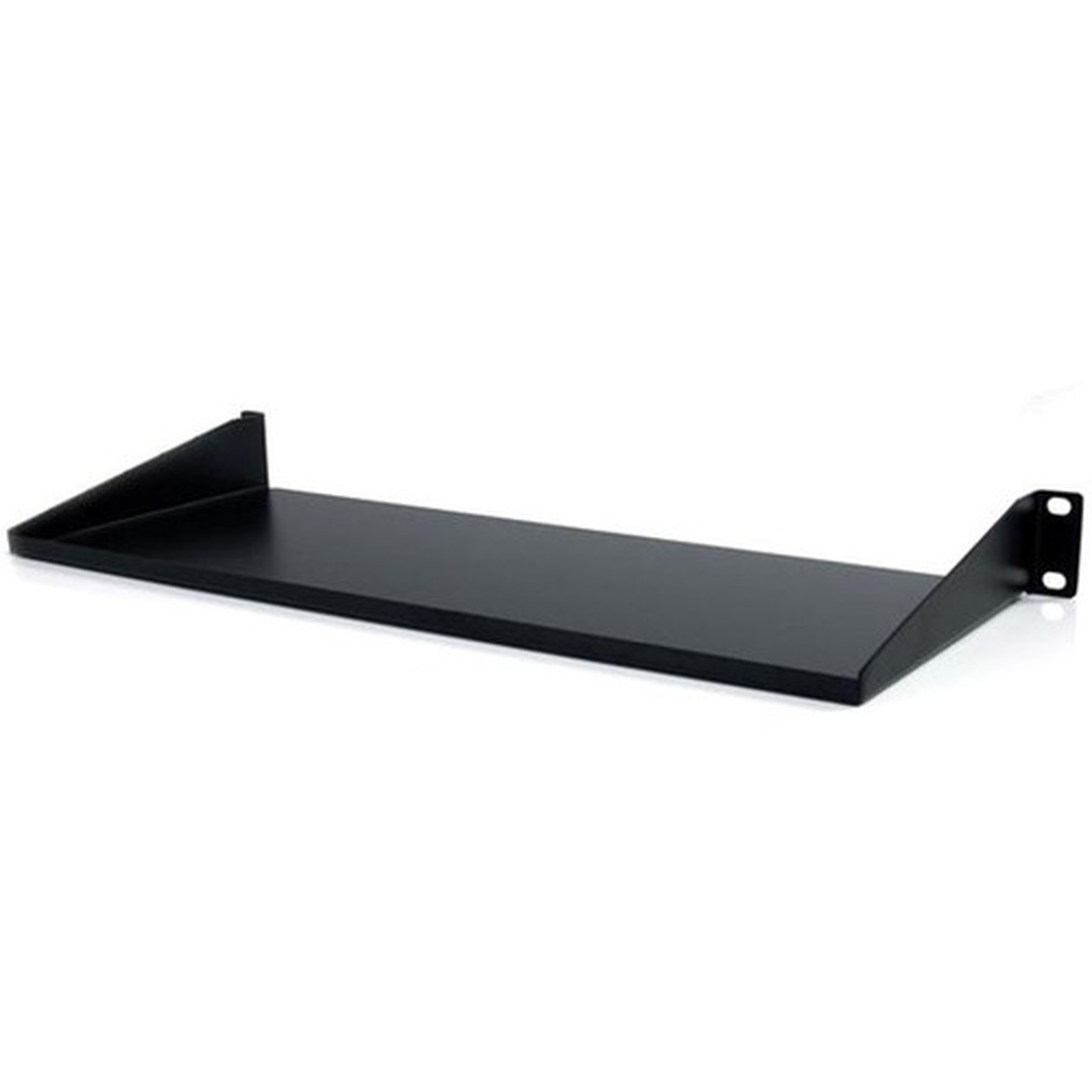

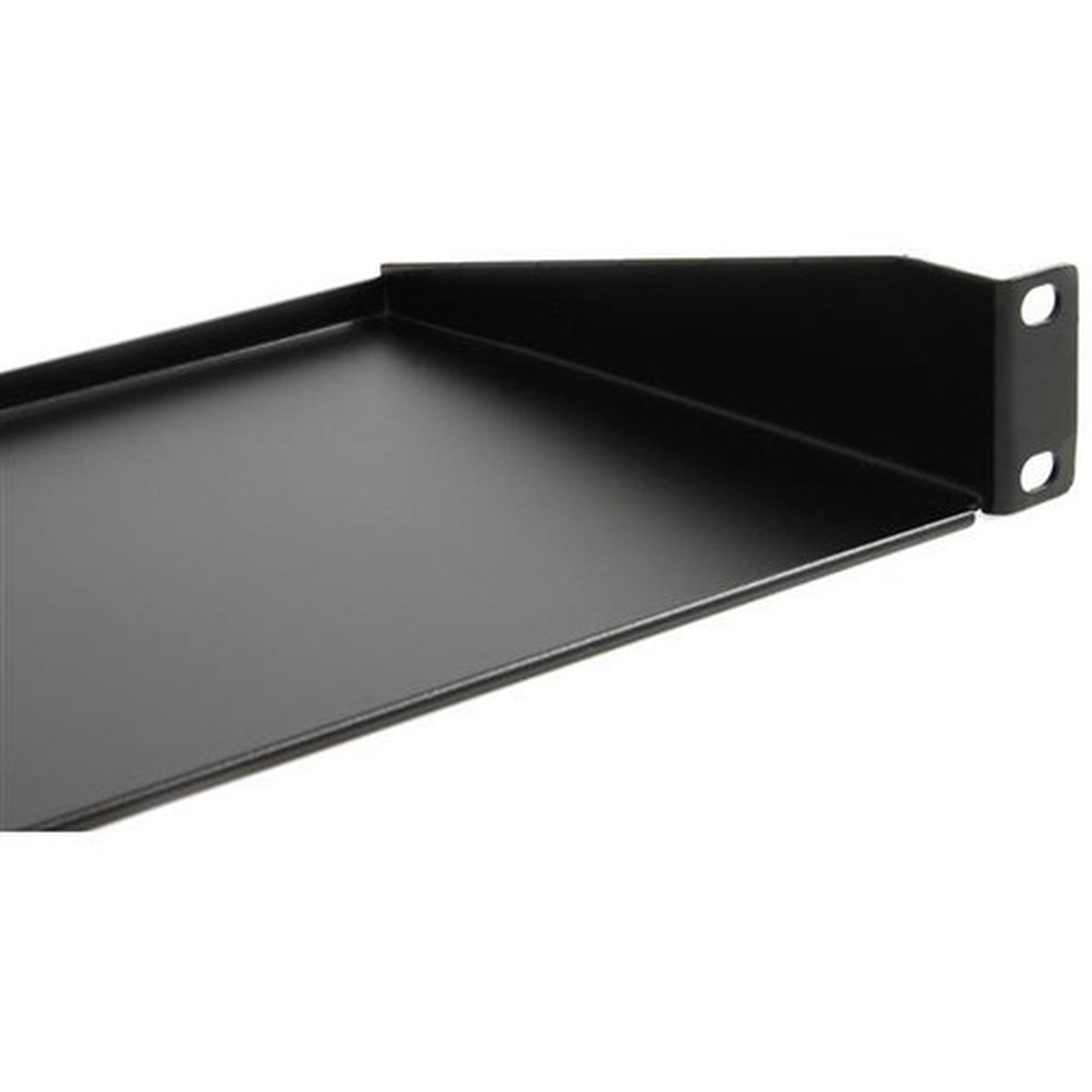

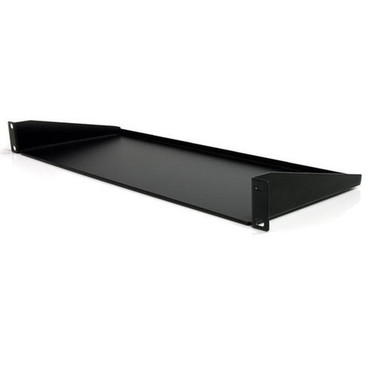

The CABSHELF1U 1U (Black) Universal Fixed Server Rack Cabinet Shelf lets you add a compact fixed storage shelf to any standard 19-inch server rack or cabinet with front mount options.This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.
Constructed using SPCC commercial grade cold-rolled steel, this durable fixed rack shelf can hold up to 15kg (33lbs) of equipment - a perfect solution for storing small form non-rackmount equipment, tools, peripherals or accessories in your rack, to keep them readily accessible.
Backed by a StarTech.com Lifetime warranty.
Application/Usage: LAN Switch,Patch Panel,Server
Product Color: Black
Product Material: SPCC
Static/Stationary Weight Capacity: 15.06 kg
Height: 1.80" (45.72 mm)
Width: 17.40" (441.96 mm)
Length: 7" (177.80 mm)
Rack Height: 1U
Rack Width: 19" (482.60 mm)
Weight (Approximate): 1.22 kg
Package Contents:
Country of Origin: Taiwan
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Limited Warranty: Lifetime
- UNIVERSAL 19"" FIT: This 1U server rack shelf is designed to fit any 19" wide server rack or enclosure including major brands like APC, Dell, Lenovo, HPE and can accommodate your data, IT, networking or other equipment up to 7" (18cm) deep
- HEAVY-DUTY & DURABLE DESIGN: Constructed with SPCC commercial cold-rolled steel, the sturdy front mounted cabinet shelf ensures long term durability and supports a total weight of 33lbs/15kg making it the perfect rack shelf solution for any environment
- FLEXIBLE INSTALLATION: The rack mount cantilever shelf can be mounted in 2 orientations, install the shelf with the front shelf lip downwards or mount with the lip upwards to prevent your computer, AV or other equipment & accessories from sliding off
- VERSATILE FUNCTIONALITY: At 7in deep, this fixed rackmount shelf is designed to work with any 19 inch cabinet or equipment rack; it provides additional storage space for mission critical hardware, and can even store your tools or audio/video accessories
- INDUSTRY-LEADING SUPPORT: Backed for life by StarTech.com and free lifetime technical support on this TAA compliant 1U solid server rack shelf/tray, and has been the choice of IT professionals and businesses for over 30 years
[custom-specifications]
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | CABSHELF1U |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 1U 7in Depth Universal Fixed Rack Mount Shelf - 33lbs / 15kg |
| Product Type | Rack Shelf | Technical Information |
| Application/Usage | LAN Switch,Patch Panel,Server | Physical Characteristics |
| Product Color | Black |
| Product Material | SPCC |
| Static/Stationary Weight Capacity | 15.06 kg |
| Height | 1.80" (45.72 mm) |
| Width | 17.40" (441.96 mm) |
| Length | 7" (177.80 mm) |
| Rack Height | 1U |
| Rack Width | 19" (482.60 mm) |
| Weight (Approximate) | 1.22 kg | Miscellaneous |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | Warranty |
| Limited Warranty | Lifetime |
