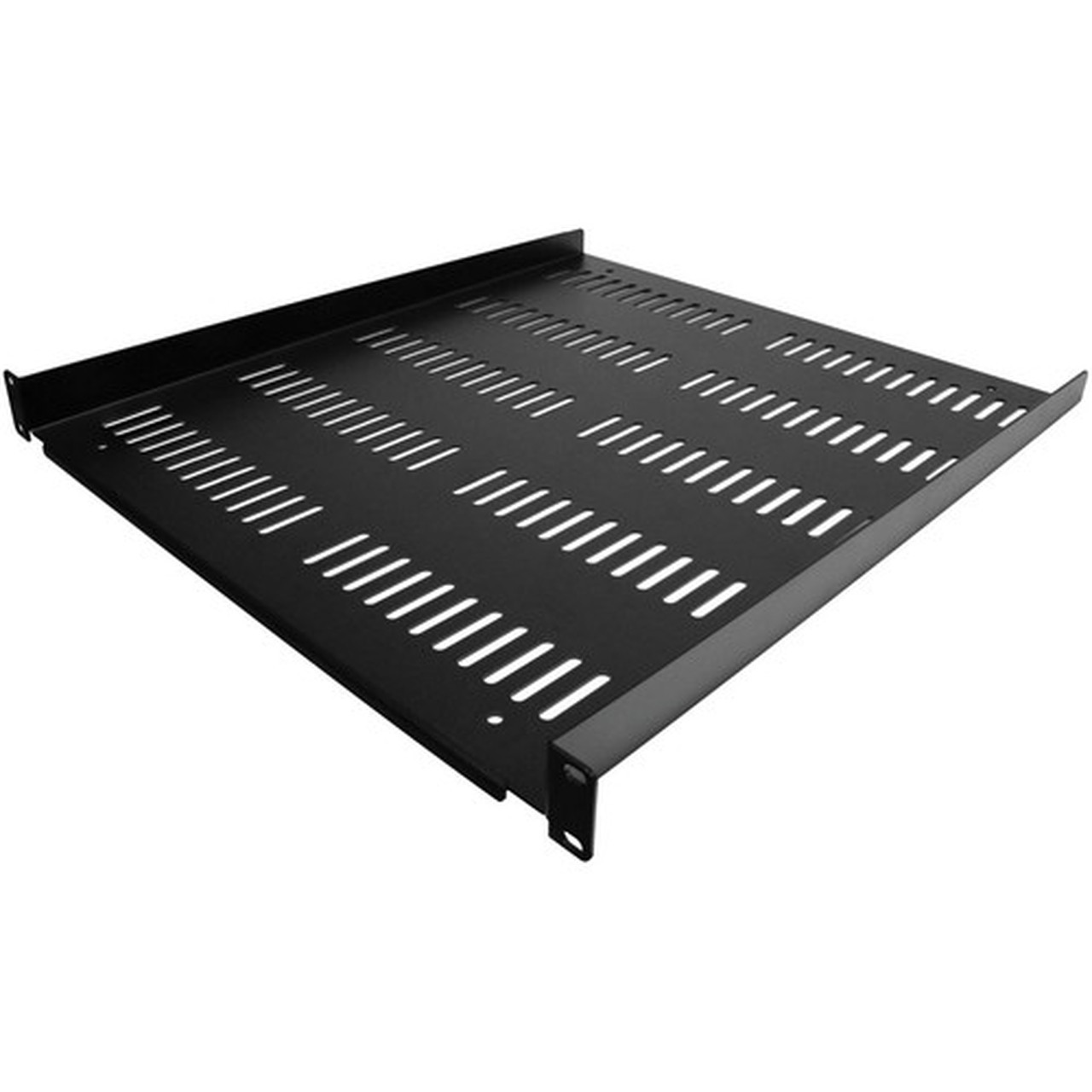

StarTech. com SHELF-1U-20-FIXED-V 1U Vented Server Rack Shelf - Fixed 20" Deep Cantilever Tray for 19" Data/AV/Network Enclosure with Cage Nuts
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This rack shelf is designed for a fixed internal rack depth of 20 inches (508 mm), with a front-mounted cantilever structure that provides easy front access. The shelf width is 19 inches (482.6 mm) to fit standard rack openings, while the internal rack width measures 17.20 inches (436.88 mm). The overall profile is a compact 1U height of 1.70 inches (43.18 mm).
The shelf itself weighs approximately 7.70 lbs (3.49 kg), making it manageable for installation. Its primary technical feature is the vented shelf plate, which is integral to its design for enhancing equipment cooling. The form factor is explicitly rack-mountable, intended for permanent installation in data center, network closet, or AV rack environments.
This section brings together practical product details such as Application/Usage, Features, Form Factor, Product Color, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This shelf delivers practical advantages for IT infrastructure management by solving common mounting challenges and enhancing rack organization.
Universal 19" Fit
Compatible with EIA-310 compliant 19-inch server racks from major brands like APC, Dell, Lenovo, and HPE, ensuring broad deployment flexibility.
- Fits standard 19" rack openings
- 20" internal depth accommodation
Durable Construction
Built from cold-rolled steel with a 55 lb weight capacity, providing a sturdy platform for sensitive or heavier networking and server equipment.
- 2.0 mm thick SPCC steel
- Supports 55 lbs static load
Enhanced Ventilation
The vented shelf plate design allows passive airflow around equipment, aiding in heat dissipation to maintain optimal operating temperatures.
- Promotes equipment cooling
- Reduces heat buildup
Deployment / Use Cases
The SHELF-1U-20-FIXED-V is versatile for organizing and mounting non-rack-mountable equipment in standard server enclosures. Its primary use is providing a stable, accessible platform within a rack for devices that lack direct mounting ears or kits.
Common deployment scenarios include placing modems, routers, or wireless access points that need to be housed in a rack but are not natively rack-mountable. It is equally suitable for A/V equipment, small network switches, or as a handy tray for frequently accessed tools and supplies within a data center or telecom rack. The shelf helps consolidate equipment, reduce clutter, and improve cable management in rack environments.
Network Equipment Mounting
Ideal for routers, modems, and Wi-Fi access points that require a secure, ventilated spot within a server rack.
Server & AV Support
Provides a stable base for smaller servers, audio/video gear, or other IT hardware that benefits from organized rack placement.

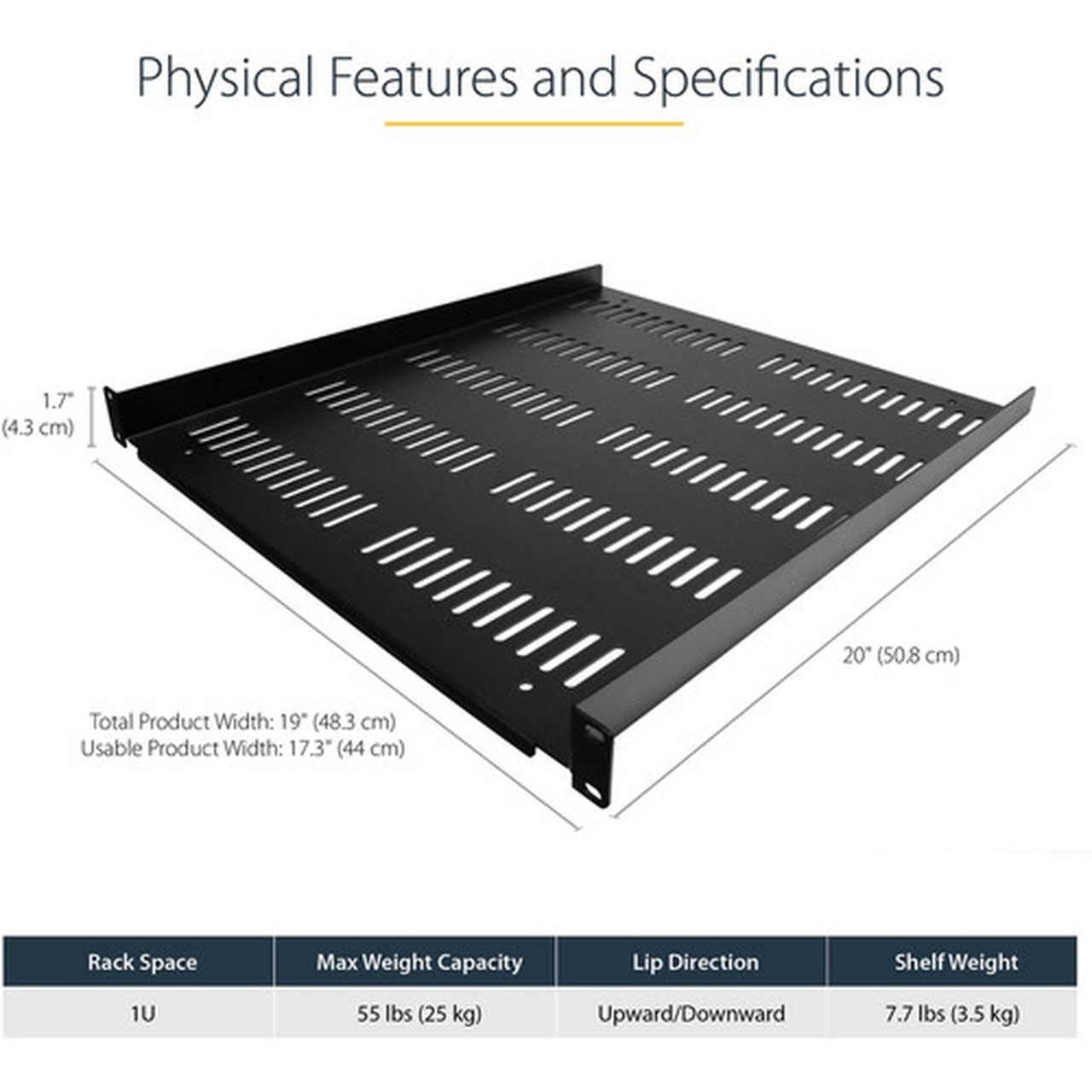

Physical Profile
The shelf features a black finish that blends with standard rack hardware. Its cantilever, front-mounted design means it installs securely at the front of the rack, providing a stable platform that extends inward. The fixed 20-inch depth is optimized for racks with corresponding internal clearance, making it a space-efficient solution. Installation is straightforward using the provided cage nuts and screws, requiring no additional hardware for basic mounting in compatible racks.
- Width
- 19" (482.60 mm)
- Depth
- 20" (508 mm)
- Height
- 1.70" (43.18 mm)
- Weight
- 55.20 lb (25038.30 g)
- Length
- 20" (508 mm)
What's in the Box
The package includes all necessary components for immediate installation into a compatible 19-inch server rack.
Highlights
- Fits EIA-310 compliant 19-inch server racks with 20-inch internal depth
- Constructed from durable 2.0 mm thick SPCC cold-rolled steel
- Supports a static weight capacity of 55 lbs (25 kg)
- Vented shelf plate design enhances airflow for equipment cooling
- Cantilever, front-mounted design for easy front access
- Ideal for modems, routers, wireless access points, and A/V equipment
- Includes M6 cage nuts, screws, washers, and quick-start guide
- Backed by StarTech.com's lifetime warranty and technical support
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | SHELF-1U-20-FIXED-V |
| Brand Name | StarTech.com |
| Product Line | Universal |
| Product Name | Universal Rack Shelf |
| Product Type | Rack Shelf |
| Technical Information | |
| Application/Usage | Server,Networking,A/V Equipment,Modem,Router,Wireless Access Point |
| Features | Vented |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Product Color | Black |
| Product Material | Cold Rolled Steel |
| Static/Stationary Weight Capacity | 55.20 lb (25038.30 g) |
| Height | 1.70" (43.18 mm) |
| Width | 19" (482.60 mm) |
| Length | 20" (508 mm) |
| Rack Height | 1U |
| Rack Width | 17.20" (436.88 mm) |
| Rack Depth | 20" (508 mm) |
| Weight (Approximate) | 7.70 lb (3492.66 g) |
| Miscellaneous | |
| Package Contents | Universal Rack Shelf M6 Square Cage Nuts M6 Cage Screws Plastic Washers Quick-Start Guide |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What rack standards does this shelf comply with?
The StarTech.com SHELF-1U-20-FIXED-V is designed to fit EIA-310 compliant 19-inch server racks. This is the industry standard for data center, networking, and AV rack enclosures, ensuring compatibility with racks from major manufacturers like APC, Dell, Lenovo, and HPE.
What is the weight capacity of this rack shelf?
This vented server rack shelf has a static/stationary weight capacity of 55.20 lbs (approximately 25 kg). It is constructed from 2.0 mm thick cold-rolled steel to provide a sturdy platform for your equipment without sagging or deformation.
How does the vented design benefit my equipment?
The vented shelf plate allows air to circulate around equipment placed on the shelf. This passive airflow helps dissipate heat generated by devices like routers, modems, or small servers, contributing to better thermal management and potentially extending equipment lifespan by preventing overheating.
What equipment is this shelf typically used for?
This shelf is ideal for mounting equipment that isn't natively rack-mountable. Common uses include modems, routers, wireless access points, small network switches, A/V components, or even as a storage tray for tools and supplies within a rack environment. It provides organization and easy access.
What is included in the box for installation?
The package contains the universal rack shelf itself, along with M6 square cage nuts, M6 cage screws, plastic washers, and a quick-start guide. These components provide everything needed to mount the shelf securely into the front of a compatible 19-inch server rack.
What warranty supports this StarTech.com rack shelf?
The SHELF-1U-20-FIXED-V is backed by a lifetime limited warranty from StarTech.com. This warranty coverage includes access to free lifetime 24/5 multi-lingual technical assistance, providing long-term support for your installation and use.
What performance, throughput, or capacity detail stands out?
The listed power specification is 55.20 lb (25038.30 g), which helps position the unit for the right load level and installation role.
