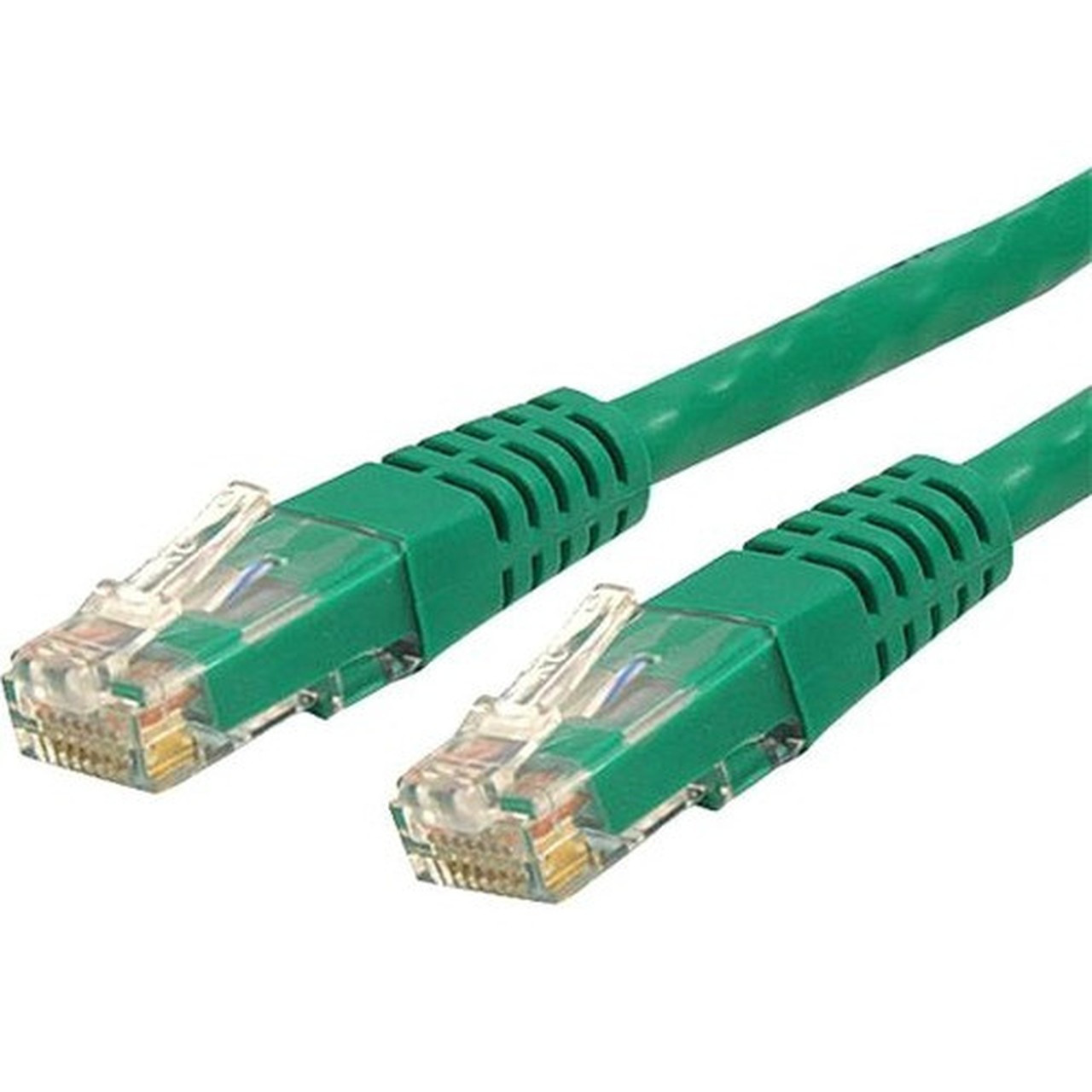

StarTech. com C6PATCH20GN StarTech 20ft CAT6 Ethernet Patch Cable - Green Molded UTP - 10Gbps 250MHz - 100W PoE++ - Snagless Boot
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This CAT6 patch cable operates at 250MHz frequency with 100% copper 24 AWG stranded conductors, supporting multi-gigabit connections up to 10Gbps at distances up to 160 feet. The cable is ETL verified to meet ANSI/TIA-568.2-D Category 6 standards and features UL rated wiring (E132276-A) for safety compliance.
The 50-micron gold-plated connectors prevent corrosion and ensure consistent signal transmission, while the molded strain relief design enhances cable durability. With 4-pair UTP construction and ANSI/T568B wiring, this cable maintains backward compatibility with CAT5e networks while delivering superior performance for current and future network requirements.
This section brings together practical product details such as Cable Type, Cable Characteristic, Cable Length, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This StarTech patch cable combines high-speed performance with robust construction for reliable network infrastructure. The comprehensive feature set addresses common installation challenges while ensuring long-term reliability in diverse deployment environments.
Enhanced Power Delivery
Supports up to 100W Power over Ethernet (PoE++) for devices like VoIP phones, security cameras, and access points, with IEEE 802.3bt compliance reducing cable heating.
- 100W PoE++ support
- IEEE 802.3bt compliant
- Reduced cable heating
Durable Construction
Molded strain relief and high-quality PVC jacket resist bending, fraying, and environmental damage, while gold-plated connectors prevent corrosion for consistent performance.
- Molded strain relief
- Corrosion-resistant connectors
- Damage-resistant jacket
Simplified Installation
Snagless boots prevent accidental disconnection in crowded panels, while the flexible design facilitates routing through conduits and cable management systems.
- Snagless boot design
- Easy conduit installation
- High-density panel compatible
Deployment / Use Cases
This versatile CAT6 patch cable serves multiple roles in modern network infrastructure, from connecting workstations and network devices to supporting power-hungry PoE applications. The 20-foot length provides flexibility for various installation scenarios while maintaining signal integrity.
Ideal for connecting VoIP phones, security cameras, access points, and other PoE devices to network switches or distribution panels. The green color facilitates easy cable identification in complex installations, while the CMG-rated jacket makes it suitable for in-wall and plenum spaces where required.
Office Network Infrastructure
Connect workstations, printers, and network devices in commercial environments with reliable 10Gbps performance and PoE support for connected devices.
Security & Surveillance Systems
Power and connect IP cameras, access control systems, and security devices with 100W PoE++ capability and durable construction for continuous operation.
Physical Profile
This green patch cable features a distinctive color for easy identification in cable management systems. The 20-foot length provides ample reach for most installation scenarios while maintaining optimal signal performance. Weighing approximately 8.80 ounces (249.48 grams), the cable offers a balanced combination of length and manageability for professional installations.
- Weight
- 8.80 oz (249.48 g)
- Length
- 20 ft (6.10 m)
Highlights
- 20-foot CAT6 Ethernet patch cable with 10Gbps data transfer capability
- RJ45 male connectors with 50-micron gold plating for corrosion resistance
- Supports up to 100W Power over Ethernet (PoE++) for connected devices
- ETL verified to meet ANSI/TIA-568.2-D Category 6 standards
- 24 AWG stranded copper conductors with 4-pair UTP construction
- Molded snagless boots prevent accidental disconnection in dense panels
- CMG-rated PVC jacket resists bending, fraying, and environmental damage
- Green color facilitates easy cable identification in complex installations
- Backward compatible with CAT5e networks and equipment
- Lifetime warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | C6PATCH20GN |
| Brand Name | StarTech.com |
| Product Name | 20ft Green Cat6 UTP Patch Cable ETL Verified |
| Packaged Quantity | 1 Each |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Category 6 |
| Cable Characteristic | Patch Cable |
| Cable Length | 20 ft (6.10 m) |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Connector Plating | Gold |
| Jacket Type | CMG |
| Device Supported | Network Device,Workstation,Wall Outlet,VoIP Device,Security Device,Hub,Distribution Panel |
| American Wire Gauge | 24 AWG |
| Data Transfer Rate | 10 Gbit/s |
| Boot Type | Snagless |
| Features | Molded,PoE,Strain Relief,Damage Resistant,Corrosion Resistant,Stranded,PoE++,Fray Resistant,Rust Resistant,Bend Resistant |
| Physical Characteristics | |
| Color Family | Green |
| Product Color | Green |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Weight (Approximate) | 8.80 oz (249.48 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the maximum data transfer speed of this CAT6 cable?
This StarTech CAT6 patch cable supports data transfer rates up to 10 Gbps, making it suitable for multi-gigabit network applications. It maintains this performance at distances up to 160 feet while being backward compatible with 1Gbps, 2.5Gbps, and 5Gbps network equipment for flexible deployment in existing and new infrastructure.
Does this Ethernet cable support Power over Ethernet?
Yes, this cable supports up to 100W Power over Ethernet (PoE++) with IEEE 802.3bt compliance. The 24 AWG stranded copper conductors and UL rated wiring (E132276-A) ensure safe power delivery to PoE devices like VoIP phones, security cameras, and wireless access points while reducing cable heating for improved reliability.
What type of connectors does this patch cable have?
Both ends feature RJ45 male connectors with 50-micron gold plating for optimal conductivity and corrosion resistance. The connectors include snagless boots that prevent accidental disconnection in high-density patch panels while making installation and removal easier in crowded network environments.
Is this cable compatible with existing CAT5e equipment?
Yes, this CAT6 patch cable is fully backward compatible with CAT5e networks and equipment. It maintains ANSI/T568B wiring standards and can be used to upgrade connections while preserving existing infrastructure, providing a cost-effective path to higher network performance without replacing all network components.
What certifications does this Ethernet cable have?
This cable is ETL verified to meet ANSI/TIA-568.2-D Category 6 standards and features UL certified wiring. It also complies with environmental regulations including RoHS, REACH, and WEEE directives, ensuring it meets industry standards for performance, safety, and environmental responsibility in commercial deployments.
What is the jacket rating and why does it matter?
The cable features a CMG-rated PVC jacket that provides protection against bending, fraying, and environmental factors. This rating indicates suitability for general purpose use with some riser applications, making it appropriate for most office and commercial environments while offering durability for long-term reliability in network installations.
