- Color coded for both T568A and T568B installations
- Terminated using 110-type punch tool
- Supports both Cat5e and Cat6 cables
- Writable and erasable marking surfaces for each port
- Meeting the ANSI/TIA-568-C.2 Category 6, ISO/IEC11801 and EN50173-1 specification

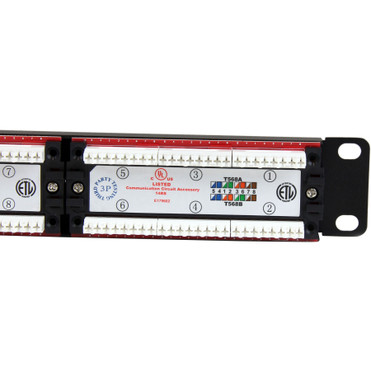

Marketing Information: The C6PANEL24 24-port 110-type Rack Mount Cat 6 Patch Panel is color coded for both T568A and T568B wiring providing the perfect solution for any voice or LAN application.
For hassle-free connections, the patch panel offers straight Cat 6 ports with 110-type termination, making it easy to insert and remove your cables. The 24-port patch panel also offers a quick and easy way to identify your cable runs, with port numbers clearly marked on the back of each RJ45 port, and a writeable/erasable marking surface for each port on the front of the panel for efficient system management.
Total Number of Ports: 24Number of Network (RJ-45) Ports: 24Number of RJ-11 Ports: 24Color: BlackForm Factor: Rack-mountableCompatible Rack Unit: 1UCompatible Rack Width: 19"Weight (Approximate): 606.7 gPackage Contents: - 24 Port 1U Rackmount Cat 6 110 Patch Panel
- 4 x M6 Screws
- 4 x M5 Screws
Environmentally Friendly: YesEnvironmental Certification: Limited Warranty: 2 Year
[custom-specifications]
SpecificationsManufacturer: StarTech.com
Manufacturer Part Number: C6PANEL24
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: 24 Port 1U Rackmount Cat 6 110 Patch Panel
Product Type: Network Patch Panel
Interfaces/PortsTotal Number of Ports: 24
Number of Network (RJ-45) Ports: 24
Number of RJ-11 Ports: 24
Physical CharacteristicsColor: Black
Form Factor: Rack-mountable
Compatible Rack Unit: 1U
Compatible Rack Width: 19"
Weight (Approximate): 606.7 g
MiscellaneousPackage Contents:
- 24 Port 1U Rackmount Cat 6 110 Patch Panel
- 4 x M6 Screws
- 4 x M5 Screws
Environmentally Friendly: Yes
Environmental Certification:
WarrantyLimited Warranty: 2 Year
[/custom-specifications]
