Tripp Lite by Eaton SMART2200RMXL2U SmartPro 1950VA Line-Interactive UPS - 2U Rack/Tower - 120V AC - 4 Min Full Load Runtime - Pure Sine Wave
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The Tripp Lite SmartPro SMART2200RMXL2U is a 1950VA line-interactive UPS engineered for protecting critical IT infrastructure in data centers, server rooms, and network closets. This 2U rack-mountable unit delivers reliable power conditioning and battery backup to servers, storage arrays, switches, and other sensitive equipment during power disturbances.
With a unity power factor design, this UPS provides maximum usable power at its full 1950VA/1950W rating. The pure sine wave output ensures compatibility with active PFC power supplies found in modern servers and networking gear. ENERGY STAR 2.0 certification confirms energy-efficient operation that reduces electricity costs while maintaining environmental responsibility.
The unit features a 10-foot power cord with a NEMA 5-20P plug and seven NEMA outlets: six NEMA 5-20R and one NEMA L5-20R. This configuration supports multiple devices while maintaining proper power distribution for rack-mounted servers, storage systems, and network switches. The line-interactive topology provides 4ms transfer time to maintain continuous operation during voltage fluctuations and outages.

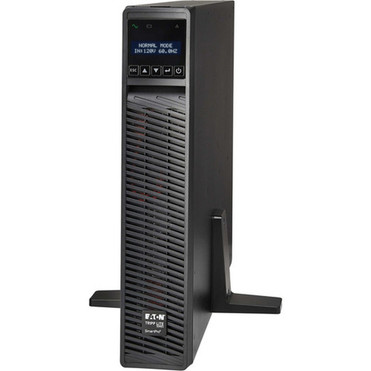

Designed for both rack and tower installations, the SMART2200RMXL2U includes all necessary mounting hardware and tower support stands. Its 2U form factor optimizes rack space while delivering robust power protection for IT environments where reliable backup power is essential for business continuity and equipment safety.
Technical Overview
This line-interactive UPS operates with a 4ms typical transfer time, maintaining continuous power to connected equipment during voltage fluctuations and outages. The 72V DC battery system uses valve-regulated lead-acid chemistry and supports hot-swappable replacement for minimal downtime during maintenance. The battery provides 4 minutes of runtime at full 1950W load and extends to 12 minutes at half load, with a 4.5-hour typical recharge time after complete discharge.
The front panel features a comprehensive 2-line LCD display with 10 selectable screens that report detailed UPS status, site power quality metrics, and battery information. Five LED indicators provide at-a-glance status for power, voltage correction, battery charge, output load, and battery warnings. The display shows real-time voltage, frequency, load percentage, and remaining runtime for complete situational awareness.
Network management capabilities include SNMP/Web protocols accessible through the built-in USB and serial ports. For advanced remote monitoring and control, the optional WEBCARDLXE card is required. The UPS supports remote shutdown, UPS startup, power failure, overload, UPS fault, and low battery alarms through these management interfaces. The EPO (Emergency Power Off) port adds safety functionality for critical environments.
Power quality protection includes 380 joules of surge energy rating and pure sine wave output that maintains compatibility with sensitive electronic equipment. The output power factor of 1 ensures maximum power delivery efficiency, while the single-phase design operates at 60Hz output frequency. Environmental specifications include operation from 32°F to 104°F (0°C to 40°C) and storage from 5°F to 122°F (-15°C to 50°C), with maximum operating elevation of 10,000 feet.
Key Product Advantages
The SMART2200RMXL2U combines robust power protection with flexible deployment options and comprehensive monitoring capabilities. Its 2U rack-mount design with included tower conversion hardware allows installation in both rack and standalone configurations.
Comprehensive Power Protection
Protects connected equipment against blackouts, brownouts, transient surges, and line noise while maintaining operation during outages for safe shutdown procedures.
- Line-interactive topology
- Pure sine wave output
- 380J surge protection
Advanced Monitoring & Control
The integrated LCD display and multiple communication ports enable local and remote monitoring of UPS status and power conditions.
- 2-line LCD with 10 screens
- SNMP/Web management
- USB and serial connectivity
Flexible Deployment
Designed for both rack and tower installations with included mounting hardware and tower stands for versatile deployment in any IT environment.
- 2U rack-mountable
- Tower conversion included
- 7 total outlets
Deployment / Use Cases
The SMART2200RMXL2U is specifically designed for protecting critical IT infrastructure where reliable power is non-negotiable. Its 1950VA capacity and rack-optimized form factor make it ideal for server rooms, network closets, and data center edge deployments.
This UPS supports a wide range of equipment including rack-mounted servers, network switches, storage arrays, and communication systems. The seven NEMA outlets (six 5-20R and one L5-20R) provide flexibility for connecting multiple devices while maintaining proper power distribution.
Relevant product facts for this section include Plug/Connector Type: NEMA 5-20P, Receptacle Type: NEMA L5-20R,NEMA 5-20R, Receptacle Detail: 6 x NEMA 5-20R,1 x NEMA L5-20R, Load Capacity (VA): 1.95 kVA. When those details are considered together, they give buyers a clearer picture of how the product is equipped, how it connects, and what kind of day-to-day role it is meant to support.
Server Room Protection
Provides essential runtime for 1-2 rack servers and associated networking equipment to complete file saves and initiate proper shutdown procedures during power failures.
Network Infrastructure Support
Maintains operation of switches, routers, and communication equipment to preserve network connectivity during brief power interruptions.
Physical Profile

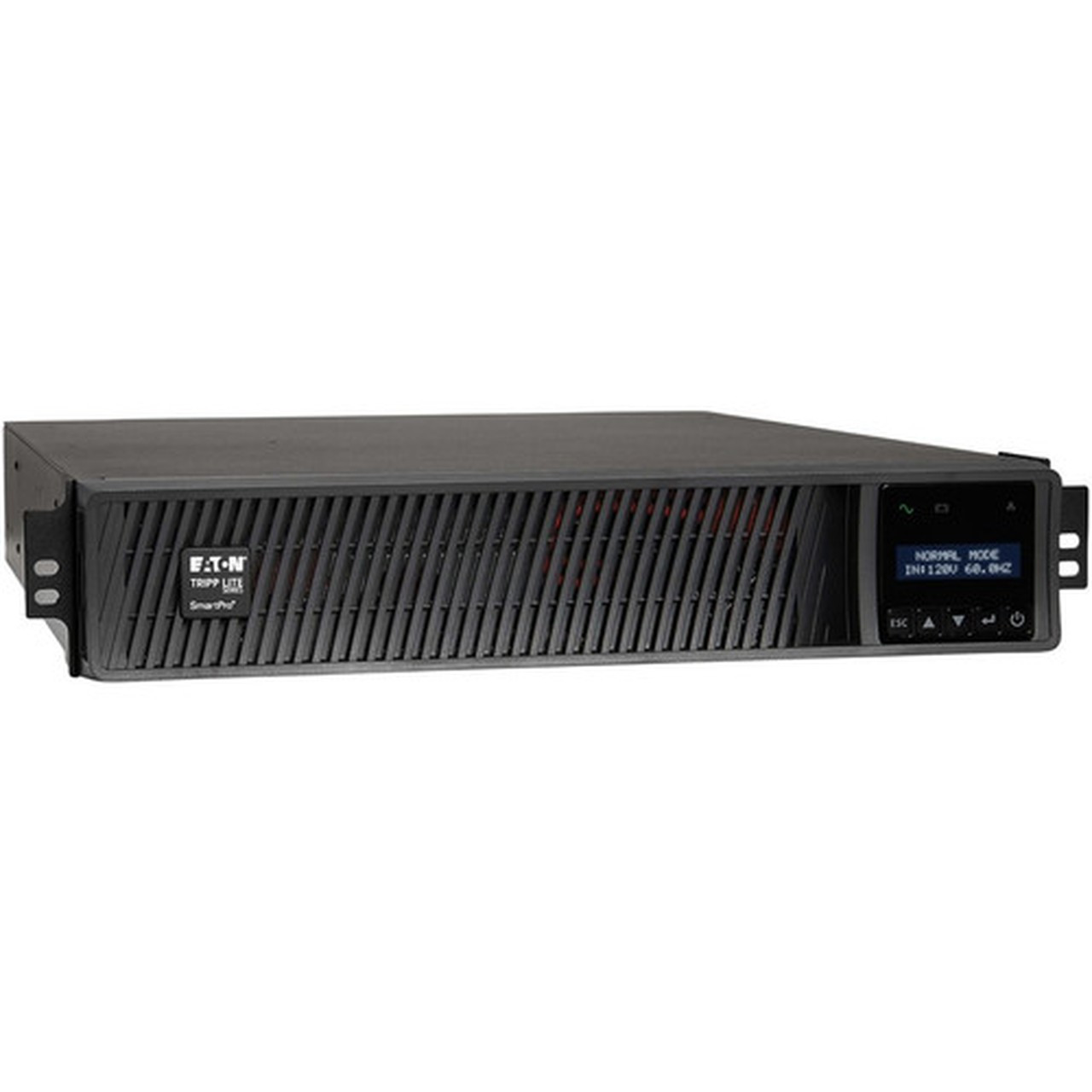

The SMART2200RMXL2U features a compact 2U rack-mount design measuring 3.39" (86mm) high, 17.20" (437mm) wide, and 23.70" (602mm) deep. With a weight of 65.3 lb (29.6 kg), the unit includes both rack-mounting hardware and tower support stands for flexible installation options.

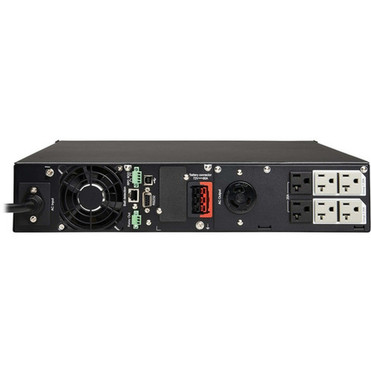

The front panel provides clear status indicators and an intuitive LCD interface, while the rear panel houses all power connections and communication ports. The 10-foot power cord offers sufficient reach for typical rack installations.
- Width
- 17.20" (437 mm)
- Depth
- 23.70" (602 mm)
- Height
- 3.39" (86 mm)
- Weight
- 65.30 lb (29619.58 g)
- Length
- 10 ft (3.05 m)
What's in the Box
The package includes everything needed for immediate deployment in either rack or tower configuration.
Highlights
- 1950VA/1950W line-interactive UPS with pure sine wave output
- Provides 4 minutes runtime at full load, 12 minutes at half load
- 2U rack-mountable design with included tower conversion hardware
- 2-line LCD display with 10 selectable status screens
- SNMP/Web management capability for remote monitoring
- Seven total outlets (6x NEMA 5-20R, 1x NEMA L5-20R)
- Hot-swappable battery for maintenance without downtime
- ENERGY STAR 2.0 certified for energy efficiency
- 4.5-hour typical battery recharge time
- 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SMART2200RMXL2U |
| Brand Name | Tripp Lite series |
| Product Line | SmartPro |
| Product Model | SMART2200RMXL2UÂ |
| Product Name | SmartPro SMART2200RMXL2U 1950VA Rack/Tower UPS |
| Packaged Quantity | 1 Each |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA L5-20R,NEMA 5-20R |
| Receptacle Detail | 6 x NEMA 5-20R,1 x NEMA L5-20R |
| Overload Protection | Yes |
| Cord Length | 10 ft (3.05 m) |
| Transfer Time | 4 ms |
| Phase | Single Phase |
| Application/Usage | Data Storage,Server,Switch,IT Equipment |
| Power Description | |
| Load Capacity (VA) | 1.95 kVA |
| Load Capacity (Watt) | 1.95 kW |
| Input Voltage | 120 V AC |
| Output Voltage | 100 V AC,110 V AC,115 V AC,120 V AC |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 380 J |
| Output Power Factor | 1 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | SNMP/Web |
| Alarm | Remote Shutdown,UPS StartUp,Power Failure,Overload,UPS Fault,Low Battery |
| Controls/Indicators | |
| Status Indicators | 5 Front Panel Leds: Green Power Led Green Voltage Correction Led 3 Color Battery Charge Led 3 Color Output Load Led Red Battery Warning Led |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| DC System Voltage | 72 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 4 Minute |
| Backup/Run Time (Half Load) | 12 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 4.50 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 32808 ft (9999878.40 mm) |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Physical Characteristics | |
| Height | 3.39" (86 mm) |
| Width | 17.20" (437 mm) |
| Depth | 23.70" (602 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 65.30 lb (29619.58 g) |
| Miscellaneous | |
| Package Contents | SmartPro SMART2200RMXL2U 1950VA Rack/Tower UPS USB Cable DB9 Cable Rack-mounting Hardware Tower support Stands Safety Instructions Advanced User Guide |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this UPS?
The Tripp Lite SmartPro SMART2200RMXL2U delivers 1.95 kVA (1950VA) and 1.95 kW (1950W) of power capacity. This unity power factor design ensures maximum usable power at the full rating, making it suitable for protecting servers, storage arrays, and network equipment in rack or tower configurations.
What runtime does this UPS provide at different load levels?
At full 1950W load, the UPS provides 4 minutes of battery backup runtime. At half load (975W), runtime extends to 12 minutes. These runtimes allow sufficient time for safe shutdown procedures of connected equipment during power outages.
How many outlets does this UPS have and what types?
This UPS features seven NEMA outlets: six NEMA 5-20R outlets and one NEMA L5-20R outlet. This configuration supports multiple devices while maintaining proper power distribution for rack-mounted servers, storage systems, and network switches.
What input and output voltage specifications does this UPS support?
The UPS accepts 120V AC input and provides output voltage ranging from 100V AC to 120V AC. This pure sine wave output maintains compatibility with active PFC power supplies found in modern servers and networking equipment.
Is this UPS designed for rack or tower deployment?
The SMART2200RMXL2U features a flexible 2U rack/tower form factor. It includes both rack-mounting hardware and tower support stands, allowing installation in either configuration to suit different IT environments and space requirements.
What management and connectivity options are available?
Network management includes SNMP/Web protocols accessible through built-in USB and serial ports. The front panel features a 2-line LCD display with 10 selectable screens for detailed status monitoring. For advanced remote monitoring and control, the optional WEBCARDLXE card is required.
