StarTech. com HDMI-SPLITTER-44K60S 4-Port HDMI Splitter - 4K 60Hz HDMI 2. 0b - 1 x 4 - Built-in Scaler - HDR - HDCP 2. 2
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This splitter leverages HDMI 2.0b technology with an 18Gbps bandwidth to handle 4K UHD video at 60Hz with HDR10 metadata. It ensures content protection compatibility through HDCP 2.2 and 1.4 support, making it suitable for both modern and legacy protected media sources.
Audio distribution is comprehensive, supporting multi-channel 7.1ch HDMI audio pass-through. Additionally, it provides simultaneous 3.5mm analog and TOSLINK optical audio outputs, featuring a built-in Digital-to-Analog Converter (DAC) for connecting to external speaker systems or amplifiers without requiring a separate audio extractor.
This section brings together practical product details such as Maximum Video Resolution, HDMI In, HDMI Out, USB, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The integrated EDID management switch is a standout feature, offering two operational modes. EDID Auto utilizes the built-in scaler to output two different resolutions simultaneously, ideal for mixed display environments. EDID Copy mode clones the EDID data from the primary display to all others, ensuring uniform resolution output for simplified setup and consistent image quality across identical screens.
Extended Cable Reach
Supports passive HDMI cables up to 5 meters (16.4 ft). For longer distances, it is compatible with active HDMI cables and HDMI extenders, enabling flexible installation layouts in large venues.
- Up to 5m with passive cables
- Compatible with active cables/extenders
Robust Protection & Compatibility
Features 8kV air and 4kV contact ESD protection for enhanced durability. It supports widescreen resolutions and is DVI-compatible when used with a passive HDMI-to-DVI adapter (sold separately).
- ESD Protection
- DVI Compatible
- Widescreen Support
Deployment / Use Cases
This splitter is ideal for commercial and professional AV installations where consistent, high-quality video needs to be mirrored across multiple displays. Its plug-and-play operation requires no drivers or software, enabling quick deployment and reducing setup complexity.
Common applications include digital signage networks in retail stores or airports, video walls in control rooms, presentation systems in boardrooms and lecture halls, and product demonstration setups in trade shows or showrooms. The metal housing and wide input voltage range (120-230V AC) make it suitable for rack-mounted or discreet installations in varied electrical environments.
Digital Signage & Retail
Perfect for driving multiple advertising or informational displays from a single media player, ensuring synchronized content playback across a store or venue.
Corporate & Education
Enhances presentations and training sessions by duplicating the main source to every screen in a conference room or classroom, ensuring all attendees have a clear view.

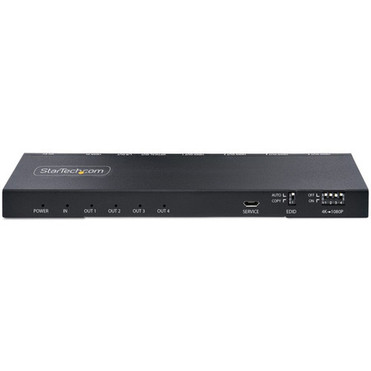

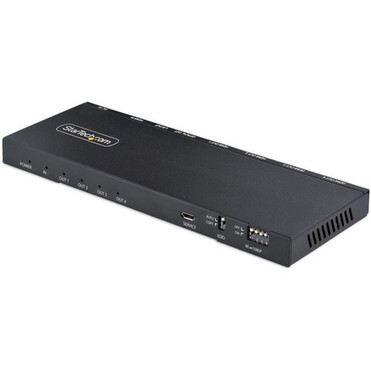

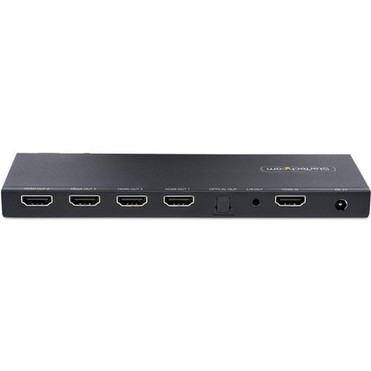

Physical Profile
Housed in a compact, all-metal chassis measuring 7.10 inches in length, 2.40 inches in width, and 0.60 inches in height, the splitter offers a durable and discreet form factor. The metal construction not only protects internal components but also aids in heat dissipation for sustained performance. Weighing approximately 8.6 ounces, it is lightweight yet sturdy, suitable for desktop use or secure mounting within an AV rack using optional mounting hardware.
- Width
- 2.40" (60.96 mm)
- Height
- 0.60" (15.24 mm)
- Weight
- 8.60 oz (243.81 g)
- Length
- 7.10" (180.34 mm)
What's in the Box
The package includes all essential components for immediate operation.
Package contents include 4-port HDMI Video Splitter, 1 x Power Adapter, 1 x User Manual. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Duplicates 4K 60Hz HDR video and audio to four displays simultaneously.
- HDMI 2.0b with 18Gbps bandwidth for full 4:4:4 chroma at 4K resolution.
- Built-in scaler with EDID Auto and EDID Copy management modes.
- Flexible audio outputs: HDMI, 3.5mm analog, and Optical (TOSLINK).
- Supports HDCP 2.2/1.4 for protected content playback.
- Robust metal enclosure with ESD protection (8kV air / 4kV contact).
- Plug-and-play setup; no drivers or software required.
- Wide input voltage range (120-230V AC) for global use.
- Compatible with passive cables up to 5m and active extenders.
- Backed by a 2-year limited warranty and RoHS/WEEE compliance.
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | HDMI-SPLITTER-44K60S |
| Brand Name | StarTech.com |
| Product Name | 4-port HDMI Video Splitter |
| Packaged Quantity | 1 |
| Product Type | Signal Splitter |
| Video | |
| Maximum Video Resolution | 3840 × 2160 |
| Interfaces/Ports | |
| HDMI In | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 4 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |
| Product Material | Metal |
| Height | 0.60" (15.24 mm) |
| Width | 2.40" (60.96 mm) |
| Length | 7.10" (180.34 mm) |
| Weight (Approximate) | 8.60 oz (243.81 g) |
| Miscellaneous | |
| Package Contents | 4-port HDMI Video Splitter 1 x Power Adapter 1 x User Manual |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the maximum resolution and refresh rate this splitter supports?
The StarTech.com HDMI-SPLITTER-44K60S supports a maximum video resolution of 3840 x 2160 (4K UHD) at a refresh rate of 60Hz. It utilizes the HDMI 2.0b standard with 18Gbps bandwidth to ensure high-quality video transmission with support for HDR content.
How many displays can I connect to this HDMI splitter?
This is a 1x4 HDMI splitter. It has one HDMI input port and four HDMI output ports, allowing you to connect one source device (like a computer, media player, or gaming console) and duplicate its signal to up to four identical displays or monitors simultaneously.
Does this splitter support audio, and what audio output options are available?
Yes, it supports full audio pass-through. It can transmit multi-channel 7.1ch audio via HDMI. Additionally, it provides separate 3.5mm analog and TOSLINK optical audio output ports, which can be used simultaneously. A built-in DAC (Digital-to-Analog Converter) allows for digital-to-analog audio conversion through the 3.5mm port.
What is EDID management and how does it work on this device?
EDID (Extended Display Identification Data) is information a display sends to a source about its capabilities. This splitter features an EDID management switch with two modes: 'EDID Auto' uses the built-in scaler to output two different resolutions, helpful for mixed displays. 'EDID Copy' clones the EDID from the display on output port 1 to all other outputs, forcing a single, uniform resolution (720p or higher) for consistent output across identical screens.
What is the maximum cable length I can use with this splitter?
Using standard passive HDMI cables, the splitter reliably supports distances up to 5 meters (approximately 16.4 feet). For installations requiring longer cable runs, the device is fully compatible with active HDMI cables and HDMI extender kits, which are purchased separately, allowing for significantly extended reach in large venues.
Is this splitter compatible with DVI monitors or older HDMI devices?
Yes, it offers backward compatibility. For DVI monitors, you can use a passive HDMI-to-DVI adapter (sold separately) on the output ports. The splitter also supports HDCP 1.4 content protection, ensuring compatibility with older Blu-ray players, set-top boxes, and other legacy HDMI sources that use this standard.
What resolution or display format is specified?
It features a display specification of 3840 × 2160, giving you clear visuals for work and media use.
What refresh rate or brightness details are available?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
