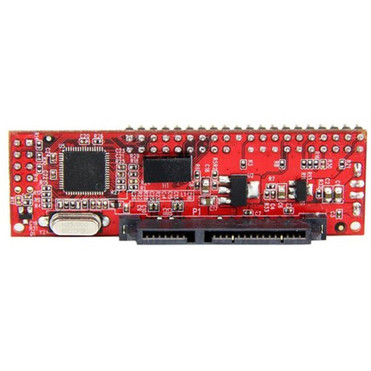

StarTech.com IDE2SAT2 40-Pin IDE PATA to SATA Adapter Converter for HDD/SSD/ODD - Hardware Solution with LP4 Power Cable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This adapter complies with SATA revision 1.0 specifications and supports SATA I, II, and III interfaces, accommodating data transfer rates up to 6Gbps. It maintains compatibility with the Ultra ATA 133 standard and implements 48-bit Logical Block Addressing (LBA) for handling large-capacity drives efficiently.
The unit includes an LP4 Molex to SP4 power cable, delivering necessary power to connected SATA devices without requiring additional adapters. Its all-hardware design eliminates driver dependencies, ensuring plug-and-play functionality across various operating environments.
Relevant factors for this section include Color Family, Product Color, Product Material, Package Contents. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The IDE2SAT2 adapter extends the lifespan of legacy systems by enabling modern SATA storage devices to integrate seamlessly. Its support for multiple drive types and sizes provides flexibility for diverse upgrade scenarios, from adding faster SSDs to replacing failed optical drives.
Hardware-Only Simplicity
No software or drivers are needed, reducing setup time and compatibility issues across different operating systems.
- Plug-and-play installation
- Eliminates driver conflicts
- Works with any OS supporting IDE/ATA
Broad Device Support
Connects SATA hard drives, SSDs, and optical drives including Blu-ray, DVD, and CD-ROM units to IDE interfaces.
- HDD and SSD compatibility
- Optical drive support
- Multiple form factor accommodation
Deployment / Use Cases
This adapter is particularly valuable for maintaining or upgrading older computers, industrial control systems, point-of-sale terminals, and specialized equipment that still utilize IDE/ATA interfaces. It allows organizations to leverage modern SATA storage technology without replacing entire systems, offering a cost-effective path to improved performance and capacity.
Common applications include replacing failing IDE hard drives with reliable SATA SSDs in legacy servers, adding Blu-ray or DVD drives to older workstations for media playback or archival, and integrating modern storage into vintage gaming consoles or audio/video editing rigs. The adapter's compact size makes it suitable for space-constrained enclosures while its robust construction ensures durability in continuous operation environments.
Relevant factors for this section include Color Family, Product Color, Product Material, Package Contents. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
Measuring just 3 inches in length, 0.80 inches in width, and 0.90 inches in height, the adapter has a minimal footprint that fits easily within most computer cases. Its black plastic and steel construction provides durability while maintaining a neutral aesthetic that blends with various system interiors. The lightweight design at approximately 1 ounce ensures it doesn't strain motherboard connections or require additional support.
- Width
- 0.80" (20.32 mm)
- Height
- 0.90" (22.86 mm)
- Weight
- 1 oz (28.35 g)
- Length
- 3" (76.20 mm)
What's in the Box
Each package includes the complete hardware solution for connecting SATA devices to IDE interfaces.
Highlights
- Connect SATA devices to IDE/ATA motherboards or controller cards
- Hardware solution requires no software installation
- Supports 48-bit Logical Block Addressing (LBA)
- Compliant with SATA revision 1.0 specification
- Supports SATA I/II/III (1.5/3/6Gbps) drives
- Compatible with Ultra ATA 133 specification
- Works with 2.5", 3.5", and 5.25" SATA drives
- ODD support includes Blu-ray, DVD, and CD-ROM drives
- Includes LP4 Molex to SP4 power cable
- Backed by 2-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | IDE2SAT2 |
| Brand Name | StarTech.com |
| Product Name | 40-Pin IDE PATA to SATA Adapter Converter for HDD/SSD/ODD |
| Packaged Quantity | 1 Each |
| Product Type | IDE to SATA Adapter |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Plastic,Steel |
| Height | 0.90" (22.86 mm) |
| Width | 0.80" (20.32 mm) |
| Length | 3" (76.20 mm) |
| Weight (Approximate) | 1 oz (28.35 g) |
| Miscellaneous | |
| Package Contents | 40-Pin IDE PATA to SATA Adapter Converter for HDD/SSD/ODD 1 x LP4 Molex to SP4 Power Cable 1 x Instruction Manual |
| Certifications & Standards | CE FCC |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What types of drives does this IDE to SATA adapter support?
The StarTech.com IDE2SAT2 adapter supports SATA hard disk drives (HDDs), solid-state drives (SSDs), and optical disk drives (ODDs) including Blu-ray, DVD, and CD-ROM units. It accommodates 2.5", 3.5", and 5.25" form factors, providing broad compatibility for various storage devices in legacy systems.
Does this adapter require software or drivers to work?
No, this is a hardware-only solution that requires no software installation or drivers. The adapter functions as a physical interface converter between IDE and SATA connections, making it plug-and-play compatible with any operating system that supports standard IDE/ATA controller functionality.
What SATA speeds does the IDE2SAT2 adapter support?
This adapter supports SATA I (1.5Gbps), SATA II (3Gbps), and SATA III (6Gbps) interfaces, ensuring compatibility with modern SATA drives regardless of their maximum transfer rates. It complies with SATA revision 1.0 specifications while maintaining backward compatibility with older SATA standards.
Is this adapter compatible with Ultra ATA/133 motherboards?
Yes, the IDE2SAT2 adapter is fully compatible with the Ultra ATA 133 specification. It supports 48-bit Logical Block Addressing (LBA) for handling large-capacity drives and maintains proper signaling for reliable data transfer between SATA devices and IDE/ATA controllers operating at up to 133MB/s.
What power connection does this adapter require?
The adapter includes an LP4 Molex to SP4 power cable that connects to standard 4-pin Molex power connectors from your power supply unit. This provides the necessary power to connected SATA devices without requiring additional adapters or modifications to your system's power delivery.
What certifications and environmental standards does this product meet?
The StarTech.com IDE2SAT2 adapter carries CE and FCC certifications for electromagnetic compatibility and safety. It complies with EU RoHS (Restriction of Hazardous Substances) directives, REACH chemical regulations, and WEEE (Waste Electrical and Electronic Equipment) requirements, making it suitable for use in environmentally conscious organizations and regions with strict compliance standards.
