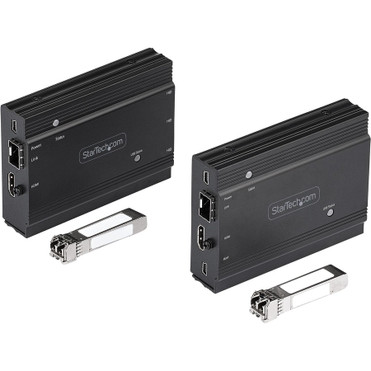

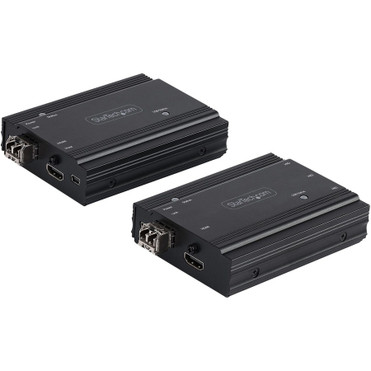

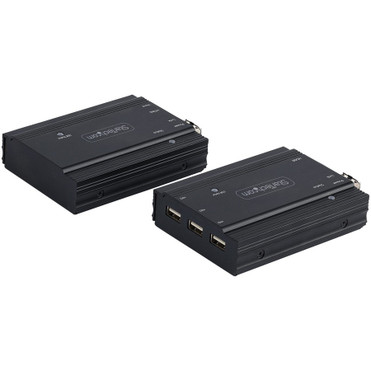

StarTech.com 4K HDMI KVM Extender over Fiber, HDMI Video & USB over Fiber, up to 984ft/300m (MultiMode), 10G MMF SFP+ Modules - HDMI a (SV565FXHD4KU)

(No reviews) Write a Review
$1,032.99
$1,026.50
(You save $6.49 )
SKU: SV565FXHD4KU
UPC: 65030887694
Weight: 2.30 LBS
Adding to cart… The item has been added
  • REMOTE ACCESS: USB & 4K HDMI KVM extender over fiber controls a KVM switch/console or PC using a fiber optic cable at distances up to 984'/300m (multimode cable) or 1,640'/500m (single mode cable); open SFP+ slots for use w/ MSA compliant 10G SFP+ modules
  • 4K 60Hz VIDEO: HDMI transmitter and receiver extender kit achieves UHD resolutions up to 3840 x 2160 @ 60Hz, supporting 4:4:4 image sampling for accurate color & image for applications requiring high resolution video like digital signage & security
  • DIGITAL AUDIO & HDMI 2.0 VIDEO: Keyboard Video Mouse Extender with EDID passthrough transfers display capabilities to the video source, maximizing compatibility between devices; Digital 7.1 surround audio over HDMI for high quality sound; HDCP 2.2 support
  • SPECS: HDMI 2.0 Fiber Optic KVM Extender | 3x USB 1.1 HID | OS Independent | EDID Passthrough | Supports MM or SM SFP+ | 2x 10G Multimode SFP+ modules inc. | LC Connectors | 300m/984 ft (MM) or 500m/1,640 ft (SM) max extension range | 2 year Warranty
  • EASY TO DEPLOY: Straightforward point-to-point setup using standard fiber optic cable makes configuration easy using the incl. SFP+ modules; there's no proprietary software and network settings to configure; StarTech.com's tech advisors are available 24/5
    Marketing Information:

    This HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over a point-to-point fiber connection. When combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features three USB HID ports that enable you to connect HID devices, like your keyboard and mouse.

    Supports UHD 4K 60Hz

    The HDMI KVM extender delivers up to 4K 60Hz UHD picture quality to your remote display with support for 4:4:4 chroma sampling.

    Hassle-Free Installation

    The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display using 10G LC multi mode fiber cabling

    SV565FXHD4KU is backed by a 2-year warranty and free lifetime technical support.

    More from the Manufacturer


    Connectivity Technology: Wired
    Number of Computers Supported: 1
    Number of Local Users Supported: 1
    Maximum Operating Distance: 984 ft (299923.20 mm)
    Device Type: KVM Extender
    Graphic Mode: 4K
    Maximum Video Resolution: 3840 x 2160
    USB: Yes
    HDMI: Yes
    Number of HDMI Ports: 6
    Number of USB Ports: 6
    Input Voltage:
    • 120 V AC
    • 240 V AC

    Input Voltage Range: 100V AC to 240V AC
    Power Consumption: 10 W
    Product Color: Black
    Transmitter Height: 1.10" (28 mm)
    Transmitter Width: 2.95" (75 mm)
    Receiver Height: 1.10" (28 mm)
    Receiver Width: 2.95" (75 mm)
    Transmitter Weight (Approximate): 450 g
    Receiver Weight (Approximate): 450 g
    Package Contents:
    • Transmitter for Host Computer
    • Receiver for Remote Console
    • 10G Multimode 10G SFP+ Module (Pre-Installed)
    • Universal Power Adapter
    • USB-A to Mini USB-B Cables
    • Quick-Start Guide

    Country of Origin: Taiwan
    Limited Warranty: 2 Year

[custom-specifications]

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: SV565FXHD4KU
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: KVM Extender
Packaged Quantity: 1
Packaged Quantity Condition: Kit
Product Type: KVM Console/Extender
Technical Information
Connectivity Technology: Wired
Number of Computers Supported: 1
Number of Local Users Supported: 1
Maximum Operating Distance: 984 ft (299923.20 mm)
Device Type: KVM Extender
Video
Graphic Mode: 4K
Maximum Video Resolution: 3840 x 2160
Interfaces/Ports
USB: Yes
HDMI: Yes
Number of HDMI Ports: 6
Number of USB Ports: 6
Power Description
Input Voltage:
  • 120 V AC
  • 240 V AC

Input Voltage Range: 100V AC to 240V AC
Power Consumption: 10 W
Physical Characteristics
Product Color: Black
Transmitter Height: 1.10" (28 mm)
Transmitter Width: 2.95" (75 mm)
Receiver Height: 1.10" (28 mm)
Receiver Width: 2.95" (75 mm)
Transmitter Weight (Approximate): 450 g
Receiver Weight (Approximate): 450 g
Miscellaneous
Package Contents:
  • Transmitter for Host Computer
  • Receiver for Remote Console
  • 10G Multimode 10G SFP+ Module (Pre-Installed)
  • Universal Power Adapter
  • USB-A to Mini USB-B Cables
  • Quick-Start Guide

Country of Origin: Taiwan
Warranty
Limited Warranty: 2 Year

[/custom-specifications]
