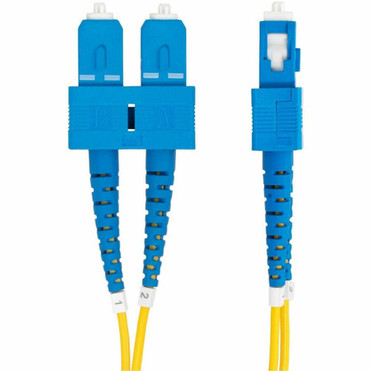

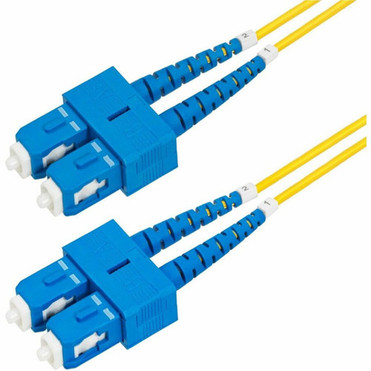

StarTech. com SMDOS2SCSC5M SC to SC - UPC OS2 Single Mode Duplex Fiber Optic Cable - 5m - 16. 4ft - 100Gbps - LSZH - Yellow
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This fiber optic cable utilizes OS2 single-mode fiber with a 9/125µm core/cladding diameter, optimized for laser wavelengths from 1260nm to 1625nm. The Ultra Physical Contact (UPC) polish on the SC connectors ensures improved return loss (≥55dB) and low insertion loss (≤0.3dB), supporting high-speed data transfer rates up to 100 Gbps.
The cable's bend-insensitive design allows a loaded bend radius of just 10mm (0.39 inches) without compromising signal integrity. Each connector is number-labeled for easy polarity identification, and every cable is individually tested with a performance report included to guarantee compliance with industry standards.
This section brings together practical product details such as Cable Type, Cable Characteristic, Fiber Optic Mode, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This fiber optic patch cable combines high-speed performance with robust safety features and installation flexibility. The LSZH jacket material meets stringent environmental and safety standards, while the bend-resistant construction ensures reliable operation in space-constrained environments.
EMI Immunity & Long-Distance Support
Single-mode OS2 fiber is immune to electromagnetic interference and supports Coarse Wavelength Division Multiplexing (CWDM) for extended wavelength range (1260-1625nm), enabling greater channel isolation over long distances.
- Immune to EMI
- CWDM support 1260-1625nm
- Optimized for long-distance runs
Quality Assurance & Safety
Each cable undergoes individual testing with included performance reports, while the LSZH jacket provides flame-retardant properties and low toxic fume emission for enhanced safety in enclosed spaces.
- Individually tested
- Test report included
- Flame retardant LSZH jacket
Backward Compatibility
The OS2 fiber maintains backward compatibility with OS1 standards, ensuring seamless integration with existing network infrastructure while providing headroom for future upgrades to higher-speed networks.
- Backward compatible with OS1
- Future-proof for 40G/100G networks
- Ideal for infrastructure upgrades
Deployment / Use Cases
This SC to SC fiber optic patch cable is specifically engineered for high-density data center environments where reliable, high-speed connections are critical. It serves as an ideal interconnect solution between network switches, servers, and storage arrays in 40G and 100G network configurations.
The cable's bend-insensitive design makes it particularly suitable for complex cable management scenarios, including tight-spaced racks, cable trays, and pathways with multiple direction changes. Its LSZH jacket and environmental compliance also make it appropriate for installations in telecommunications facilities, enterprise data centers, and any environment where fire safety and low toxic emissions are priorities.
Data Center Interconnects
Connect switches to servers, storage devices, or between network equipment in high-speed data center environments requiring 40G or 100G throughput.
- Server-switch connections
- Storage network links
- High-speed backbone links
CWDM Network Applications
Support Coarse Wavelength Division Multiplexing systems for efficient use of fiber infrastructure across extended distances with multiple channels.
- Long-distance connectivity
- Multi-channel isolation
- Wavelength optimization 1260-1625nm
Highlights
- OS2 single-mode duplex fiber optic cable optimized for 40G/100G networks
- SC to SC (UPC) connectors on both ends with number-labeled polarity identification
- 5-meter (16.4-foot) length ideal for rack-to-rack and equipment interconnections
- LSZH (Low Smoke Zero Halogen) jacket for enhanced safety in enclosed spaces
- Bend-insensitive fiber core with 10mm loaded bend radius for tight installations
- 100 Gbps data transfer rate with backward compatibility to OS1 standards
- Individually tested with performance report included for guaranteed quality
- Bright yellow color for easy visual identification in cable management systems
- UPC polish for improved return loss (≥55dB) and low insertion loss (≤0.3dB)
- Lifetime limited warranty from StarTech.com
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | SMDOS2SCSC5M |
| Brand Name | StarTech.com |
| Product Name | Fiber Optic Duplex Patch Network Cable |
| Packaged Quantity | 1 |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Fiber Optic |
| Cable Characteristic | Patch Cable |
| Fiber Optic Mode | Single-mode |
| Fiber Type | Duplex |
| Fiber Category | OS2 |
| Cable Length | 16.4 ft (5 m) |
| Connector Type on First End | SC Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 2 x SC Network - Male |
| Connector Type on Second End | SC Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 2 x SC Network - Male |
| Jacket Type | LSZH |
| Device Supported | Network Device,Server,Switch,Storage Device |
| Data Transfer Rate | 100 Gbit/s |
| Features | Ultra Physical Contact (UPC),Bend Insensitive,Flame Retardant,Bend Resistant |
| Physical Characteristics | |
| Color Family | Yellow |
| Product Color | Yellow |
| Product Material | Polypropylene |
| Jacket Material | Low Smoke Zero Halogen |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the difference between OS1 and OS2 single-mode fiber?
OS2 single-mode fiber has stricter attenuation specifications (under 0.35dB/km) compared to OS1, making it better suited for longer distances and higher-speed applications like 40G and 100G networks. This StarTech.com cable uses OS2 fiber, which is backward compatible with OS1 but provides superior performance for modern high-speed network requirements.
What does UPC polish mean on SC connectors?
UPC (Ultra Physical Contact) refers to the polishing technique applied to the fiber connector endface. UPC polish creates a slightly curved surface that improves return loss (≥55dB in this cable) compared to standard PC (Physical Contact) polish. This results in less signal reflection and better performance in high-speed applications, making it ideal for 40G/100G networks.
Why is an LSZH jacket important for fiber optic cables?
LSZH (Low Smoke Zero Halogen) jacket material minimizes toxic fume emission and smoke production if the cable is exposed to fire. This is particularly important in enclosed spaces like data centers, server rooms, or raised floors where ventilation may be limited. The LSZH jacket on this cable enhances safety for both equipment and personnel while meeting environmental compliance standards.
What does 'bend insensitive' mean for fiber optic cables?
Bend insensitive fiber is designed to maintain signal integrity even when bent tightly around corners or in confined spaces. This StarTech.com cable features a bend-insensitive core that allows a loaded bend radius of just 10mm (0.39 inches) without significant signal loss, making it ideal for complex cable routing in dense data center environments where space is limited.
What devices is this fiber optic cable compatible with?
This SC to SC duplex fiber optic cable is compatible with network devices, servers, switches, and storage equipment that feature SC fiber ports. It supports data transfer rates up to 100 Gbps and is optimized for 40G/100G network applications. The cable is backward compatible with OS1 standards and works with equipment supporting single-mode fiber connections.
What is included with the cable purchase?
Each StarTech.com SMDOS2SCSC5M fiber optic cable comes individually packaged and includes a performance test report verifying that the cable meets all specified technical parameters. The cable features number-labeled connectors for polarity identification and is backed by a lifetime limited warranty from StarTech.com for added assurance of quality and reliability.
