Marketing Information:

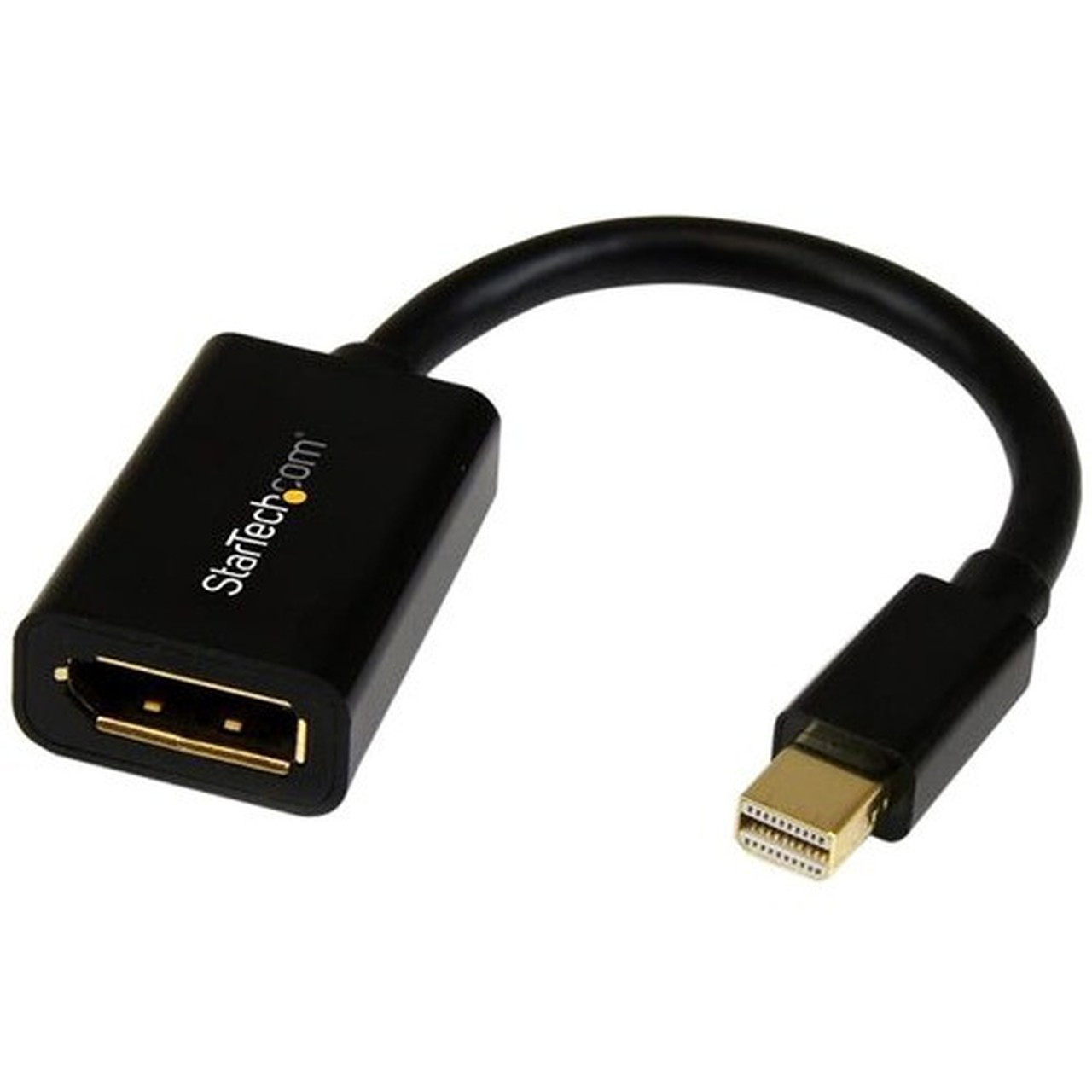

The MDP2DPMF6IN Mini DisplayPort to DisplayPort video cable adapter allows you to add a standard DisplayPort connection port to your existing mini Displayport equipped laptop. Easy to use and install, this cost-effective solution makes it easy for you to go from Mini DP to DP, in order to get the most from your Mini DisplayPort device.
Please Note: Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DP to DP Cables can be connected to the Thunderbolt ports, enabling you to connect your DP compatible displays.
Cable Type: DisplayPort/Mini DisplayPort
Cable Length: 6"

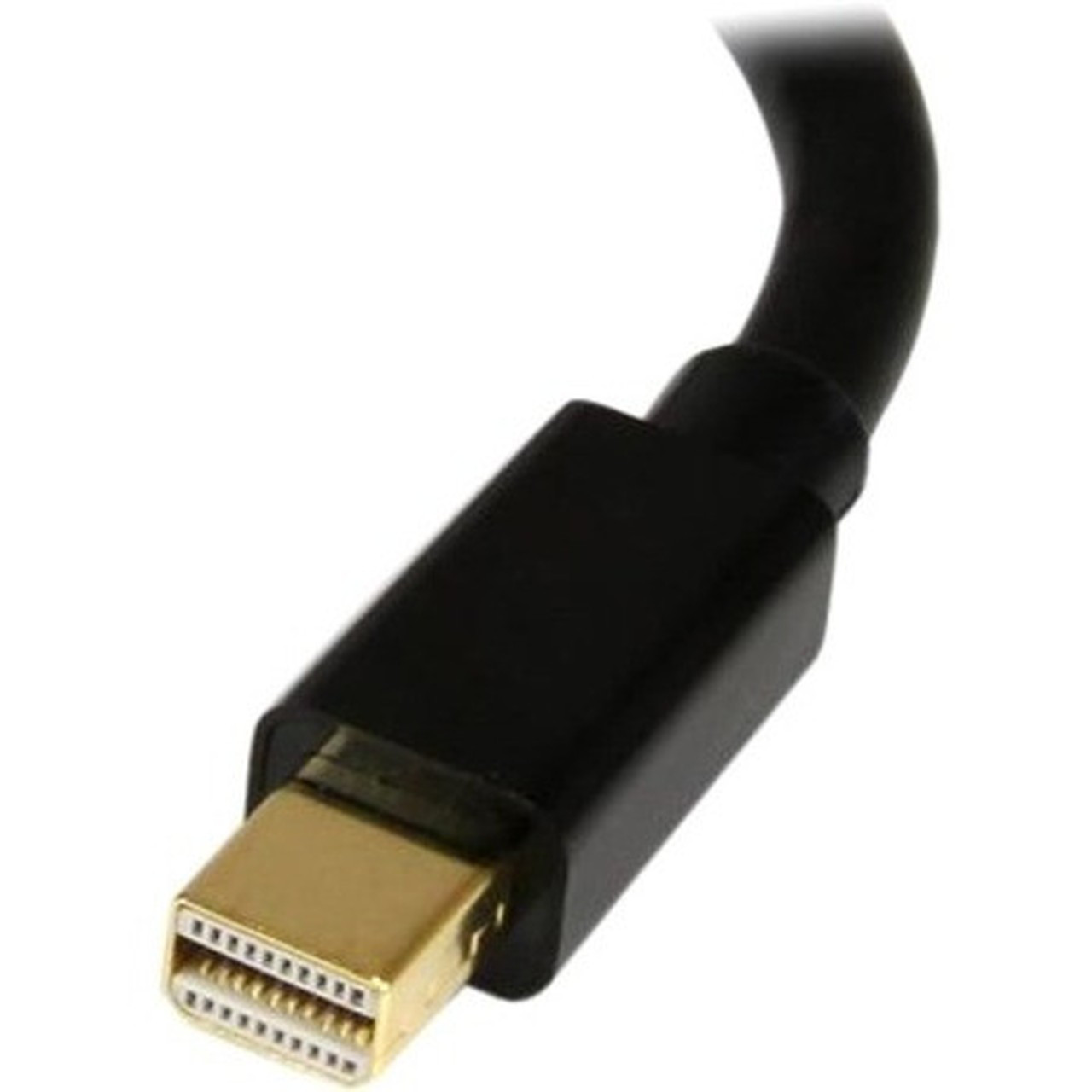

Connector Type on First End: Mini DisplayPort Digital Audio/Video - Male
Connector Gender on First End: Male
Connector on First End Details: 1 x 20-pin Mini DisplayPort Digital Audio/Video - Male

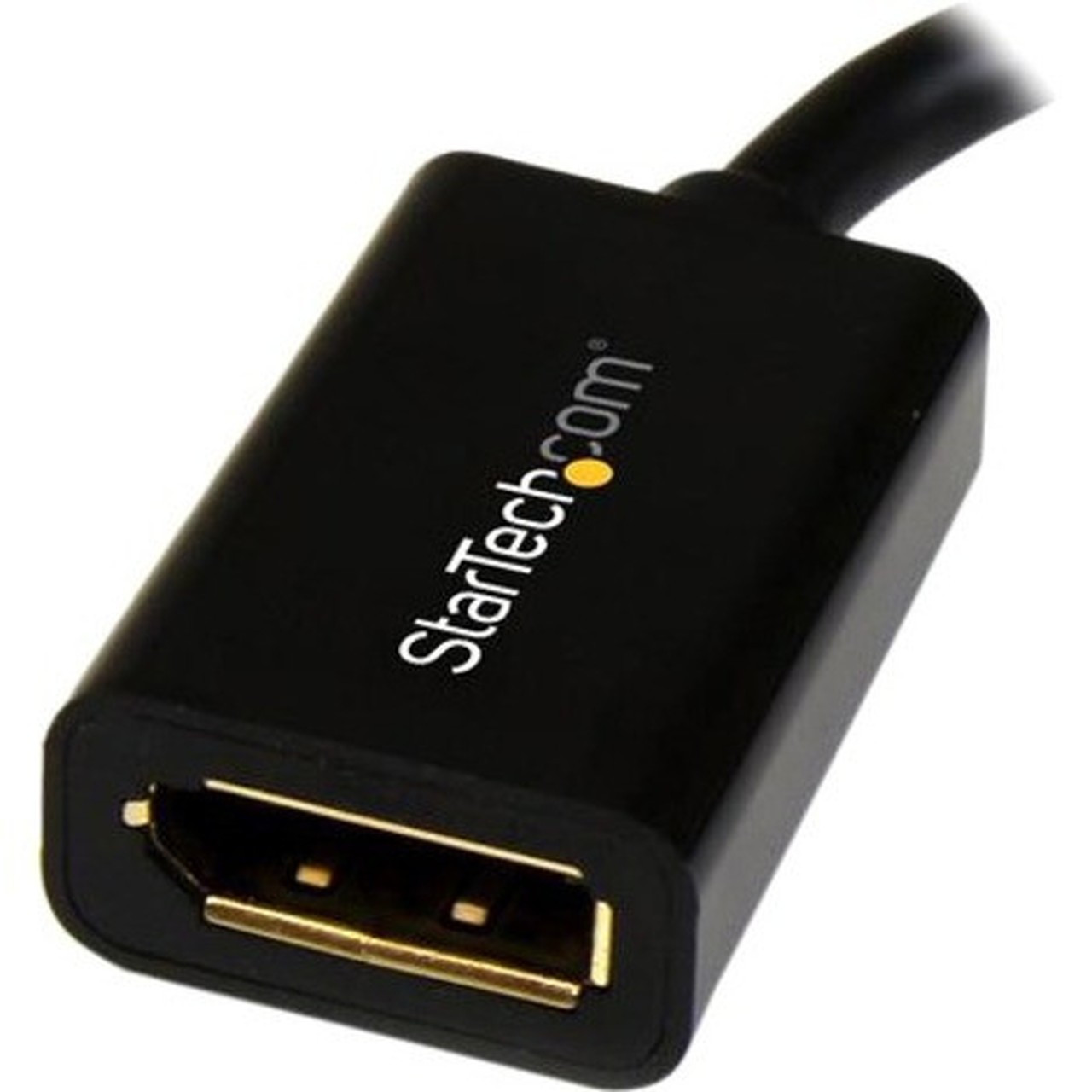

Connector Type on Second End: DisplayPort 1.2 Digital Audio/Video - Female
Connector Gender on Second End: Female
Connector on Second End Details: 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Female
Connector Plating: Nickel,Gold
Shielding: Yes
Device Supported: Monitor,Notebook,Video Device
American Wire Gauge: 32 AWG
Data Transfer Rate: 21.6 Gbit/s
Supported Resolution: 3840 x 2400
Features: Multi-Stream Transport (MST) Support,Flexible,Strain Relief,Fray Resistant,Damage Resistant,EMI Protection
Product Color: Black
Jacket Material: Polyvinyl Chloride (PVC)
Weight (Approximate): 19 g
Environmentally Friendly: Yes
Country of Origin: China
Limited Warranty: Lifetime
- MINI DISPLAYPORT to DISPLAYPORT 1.2 ADAPTER: mDP to DP adapter supports 4K x 2K (3840x2400p 60Hz), 21.6 Gbps, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz); 6" (15 cm) attached cable
- RELIABLE DESIGN: Mini DisplayPort to DisplayPort adapter has durable ABS connectors w/ flexible PVC strain relief & jacket prevent fraying or damage due to bending or rough usage; Metal connector sub-structure provides added EMI shielding & noise imunity
- QUALITY CONSTRUCTION: 32AWG wire w/ gold-plated connectors for improved signal integrity/reliability; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video/audio; Mini DP to DP converter backwards compatible w/DP1.1
- APPLICATIONS: Video adapter is ideal for home/office/boardroom/classroom works w/laptop (with Mini-DP port)/professional workstations w/ AMD FirePro™ W9100/8100, NVIDIA NVS 810/510 graphic card; UHD/4K monitor/projector/display; Microsoft Surface Pro 1-6
- SPECS: 6 inch (15 cm)
Black
DisplayPort v1.2
Mini-DP Male to Standard DP Female adapter
32 AWG
PVC cable jacket, ABS connector shell
Shield: Al-Mylar foil with Braid
Protocols: HBR 2, MST, GTC
Lifetime Warranty
[custom-specifications]
Specifications | |
---|---|
Manufacturer | StarTech.com |
Manufacturer Part Number | MDP2DPMF6IN |
Manufacturer Website Address | http://www.startech.com |
Brand Name | StarTech.com |
Product Name | 6in Mini DisplayPort to DisplayPort Video Cable Adapter - M/F |
Packaged Quantity | 1 |
Product Type | Video Cable Adapter | Technical Information |
Cable Type | DisplayPort/Mini DisplayPort |
Cable Length | 6" |
Connector Type on First End | Mini DisplayPort Digital Audio/Video - Male |
Connector Gender on First End | Male |
Connector on First End Details | 1 x 20-pin Mini DisplayPort Digital Audio/Video - Male |
Connector Type on Second End | DisplayPort 1.2 Digital Audio/Video - Female |
Connector Gender on Second End | Female |
Connector on Second End Details | 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Female |
Connector Plating | Nickel,Gold |
Shielding | Yes |
Device Supported | Monitor,Notebook,Video Device |
American Wire Gauge | 32 AWG |
Data Transfer Rate | 21.6 Gbit/s |
Supported Resolution | 3840 x 2400 |
Features | Multi-Stream Transport (MST) Support,Flexible,Strain Relief,Fray Resistant,Damage Resistant,EMI Protection | Physical Characteristics |
Product Color | Black |
Jacket Material | Polyvinyl Chloride (PVC) |
Weight (Approximate) | 19 g | Miscellaneous |
Environmentally Friendly | Yes |
Country of Origin | China | Warranty |
Limited Warranty | Lifetime |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
Additional-pdf1
[/custom-user-manual]
Warranty Infomartion
Lifetime
