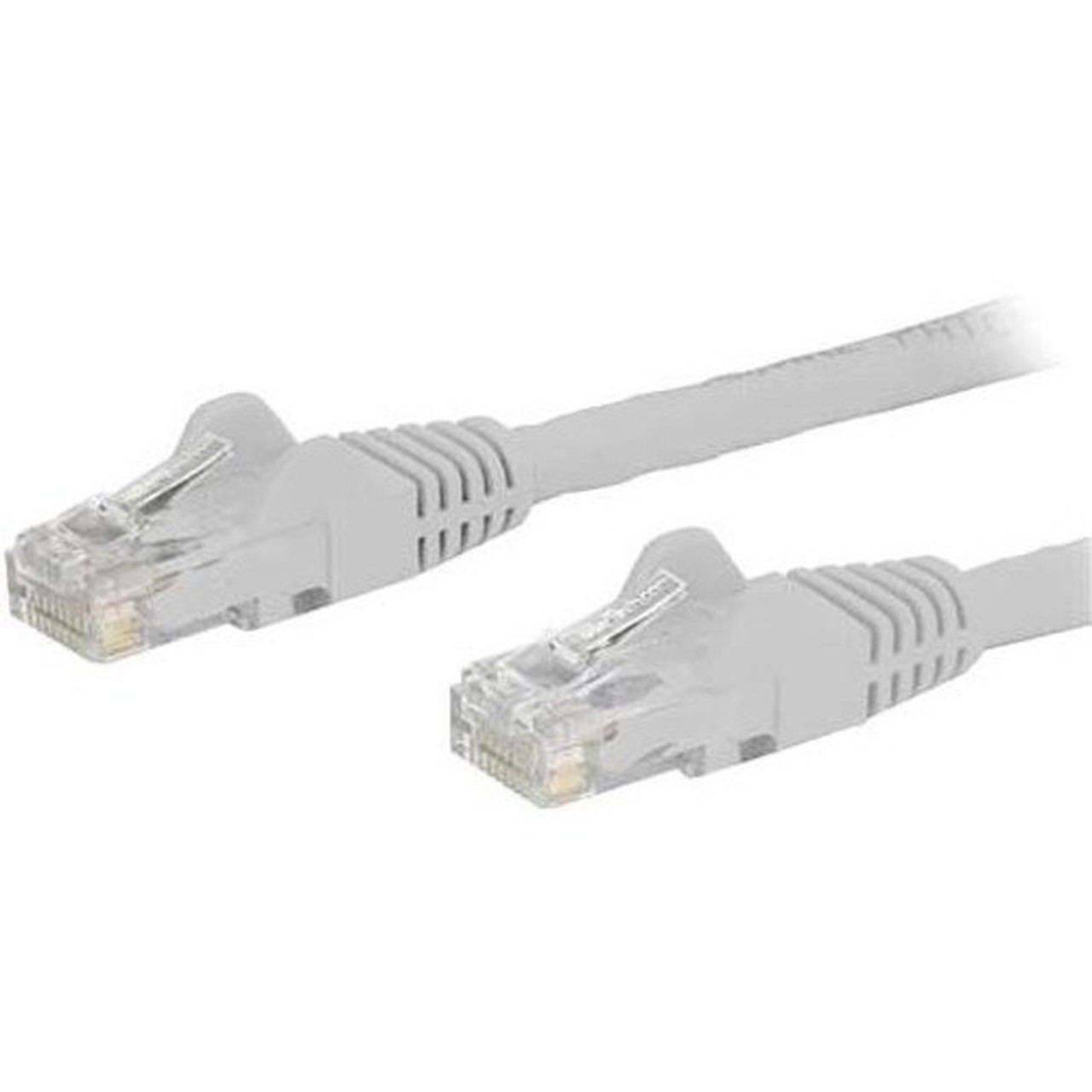

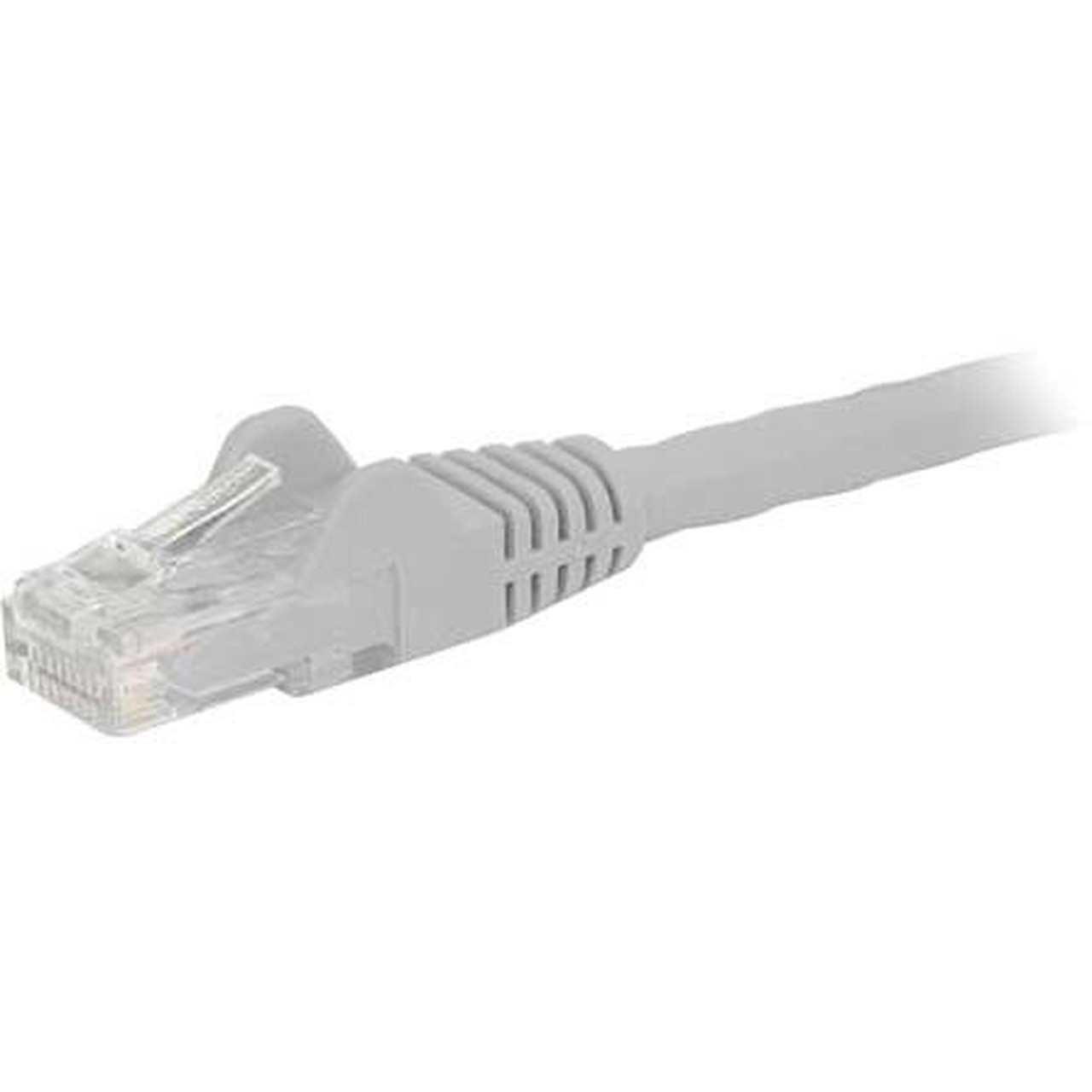

StarTech. com N6PATCH14WH Cat6 Ethernet Patch Cable - 14ft White Snagless UTP 650MHz 10Gb/s 100W PoE - UL/ETL Certified
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Cat6 patch cable operates at a 650MHz frequency rating and utilizes Unshielded Twisted Pair (UTP) construction. The 24 AWG copper wiring supports Power over Ethernet (PoE) applications up to 100W, compliant with IEEE 802.3bt standards for powering devices like VoIP phones and security cameras without separate power adapters.
The RJ-45 connectors feature 50-micron gold plating to prevent corrosion and maintain reliable electrical contact over time. Snagless molded boots protect the connector latch from damage during installation and removal, while the CMG-rated PVC jacket provides durability and flexibility in various installation scenarios.
This section brings together practical product details such as Cable Type, Cable Characteristic, Cable Length, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This Ethernet cable combines performance certifications with practical design features that enhance network reliability and installation flexibility. The construction addresses common pain points in cable management while delivering the speed and power capabilities required for contemporary network equipment.
Certified Performance
ETL verified and UL certified to meet ANSI/TIA-568-2.D Category 6 specifications, ensuring reliable 10Gb/s performance up to 160 feet and backward compatibility with Cat5e and earlier standards.
- Fluke patch cord tested
- ANSI/T568B wiring
- 650MHz rated
Enhanced Durability
Gold-plated connectors resist rust and corrosion, while the high-quality PVC jacket provides resistance to bending, fraying, and physical damage for extended service life in demanding environments.
- 50-micron gold plating
- Strain relief design
- Damage-resistant jacket
Deployment / Use Cases
The N6PATCH14WH patch cable is engineered for diverse networking applications where reliable connectivity and PoE support are required. Its 14-foot length provides sufficient reach for typical patch panel to device connections while maintaining signal integrity for high-speed data transfer.
This cable is compatible with network devices, workstations, hubs, wall outlets, docking stations, desktop computers, distribution panels, and IP phones. The PoE++ capability makes it particularly suitable for powering network-attached devices without separate power cables, simplifying installation and reducing clutter in office and commercial settings.
Office Network Infrastructure
Connect computers, printers, and network equipment in office environments where 10Gb/s capability supports fast file transfers and network access.
PoE Device Connectivity
Power and connect VoIP phones, security cameras, wireless access points, and other PoE-enabled devices using a single cable for both data and power transmission.
Physical Profile
This white patch cable features a clean aesthetic that blends well with office environments and network equipment. The CMG-rated PVC jacket provides flexibility for routing through conduits and tight spaces while maintaining durability. At approximately 6.10 ounces (172.93 grams), the cable offers a manageable weight for installation without excessive bulk.
- Weight
- 6.10 oz (172.93 g)
- Length
- 14 ft (4.27 m)
Highlights
- 14-foot Category 6 Ethernet patch cable with RJ-45 connectors
- Supports 10Gb/s data transfer speeds up to 160 feet
- 100W PoE++ capability for powering network devices
- 24 AWG 100% copper conductors with 650MHz rating
- Gold-plated connectors with snagless molded boots
- UTP construction with CMG-rated PVC jacket
- ETL verified and UL certified for quality assurance
- Backward compatible with Cat5e and earlier standards
- White color for clean office aesthetics
- Lifetime warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | N6PATCH14WH |
| Brand Name | StarTech.com |
| Product Name | Cat6 Patch Cable |
| Packaged Quantity | 1 Each |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Category 6 |
| Cable Characteristic | Patch Cable |
| Cable Length | 14 ft (4.27 m) |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Connector Plating | Gold |
| Shielding | No |
| Jacket Type | CMG |
| Device Supported | Network Device,Workstation,Hub,Wall Outlet,Docking Station,Desktop Computer,Distribution Panel,IP Phone |
| American Wire Gauge | 24 AWG |
| Data Transfer Rate | 10 Gbit/s |
| Boot Type | Snagless,Molded |
| Features | Molded,Stranded,Strain Relief,Rust Resistant,Corrosion Resistant,Damage Resistant,Bend Resistant,Fray Resistant,PoE++,Flexible,PoE,Break Resistant,Near End Cross Talk (NEXT) |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Weight (Approximate) | 6.10 oz (172.93 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the maximum data transfer speed supported by this Cat6 cable?
This StarTech.com Cat6 patch cable supports data transfer rates up to 10 gigabits per second (10Gb/s). It is rated for 650MHz performance and can maintain 10Gb/s speeds up to 160 feet, making it suitable for high-bandwidth applications including large file transfers, video streaming, and network backups.
Does this Ethernet cable support Power over Ethernet (PoE)?
Yes, this cable fully supports Power over Ethernet applications up to 100W (PoE++). It features 24 AWG stranded copper conductors with UL rated wiring (E132276-A) that complies with IEEE 802.3bt standards. This allows you to power devices like VoIP phones, security cameras, and wireless access points through the same cable that carries data.
What type of connectors does this patch cable have?
Both ends of this cable feature standard RJ-45 male connectors with 50-micron gold plating. The connectors have snagless molded boots that protect the latch from damage during installation and removal. The gold plating prevents corrosion and ensures reliable electrical connections over extended use.
Is this cable shielded or unshielded?
This is an Unshielded Twisted Pair (UTP) cable, meaning it does not have additional shielding around the wire pairs. The UTP design is suitable for most office and commercial environments where electromagnetic interference is minimal. The cable still provides excellent performance with Near End Cross Talk (NEXT) protection built into its twisted pair construction.
What certifications does this Ethernet cable have?
This cable is ETL verified and UL certified, ensuring it meets ANSI/TIA-568-2.D Category 6 specifications. It has been Fluke patch cord tested for compliance and features UL rated wiring (E132276-A). The cable also complies with environmental standards including EU RoHS, REACH, and WEEE directives for hazardous substance restrictions.
What devices is this patch cable compatible with?
This Cat6 patch cable is compatible with a wide range of network devices including computers, workstations, hubs, wall outlets, docking stations, desktop computers, distribution panels, and IP phones. It is backward compatible with Cat5e and earlier Ethernet standards, allowing seamless integration into existing network infrastructure.
