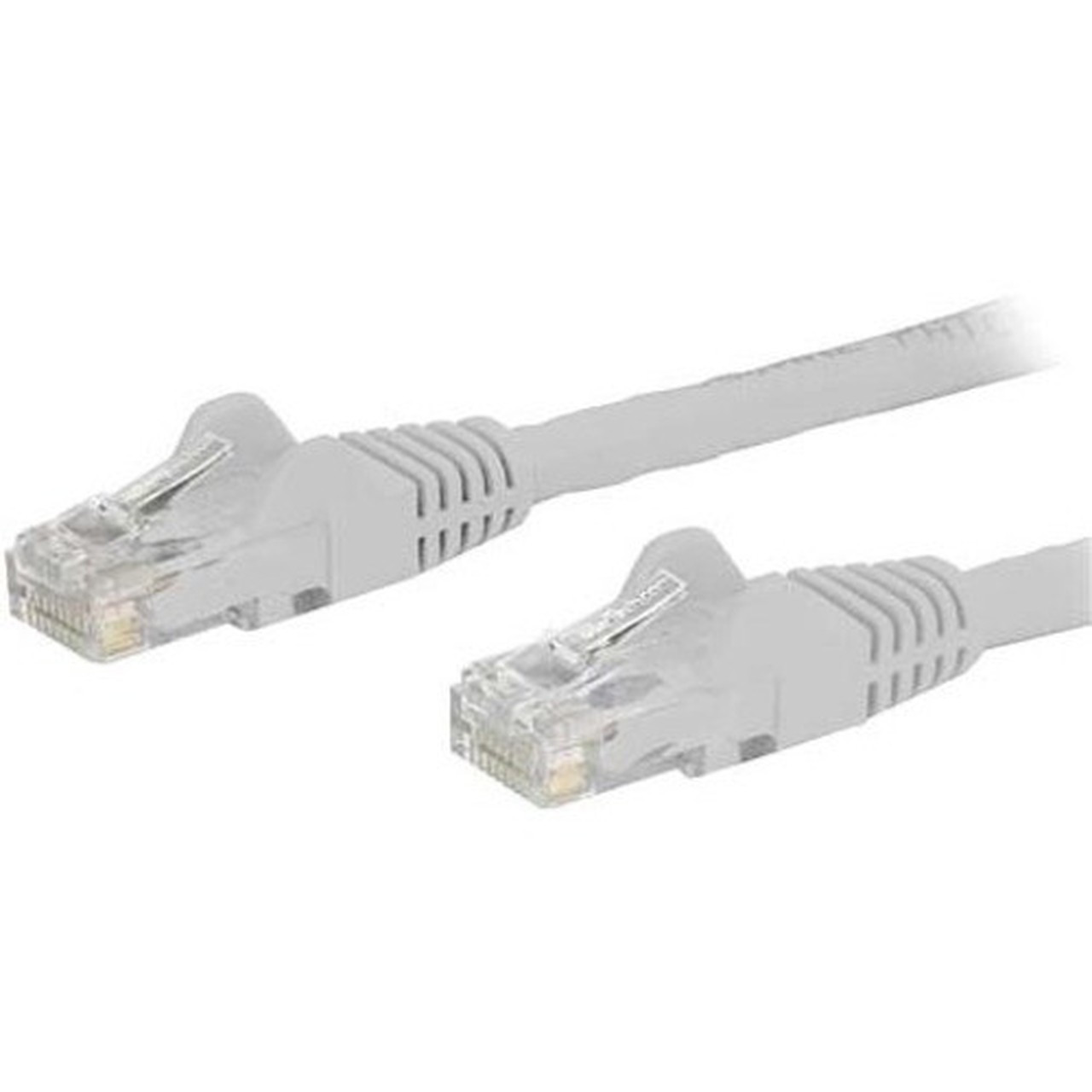

StarTech. com N6PATCH2WH 2ft CAT6 Ethernet Patch Cable - White Snagless Gigabit - 100W PoE UTP 650MHz
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Cat6 patch cable meets ANSI/TIA-568-2.D Category 6 specifications and is ETL verified for performance compliance. The 50-micron gold-plated RJ45 connectors ensure optimal signal integrity and corrosion resistance, reducing the risk of network downtime. The cable supports Power over Ethernet (PoE) up to 100W, compliant with IEEE 802.3bt and DTE power standards, making it suitable for PoE devices like VoIP phones and security cameras.
The UTP (Unshielded Twisted Pair) design with CMG jacket rating provides reliable performance in typical office and data center environments. The 4-pair structure follows ANSI/T568B wiring standards, ensuring compatibility with standard network equipment. The cable's flexible, stranded conductors and strain relief features enhance durability during frequent handling and installation.
Key Product Advantages
This cable combines high-performance networking with robust construction for long-term reliability. The snagless molded boots prevent accidental disconnection and damage to connector clips, while the flexible PVC jacket maintains integrity in high-traffic installations. The 100% copper conductors and gold-plated contacts ensure stable, error-free connections for Multi-Gigabit Ethernet applications.
PoE Ready
Supports up to 100W Power over Ethernet for devices like VoIP phones, wireless access points, and security systems, with UL rated wiring (E132276-A) to reduce cable heating.
- IEEE 802.3bt compliant
- DTE power compliance
- 24 AWG stranded conductors
Durable Design
Features heat-resistant, rust-resistant, and corrosion-resistant materials with strain relief to withstand frequent use and environmental stressors.
- 50-micron gold plating
- Fray-resistant jacket
- Bend-resistant construction
Deployment / Use Cases
This 2-foot patch cable is ideal for short-run connections within network racks, between switches and servers, or from wall outlets to workstations. Its compact length reduces cable clutter while providing sufficient slack for easy maintenance. The white color blends discreetly into office environments, and the snagless boots are particularly useful in high-density patch panels where space is constrained.
Common applications include connecting VoIP phones, linking network devices in server rooms, and extending connections from hubs to workstations. The cable's PoE support makes it suitable for powering devices like IP cameras and wireless access points without separate power cables. Its compatibility with Cat5e and earlier standards ensures seamless integration into existing networks during upgrades or expansions.
Physical Profile
The cable features a clean white PVC jacket with a CMG rating, suitable for commercial installations. Weighing approximately 1.10 oz (31.18 g), it is lightweight yet durable, with a flexible design that accommodates tight bends without performance degradation. The molded snagless boots provide protection and easy grip for connector insertion and removal.
- Weight
- 1.10 oz (31.18 g)
- Length
- 2 ft (0.61 m)
Highlights
- 2-foot Category 6 Ethernet patch cable with snagless RJ45 connectors
- Supports 10 Gbit/s data transfer rates and 650 MHz performance
- 100W Power over Ethernet (PoE) support for VoIP and security devices
- 24 AWG stranded copper conductors with gold-plated contacts
- ETL verified and UL certified for compliance and safety
- Durable PVC jacket resistant to bending, fraying, and environmental damage
- Compatible with Cat5e and earlier Ethernet standards
- Lifetime warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | N6PATCH2WH |
| Brand Name | StarTech.com |
| Product Name | Cat. 6 Network Cable |
| Packaged Quantity | 1 Each |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Category 6 |
| Cable Characteristic | Patch Cable |
| Cable Length | 2 ft (0.61 m) |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Connector Plating | Gold |
| Shielding | No |
| Jacket Type | CMG |
| Device Supported | Network Device,Workstation,Hub |
| American Wire Gauge | 24 AWG |
| Data Transfer Rate | 10 Gbit/s |
| Boot Type | Snagless,Molded |
| Features | Heat Resistant,Stranded,Strain Relief,Damage Resistant,Rust Resistant,Corrosion Resistant,Fray Resistant,Bend Resistant,PoE,Flexible |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Weight (Approximate) | 1.10 oz (31.18 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the maximum data transfer speed of this Cat6 cable?
This StarTech.com Cat6 patch cable supports data transfer rates up to 10 Gbit/s. It is rated for 650 MHz performance and is compatible with Multi-Gigabit Ethernet standards including 1, 2.5, and 5 Gbps connections, making it suitable for high-speed network applications in office and data center environments.
Does this cable support Power over Ethernet (PoE)?
Yes, this cable fully supports Power over Ethernet up to 100W, compliant with IEEE 802.3bt and DTE power standards. The 24 AWG stranded copper conductors and UL rated wiring (E132276-A) ensure safe power delivery to PoE devices like VoIP phones, wireless access points, and security cameras while reducing cable heating.
What are the connector types on this patch cable?
Both ends of the cable feature RJ-45 network connectors with male gender. The connectors have 50-micron gold plating for optimal conductivity and corrosion resistance. The snagless molded boots prevent accidental disconnection and protect the connector clips during installation in tight spaces.
Is this cable shielded or unshielded?
This is an unshielded twisted pair (UTP) cable with no additional shielding. The CMG-rated PVC jacket provides sufficient protection for typical office and commercial environments. The 4-pair twisted design minimizes interference while maintaining flexibility and ease of installation.
What warranty comes with this Ethernet cable?
StarTech.com provides a lifetime limited warranty for this Cat6 patch cable. This warranty covers manufacturing defects and ensures long-term reliability for your network infrastructure investments, backed by the manufacturer's commitment to quality and performance.
Can this cable be used with older Cat5e equipment?
Yes, this Cat6 cable is fully backward compatible with Cat5e and earlier Ethernet standards. It can seamlessly integrate into existing network infrastructure while providing improved performance headroom for future upgrades. The cable follows ANSI/T568B wiring standards for universal compatibility.
