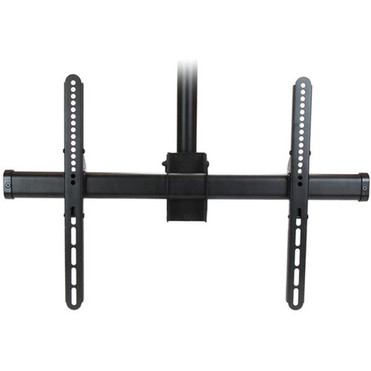

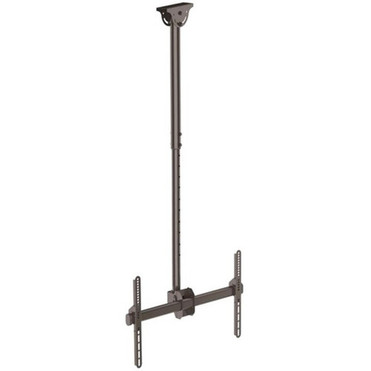

StarTech. com FLATPNLCEIL Ceiling TV Mount - Full-Motion Telescopic Pole for 32"-75" Displays - 110 lb Capacity - Black Steel
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This ceiling mount features a height-adjustable telescopic pole that extends from 3.5 feet to 5.0 feet from the ceiling surface, providing flexible positioning for optimal viewing angles. The steel construction ensures durability while the black finish maintains a professional appearance that blends with most interior designs.
The mounting system supports VESA hole patterns from 200x200mm to 600x400mm, covering the majority of commercial and consumer display mounting requirements. All necessary hardware for concrete and standard ceiling installations is included, with comprehensive mounting templates simplifying the installation process.
This section brings together practical product details such as Device Supported, Number of Displays Supported, Maximum Load Capacity, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The FLATPNLCEIL mount combines installation flexibility with professional-grade stability, offering features that address common mounting challenges in commercial environments. The adjustable ceiling bracket accommodates sloped or angled ceilings up to +/-60 degrees, ensuring displays remain level regardless of ceiling architecture.
Full Motion Flexibility
Swivel displays 180° around the pole and tilt downward -25° for optimal viewing angles without requiring tools for adjustment.
- Tool-free adjustments
- 180° swivel range
- -25° tilt capability
Universal Compatibility
Supports displays from major manufacturers with comprehensive VESA pattern coverage and included mounting hardware for various display types.
- LG, Samsung, Sony, Sharp compatible
- 11 VESA patterns supported
- Curved screen capable
Professional Installation Features
Includes mounting templates, concrete anchors, and specialized tools for secure installation on various ceiling types and materials.
- Mounting template included
- Concrete anchors provided
- M13 wrench and Allen keys
Deployment / Use Cases
This ceiling mount excels in environments where floor space conservation and professional presentation are priorities. The telescopic pole design allows displays to be positioned at optimal viewing heights while maintaining a clean, uncluttered appearance below.
Digital signage applications benefit from the mount's ability to position displays at eye level in retail spaces, lobbies, and waiting areas. Conference rooms and training facilities utilize the full-motion capabilities to adjust displays for different seating arrangements and presentation styles. Residential installations in living spaces with limited wall space or unconventional ceiling heights gain flexibility through the adjustable pole and sloped-ceiling compatibility.
Commercial Digital Signage
Position promotional displays at optimal viewing heights in retail environments, airports, and corporate lobbies with integrated cable management for professional presentation.
Conference and Training Rooms
Adjust displays for different seating configurations and presenter needs with tool-free swivel and tilt capabilities that accommodate various room layouts.
Physical Profile
Constructed from durable steel with a black finish, the mount maintains a low-profile appearance while providing substantial load-bearing capacity. The pole assembly measures 70 inches in height when fully extended, with a compact 5.5-inch width and 26.8-inch length that minimizes visual intrusion. The 13.2-pound weight reflects the robust construction while remaining manageable for installation by a single technician with proper support.
- Width
- 5.50" (139.70 mm)
- Height
- Yes
- Weight
- 13.20 lb (5987.42 g)
- Length
- 26.80" (680.72 mm)
What's in the Box
The FLATPNLCEIL ceiling mount includes all components necessary for professional installation on various ceiling types and display configurations.
Highlights
- Full-motion ceiling mount with 180° swivel and -25° tilt capabilities
- Telescopic pole adjusts from 3.5' to 5.0' for optimal viewing height
- Supports displays from 32" to 75" with 110.50 lb maximum capacity
- Compatible with LCD, LED, plasma, and curved screen displays
- VESA patterns from 200x200mm to 600x400mm supported
- Adjustable ceiling bracket accommodates sloped ceilings up to +/-60°
- Integrated cable management maintains clean appearance
- Steel construction with black finish for durability and aesthetics
- Includes all hardware for concrete and standard ceiling installations
- 5-year limited warranty with EU RoHS and REACH compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | FLATPNLCEIL |
| Brand Name | StarTech.com |
| Product Name | Ceiling TV Mount - 3.5' to 5' Pole |
| Packaged Quantity | 1 Each |
| Product Type | Ceiling Mount |
| Product Information | |
| Device Supported | Flat Panel Display,LCD Display,LED Display,Plasma Display,Curved Screen Display |
| Number of Displays Supported | 1 |
| Maximum Load Capacity | 110.50 lb (50121.96 g) |
| Minimum Screen Size Supported | 32" |
| Maximum Screen Size Supported | 75" |
| Height Adjustable | Yes |
| Features | Cable Management,Telescoping,Swivel,Adjustable,Tilt,Full Motion,Space Saving Design,Pivot,360° Rotation,Anti-theft |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Steel |
| Mounting Pattern | 600 x 400,400 x 200,400 x 400,300 x 300,200 x 200,200 x 300,200 x 400,300 x 200,400 x 300,600 x 200,600 x 300 |
| Height | 70" (1778 mm) |
| Width | 5.50" (139.70 mm) |
| Length | 26.80" (680.72 mm) |
| Weight (Approximate) | 13.20 lb (5987.42 g) |
| Miscellaneous | |
| Package Contents | 1 x Ceiling Mount and Pole 1 x Extension Pole 2 x Vertical Brackets 1 x Horizontal Bracket 2 x Bolts 2 x Nuts 1 x M13 Wrench 1 x M5 Allen Key 1 x Mounting Template 4 x M5x14 mm Screws 4 x M6x14 mm Screws 4 x M8x30 mm Screws 4 x M6x30 mm Screws 4 x M8x50 mm Screws 4 x Washers 8 x Short Spacers 8 x Long Spacers 4 x 6.3x55 mm Screws 4 x Concrete Anchors 4 x Flat Washers 1 x Instruction Manual |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the maximum weight capacity of this ceiling mount?
The StarTech.com FLATPNLCEIL ceiling mount supports displays up to 110.50 pounds (50.12 kilograms). This capacity accommodates most commercial and consumer flat panel displays within the 32-inch to 75-inch size range, including curved screen models from major manufacturers.
How far from the ceiling can the display be positioned?
The telescopic pole adjusts from 3.5 feet (1.07 meters) to 5.0 feet (1.52 meters) from the ceiling surface. This height adjustment range allows optimal positioning for viewing angles in various room configurations and ceiling heights.
What types of displays are compatible with this mount?
This mount supports flat panel displays including LCD, LED, plasma, and curved screen models from manufacturers like LG, Samsung, Sony, and Sharp. It accommodates VESA mounting patterns from 200x200mm to 600x400mm, covering most commercial and consumer display requirements.
Can this mount be installed on sloped or angled ceilings?
Yes, the adjustable ceiling bracket allows the pole to be secured at angles up to +/-60 degrees from vertical. This feature ensures displays remain level on sloped, slanted, or angled ceilings commonly found in commercial spaces and residential areas with architectural variations.
What motion adjustments does the mount provide?
The mount offers full-motion capabilities including 180-degree swivel around the telescopic pole and -25-degree downward tilt. These adjustments can be made without tools, allowing easy repositioning of displays for different viewing arrangements and presentation needs.
What is included in the package for installation?
The package includes the ceiling mount and pole, extension pole, vertical brackets (2), horizontal bracket, mounting template, M13 wrench, M5 Allen key, various screws (M5x14mm, M6x14mm, M8x30mm, M6x30mm, M8x50mm, 6.3x55mm), bolts, nuts, washers, spacers (short and long), concrete anchors, flat washers, and an instruction manual for complete installation on different ceiling types.
What mounting, rack, or form-factor detail is listed?
600 x 400,400 x 200,400 x 400,300 x 300,200 x 200,200 x 300,200 x 400,300 x 200,400 x 300,600 x 200,600 x 300.
