Product Features
Technical Overview

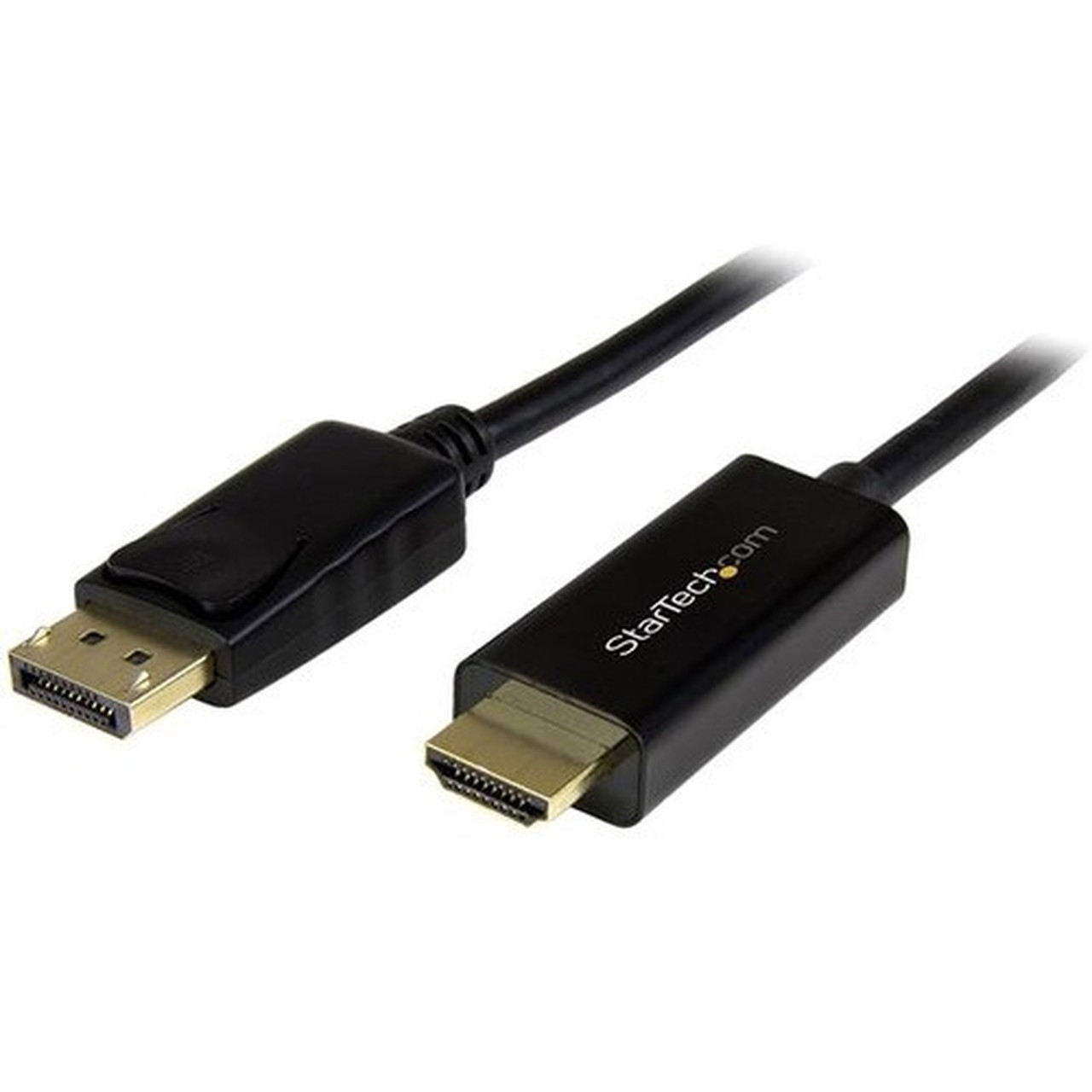

This DisplayPort to HDMI adapter cable features a 20-pin DisplayPort 1.2 male connector on one end and a 19-pin HDMI 1.4 male connector on the other. The cable utilizes a passive conversion method that requires no external power or drivers, making it compatible with DP++ (dual-mode) sources including desktops with AMD or NVIDIA graphics cards, laptops, workstations, and docking stations.
The cable supports resolutions up to 3840x2160 at 30Hz refresh rate and 1920x1200 at higher refresh rates. It maintains signal integrity across its 3-meter length through quality construction and proper shielding. The integrated converter chip handles the digital signal conversion between DisplayPort and HDMI protocols while maintaining HDCP 1.4 and DPCP content protection standards.
This section brings together practical product details such as Cable Type, Cable Length, Connector Type on First End, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This adapter cable combines convenience with performance through several thoughtful design elements that enhance reliability and ease of use in professional and home office environments.
Integrated Converter Design

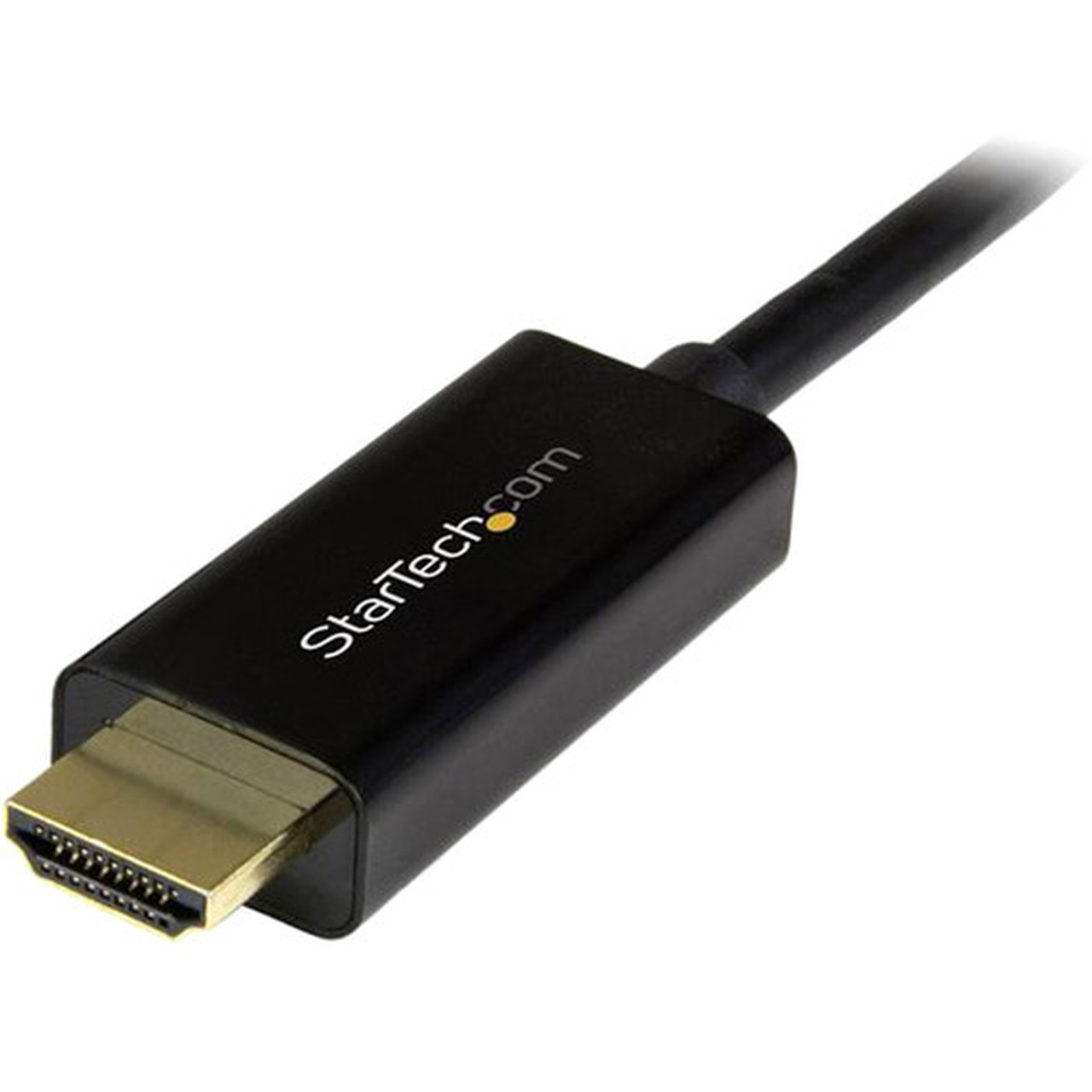

The conversion chip is built directly into the HDMI connector, eliminating the need for a separate adapter dongle. This integrated approach reduces cable clutter, minimizes signal degradation points, and creates a cleaner installation.
- No separate adapter required
- Reduced signal loss
- Cleaner cable management
Secure Latching Mechanism

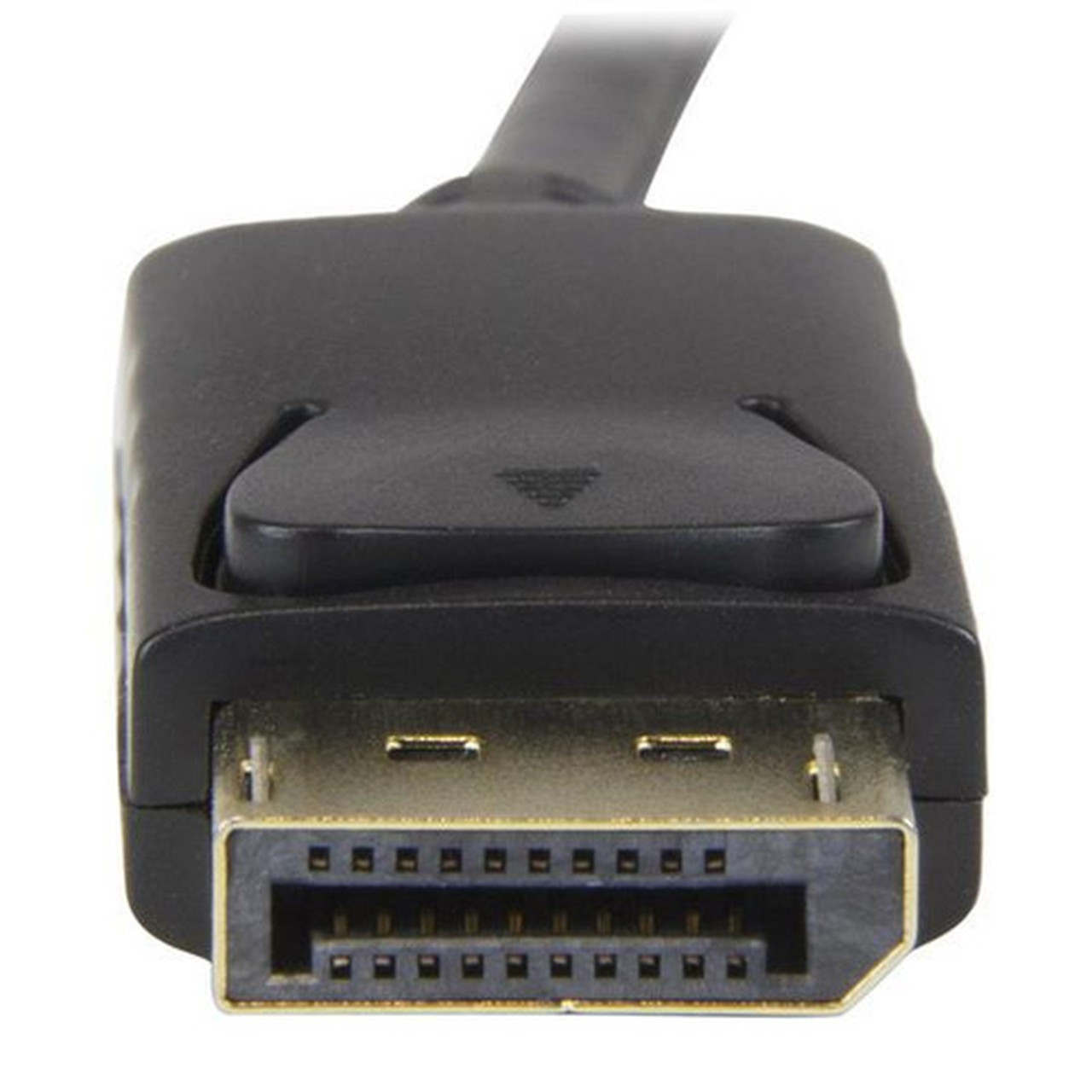

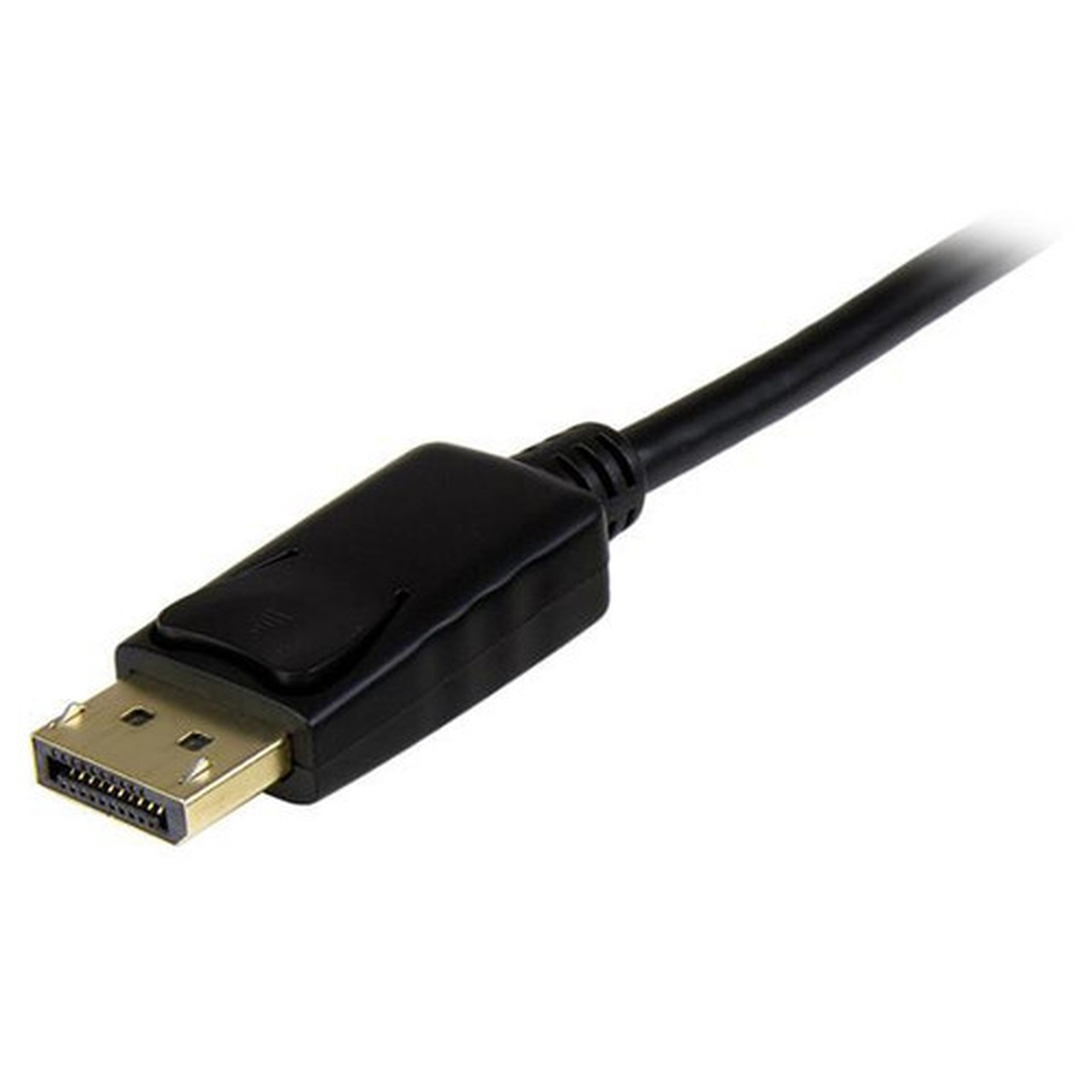

The DisplayPort connector features a positive latching system that clicks into place and requires deliberate pressure to release. This prevents accidental disconnections that can interrupt presentations or workflow.
- Prevents accidental disconnection
- Positive click confirmation
- Secure workstation connections
Broad Device Compatibility
Tested with DP++ source devices including workstations, desktops with dedicated graphics cards, laptops, small form factor computers, and docking stations. The cable works with monitors, projectors, TVs, and other HDMI displays.
- DP++ source compatible
- Works with AMD/NVIDIA graphics
- No drivers required
Deployment / Use Cases
This DisplayPort to HDMI cable serves multiple connectivity scenarios in business, education, and home environments where different display interfaces need to be bridged seamlessly.
In office settings, connect newer laptops or desktops with DisplayPort outputs to conference room projectors or secondary monitors that only have HDMI inputs. The 10-foot length provides flexibility for routing cables behind desks or across presentation spaces. For home offices, extend your workstation to a larger HDMI television or monitor for expanded screen real estate while maintaining 4K video quality.
Business Presentation Setup
Connect modern business laptops with DisplayPort outputs to HDMI-equipped projectors in conference rooms. The latching connector ensures stable connections during important presentations, while the 10-foot length accommodates various room layouts.
Multi-Monitor Workstation
Add HDMI monitors to DisplayPort-equipped workstations for expanded desktop space. The cable supports high resolutions for detailed design work, financial analysis, or multi-tasking across applications.
Physical Profile
The cable features a flexible black jacket that bends easily for routing around desks and through cable management systems. At 9.8 feet (3 meters) long and weighing just 4.10 ounces (116.30 grams), it provides substantial reach without adding significant bulk or weight to your setup. The black color blends discreetly with most office and home entertainment equipment.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 4.10 oz (116.30 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 4.10 oz (116.30 g)
- Length
- 9.8 ft (3 m)
Highlights
- 10-foot (3-meter) DisplayPort 1.2 to HDMI 1.4 adapter cable
- Supports 4K Ultra HD video at 30Hz and 1080p resolutions
- Integrated converter chip built into HDMI connector
- Latching DisplayPort connector prevents accidental disconnection
- Passive design requires no external power or drivers
- Supports 7.1 channel audio and HDCP 1.4 content protection
- Compatible with DP++ sources (desktops, laptops, workstations)
- Flexible black cable with 3-year warranty
- OS independent - works with Windows, macOS, Linux
- RoHS compliant and environmentally friendly
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | DP2HDMM3MB |
| Brand Name | StarTech.com |
| Product Name | DisplayPort to HDMI Adapter Cable - 3 m (10 ft.) - 4K 30Hz |
| Packaged Quantity | 1 Each |
| Product Type | Video Cable Adapter |
| Technical Information | |
| Cable Type | DisplayPort/HDMI |
| Cable Length | 9.8 ft (3 m) |
| Connector Type on First End | DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Type on Second End | HDMI 1.4 Digital Audio/Video - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x 19-pin HDMI 1.4 Digital Audio/Video - Male |
| Device Supported | Projector,Ultrabook,Monitor,Audio/Video Device,Notebook,Desktop Computer,TV,Workstation,Docking Station |
| Supported Resolution | 1920 x 1200 |
| Features | Passive,Latching Connector,HDCP 1.4,DPCP,Flexible |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Weight (Approximate) | 4.10 oz (116.30 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What resolution does this DisplayPort to HDMI cable support?
This cable supports Ultra HD 4K resolution at 3840x2160 with a 30Hz refresh rate. It also handles 1080p and 1920x1200 resolutions at higher refresh rates. The passive converter chip maintains signal integrity for crisp video output across supported resolutions.
Does this cable require external power or software drivers?
No, this is a passive converter cable that requires no external power source or software drivers. The conversion chip is integrated into the HDMI connector and draws minimal power from the DisplayPort source. It works immediately upon connection without any installation or configuration.
What devices are compatible with this DisplayPort to HDMI adapter?
The cable is compatible with DP++ (dual-mode) DisplayPort sources including desktop computers with AMD or NVIDIA graphics cards, laptops, workstations, small form factor PCs, and docking stations. It connects to HDMI displays such as monitors, projectors, televisions, and audio/video receivers.
How does the latching DisplayPort connector work?
The DisplayPort connector features a mechanical latch that clicks into place when fully inserted. To disconnect, you press the release button on the connector while gently pulling the cable. This prevents the cable from accidentally coming loose during use, which is particularly valuable in presentation environments or secure workstation setups.
Does this cable support audio transmission?
Yes, the cable supports 7.1 channel audio transmission alongside video. It carries both digital audio and video signals from the DisplayPort source to the HDMI display, eliminating the need for separate audio cables when connecting to displays with built-in speakers or audio outputs.
What is the warranty period for this adapter cable?
StarTech.com provides a 3-year limited warranty for this DisplayPort to HDMI adapter cable. The warranty covers defects in materials and workmanship under normal use. The cable is also RoHS compliant and meets EU environmental standards for hazardous substance restrictions.
What resolution or display format is specified?
It features a display specification of 1920 x 1200, giving you clear visuals for work and media use.
What refresh rate or brightness details are available?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
