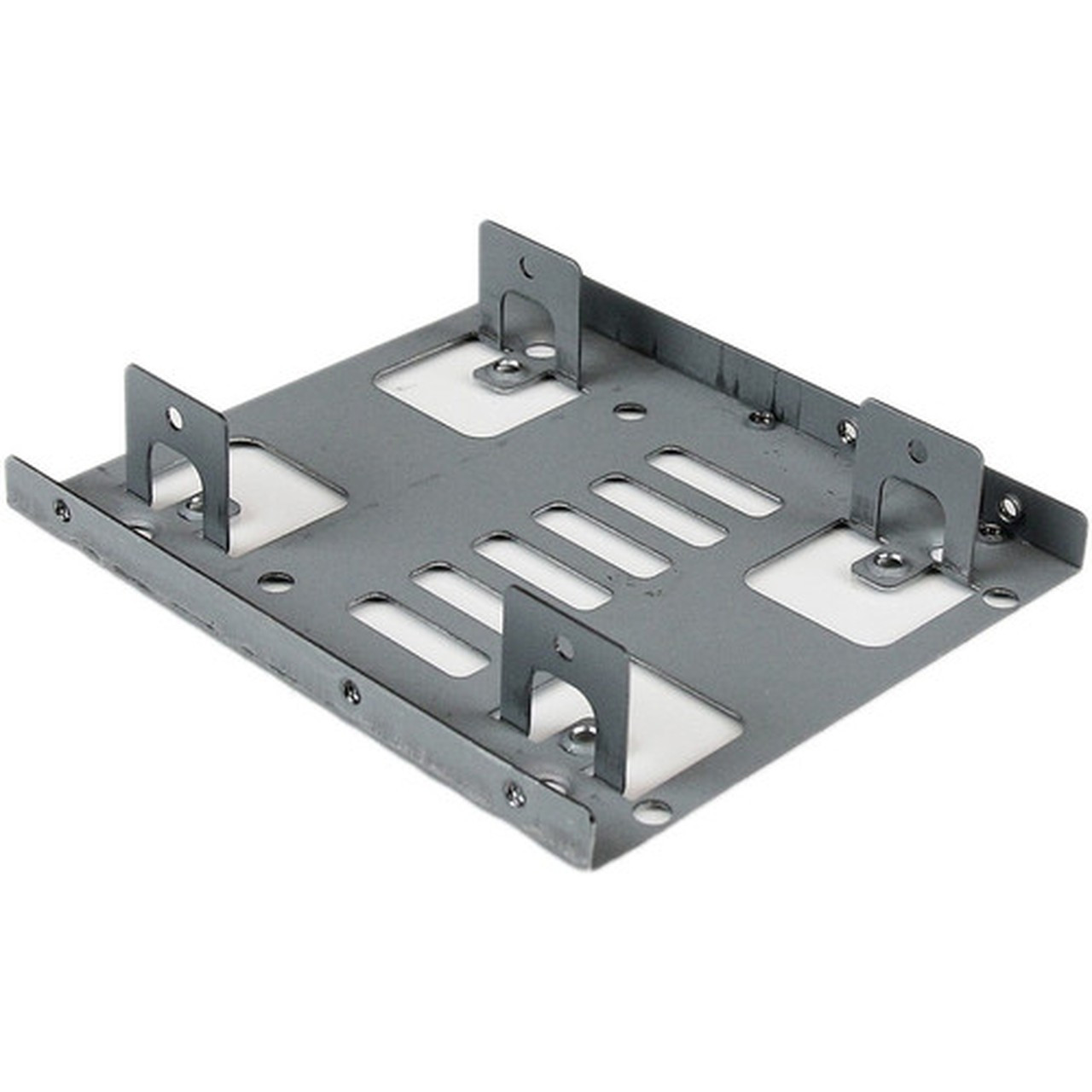

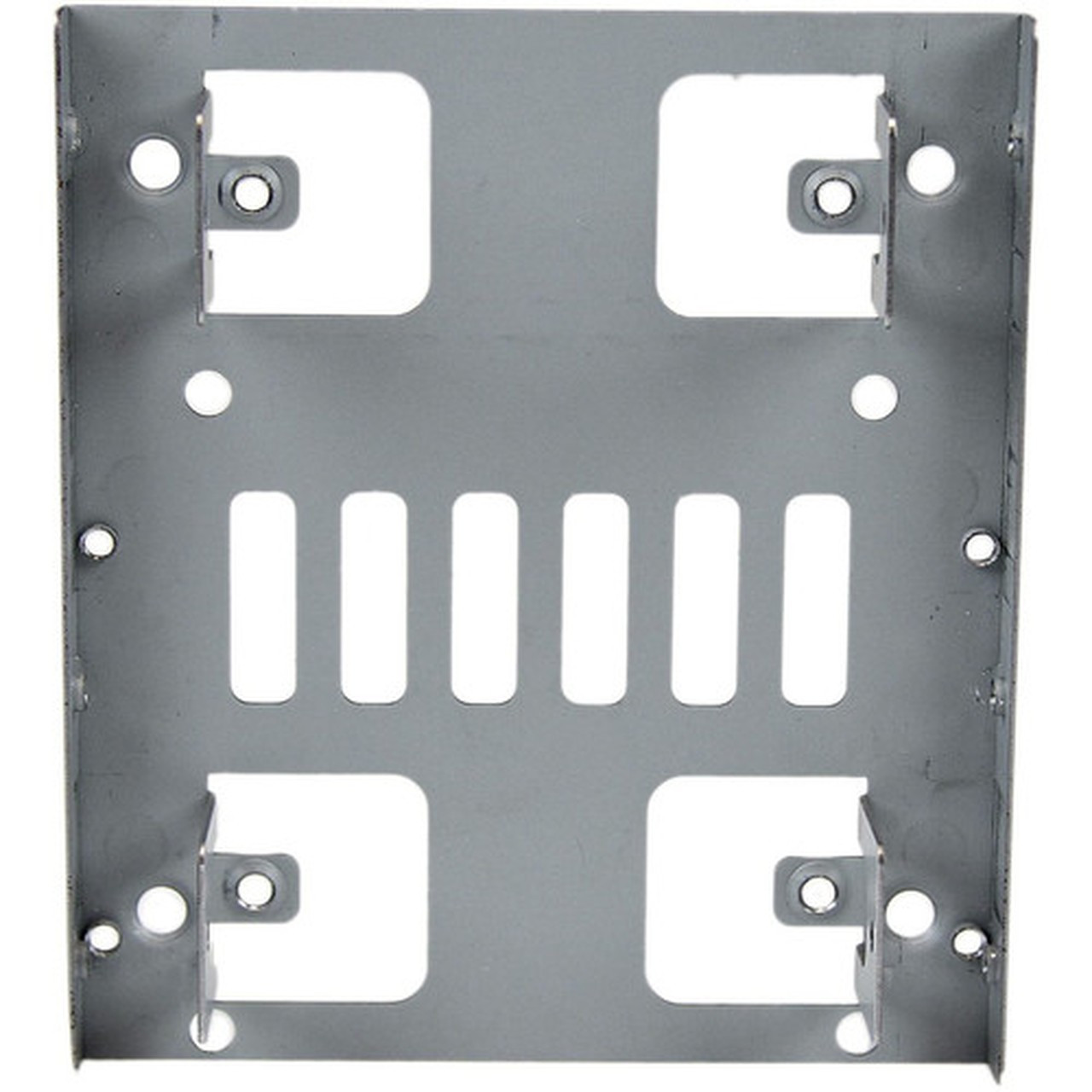

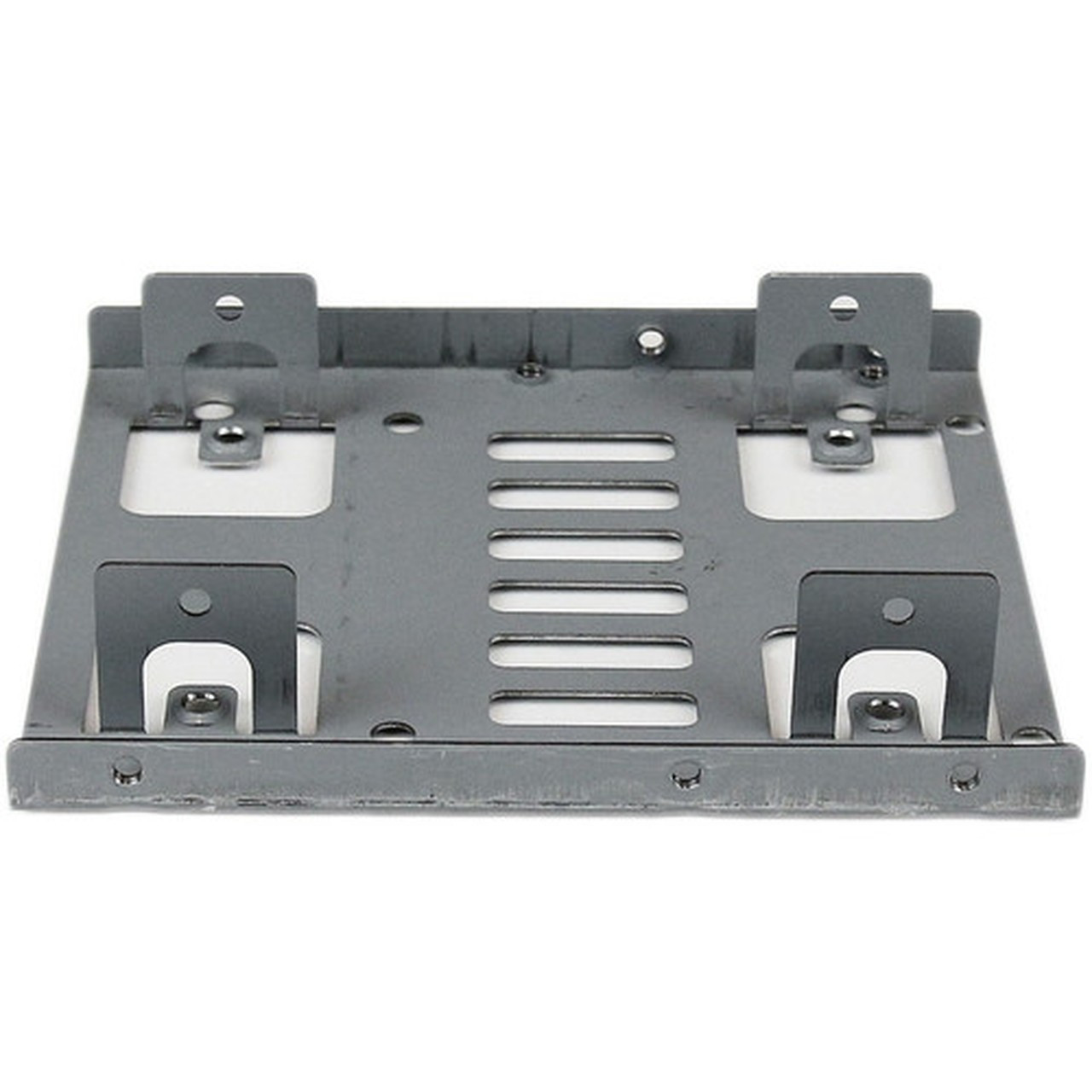

StarTech.com Dual 2.5" to 3.5" HDD Bracket for SATA Hard Drives - 2 Drive 2.5" to 3.5" Bracket for Mounting Bay - Mount two 2.5in SATA (BRACKET25X2)

Write a Review
$12.89
SKU: BRACKET25X2
UPC: 65030852593
Weight: 1.00 LBS
Shipping: Calculated at Checkout
Adding to cart… The item has been added
  • Mount up to two 2.5in drives into a single 3.5in bay
  • SATA data and power cabling included
  • Solid steel construction
  • Vertical and horizontal drive mounting holes
    Marketing Information:

    The BRACKET25X2 Dual hard drive mounting bracket kit lets you install two 2.5in SATA hard drives (HDD) or solid state drives (SSD) into a single 3.5in mounting bay -- enabling you to significantly increase the performance of your desktop by adding the speed of a 2.5in SSD.

    Maximize the internal mounting space of your computer, by installing two 2.5in hard drives in the same 3.5in bay. The bracket can be used with SATA hard drives and solid states

    For a hassle-free installation, the hard drive mounting kit includes all required data and power cabling for both SATA drives. Plus, the bracket can support IDE drives when using our 2.5in to 3.5in IDE Hard Drive cable adapter (IDE4044).

    The BRACKET25X2 features solid steel construction, and is backed by a StarTech.com lifetime warranty and free lifetime technical support.

    More from the Manufacturer


    Number of Hard Drives Supported: 2
    Number of Hard Drives Installed: No
    Number of Solid State Drive Supported: 2
    Number of Solid State Drive Installed: No
    Number of Total Expansion Bays: 2
    Number of 2.5" Bays: 2
    Wireless LAN: No
    Drive Interface: SATA/600
    Product Color: Silver
    Product Material: Steel
    Form Factor: Internal
    Compatible Drive Bay Width: 3.5"
    Height: 0.90" (22.86 mm)
    Width: 4" (101.60 mm)
    Depth: 4.60" (116.84 mm)
    Weight (Approximate): 73.7 g

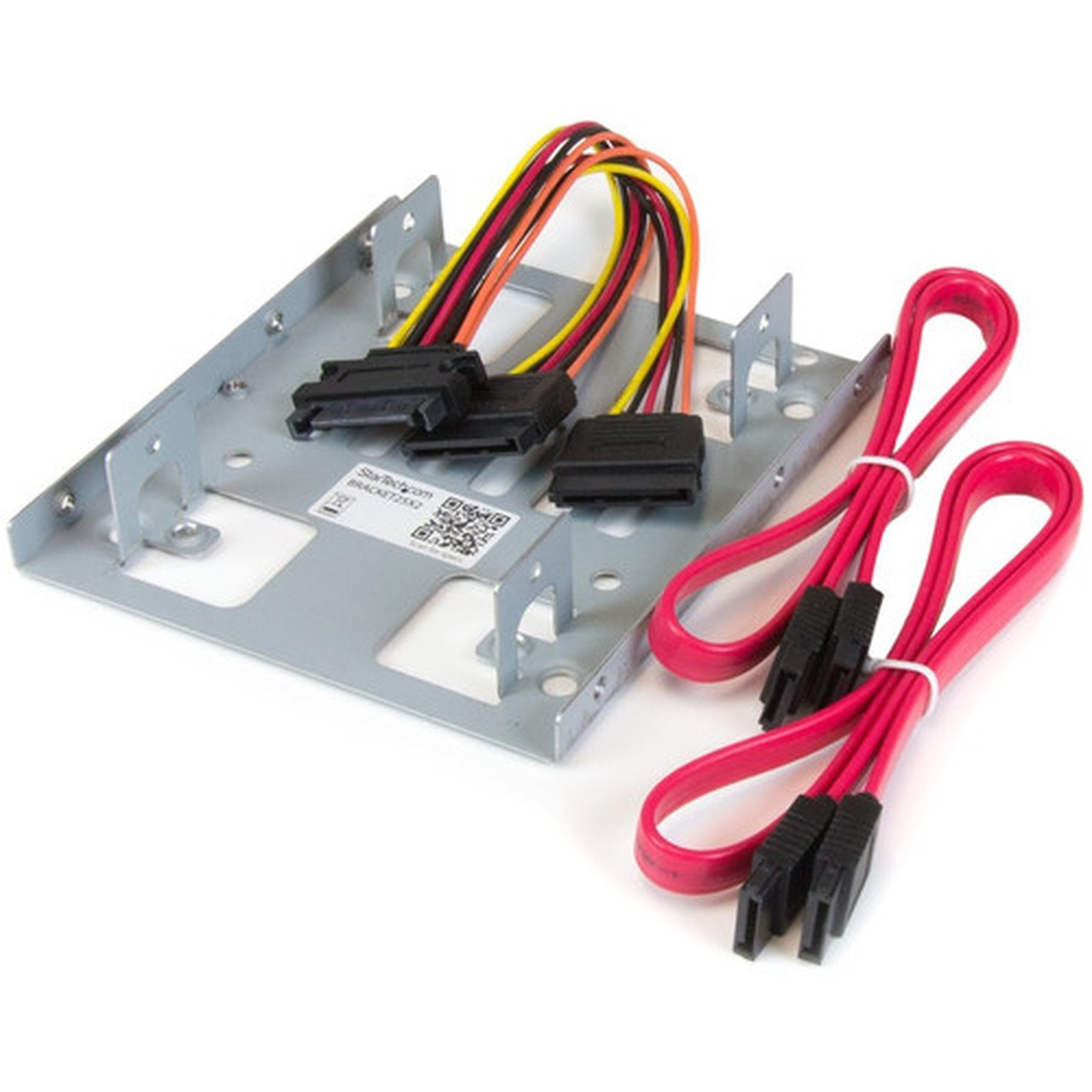

    Package Contents:
    • Dual 2.5" SATA Hard Drive to 3.5" Bay Mounting Bracket
    • 1 x Drive Mounting Screw Kit
    • 4 x Flat Screws and Washers (Bottom Drive)
    • 4 x M3x5mm Screws (Top Drive)
    • 4 x 6-32 Screws (Case Mount)
    • 2 x SATA Data Cables
    • 1 x SATA Power Y Cable
    • 1 x Quick-Start Guide

    Country of Origin: Taiwan
    TAA Compliant: Yes
    Environmentally Friendly: Yes
    Environmental Compliance:
    • Restriction of Hazardous Substances (RoHS)
    • Waste Electrical and Electronic Equipment Directive (WEEE)
    • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

    Limited Warranty: Lifetime

[custom-specifications]

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: BRACKET25X2
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: Dual 2.5" SATA Hard Drive to 3.5" Bay Mounting Bracket
Packaged Quantity: 1
Product Type: Drive Bay Adapter
Technical Information
Number of Hard Drives Supported: 2
Number of Hard Drives Installed: No
Number of Solid State Drive Supported: 2
Number of Solid State Drive Installed: No
I/O Expansions
Number of Total Expansion Bays: 2
Number of 2.5" Bays: 2
Network & Communication
Wireless LAN: No
Interfaces/Ports
Drive Interface: SATA/600
Physical Characteristics
Product Color: Silver
Product Material: Steel
Form Factor: Internal
Compatible Drive Bay Width: 3.5"
Height: 0.90" (22.86 mm)
Width: 4" (101.60 mm)
Depth: 4.60" (116.84 mm)
Weight (Approximate): 73.7 g
Miscellaneous
Package Contents:
  • Dual 2.5" SATA Hard Drive to 3.5" Bay Mounting Bracket
  • 1 x Drive Mounting Screw Kit
  • 4 x Flat Screws and Washers (Bottom Drive)
  • 4 x M3x5mm Screws (Top Drive)
  • 4 x 6-32 Screws (Case Mount)
  • 2 x SATA Data Cables
  • 1 x SATA Power Y Cable
  • 1 x Quick-Start Guide

Country of Origin: Taiwan
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty
Limited Warranty: Lifetime

[/custom-specifications]

Lifetime
