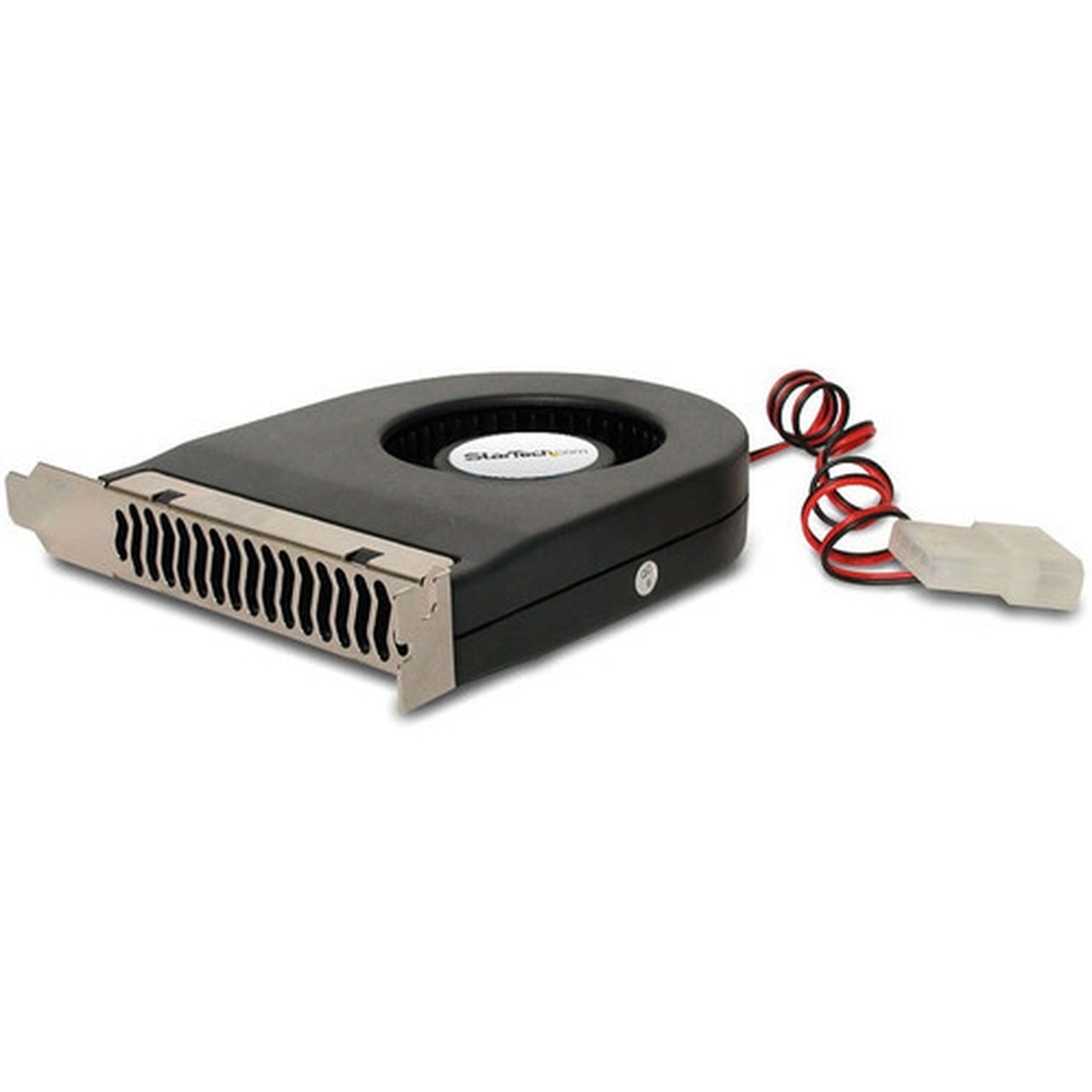

StarTech.com Expansion Slot Rear Exhaust Cooling Fan with LP4 Connector - PC Case Exhaust Fan/Video Card Cooler Fan - System fan kit - (FANCASE)
Marketing Information:
This high quality PCI Fan is an add-in cooling fan designed to fit in the PCI, ISA or AGP expansion slots of any computer. The PCI fan helps improve expansion card (video card, etc.) performance, by preventing overheating, making it a great video card cooler for older, hot-running 3D graphics cards like the Voodoo, TNT2, GeForce256 and more.
Powered through a simple LP4 connection to the computer power supply, the quiet-running PCI Fan utilizes a brushless DC motor that helps maintain expansion card temperatures while creating minimal noise levels.
Compact enough to fit into almost any expansion slot such that airflow can be directed as needed most, StarTech.com's PCI Fan is backed by 2-year warranty and free lifetime technical support.
Fan Bearing Type: Ball Bearing
Fan Speed (Max): 2200 rpm
Maximum Airflow: 195.4 L/min
Noise Levels (A-Weighted): 32 dB(A)
Connectors: 4-pin LP4 Male,4-pin LP4 Female
Product Color: Black
Product Material: Plastic
Maximum Fan Diameter: 8.27" (210 mm)
Fan Height: 0.80" (20.32 mm)
Fan Width: 3.50" (88.90 mm)
Fan Depth: 4.30" (109.22 mm)
Weight (Approximate): 102.1 g
Application/Usage: Case
Environmentally Friendly: Yes
Country of Origin: China
Limited Warranty: 2 Year
- Fits in standard full-height/full-profile computer cases
- Can be used to pull in air from the top to vent out the rear, or pull in air from the bottom to vent out the rear
- Ball bearing fan; Inline LP4 power connectors; 12V @ 0.15A, 1.8W; 6.9 CGM @ 2,200 RPM; 32 dBA; MTBF: 37,739 hours; Black plastic housing; Reversible bracket
- NOTE: Does not support PWM for fan speed control and will operate at full speed
[custom-specifications]
| Specifications | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | FANCASE |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | Expansion Slot Rear Exhaust Cooling Fan |
| Packaged Quantity | 1 |
| Product Type | Cooling Fan |
| Fan Information | |
| Fan Bearing Type | Ball Bearing |
| Fan Speed (Max) | 2200 rpm |
| Maximum Airflow | 195.4 L/min |
| Noise Levels (A-Weighted) | 32 dB(A) |
| Interfaces/Ports | |
| Connectors | 4-pin LP4 Male,4-pin LP4 Female |
| Physical Characteristics | |
| Product Color | Black |
| Product Material | Plastic |
| Maximum Fan Diameter | 8.27" (210 mm) |
| Fan Height | 0.80" (20.32 mm) |
| Fan Width | 3.50" (88.90 mm) |
| Fan Depth | 4.30" (109.22 mm) |
| Weight (Approximate) | 102.1 g |
| Miscellaneous | |
| Application/Usage | Case |
| Environmentally Friendly | Yes |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
Additional-pdf1
[/custom-user-manual]
Warranty Infomartion
2 Year
