- Converts and extends a Gigabit Ethernet fiber (1000Mbps) network over multimode fiber on 1000BASE-SX networks
- Provides a cost-effective Ethernet to fiber/copper to fiber link
- Supports a maximum distance of 550 m over multimode fiber-optic cable (SC connection)
- Compact design and wall mountable
- Non-blocking full wire-speed forwarding rate
- Provides DIP switch supporting Link Fault Pass-through function
Marketing Information: This fiber media converter extends a Gigabit Ethernet (1000Mbps) network up to 550 m over multimode fiber, on 1000BASE-SX networks.
Extend your GbE network cost-effectively The fiber media converter offers a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.
Reliable and scalable network connectivity Supporting a maximum multimode fiber-optic cable distance of 550 meters (0.34 miles), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations over multimode fiber, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also offers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.
The MCMGBSCMM055 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Total Number of Ports: 2Network (RJ-45): YesNumber of Network (RJ-45) Ports: 1Number of SC Ports: 1SC Port Type: DuplexMedia Type Supported: - Twisted Pair
- Optical Fiber
Fiber Mode Supported: Multi-modeFiber Optic Wavelength: 850 nmMaximum Distance Supported: 1804.5 ftEthernet Technology: Gigabit EthernetNetwork Technology: Power Source: AC AdapterForm Factor: Wall MountableHeight: 1" (25.40 mm)Width: 3.80" (96.52 mm)Depth: 2.80" (71.12 mm)Weight (Approximate): 201.3 gPackage Contents: - Gigabit Ethernet to SC Fiber Media Converter - 1000Base-SX - Multimode 550 m
- 1 x Universal power adapter (NA/JP, UK, EU, ANZ)
- 1 x Quick-start guide
Environmentally Friendly: YesEnvironmental Certification: TAA Compliant: YesLimited Warranty: 2 Year
[custom-specifications]
SpecificationsManufacturer: StarTech.com
Manufacturer Part Number: MCMGBSCMM055
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com

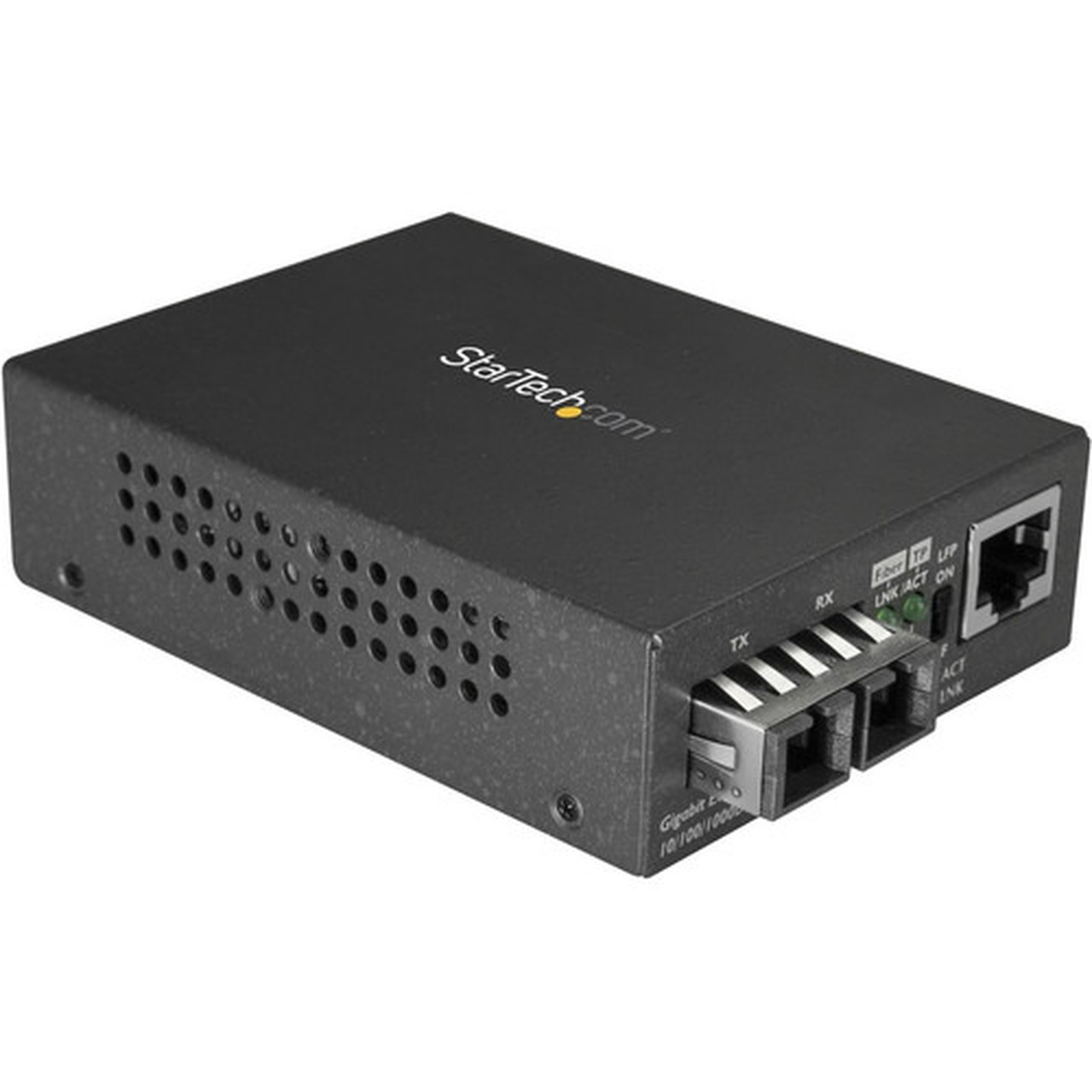

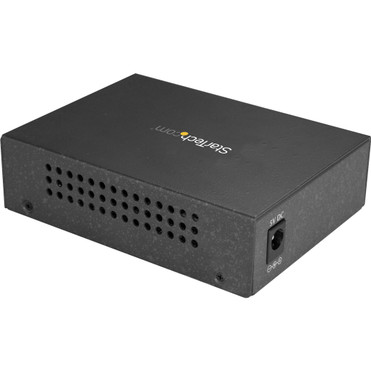

Product Name: Gigabit Ethernet to SC Fiber Media Converter - 1000Base-SX - Multimode 550 m
Packaged Quantity: 1
Product Type: Transceiver/Media Converter
Interfaces/PortsTotal Number of Ports: 2
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
Number of SC Ports: 1
SC Port Type: Duplex
Media & PerformanceMedia Type Supported:
- Twisted Pair
- Optical Fiber
Fiber Mode Supported: Multi-mode
Fiber Optic Wavelength: 850 nm
Maximum Distance Supported: 1804.5 ft
Network & CommunicationEthernet Technology: Gigabit Ethernet
Network Technology:
Power DescriptionPower Source: AC Adapter
Physical CharacteristicsForm Factor: Wall Mountable
Height: 1" (25.40 mm)
Width: 3.80" (96.52 mm)
Depth: 2.80" (71.12 mm)
Weight (Approximate): 201.3 g
MiscellaneousPackage Contents:
- Gigabit Ethernet to SC Fiber Media Converter - 1000Base-SX - Multimode 550 m
- 1 x Universal power adapter (NA/JP, UK, EU, ANZ)
- 1 x Quick-start guide
Environmentally Friendly: Yes
Environmental Certification:
TAA Compliant: Yes
WarrantyLimited Warranty: 2 Year
