StarTech.com Long Range 1000 ft USB VGA KVM Over CAT5/5e CAT6 UTP Extender - KVM Console Over Ethernet for multiple servers/PC's IT - (SV565UTPUL)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Write a Review
StarTech.com
StarTech.com Long Range 1000 ft USB VGA KVM Over CAT5/5e CAT6 UTP Extender - KVM Console Over Ethernet for multiple servers/PC's IT - (SV565UTPUL)

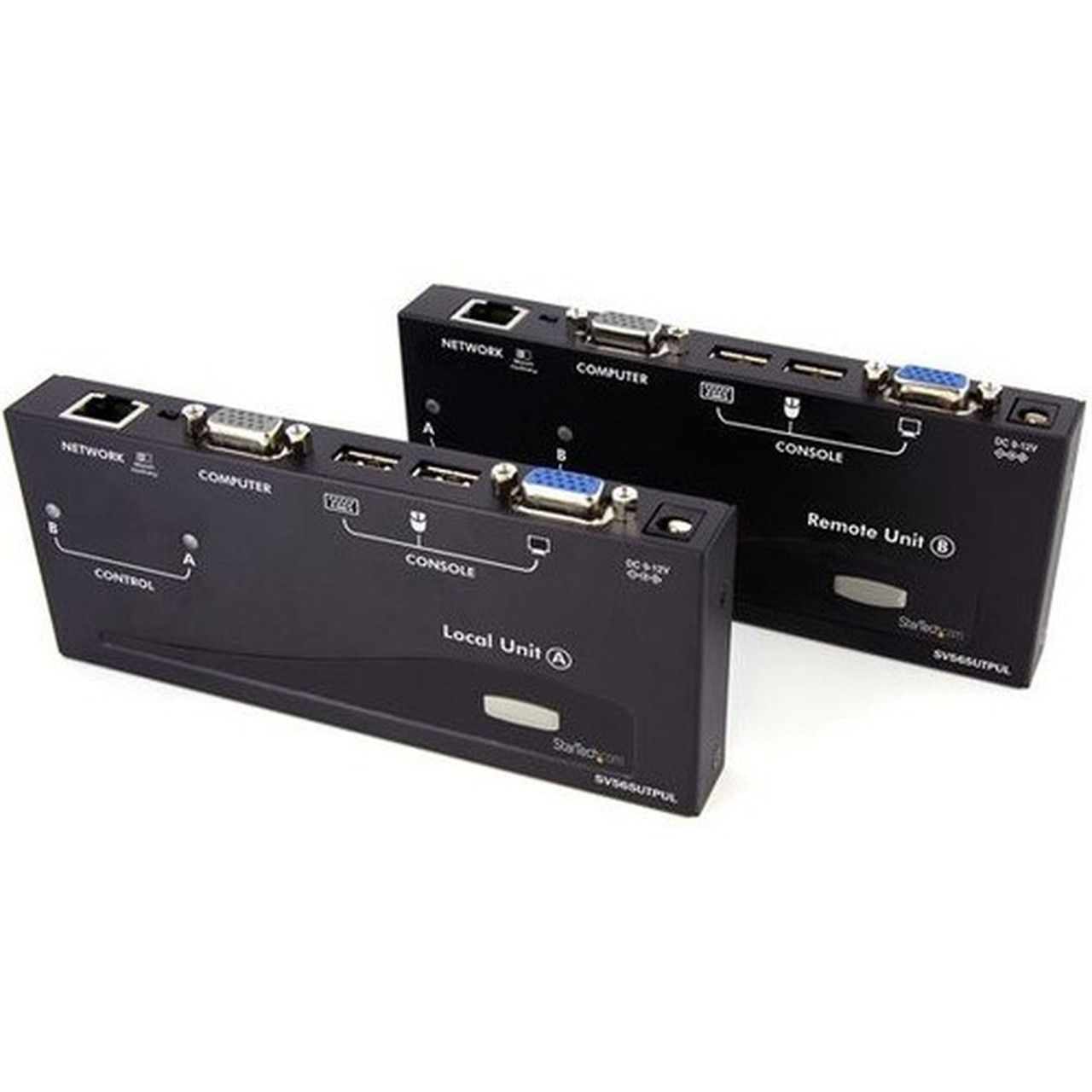

- 2 x KVM Extenders (1x Local, 1x Remote)
- 2 x 2n1 USB VGA KVM Cables
- 1 x Rubber Feet
- 1 x Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
- 1 x User Manual
Marketing Information:
The SV565UTPUL Long Range USB VGA KVM Console Extender over Cat5 UTP (1000 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 1000ft (300m) away.
You can use your existing USB keyboard, USB mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
Connectivity Technology: Wired
KVM Technology: Analog
Number of Computers Supported: 2
Number of Local Users Supported: 1
Number of Remote Users Supported: 1
Maximum Operating Distance: 984.25 ft (300000 mm)
Graphic Mode: WUXGA
Maximum Video Resolution: 1920 x 1200
Network (RJ-45): Yes
USB: Yes
VGA: Yes
Number of VGA Ports: 2
Number of Network (RJ-45) Ports: 2
Number of USB Ports: 4
Input Voltage: 120 V AC,240 V AC
Input Voltage Range: 110V AC to 240V AC
Power Consumption: 18 W
Product Color: Black
Form Factor: Rack-mountable,Desktop
Transmitter Height: 0.80" (20.32 mm)
Transmitter Width: 6.20" (157.48 mm)
Transmitter Depth: 2.80" (71.12 mm)
Receiver Height: 0.80" (20.32 mm)
Receiver Width: 6.20" (157.48 mm)
Receiver Depth: 2.80" (71.12 mm)
Transmitter Weight (Approximate): 622 g
Receiver Weight (Approximate): 622 g
Package Contents:
Environmentally Friendly: Yes
Country of Origin: Taiwan
TAA Compliant: Yes
Limited Warranty: 3 Year
- High resolution support: Up to 1920x1200(WUXGA)/ 1600x1200(UXGA)
- Kit includes both local and remote units
- Compatibility mode enables hotkey commands to be passed to connected StarView KVMs
- USB computers are supported at the host and remote locations (USB keyboard and mouse required for remote console)
- Max Resolution Limit feature caps the resolution to prevent the resolution setting from exceeding the capability of the connected display
- Supports auto-switching between host and remote users or dedicated control
- Compatible with CAT 5, 5e, or 6 UTP cabling
- Intuitive hotkey commands
- Hotkey controlled Equalizer(sharpness), Gain(brightness), and RGB Skew adjustments
- Supports most combo keyboard and mouse sets (including Wireless)
[custom-specifications]
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | SV565UTPUL |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | USB VGA KVM Console Extender over Cat5 UTP 1000 ft |
| Packaged Quantity | 1 |
| Packaged Quantity Condition | Kit |
| Product Type | KVM Console/Extender | Technical Information |
| Connectivity Technology | Wired |
| KVM Technology | Analog |
| Number of Computers Supported | 2 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 1 |
| Maximum Operating Distance | 984.25 ft (300000 mm) | Video |
| Graphic Mode | WUXGA |
| Maximum Video Resolution | 1920 x 1200 | Interfaces/Ports |
| Network (RJ-45) | Yes |
| USB | Yes |
| VGA | Yes |
| Number of VGA Ports | 2 |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 4 | Power Description |
| Input Voltage | 120 V AC,240 V AC |
| Input Voltage Range | 110V AC to 240V AC |
| Power Consumption | 18 W | Physical Characteristics |
| Product Color | Black |
| Form Factor | Rack-mountable,Desktop |
| Transmitter Height | 0.80" (20.32 mm) |
| Transmitter Width | 6.20" (157.48 mm) |
| Transmitter Depth | 2.80" (71.12 mm) |
| Receiver Height | 0.80" (20.32 mm) |
| Receiver Width | 6.20" (157.48 mm) |
| Receiver Depth | 2.80" (71.12 mm) |
| Transmitter Weight (Approximate) | 622 g |
| Receiver Weight (Approximate) | 622 g | Miscellaneous |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes | Warranty |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-options]
| Product | StarTech.com 2-in-1 - Video / USB cable - 4 pin USB Type A, HD-15 (M) - HD-15 (M) - 3.05 m - 10ft KVM Cable - USB KVM Cable - KVM Switch Cable - VGA KVM Cable |
| SKU | SVECONUS10 |
| Sale Price | $14.76 |
[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
Warranty Infomartion
3 Year
