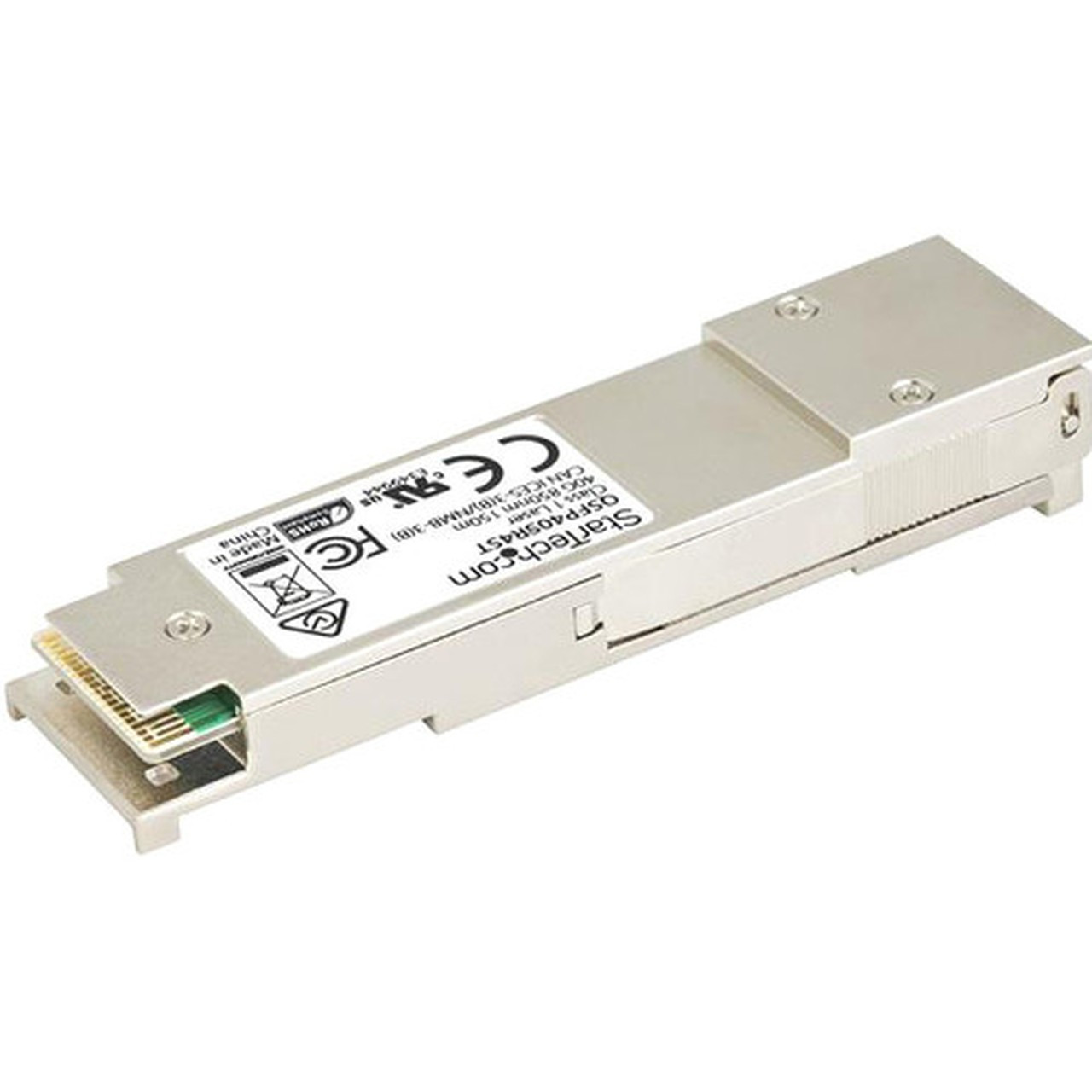

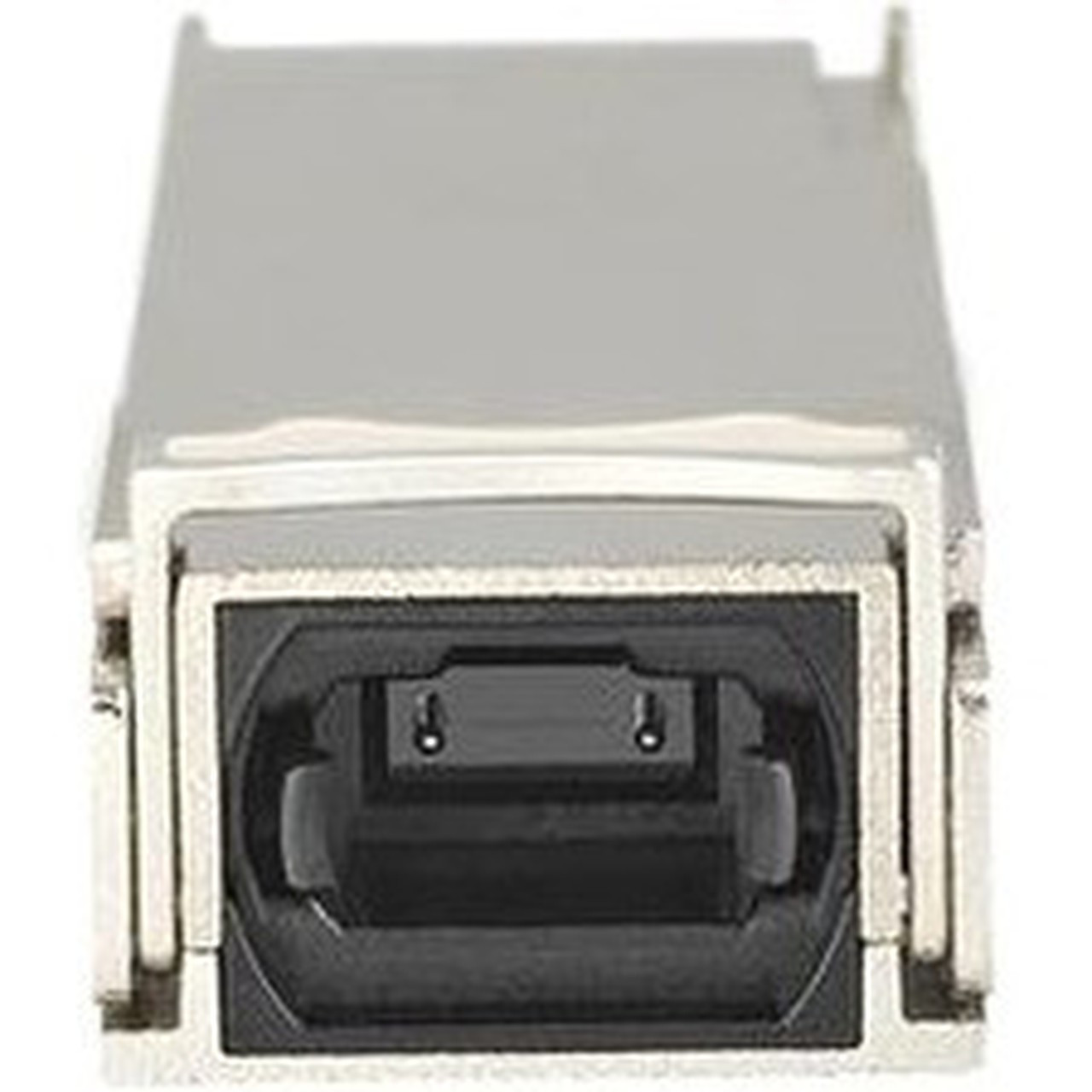

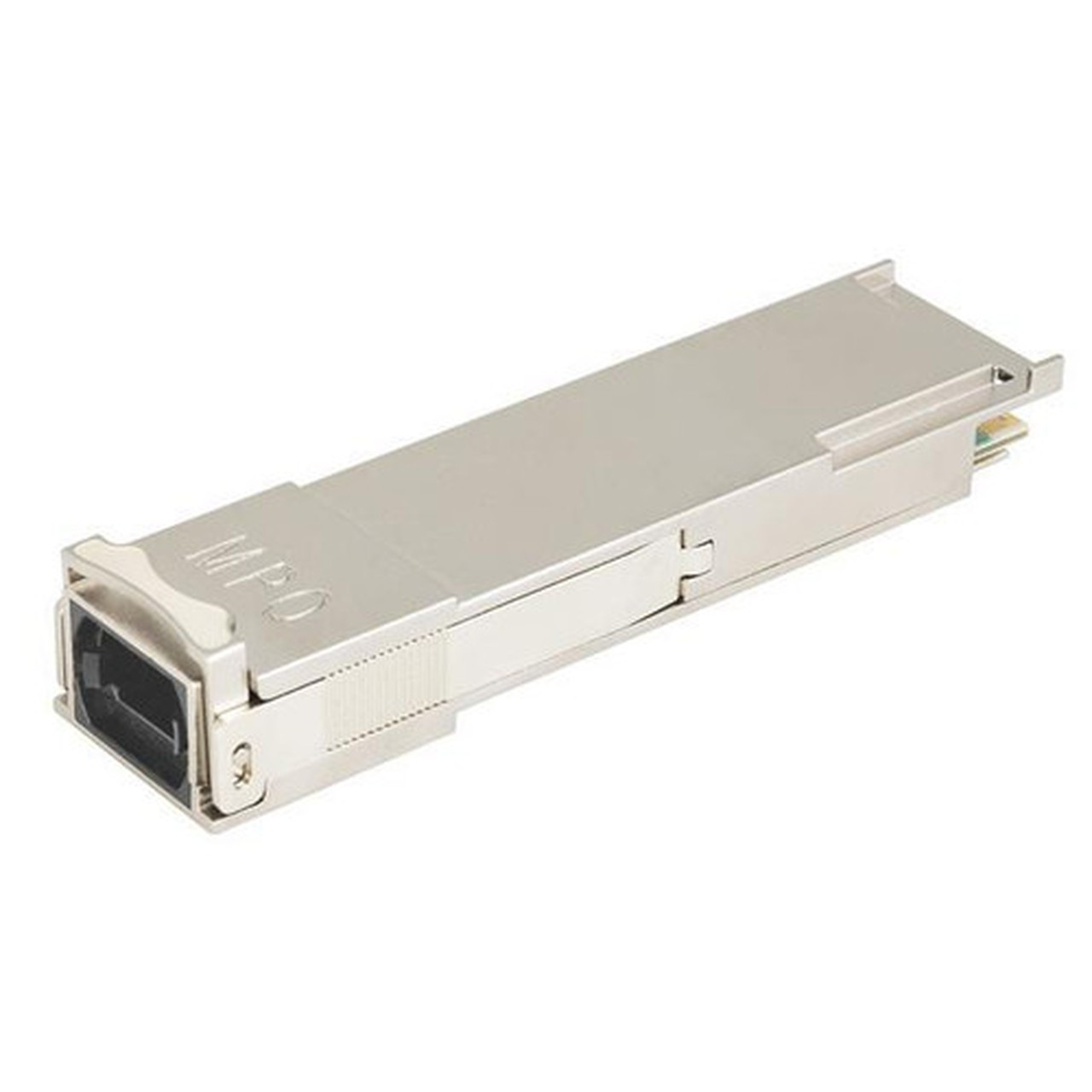

StarTech.com 40GBASE-SR4 MSA Compliant QSFP+ Module - MPO Connector - Fiber QSFP+ Transceiver - Lifetime Warranty - 40 Gbps - Max. 150 (QSFP40SR4ST)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Write a Review
StarTech.com
StarTech.com 40GBASE-SR4 MSA Compliant QSFP+ Module - MPO Connector - Fiber QSFP+ Transceiver - Lifetime Warranty - 40 Gbps - Max. 150 (QSFP40SR4ST)
- Wavelength: 850 nm
- Maximum Data Transfer Rate: 40 Gbps
- Type: Multi Mode Fiber
- Connection Type: MPO Connector
- Maximum Transfer Distance: 150 m (492 ft)
- MTBF: 1,489,426 hours
- Power Consumption: Less than 0.7 Watts
- DDM: Yes
Marketing Information: The QSFP40SR4ST is an MSA compliant fiber QSFP+ transceiver that's designed, programmed and tested to work with 40GBASE-SR4 compatible MSA switches and routers. The QSFP+ transceiver module supports a maximum distance of up to 150 m (492 ft) and delivers dependable 40 GbE connectivity over fiber cabling.
Technical Specifications:
Application/Usage: Optical Network,Data Networking
Total Number of Ports: 1
Connector Type: MPO
Interfaces/Ports Details: 1 x MPO Duplex 40GBase-SR4 Network
Media Type Supported: Optical Fiber
Fiber Mode Supported: Multi-mode
Ethernet Technology: 40 Gigabit Ethernet
Network Technology: 40GBase-SR4
Form Factor: Hot-swappable
Height: 0.50" (12.70 mm)
Width: 0.70" (17.78 mm)
Depth: 2.80" (71.12 mm)
Weight (Approximate): 34 g
Compatibility: MSA Compliant
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Limited Warranty: Lifetime
- 100% MSA UNCODED QSFP+ TRANSCEIVER: Designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver dependable 40GbE connectivity
- TECHNICAL SPECS: 40GBASE-SR4
40Gbps
Multi Mode (MMF)
MPO Connector
850nm
Digital Diagnostic Monitoring (DDM)
Distances up to 100m (328ft) - TESTED FOR COMPATIBILITY: Hot-swappable in MSA Compliant routers and switches; DDM support reports the transceiver's status to most SNMP network management tools.
- LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself and not the life of your switch; our modules won't void your OEM warranty and supported by our Tech Advisors 5/24
- WORKS WITH MSA COMPLIANT SWITCHES: Works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
[custom-specifications]
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | QSFP40SR4ST |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | MSA Compliant QSFP+ Transceiver Module - 40GBASE-SR4 |
| Product Type | QSFP+ |
| Packaged Quantity | 1 | Technical Information |
| Application/Usage | Optical Network,Data Networking | Interfaces/Ports |
| Total Number of Ports | 1 |
| Connector Type | MPO |
| Interfaces/Ports Details | 1 x MPO Duplex 40GBase-SR4 Network | Media & Performance |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Ethernet Technology | 40 Gigabit Ethernet |
| Network Technology | 40GBase-SR4 | Physical Characteristics |
| Form Factor | Hot-swappable |
| Height | 0.50" (12.70 mm) |
| Width | 0.70" (17.78 mm) |
| Depth | 2.80" (71.12 mm) |
| Weight (Approximate) | 34 g | Miscellaneous |
| Compatibility | MSA Compliant |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | Warranty |
| Limited Warranty | Lifetime |
[/custom-specifications]
[custom-options]
[/custom-options]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
Warranty Infomartion
Lifetime
