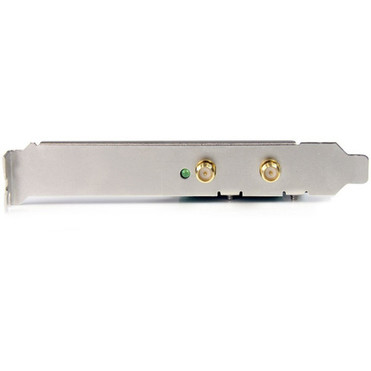

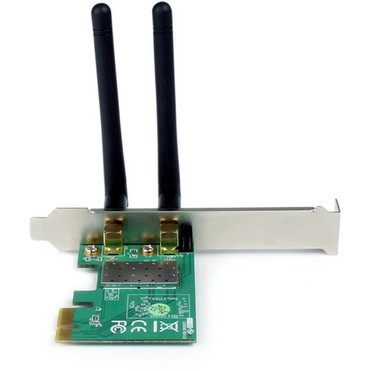

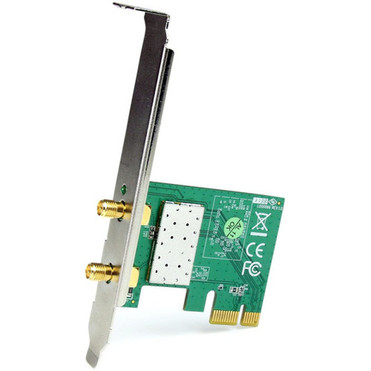

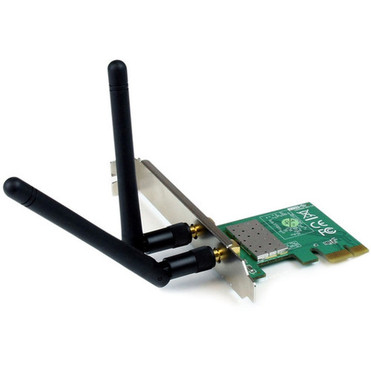

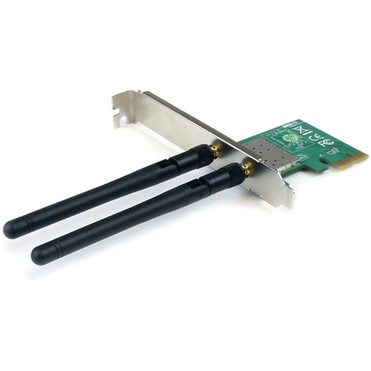

StarTech.com PEX300WN2X2 PCIe Wireless N Adapter - 300 Mbps 802.11n 2 x 2 MIMO Card with Dual Antennas
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This wireless adapter operates on the 2.4 GHz ISM band with a maximum frequency of 2.48 GHz, supporting the Wi-Fi 4 (802.11n) standard for efficient data transmission. The 300 Mbps wireless speed enables smooth streaming, file transfers, and general network tasks.
The card maintains backward compatibility with older 802.11b and 802.11g networks, ensuring connectivity in mixed-environment deployments. Security protocols include WEP (64-128-bit), WPA, WPA2, and WPS for network protection.
Relevant factors for this section include Wi-Fi Generation, Wireless LAN Standard, ISM Band, Host Interface. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The PEX300WN2X2 combines straightforward installation with consistent wireless performance for desktop workstations. Its dual-antenna design enhances signal reliability compared to single-antenna adapters, while the low-profile bracket accommodates space-constrained builds.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Enhanced Connectivity, Flexible Installation.
Enhanced Connectivity
Supports both infrastructure and ad-hoc network modes, plus WMM/WMM-PS Quality of Service for prioritized traffic handling.
- Infrastructure mode for standard network access
- Ad-hoc mode for direct device connections
- QoS support for voice/video traffic
Flexible Installation
Includes both standard and low-profile mounting brackets to fit various desktop chassis sizes without requiring additional hardware.
- Low-profile bracket included
- Tool-free antenna installation
- PCIe x1 slot compatibility
Deployment / Use Cases
This wireless adapter is designed for desktop computers in environments where running Ethernet cables is impractical or where wireless connectivity is preferred. It's particularly useful for office workstations, point-of-sale systems, and home desktop setups that need reliable Wi-Fi access.
The card suits small businesses upgrading older desktops, IT departments deploying standardized wireless connectivity across multiple workstations, and home users adding Wi-Fi to custom-built PCs. Its TAA compliance makes it appropriate for government and educational procurement where sourcing requirements apply.
Office Workstation Upgrade
Add wireless connectivity to existing desktop computers without replacing entire systems, maintaining productivity during office reconfigurations or expansions.
Small Form Factor Solutions
The low-profile bracket enables installation in compact desktop cases commonly used in retail, healthcare, and space-constrained environments.
Physical Profile
Measuring 1.90" wide by 0.70" high by 3" deep (48.26 x 17.78 x 76.20 mm), the adapter has a compact footprint that fits standard PCIe slots. The lightweight design at 1.30 ounces (36.85 grams) minimizes strain on the motherboard slot while the detachable antennas allow flexible positioning for optimal signal reception.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 0.70" (17.78 mm), 1.90" (48.26 mm), 3" (76.20 mm), 1.30 oz (36.85 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 1.90" (48.26 mm)
- Depth
- 3" (76.20 mm)
- Height
- 0.70" (17.78 mm)
- Weight
- 1.30 oz (36.85 g)
What's in the Box
The adapter ships with all necessary components for immediate installation and operation.
Highlights
- 300 Mbps wireless speed via 802.11n Wi-Fi 4 standard
- PCI Express x1 interface for direct motherboard connection
- 2x2 MIMO configuration with dual detachable 2 dBi antennas
- Backward compatible with 802.11b/g networks
- Includes low-profile bracket for small form factor cases
- Supports WEP, WPA, WPA2, and WPS security protocols
- Infrastructure and ad-hoc network mode support
- WMM/WMM-PS Quality of Service for traffic prioritization
- TAA compliant for government procurement
- 2-year limited warranty with RoHS environmental compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | PEX300WN2X2 |
| Brand Name | StarTech.com |
| Product Name | PCI Express Wireless Networking Card |
| Packaged Quantity | 1 Each |
| Product Type | Wi-Fi Adapter |
| Technical Information | |
| Wi-Fi Generation | Wi-Fi 4 |
| Wireless LAN Standard | IEEE 802.11n |
| ISM Band | Yes |
| UNII Band | No |
| ISM Maximum Frequency | 2.48 GHz |
| Wireless Transmission Speed | 300 Mbit/s |
| Interfaces/Ports | |
| Host Interface | PCI Express x1 |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Height | 0.70" (17.78 mm) |
| Width | 1.90" (48.26 mm) |
| Depth | 3" (76.20 mm) |
| Weight (Approximate) | 1.30 oz (36.85 g) |
| Miscellaneous | |
| Package Contents | PCI Express Wireless Networking Card 2 x Antenna 1 x Low Profile Bracket 1 x Driver CD 1 x Instruction Manual |
| Device Supported | Desktop Computer |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What wireless standards does this adapter support?
The adapter supports the IEEE 802.11n standard (Wi-Fi 4) with maximum speeds of 300 Mbps. It maintains backward compatibility with older 802.11b and 802.11g standards, allowing connections to networks using those protocols at their respective maximum speeds of 11 Mbps and 54 Mbps.
What type of computer can I install this in?
This wireless adapter is designed for desktop computers with an available PCI Express x1 slot. It includes both standard and low-profile brackets, making it compatible with full-size tower cases as well as compact small-form-factor desktop chassis commonly used in business and retail environments.
What is included in the package?
The package contains the PCI Express wireless networking card, two detachable 2 dBi antennas, one low-profile installation bracket, a driver CD, and an instruction manual. All necessary hardware for installation is included, so no additional purchases are required for basic setup.
What security features does this wireless adapter support?
The adapter supports multiple security protocols including WEP (64-bit and 128-bit), WPA, WPA2, and WPS (Wi-Fi Protected Setup). These options provide flexibility for connecting to both older and modern secured wireless networks with appropriate encryption for data protection.
What is the antenna configuration and why does it matter?
This adapter uses a 2x2 MIMO (Multiple Input Multiple Output) configuration with two transmitters and two receivers. This design improves wireless performance by allowing simultaneous data streams, resulting in better signal reliability, increased throughput, and reduced dead spots compared to single-antenna adapters.
What warranty and compliance certifications come with this product?
The adapter includes a 2-year limited warranty from StarTech.com. It is TAA compliant for government procurement and meets EU RoHS environmental standards, along with REACH and WEEE directives for hazardous substance restriction and electronic waste management.
