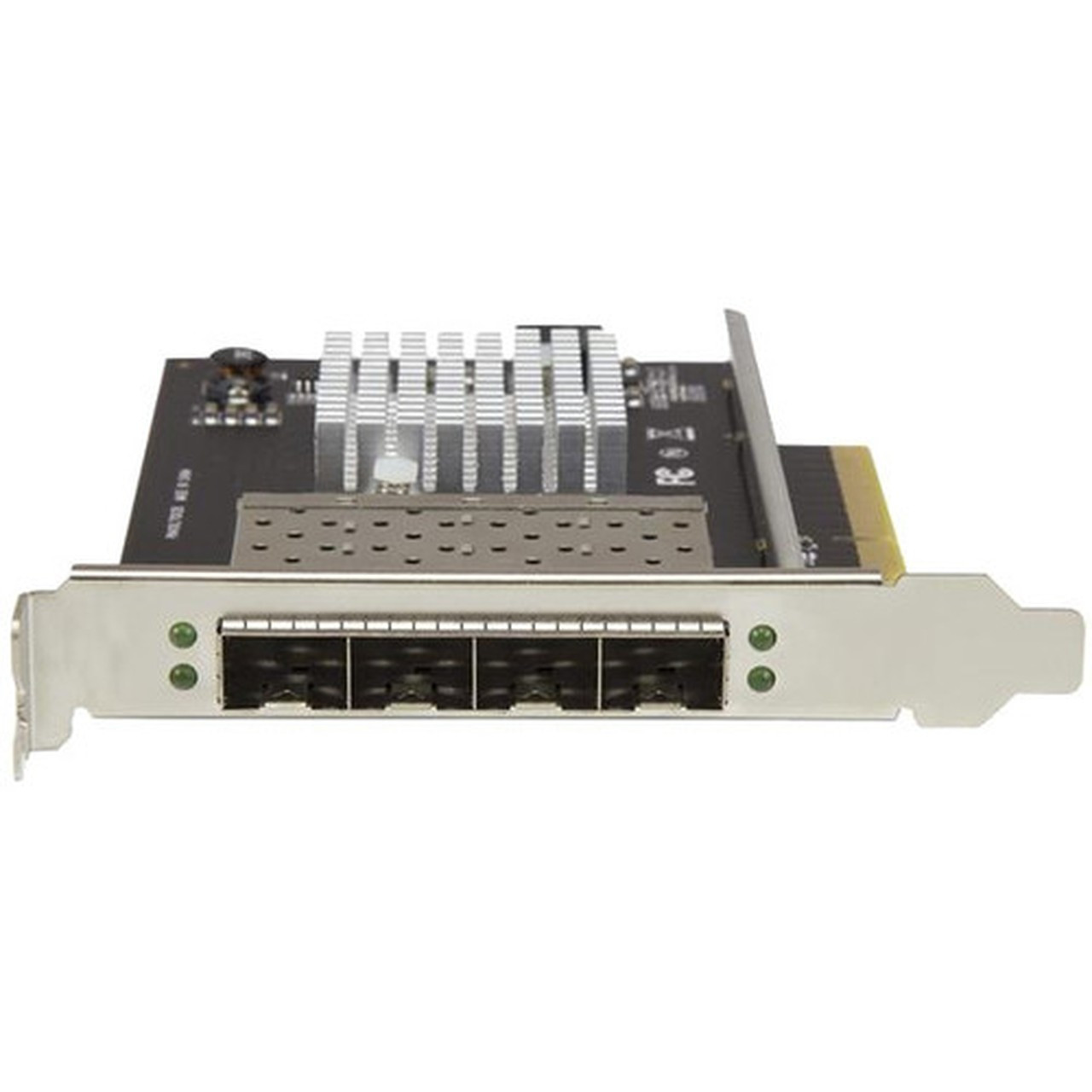

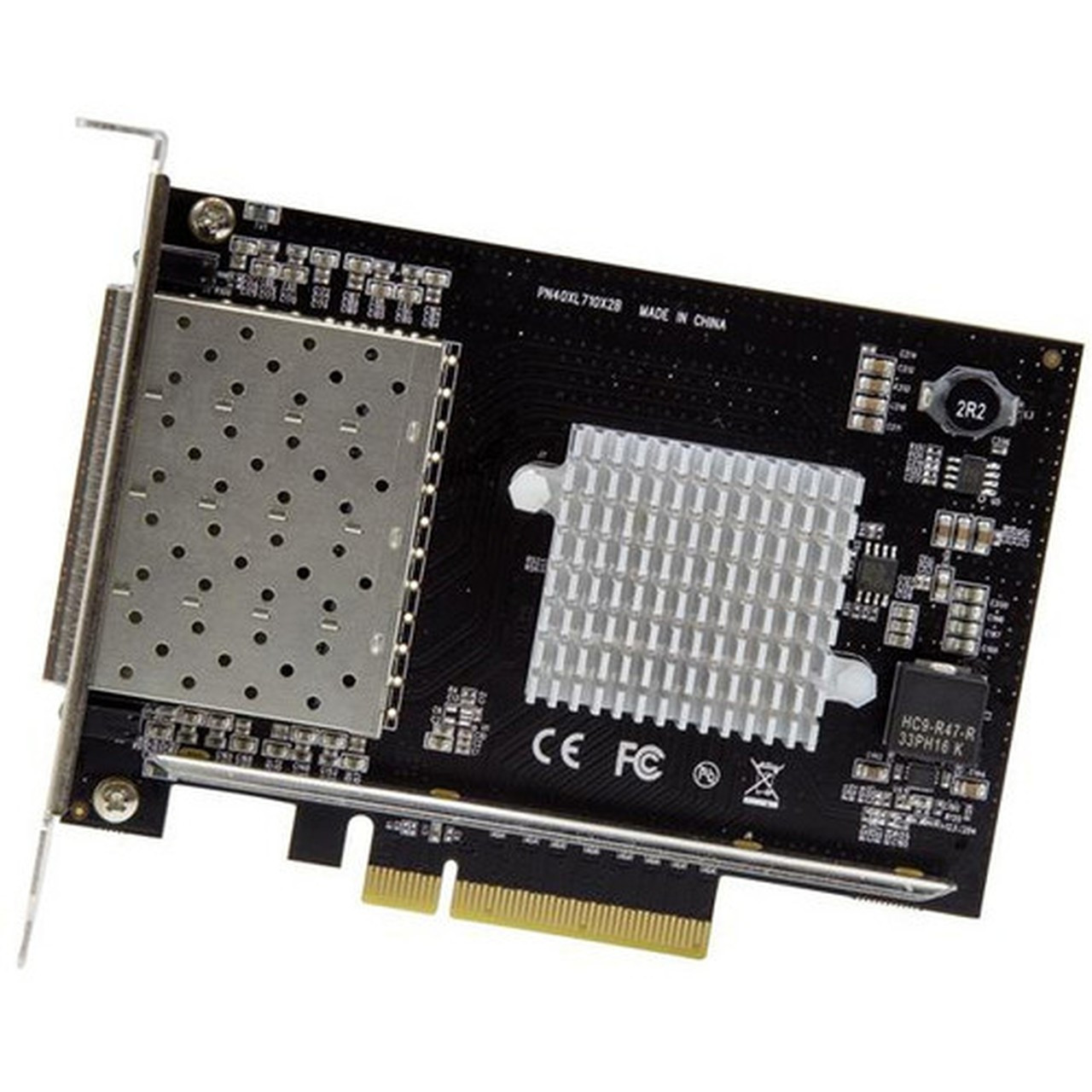

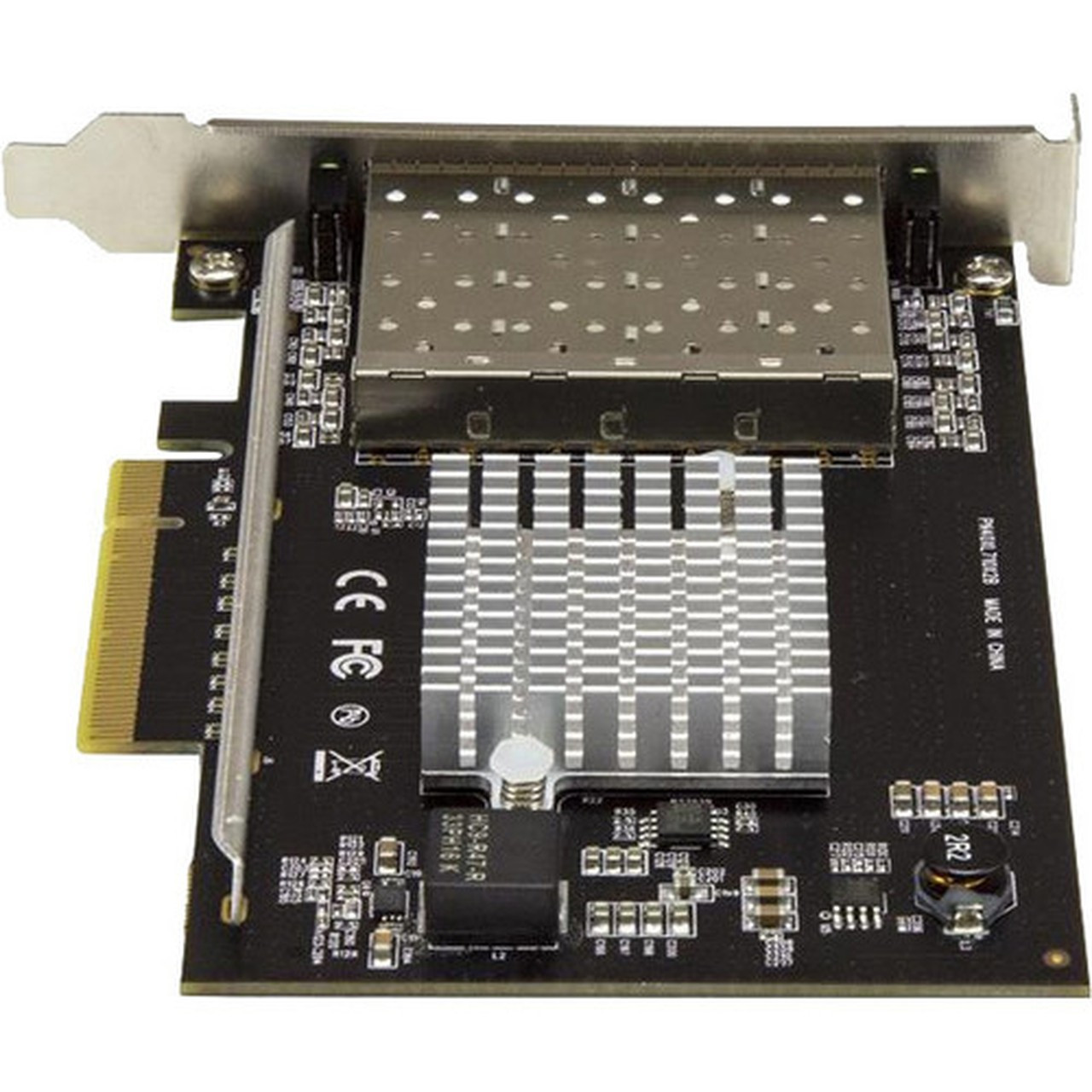

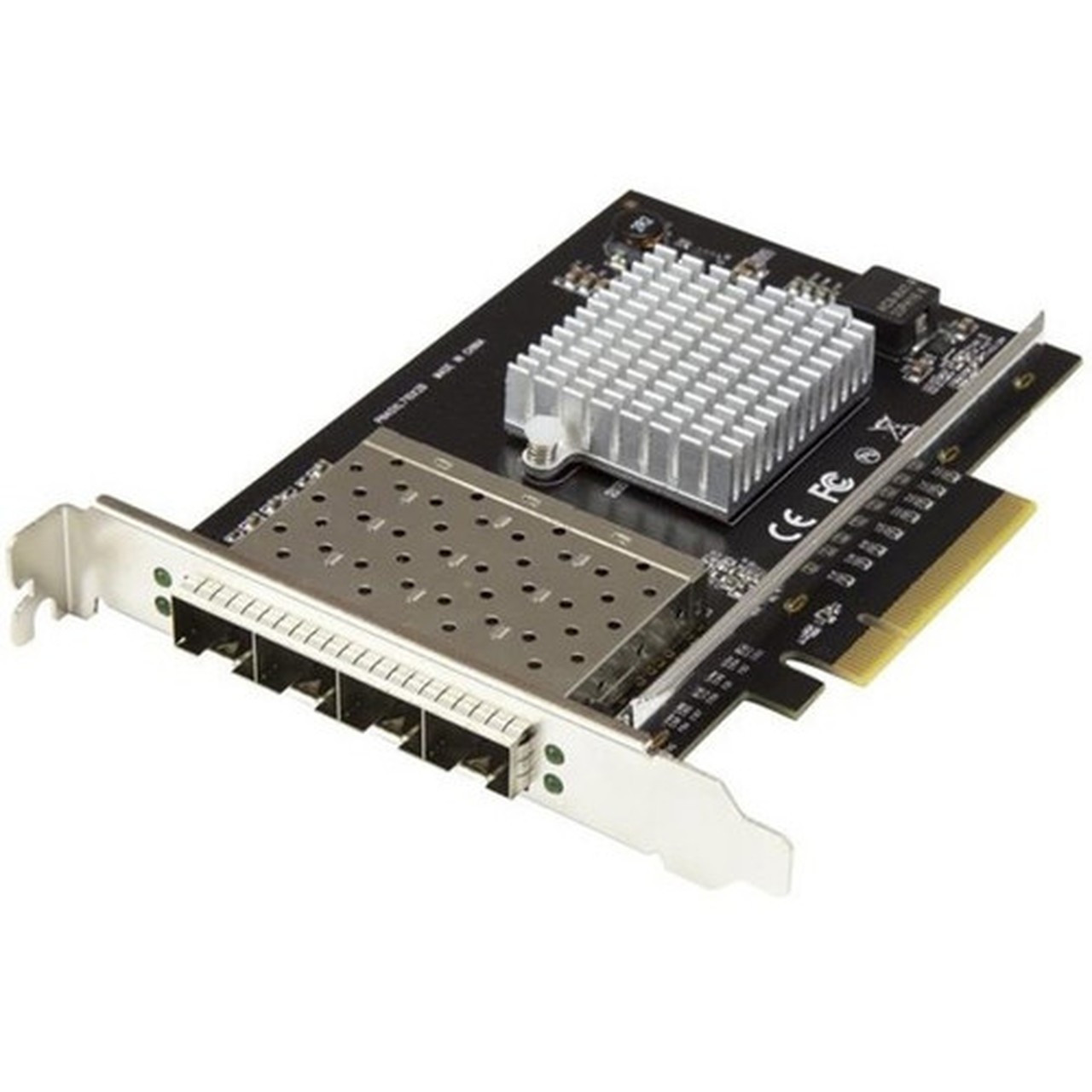

StarTech.com Quad Port 10G SFP+ Network Card - Intel XL710 Open SFP+ Converged Adapter - PCIe 10 Gigabit Fiber Optic Server NIC - - - (PEX10GSFP4I)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Description
- Quad-Port SFP+ Server Network Card - PCI Express - Intel XL710 Chip
- 1 x Quick-start Guide
Marketing Information:
This SFP+ server network card delivers reliable, high-performance network connectivity, by adding four open SFP+ slots to your server or high-powered workstation. It provides an easy and cost-effective way to upgrade to a 10 Gigabit fiber network using SFP+ modules of your choice and gives you the flexibility to use either multimode or single-mode fiber.
Add redundant connections in zero-downtime environments
With multiple available ports, you can avoid network downtime by adding fault-tolerant connections using two or more modules to provide high-bandwidth network links to your mission-critical servers or workstations.
Increase your network speed
This PCIe network card lets you take advantage of the increased speed and stability of a 10 Gigabit network, with data transfers of up to 10Gbps.
Add scalable network connections to your server or workstation
The network interface card is compatible with most 10GbE SFP+ transceivers. This gives you flexible and scalable configuration options, for connecting your computer directly to a fiber network at greater distances.
The card features four open SFP+ slots with support for interchangeable 10GBase SFP+ modules. This gives you the option to use the fiber transceiver modules that best suit your network needs based on distance and connector type. StarTech.com offers a wide variety of SFP+ transceiver modules to suit your network requirements. In addition, StarTech.com SFP+ cables provide a dependable solution for linking telecom and data communications equipment, such as routers and switches.
Enhance your network capabilities
The SFP+ server network card features the Intel® XL710 chipset, delivering the power, performance and enhanced capabilities you need for reliable connections to your server or computer. The Intel chip offers many advanced features including Intel® Virtualization Technology for Connectivity, PXE network boot support and up to 9K jumbo frame support.
The PEX10GSFP4I is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Chipset Manufacturer: Intel
Chipset Model: XL710
Host Interface: PCI Express x8
Total Number of Ports: 4
Expansion Slot Type: SFP+
Media Type Supported: Optical Fiber
Data Transfer Rate: 2.50 GB/s
Network Technology: 10GBase-LR,10GBase-SR
Product Color: Black
Form Factor: Plug-in Card
Height: 3.90" (99.06 mm)
Width: 0.60" (15.24 mm)
Depth: 5.50" (139.70 mm)
Weight (Approximate): 121.9 g
Package Contents:
Device Supported: Server
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: China
Limited Warranty: 2 Year
- QUAD SFP+ ADAPTER: 4 ports on SFP+ network card can provide redundancy, or be aggregated for demanding applications; Data Center Bridging (DCB), virtualization incl. VT-c, SAN & iSCSI offload support
- TECH SPECS: 10 Gbps per port
4 SFP+ Ports, MSA Compliant
Intel XL710
MMF & SMF Fiber Support
PCIe 3.0 x8
PXE Boot
9K Jumbo Frames
Link Aggregation
VLAN
Full profile
2 Yr. Warranty - TESTED & VERIFIED PERFORMANCE: We use Spirent SmartBits to validate performance; converged network adapter is compatible w/ leading servers like Dell PowerEdge, HPE ProLiant & Lenovo ThinkSystem
- FLEXIBLE: Use MSA compliant SFP+ module or direct attach cable (DAC) supporting different fiber types; 10 Gigabit Ethernet NIC works w/leading brands of switches, routers, & devices like Cisco & HPE
- WIDE HYPEVISOR & OS COMPATIBILITY: Fiber LAN card compatible w/Windows 7, 8, 8.1, 10; Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019; Linux kernels 3.x + (LTS versions); VMWare ESXi 5.0, 5.1+
[custom-specifications]
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | PEX10GSFP4I |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | Quad-Port SFP+ Server Network Card - PCI Express - Intel XL710 Chip |
| Packaged Quantity | 1 |
| Product Type | 10Gigabit Ethernet Card | Technical Information |
| Chipset Manufacturer | Intel |
| Chipset Model | XL710 | Interfaces/Ports |
| Host Interface | PCI Express x8 |
| Total Number of Ports | 4 | I/O Expansions |
| Expansion Slot Type | SFP+ | Media & Performance |
| Media Type Supported | Optical Fiber |
| Data Transfer Rate | 2.50 GB/s | Network & Communication |
| Network Technology | 10GBase-LR,10GBase-SR | Physical Characteristics |
| Product Color | Black |
| Form Factor | Plug-in Card |
| Height | 3.90" (99.06 mm) |
| Width | 0.60" (15.24 mm) |
| Depth | 5.50" (139.70 mm) |
| Weight (Approximate) | 121.9 g | Miscellaneous |
| Package Contents |
|
| Device Supported | Server |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China | Warranty |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Additional-pdf2
[/custom-user-manual]
