StarTech. com USB2HAB10T Transparent USB 2. 0 Cable - 10 ft A Male to B Male - 480 Mbps Hi-Speed Data Transfer
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

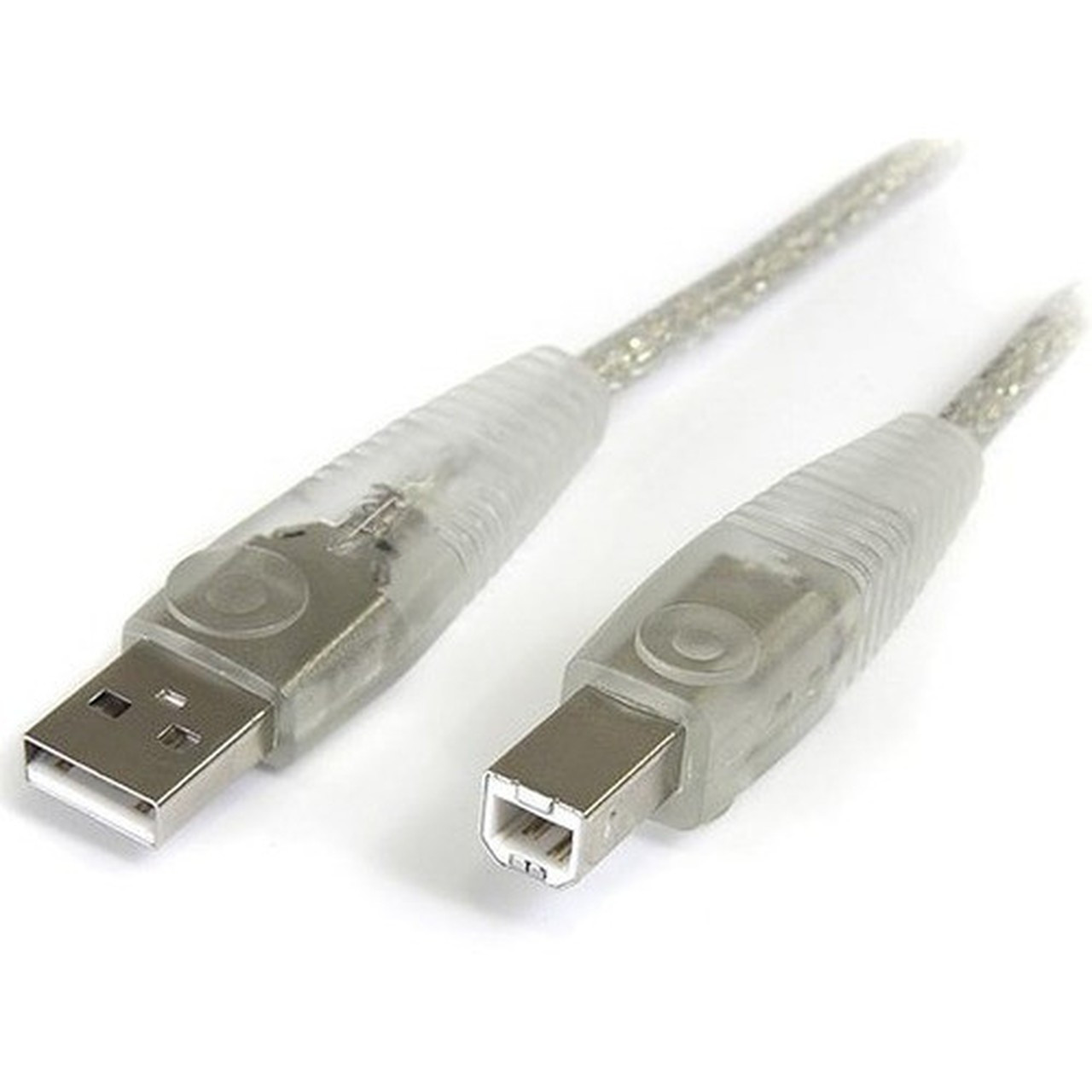

This USB 2.0 A-to-B cable delivers full Hi-Speed USB bandwidth, supporting data transfers at 480 Mbit/s. It maintains backward compatibility with USB 1.1 devices, ensuring broad interoperability with older hardware. The 10-foot length provides flexible placement options for peripherals located farther from the host computer.
Electrical construction includes twisted-pair conductors and a layered shield that reduces signal degradation over distance. The 4-pin USB Type A and Type B connectors follow standard USB 2.0 pinouts, providing a secure physical connection that resists accidental dislodging.
This section brings together practical product details such as Cable Type, Cable Length, Connector Type on First End, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The transparent cable body offers a low-profile aesthetic that suits modern office environments, server racks, or home setups where visible cabling might be distracting. Its durable molded strain relief and shielded design ensure long-term reliability even with frequent plugging and unplugging.
Broad Device Compatibility
Works with PCs, Macs, printers, scanners, external hard drives, and any USB 2.0 peripheral. Supports daisy-chaining up to 127 devices.
- PC & Mac
- Printers & Scanners
- External Storage
Enhanced Signal Integrity
Twisted-pair wiring combined with foil and braid shielding reduces interference, maintaining stable high-speed data transfer across the full 10-foot length.
- Crosstalk Protection
- EMI Reduction
- Stable 480 Mbps
Deployment / Use Cases
This cable is ideal for connecting legacy printers, scanners, or external storage that use USB Type B ports to modern computers with USB Type A ports. Its 10-foot reach accommodates setups where the peripheral is placed under a desk, on a separate shelf, or in a different part of the room.
Common applications include office printer connections, linking audio interfaces or MIDI controllers, extending USB hubs, and attaching older external hard drives or tape backups. The transparent color makes it particularly suitable for environments where cable visibility should be minimized, such as retail displays, conference rooms, or clean-desk policies.
Office & Print Environments
Connect USB-B printers, all-in-one devices, or document scanners to workstations or shared computers across moderate distances.
Legacy Peripheral Support
Interface older USB 1.1 or 2.0 devices that still rely on Type B connectors with newer systems maintaining backward compatibility.
Physical Profile
The cable features a clear PVC jacket that reveals internal wiring, contributing to a sleek, unobtrusive appearance. At 10 feet long and weighing just 3.5 ounces, it is easy to route behind furniture, through cable management channels, or along baseboards without adding bulk. The molded connectors provide a secure grip for insertion and removal.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.50 oz (99.22 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 3.50 oz (99.22 g)
- Length
- 10 ft (3.05 m)
What's in the Box
The package includes the 10-foot transparent USB 2.0 cable with male Type A to male Type B connectors.
Package contents include 10 ft. Transparent USB 2.0 Cable A-B M/M. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Transparent clear cable blends into any environment
- Hi-Speed USB 2.0 data transfer up to 480 Mbps
- 10-foot length for flexible peripheral placement
- Male Type A to male Type B connectors
- Backward compatible with USB 1.1 devices
- Shielded construction reduces interference
- Molded strain relief for durability
- Hot-pluggable for live device swapping
- Supports daisy-chaining up to 127 devices
- Compliant with RoHS, REACH, and WEEE environmental standards
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | USB2HAB10T |
| Brand Name | StarTech.com |
| Product Model | USB2HAB10T |
| Product Name | 10 ft Transparent USB 2.0 Cable - A to B |
| Packaged Quantity | 1 Each |
| Product Type | Data Transfer Cable |
| Technical Information | |
| Cable Type | USB/USB-B |
| Cable Length | 10 ft (3.05 m) |

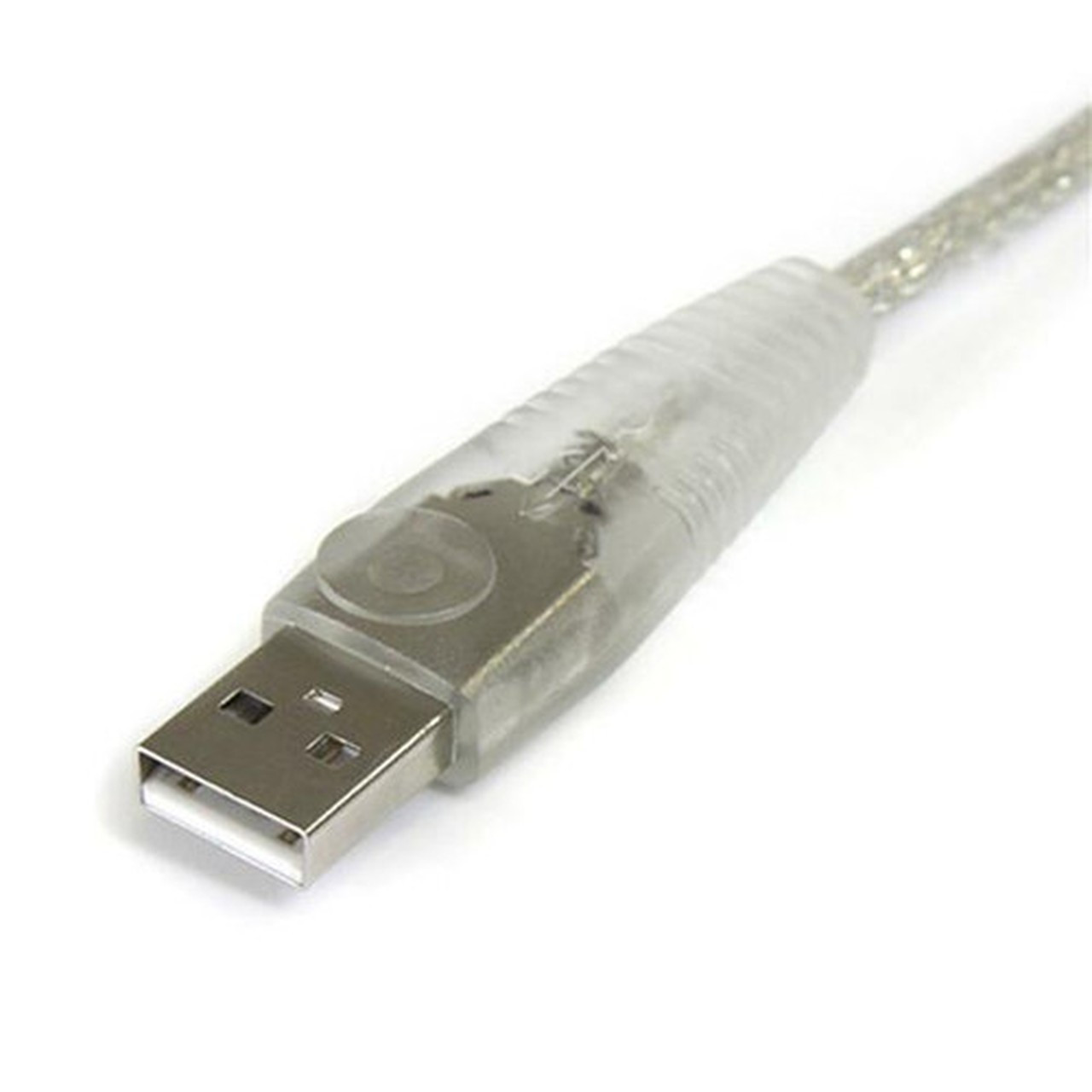

| Connector Type on First End | USB 2.0 Type A - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x 4-pin USB 2.0 Type A - Male |

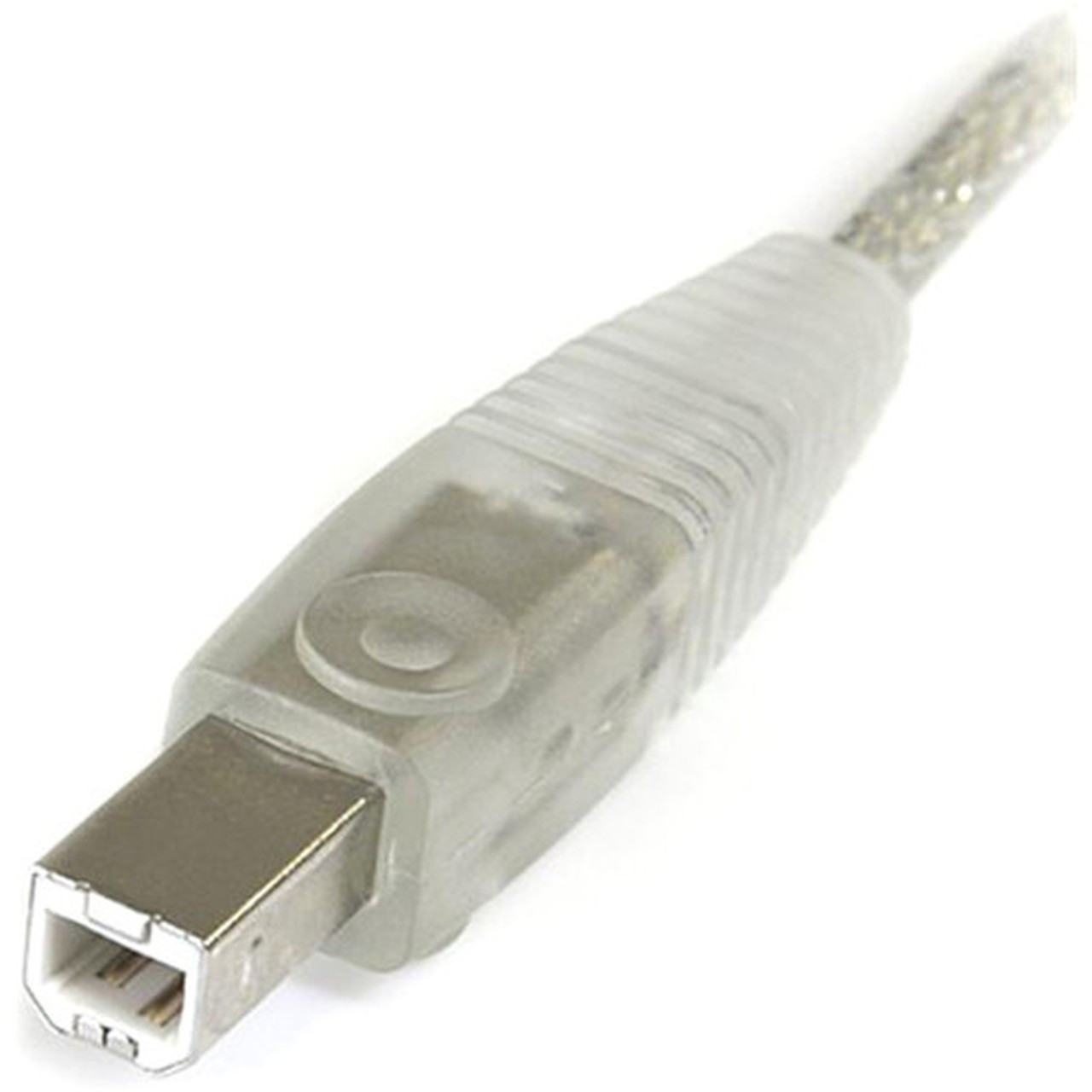

| Connector Type on Second End | USB 2.0 Type B - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x 4-pin USB 2.0 Type B - Male |
| Device Supported | Peripheral Device,Printer,PC,MAC |
| American Wire Gauge | 24/28 AWG |
| Data Transfer Rate | 480 Mbit/s |
| Features | Molded,Strain Relief,Crosstalk Protection |
| Physical Characteristics | |
| Color Family | Clear |
| Product Color | Transparent |
| Weight (Approximate) | 3.50 oz (99.22 g) |
| Miscellaneous | |
| Package Contents | 10 ft. Transparent USB 2.0 Cable A-B M/M |
| Compatibility | Printer Hard Drive Scanner USB 2.0 Device |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What devices are compatible with this USB A-to-B cable?
This cable is compatible with any USB 2.0 or USB 1.1 device that uses a standard Type B port, including printers, scanners, external hard drives, audio interfaces, and some older peripherals. It works with both PC and Mac systems, supporting data transfer and peripheral connectivity across a wide range of hardware.
What is the maximum data transfer speed of this cable?
The cable supports Hi-Speed USB 2.0 data transfer rates up to 480 megabits per second (Mbps). This bandwidth is sufficient for printing, document scanning, file transfers to external storage, and most peripheral communication tasks, while maintaining backward compatibility with slower USB 1.1 devices.
How long is the cable, and is the length sufficient for my setup?
The cable measures 10 feet (approximately 3.05 meters) from end to end. This length accommodates typical office or home setups where peripherals may be placed under desks, on separate shelves, or a few feet away from the computer, providing flexibility without requiring extension cables.
Does the transparent color affect cable performance or durability?
No, the transparent clear color is purely aesthetic and does not impact electrical performance or durability. The cable uses the same shielded twisted-pair construction and molded strain relief as standard opaque cables, ensuring reliable data transfer and physical robustness in any environment.
Is this cable hot-pluggable, and what does that mean?
Yes, the cable is hot-pluggable, meaning you can safely connect or disconnect devices while the computer and peripheral are powered on. This feature allows you to swap printers, scanners, or storage devices without shutting down your system, improving convenience and workflow efficiency.
What environmental certifications does this cable have?
The cable complies with EU RoHS (Restriction of Hazardous Substances), REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals), and WEEE (Waste Electrical and Electronic Equipment Directive) standards. These certifications ensure it meets strict environmental guidelines for material safety and recyclability.
What refresh rate or brightness details are available?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
What input or connectivity options are listed?
Connectivity options include USB 2.0 Type A - Male, helping the product integrate into common office or home setups.
