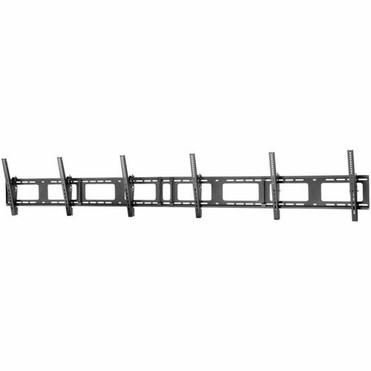

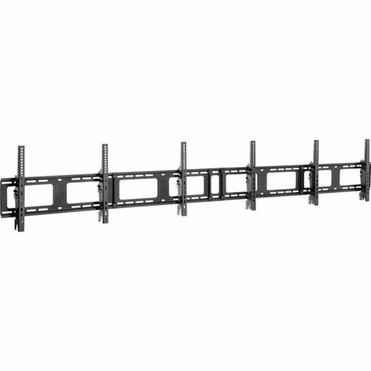

StarTech. com FPWMNB Triple-Display Wall Mount - Menu Board Mount for 40" to 50" VESA Displays - 330 lb Capacity - 5 Tilt Settings - Black Steel
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This wall mount delivers precise control over display positioning with five fixed-tilt settings at 0°, -5°, -10°, -15°, and -20°. The synchronized tilt mechanism allows all three displays to be adjusted to the same angle simultaneously, maintaining visual alignment. Micro height adjustment provides fine-tuning of screen level within a ±3° range, ensuring each display is perfectly horizontal.
The mount supports VESA bracket hole patterns from 200x100 mm to 600x400 mm, covering most commercial displays. Installation is streamlined with included hardware: wall plates, adapter brackets, clamps, safety pins, screws, spacers, concrete anchors, and a user manual. The steel build and reinforced design meet the demands of continuous operation in high-traffic areas.
Key Product Advantages
The FPWMNB mount combines durability, flexibility, and ease of use for professional digital signage deployments. Its heavy-duty steel frame ensures long-term stability, while the tilt and height adjustments allow precise customization to viewer sightlines.
Synchronized Tilt Control
Adjust all three displays to the same angle with five preset tilt options, eliminating individual alignment hassles and ensuring a cohesive display array.
- Five fixed settings: 0° to -20°
- Uniform angle across all displays
- Quick adjustment without tools
Universal Compatibility
Fits most 40" to 50" LCD/LED TVs and monitors from major brands, with comprehensive VESA pattern support and included mounting hardware.
- VESA patterns from 200x100 to 600x400 mm
- Includes screws and spacers for various displays
- Compatible with LG, Samsung, Sony, Sharp, and others

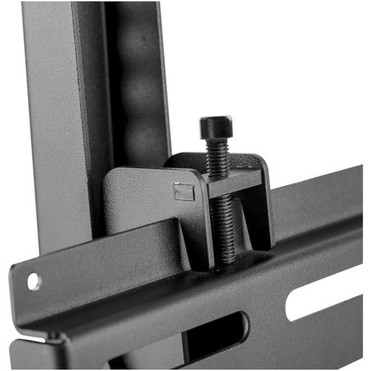

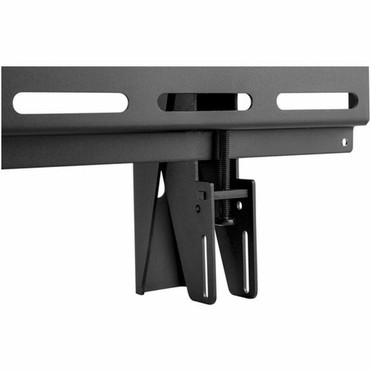

Secure & Streamlined Installation
Designed for fast setup with wall plates, clamps, safety pins, and concrete anchors. The 3.0" profile minimizes wall footprint while maintaining structural integrity.
- 3.0" profile to wall
- Includes all necessary hardware
- Safety pins for added security
Deployment / Use Cases
This triple-display mount is ideal for creating dynamic digital menu boards in fast-food restaurants, cafes, and convenience stores. By mounting three screens side-by-side, businesses can showcase menu items, promotions, and nutritional information in an engaging, easy-to-update format. The landscape orientation and tilt adjustments optimize visibility for customers in queue lines.
In retail environments, the mount supports interactive kiosks or promotional displays, allowing stores to highlight products, advertisements, or brand messaging across multiple screens. Corporate offices and lobbies use it for wayfinding directories, event schedules, or company announcements. The robust construction ensures reliability in high-traffic public spaces, while the black steel finish blends discreetly with modern interiors.
Digital Menu Boards
Deploy in restaurants and food service venues to display menus, daily specials, and pricing across three synchronized screens, enhancing customer experience and operational efficiency.
Retail Signage & Kiosks
Use in stores for promotional displays, product demonstrations, or interactive kiosks, creating an immersive shopping environment that drives engagement and sales.
What's in the Box
The package includes all components needed for installation: 4 wall plates, 1 small wall plate, 6 adapter brackets, 8 wall plate clamps, 6 safety pins, assorted screws (M4 x 6 mm, M5 x 14 mm, M6 x 14 mm, M6 x 30 mm, M8 x 30 mm, M8 x 50 mm, ST6.3 x 55 mm), 12 plate washers, 24 small spacers, 24 large spacers, 18 concrete anchors, 18 D6 washers, and a user manual.
Highlights

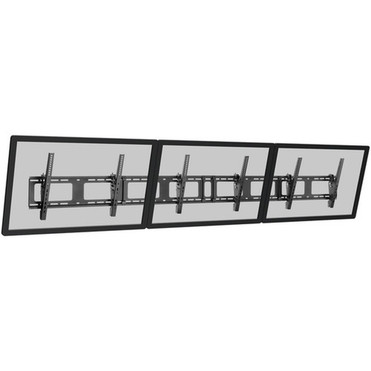

- Mounts three 40" to 50" displays in landscape for digital menu boards or signage
- Supports up to 330.69 lb total weight capacity with heavy-duty steel construction
- Five fixed-tilt settings (0°, -5°, -10°, -15°, -20°) for synchronized angle adjustment
- Micro height adjustment (±3°) for precise screen leveling
- Universal VESA compatibility with patterns from 200x100 mm to 600x400 mm
- 3.0" profile keeps displays close to the wall for a sleek installation
- Includes all mounting hardware: wall plates, brackets, clamps, screws, spacers, anchors
- Compatible with LG, Samsung, Sony, Sharp, and other major TV/monitor brands
- Black steel finish for durability and discreet appearance
- 5-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | FPWMNB |
| Brand Name | StarTech.com |
| Product Name | Triple-Display TV Wall Mount - Menu Board Mount - Landscape |
| Packaged Quantity | 1 Each |
| Product Type | Wall Mount |
| Product Information | |
| Device Supported | TV,Monitor,Menu Board,Wall Mounting System |
| Number of Displays Supported | 3 |
| Maximum Load Capacity | 330.69 lb (150000 g) |
| Maximum Screen Size Supported | 50" (1270 mm) |
| Height Adjustable | Yes |
| Features | Tilt,Heavy Duty |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Steel |
| Mounting Pattern | 400 x 300,300 x 200,600 x 400,400 x 200,400 x 400,300 x 300,200 x 200,200 x 100,200 x 300,200 x 400,600 x 200,600 x 300 |
| Miscellaneous | |
| Package Contents | 4 - Wall Plates 1 - Small Wall Plate 6 - Adapter Brackets 8 - Wall Plate Clamps 6 - Safety Pins 16 - M4 x 6 mm Screws 12 - M5 x 14 mm Screws 12 - M6 x 14 mm Screws 12 - M6 x 30 mm Screws 12 - M8 x 30 mm Screws 12 - M8 x 50 mm Screws 12 - Plate Washers 24 - Small Spacers 24 - Large Spacers 18 - ST6.3 x 55 mm Screws 18 - Concrete Anchors 18 - D6 Washers 1 - User Manual |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the maximum screen size this wall mount supports?
The StarTech.com FPWMNB wall mount supports displays up to 50 inches (1270 mm) in size. It is designed for triple-display configurations with screens ranging from 40 to 50 inches, making it suitable for most commercial TVs and monitors used in digital signage applications.
How many displays can this mount hold, and what is the weight capacity?
This mount holds three displays simultaneously. The total maximum load capacity is 330.69 pounds (150,000 grams), which equates to approximately 110 pounds per display. The heavy-duty steel construction ensures stable support for continuous use in high-traffic environments.
What tilt adjustments are available, and can all displays be tilted together?
The mount offers five fixed-tilt settings: 0°, -5°, -10°, -15°, and -20°. All three displays can be tilted to the same angle simultaneously using the synchronized adjustment mechanism, ensuring consistent viewing angles across the entire array without needing to adjust each screen individually.
Is this mount compatible with my TV or monitor's VESA pattern?
Yes, the mount supports universal VESA bracket hole patterns, including 200x100, 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, and 600x400 mm. This wide compatibility covers most LCD/LED TVs and monitors from brands like LG, Samsung, Sony, and Sharp, with included screws and spacers to fit various models.
What is included in the package for installation?
The package contains all necessary hardware: 4 wall plates, 1 small wall plate, 6 adapter brackets, 8 wall plate clamps, 6 safety pins, assorted screws (M4, M5, M6, M8, ST6.3 sizes), 12 plate washers, 24 small spacers, 24 large spacers, 18 concrete anchors, 18 D6 washers, and a user manual. This comprehensive set ensures straightforward installation on various wall types.
What warranty does this wall mount come with?
The StarTech.com FPWMNB triple-display wall mount is backed by a 5-year limited warranty. This warranty covers defects in materials and workmanship, providing long-term assurance for commercial deployments in digital signage, menu boards, and other professional applications.
