StarTech.com M.2 SSD Aluminum Enclosure to USB 3.0 (5Gbps) with UASP - M.2 NGFF SATA with B Key & B+M Key - External M.2 Portable - an (SM2NGFFMBU33)

Have questions?

  • Canadian distributor

    Proud Canadian business since 2007

  • IT experts available

    Consulting & Technicial services

  • Pre-configuration services

    From VoiP phone to Clustered servers

  • Delivering across Canada

    Shipping UPS Fedex & Purolator

Write a Review
MSRP: $35.90
$35.90
$32.37
You save $3.53
SKU: SM2NGFFMBU33
UPC: 65030859684
Availability: Stock in Canada - Purolator or UPS
Weight: 1.00 LBS
Shipping: Calculated at Checkout
Adding to cart… The item has been added

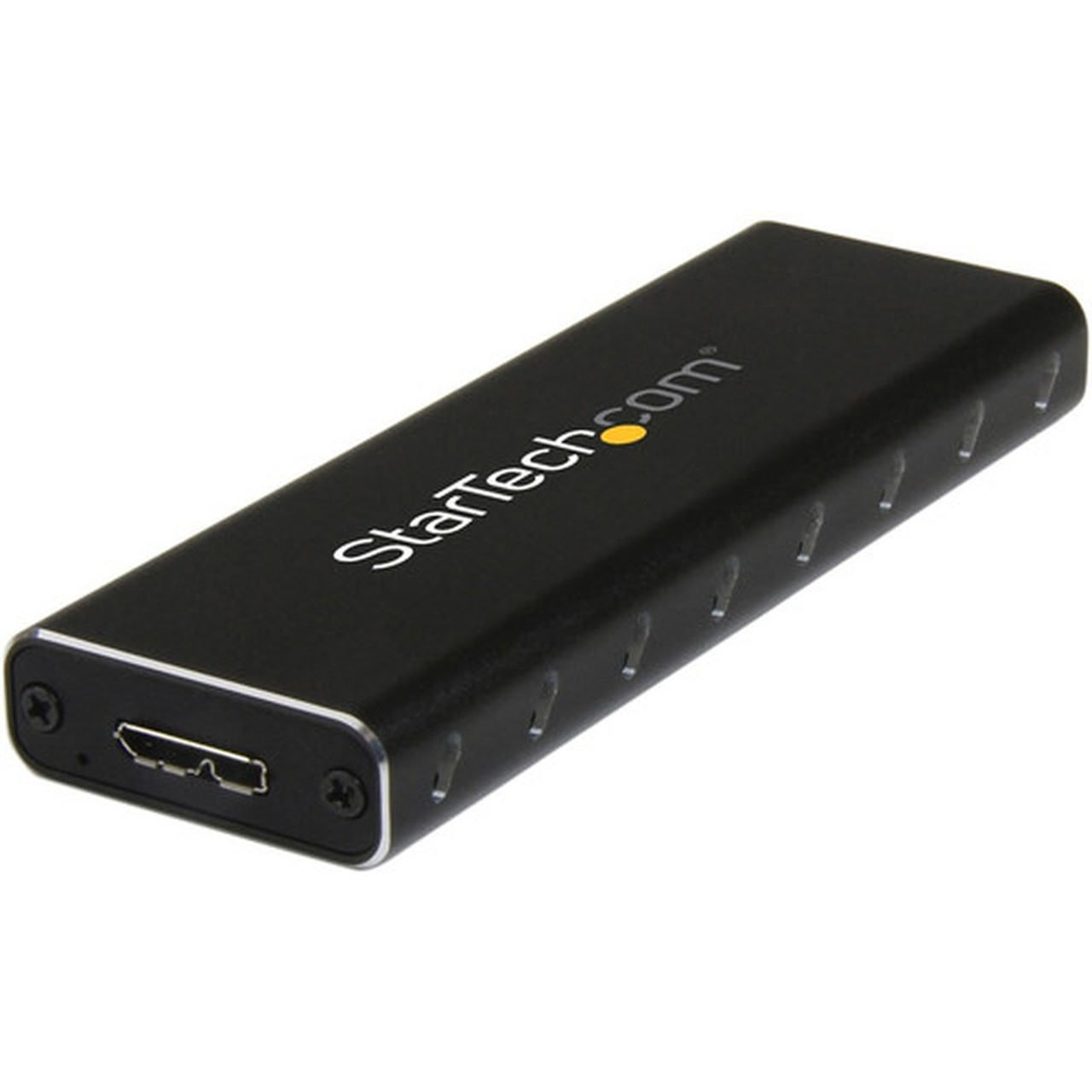

    Marketing Information: The SM2NGFFMBU33 external USB 3.0 to M.2 (NGFF) enclosure turns your SATA M.2 solid state drive into a portable, high speed USB 3.0 drive.

    Get higher external performance by using an M.2 SSD in place of a platter drive, harnessing the full potential of your USB 3.0 computer system. The enclosure supports UASP, enabling you to achieve transfer speeds up to 70% faster than traditional USB 3.0 when used with a UASP-enabled host computer.

    This slim, pocket-sized SSD enclosure has been specifically engineered for mobility. The enclosure features a lightweight yet durable design, which fits easily into your pocket or laptop bag. For further convenience, the enclosure is powered entirely using the USB host bus and requires no external power adapter.

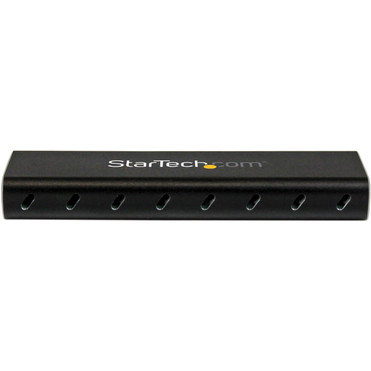

    Durable aluminum construction helps to ensure your drive won't be damaged while you're on the move. Plus, to maximize heat dissipation the enclosure features specially engineered ventilation holes which help maintain a cooler operating environment for optimal performance and a longer life span for your drive.

    For wide compatibility with all of the common M.2 solid state drives, the enclosure can mount multiple drive heights including: 2242, 2260, and 2280.

    The M.2 enclosure is backed by a StarTech.com 2-year warranty and free lifetime technical support.

    Improved Performance with UASP

    UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

    At the same peak in testing UASP also shows an 80% reduction in required processor resources.

    Testing results were obtained using an Intel® Ivy Bridge system, a UASP enabled StarTech.com Enclosure, and a SATA III solid state drive.

    More from the Manufacturer

    Number of Solid State Drive Supported: 1

    Number of Solid State Drive Installed: No

    Number of Total Expansion Bays: 1

    Wireless LAN: No

    UASP Support: Yes

    Drive Interface: SATA/600,M.2

    Host Interface: USB 3.0 Micro-B

    Product Color: Black

    Product Material: Aluminum

    Form Factor: External

    Height: 0.60" (15.24 mm)

    Width: 1.40" (35.56 mm)

    Depth: 3.90" (99.06 mm)

    Weight (Approximate): 50 g

    Package Contents:

    • USB 3.0 to M.2 SATA External SSD Enclosure with UASP
    • 1 x USB 3.0 Cable
    • 1 x SSD screw kit
    • 1 x Mini Screw Driver
    • 1 x Instruction Manual

    Country of Origin: Taiwan

    TAA Compliant: Yes

    Environmentally Friendly: Yes

    Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

    Limited Warranty: 2 Year

[custom-highlights]
  • NOTE: Not compatible with M.2 NVMe or AHCI PCI-Express SSDs. Please confirm you have a SATA M.2 drive before purchasing by referring to your M.2 drive specifications, or contact the drive manufacturer to confirm
  • BROAD COMPATIBILITY: The enclosure supports most common SATA M.2 SSDs including 30mm, 42mm, 60mm and 80mm and is also compatible with SATA revisions I/II/III (1.5 / 3.0 / 6.0 Gbps).
  • INCREASED PERFORMANCE: Boost external performance with this M.2 SDD enclosure by turning your SATA M.2 solid state drive into a high speed USB 3.0 thumb drive; The enclosure also supports UASP
  • PORTABLE & NO DRIVER INSTALLATION: This black lightweight M.2 SATA SSD enclosure offers perfect portability; It supports any operating system with no additional software or drivers required
  • BUILT TO LAST: This portable hard drive enclosure protects your drive from damage; The M.2 NGFF features specially engineered ventilation holes which help maintain a cooler operating environment
[/custom-highlights]

[custom-specifications]

Specifications
ManufacturerStarTech.com
Manufacturer Part NumberSM2NGFFMBU33
Manufacturer Website Addresshttp://www.startech.com
Brand NameStarTech.com
Product NameUSB 3.0 to M.2 SATA External SSD Enclosure with UASP
Packaged Quantity1
Product TypeDrive Enclosure
Technical Information
Number of Solid State Drive Supported1
Number of Solid State Drive InstalledNo
I/O Expansions
Number of Total Expansion Bays1
Network & Communication
Wireless LANNo
UASP SupportYes
Interfaces/Ports
Drive InterfaceSATA/600,M.2
Host InterfaceUSB 3.0 Micro-B
Physical Characteristics
Product ColorBlack
Product MaterialAluminum
Form FactorExternal
Height0.60" (15.24 mm)
Width1.40" (35.56 mm)
Depth3.90" (99.06 mm)
Weight (Approximate)50 g
Miscellaneous
Package Contents
  • USB 3.0 to M.2 SATA External SSD Enclosure with UASP
  • 1 x USB 3.0 Cable
  • 1 x SSD screw kit
  • 1 x Mini Screw Driver
  • 1 x Instruction Manual
Country of OriginTaiwan
TAA CompliantYes
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty2 Year
