Supermicro SYS-1018L-MP SuperServer 1018L-MP Mini PC Barebone - LGA-1150 - 16GB DDR3 - 8 USB Ports - 80W PSU
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The 1018L-MP features a single LGA-1150 processor socket compatible with Intel Core i7, i5, i3, Pentium, and Celeron processors, providing 64-bit processing capabilities for modern applications. The Intel H81 Express chipset manages system communication and supports up to 16GB of DDR3-1600 memory across two DIMM slots.
Storage connectivity includes four SATA interfaces with Serial ATA/600 controllers for fast data transfer, while expansion options consist of one total expansion bay and one expansion slot for additional functionality. The integrated graphics utilize shared DDR3 memory and support multiple display outputs including HDMI, DVI, and DisplayPort for flexible monitor configurations.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This barebone system combines enterprise-grade components with a compact design that maximizes deployment flexibility. The Supermicro engineering ensures reliable operation in continuous-use scenarios, while the comprehensive connectivity options support diverse peripheral and display requirements.
Compact Form Factor
The Mini PC design occupies minimal desk or rack space while delivering full computing capabilities, making it ideal for kiosks, digital signage, and office environments where physical footprint matters.
- 7.68" square footprint
- 2.68" height
- 3.86 lb weight
Comprehensive Connectivity
With eight USB ports (including two USB 3.0), HDMI, DVI, DisplayPort, and Gigabit Ethernet, the system supports extensive peripheral and display configurations without requiring additional expansion cards.
- Multiple display outputs
- High-speed USB 3.0
- Gigabit networking
Deployment / Use Cases
The SuperServer 1018L-MP serves as an excellent platform for various computing applications where space efficiency and reliable performance are priorities. Its barebone configuration allows organizations to customize the system with specific processors, memory, and storage to match exact workload requirements.
Common deployment scenarios include digital signage controllers in retail environments, compact office workstations, light-duty server applications, and embedded computing solutions in industrial settings. The system's small footprint makes it particularly suitable for wall-mounted installations, kiosk enclosures, and locations with limited physical space.
Digital Signage & Kiosks
The compact size and multiple video outputs make this system ideal for driving digital displays in retail, hospitality, and public information applications.
Office Workstations
When configured with appropriate processors and memory, the 1018L-MP provides capable performance for general office productivity, web applications, and business software.

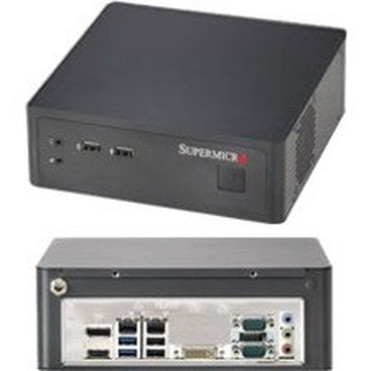

Physical Profile
The black Mini PC chassis measures 2.68" in height, 7.68" in width, and 7.68" in depth, creating a compact cubic form factor that fits easily on desks, shelves, or mounting brackets. Weighing approximately 3.86 pounds, the system remains portable while maintaining structural integrity for reliable operation. The included 80W DC power adapter provides efficient power delivery with a standard US power cord for immediate deployment.
- Width
- 7.68" (195.07 mm)
- Depth
- 7.68" (195.07 mm)
- Height
- 2.68" (68.07 mm)
- Weight
- 3.86 lb (1750.87 g)
What's in the Box
This barebone system includes all necessary components to begin building your custom Mini PC solution.
Highlights
- Compact Mini PC form factor for space-constrained deployments
- LGA-1150 socket supports Intel Core i7/i5/i3, Pentium, and Celeron processors
- Up to 16GB DDR3-1600 memory across two DIMM slots
- Intel H81 Express chipset for reliable system communication
- Eight USB ports including two high-speed USB 3.0 connections
- Multiple video outputs: HDMI, DVI, and DisplayPort
- Gigabit Ethernet for fast network connectivity
- Four SATA interfaces with Serial ATA/600 controllers
- Includes 80W DC power adapter with US power cord
- Three-year limited warranty for peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-1018L-MP |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | 1018L-MP |
| Product Name | SuperServer 1018L-MP (Black) |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Processor Socket | Socket H3 LGA-1150 |
| Processor Supported | Core i7,Core i5,Core i3,Pentium,Celeron |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | H81 Express |
| Memory | |
| Maximum Memory Supported | 16 GB |
| Memory Technology | DDR3 SDRAM |
| Memory Standard | DDR3-1600/PC3-12800 |
| Total Number of Memory Slots | 2 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| Display & Graphics | |
| Graphics Memory Technology | DDR3 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 1 |
| Total Number of Expansion Slots | 1 |
| Interfaces/Ports | |
| HDMI | Yes |
| DVI | Yes |
| Total Number of USB Ports | 8 |
| Number of USB 3.0 Ports | 2 |
| Network (RJ-45) | Yes |
| DisplayPort | Yes |
| Number of SATA Interfaces | 4 |
| Power Description | |
| Number of Power Supplies Installed | 1 |
| Maximum Power Supply Wattage | 80 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Mini PC |
| Height | 2.68" (68.07 mm) |
| Width | 7.68" (195.07 mm) |
| Depth | 7.68" (195.07 mm) |
| Weight (Approximate) | 3.86 lb (1750.87 g) |
| Miscellaneous | |
| Package Contents | SuperServer 1018L-MP (Black) 1 x Super X10SLV Motherboard 1 x Embedded Mini-ITX Chassis 1 x 80W DC power adapter with US power cord 1 x 1018L-MP Quick Reference Guide 1 x Standard I/O Shield for X10SLV with EMI Gasket 1 x 1U Active CPU Heat Sink for Intel Sokcet H, H2, and H3 Motherboards |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What processors are compatible with the SuperServer 1018L-MP?
The system supports 4th generation Intel processors with LGA-1150 socket compatibility, including Core i7, Core i5, Core i3, Pentium, and Celeron models. This provides flexibility to match processor performance to specific application requirements, from basic computing tasks to more demanding workloads.
How much memory can I install in this barebone system?
The SuperServer 1018L-MP supports up to 16GB of DDR3-1600 memory across two DIMM slots. This memory capacity supports most business applications, light server workloads, and multimedia tasks when combined with an appropriate processor configuration.
What display outputs does the system include?
The system provides HDMI, DVI, and DisplayPort outputs, allowing connection to multiple monitor types and configurations. This flexibility supports digital signage deployments, multi-monitor office setups, and various display scenarios without requiring additional graphics cards.
What storage connectivity options are available?
Four SATA interfaces with Serial ATA/600 controllers provide storage connectivity for hard drives and solid-state drives. The system does not include pre-installed storage, allowing you to select drives that match your capacity, performance, and budget requirements.
What is the form factor and dimensions of this system?
The SuperServer 1018L-MP features a compact Mini PC form factor measuring 2.68" in height, 7.68" in width, and 7.68" in depth. This small footprint makes it suitable for installations where space is limited, such as wall-mounted setups, kiosk enclosures, or crowded office environments.
What is included in the package with this barebone system?
The package includes the SuperServer 1018L-MP black chassis, Super X10SLV motherboard, embedded Mini-ITX chassis, 80W DC power adapter with US power cord, quick reference guide, standard I/O shield with EMI gasket, and 1U active CPU heat sink compatible with Intel Socket H, H2, and H3 motherboards.
