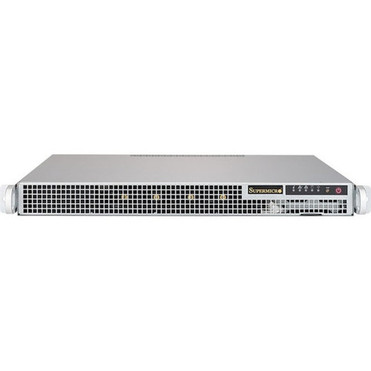

Supermicro SuperServer 1019S-WR Server Barebone System - 1U Rack-mountable - Socket H4 LGA-1151 - 1 x Processor Support - Intel C236 - (SYS-1019S-WR)
Write a Review
Supermicro
Supermicro SuperServer 1019S-WR Server Barebone System - 1U Rack-mountable - Socket H4 LGA-1151 - 1 x Processor Support - Intel C236 - (SYS-1019S-WR)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- SuperServer 1019S-WR (Black)
- 1 x Super X11SSW-F Motherboard
- 1 x 1U Chassis
- 1 x SC811/SC512L/SC512F/SC813M/SC113M/SC513L-410B/SC513L-420B/SC513F, UP X9SRE/I, X9 Mylar Air Shroud, 12"x9.6" MB
- 1 x 48CM SATA ROUND S-RA PBF.26AWG
- 1 x Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG
- 4 x CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
- 1 x X11SSW-F, CSE-514-R407W
- 1 x RSC-W-68-O-P
- 1 x RSC-R1UW-E8R-O-P
- 1 x 1U PASSIVE CPU HS FOR INTEL LGA1156
- 2 x AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply meet PMBus Revision 1.2 requirement,RoHS/REACH
- 4 x 40x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH 40x56 4Pin PWM, Primary for SC815, Secondary for SC818, 825M
Number of Processors Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported: Xeon,Core i3,Pentium,Celeron
64-bit Processing: Yes
Chipset Manufacturer: Intel
Chipset Model: C236
Maximum Memory Supported: 64 GB
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-2133/PC4-17000
Total Number of Memory Slots: 4
Controller Type: Serial ATA/600
RAID Supported: Yes
Graphics Controller Model: AST2400
Ethernet Technology: Gigabit Ethernet
Number of Total Expansion Bays: 2
Number of PCI Express x4 Slots: 1
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 2
Number of SATA Interfaces: 6
Input Voltage: 120 V AC,230 V AC
Number of Power Supplies Installed: 2
Maximum Power Supply Wattage: 400 W
Color Family: Black
Product Color: Black
Form Factor: Rack-mountable
Rack Height: 1U
Height: 1.70" (43.18 mm)
Width: 17.20" (436.88 mm)
Depth: 16.90" (429.26 mm)
Weight (Approximate): 15.50 lb (7030 g)
Package Contents:
Environmentally Friendly: Yes
Limited Warranty: 3 Year
- Intel Xeon processor provides high performance, built-in security, and remote management for enterprise systems
- DDR4 SDRAM slot supports high-speed operation with low power use, delivering optimal performance and thermal efficiency
- Rack-mountable server barebone system maximizes space utilization while providing easy access to essential components
- Serial ATA/600 interface delivers fast data transfer and higher throughput, ensuring smooth performance for demanding workloads
- Gigabit Ethernet is highly efficient for large file transfers, making it ideal for backups and heavy data workflows
- Provides 4 USB ports for responsive and expanded device connections without interruptions
[custom-specifications]
| Specifications | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-1019S-WR |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | 1019S-WR |
| Product Name | SuperServer 1019S-WR (Black) |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Processor Socket | Socket H4 LGA-1151 |
| Processor Supported | Xeon,Core i3,Pentium,Celeron |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C236 |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2133/PC4-17000 |
| Total Number of Memory Slots | 4 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Display & Graphics | |
| Graphics Controller Model | AST2400 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 2 |
| Number of PCI Express x4 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 2 |
| Number of SATA Interfaces | 6 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 400 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 16.90" (429.26 mm) |
| Weight (Approximate) | 15.50 lb (7030 g) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-options]
| Product | Supermicro Power Extension Cord - For Server - 1.3 ft Cord Length |
| SKU | CBL-0424L |
| Sale Price | $16.27 |
| Product | Supermicro 3 Wire Power Supply Cooler - 1 x Fan(s) - 24 CFM (40.78m³/h) Maximum Airflow - 12000 rpm - 4-pin LP4 - Side Fan Location |
| SKU | FAN-0086L4 |
| Sale Price | $30.11 |
| Product | Supermicro Riser Card - 2 x PCI Express x16, PCI Express x8 |
| SKU | RSC-W-68 |
| Sale Price | $43.49 |
| Product | Supermicro RSC-R1UW-E8R Riser Card - 1 x PCI Express 3.0 x8 - PCI Express x8 - 1U Chasis |
| SKU | RSC-R1UW-E8R |
| Sale Price | $35.99 |
| Product | Supermicro Power Module - 400 W - 230 V AC |
| SKU | PWS-407P-1R |
| Sale Price | $328.68 |
[/custom-options]
Warranty Information
3 Year
