Supermicro SYS-5028L-TN2 SuperServer 5028L-TN2 Barebone System - Mini-tower - LGA-1150 - Intel Q87 - 16GB DDR3 - 4x SATA - 250W
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The SuperServer 5028L-TN2 features a single LGA-1150 processor socket compatible with Intel's 4th generation Core and Xeon E3-1200 v3 series processors, providing enterprise-grade performance and remote management capabilities. Memory configuration supports up to 16GB of DDR3-1600/PC3-12800 memory across two DIMM slots, optimized for server workloads and multitasking efficiency.
Storage architecture includes four Serial ATA/600 interfaces with hardware RAID 0, 1, 5, and 10 support through the integrated Intel Q87 chipset. The system provides seven total expansion bays (one external 5.25" and four internal 3.5") plus two expansion slots including one PCI Express x16 slot for additional connectivity or acceleration cards. Network connectivity features dual Gigabit Ethernet ports for redundancy or teaming configurations.
Relevant factors for this section include Number of Processors Installed, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The SuperServer 5028L-TN2 delivers enterprise server features in a compact, cost-effective package. The system's dual Gigabit Ethernet ports enable efficient large file transfers and network redundancy, while seven USB ports (including two USB 3.0) support extensive peripheral connectivity. The 250W power supply with 120V/230V auto-switching input ensures reliable operation across different power environments.
Flexible Processor Support
Compatible with Intel Xeon, Core i7/i5/i3, Pentium, and Celeron processors, allowing precise performance and budget matching for various deployment scenarios.
Comprehensive Storage Options
Four SATA interfaces with hardware RAID 0/1/5/10 support provide data protection and performance optimization for critical applications.
Compact Server Form Factor
Mini-tower design with dimensions of 9.45" x 8.27" x 11" fits easily in office environments while providing enterprise-grade cooling and expansion capabilities.
Deployment / Use Cases
This barebone system serves as an excellent foundation for various IT infrastructure roles. Its compact mini-tower design makes it suitable for environments where rack space is limited or unavailable, while still providing the expansion capabilities needed for growing storage requirements.
The platform supports deployment as a dedicated backup server, light virtualization host, or departmental application server. With support for Intel Xeon processors with vPro technology, the system can be integrated into enterprise management frameworks for remote monitoring and maintenance.
Small Business Server
Ideal for file sharing, print serving, and basic application hosting in offices with limited space and IT resources.
Branch Office Infrastructure
Provides local storage, backup, and network services for remote locations with enterprise-grade reliability in a compact form factor.

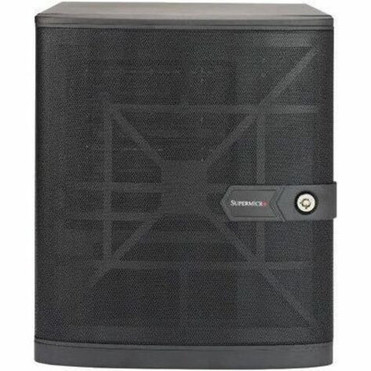

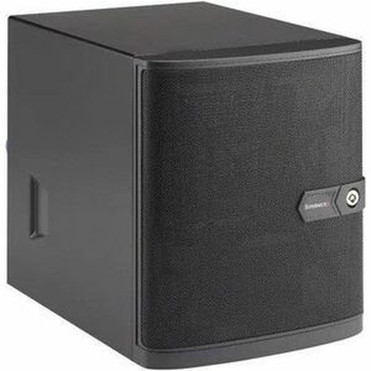

Physical Profile
The SuperServer 5028L-TN2 features a black mini-tower chassis measuring 9.45" (240.03 mm) in height, 8.27" (210.06 mm) in width, and 11" (279.40 mm) in depth. This compact footprint allows placement in standard office environments, under desks, or in network closets. The design includes effective cooling to maintain reliable performance during continuous operation.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 9.45" (240.03 mm), 8.27" (210.06 mm), 11" (279.40 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 8.27" (210.06 mm)
- Depth
- 11" (279.40 mm)
- Height
- 9.45" (240.03 mm)
What's in the Box
The barebone system includes all essential components for server deployment.
Highlights
- Supports Intel Xeon, Core i7/i5/i3, Pentium, and Celeron processors for flexible performance scaling
- Maximum 16GB DDR3-1600 memory across two slots for efficient multitasking
- Four SATA interfaces with hardware RAID 0/1/5/10 support for data protection
- Dual Gigabit Ethernet ports for network redundancy and efficient data transfer
- Seven USB ports including two USB 3.0 for extensive peripheral connectivity
- Compact mini-tower form factor ideal for space-constrained environments
- HDMI, DVI, and DisplayPort outputs for flexible display configuration
- 250W power supply with 120V/230V auto-switching input
- Includes Super X10SLV-Q motherboard with Intel Q87 chipset
- RoHS compliant for environmental responsibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-5028L-TN2 |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | 5028L-TN2 |
| Product Name | SuperServer 5028L-TN2 Barebone System |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Installed | 1 |
| Processor Socket | Socket H3 LGA-1150 |
| Processor Supported | Xeon,Core i7,Core i5,Core i3,Pentium,Celeron |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | Q87 |
| Memory | |
| Maximum Memory Supported | 16 GB |
| Memory Technology | DDR3 SDRAM |
| Memory Standard | DDR3-1600/PC3-12800 |
| Total Number of Memory Slots | 2 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Display & Graphics | |
| Graphics Controller Model | HD Graphics 4600 |
| Graphics Memory Technology | DDR3 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 7 |
| Number of External 5.25" Bays | 1 |
| Number of 3.5" Bays | 4 |
| Total Number of Expansion Slots | 2 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| DVI | Yes |
| Total Number of USB Ports | 7 |
| Number of USB 3.0 Ports | 2 |
| Number of Onboard USB 2.0 Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| DisplayPort | Yes |
| Number of SATA Interfaces | 4 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Supply Wattage | 250 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Mini-tower |
| Height | 9.45" (240.03 mm) |
| Width | 8.27" (210.06 mm) |
| Depth | 11" (279.40 mm) |
| Miscellaneous | |
| Package Contents | SuperServer 5028L-TN2 Barebone System 1 x Super X10SLV-Q Motherboard 1 x Mini Tower Chassis 1 x 4x 3.5 SAS2/SATA3 backplane w/SES-II 4 x SATA,INT,ROUND,ST-ST,21CM,30AWG |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
| Additional Warranty Information | Supermicro provides a three-year warranty for labor and one-year warranty for parts. This limited warranty includes advance part replacement service covering a period of 1 year from Supermicro invoice date. |
User Manual
FAQ
What processors are compatible with the SuperServer 5028L-TN2?
The system supports Intel processors using the LGA-1150 socket, including Xeon E3-1200 v3 series, Core i7, Core i5, Core i3, Pentium, and Celeron processors. This broad compatibility allows you to choose the right performance level for your specific workload requirements, from basic office applications to more demanding server tasks.
How much memory can this barebone system support?
The SuperServer 5028L-TN2 supports up to 16GB of DDR3 SDRAM across two memory slots. It uses DDR3-1600/PC3-12800 memory modules, providing sufficient capacity for small business server applications, file sharing duties, and light virtualization workloads while maintaining cost-effectiveness.
What storage expansion options are available?
The system includes four Serial ATA/600 interfaces with hardware RAID 0, 1, 5, and 10 support. It features seven total expansion bays: one external 5.25" bay and four internal 3.5" bays, providing ample space for hard drives, SSDs, or optical drives to build a comprehensive storage solution.
What networking capabilities does this server provide?
Dual Gigabit Ethernet ports offer reliable network connectivity with support for teaming or failover configurations. This enables efficient large file transfers, network backups, and ensures network availability for critical applications in small business or branch office environments.
What is included in the barebone system package?
The package contains the SuperServer 5028L-TN2 barebone system with a Super X10SLV-Q motherboard, mini-tower chassis, a 4x 3.5" SAS2/SATA3 backplane with SES-II management, and four SATA cables. You'll need to add a compatible processor, memory, storage drives, and operating system to complete the server.
What are the physical dimensions and form factor?
The system uses a compact mini-tower form factor measuring 9.45" high x 8.27" wide x 11" deep (240.03 mm x 210.06 mm x 279.40 mm). This black chassis fits easily in office environments and includes effective cooling to maintain reliable performance during continuous server operation.
