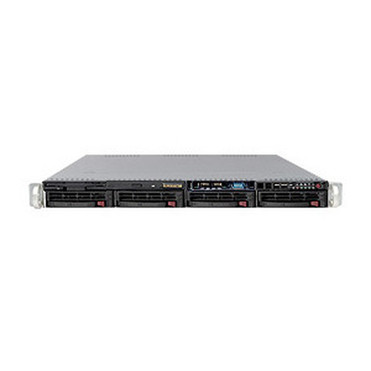

Supermicro SYS-6016T-MTLF SuperServer Barebone System - 1U Rack-mountable - Dual Socket B LGA-1366 - Intel 5500 Chipset - 48GB DDR3 - 4 x 3. 5" Bays
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SuperServer platform is engineered around the Intel 5500 chipset, which provides robust memory and I/O support for dual-socket Xeon configurations. The system accommodates up to 48 GB of DDR3-1333/PC3-10600 memory across six DIMM slots, ensuring ample bandwidth for virtualization, database, and application hosting tasks.
Storage flexibility is central to the design, with a BPN-SAS-815TQ-O-P backplane enabling four hot-swappable 3.5" bays. The integrated Serial ATA/300 controller supports RAID 0, 1, 1+0, and 5 levels for data redundancy and performance. A single PCI Express x16 slot, accessible via an included riser card, allows for add-in cards such as network adapters, GPUs, or storage controllers.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The SYS-6016T-MTLF balances density, expandability, and reliability for rack-optimized server deployments. Its 1U form factor maximizes rack space utilization while providing full dual-processor capabilities and tool-less access to key components.
High-Density Compute
Dual Socket B LGA-1366 support enables scalable Xeon processor configurations, ideal for compute-intensive workloads within a compact 1U footprint.
- Supports two Intel Xeon processors
- Six DDR3 memory slots for up to 48 GB
- Intel 5500 chipset for stable platform operation
Enterprise Storage & RAID
Four hot-swappable 3.5" bays and integrated RAID 0, 1, 1+0, 5 support ensure flexible storage configurations with data protection.
- Hot-swap trays for easy drive maintenance
- Serial ATA/300 controller with hardware RAID
- BPN-SAS-815TQ-O-P backplane for reliable connectivity
Efficient Power & Cooling
A 350W 80PLUS Gold power supply and four 4028mm 13K RPM PWM fans deliver energy-efficient operation and robust thermal management.
- 80PLUS Gold certification for reduced power loss
- PWM fans with high airflow for consistent cooling
- 110-220V AC input for global compatibility
Deployment / Use Cases
This barebone system is well-suited for IT environments requiring rack-optimized, customizable server nodes. Its dual-processor architecture and storage expandability make it a practical choice for building application servers, virtualization hosts, and network infrastructure appliances.
Common deployment scenarios include web hosting servers, database nodes, file and print servers, and dedicated application hosts in small to medium business data centers. The inclusion of a third-generation guide rail assembly with extendable slides (26" to 33.5") simplifies installation in standard 19-inch racks, while the tool-less chassis design facilitates maintenance and upgrades.
Virtualization Host
With dual-socket Xeon support and up to 48 GB of DDR3 memory, this platform can serve as a dense virtualization host for consolidating multiple virtual machines.
Storage Server
Four hot-swappable 3.5" bays and hardware RAID support make it effective for NAS or backup server roles, providing reliable storage with redundancy.
Physical Profile
The black 1U chassis measures 1.70 inches in height, 17.20 inches in width, and 19.80 inches in depth, conforming to standard rack dimensions. Its compact design optimizes rack space without sacrificing component accessibility. The tool-less drive trays and included guide rails streamline deployment and servicing in data center environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1U, 17.20" (436.88 mm), 19.80" (502.92 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.20" (436.88 mm)
- Depth
- 19.80" (502.92 mm)
- Height
- 1U
What's in the Box
This barebone system includes all necessary chassis, motherboard, backplane, cabling, cooling, and accessory components to build a complete server.
Highlights
- Dual Socket B LGA-1366 support for two Intel Xeon processors
- Intel 5500 chipset providing stable platform foundation
- Up to 48 GB DDR3-1333/PC3-10600 memory across six slots
- Four hot-swappable 3.5" drive bays with BPN-SAS-815TQ-O-P backplane
- Serial ATA/300 controller with RAID 0, 1, 1+0, 5 support
- 1U rack-mountable black chassis with tool-less design
- 350W 80PLUS Gold power supply with 110-220V AC input
- Gigabit Ethernet and two USB ports for connectivity
- Includes third-generation guide rail assembly for easy rack mounting
- Backed by a 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-6016T-MTLF |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | 6016T-MTLF |
| Product Name | SuperServer 6016T-MTLF Barebone System |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket B LGA-1366 |
| Processor Supported | Xeon |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | 5500 |
| Memory | |
| Maximum Memory Supported | 48 GB |
| Memory Technology | DDR3 SDRAM |
| Memory Standard | DDR3-1333/PC3-10600 |
| Total Number of Memory Slots | 6 |
| Storage | |
| Optical Drive Type | DVD-Reader |
| Controllers | |
| Controller Type | Serial ATA/300 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 1+0, 5 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| Number of 3.5" Bays | 4 |
| Total Number of Expansion Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 110 V AC,220 V AC |
| Number of Power Supplies Installed | 1 |
| Maximum Power Supply Wattage | 350 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 19.80" (502.92 mm) |
| Miscellaneous | |
| Package Contents | SuperServer 1016I-M6F Barebone System 1 x Super X8DTL-IF Motherboard 1 x 1U Black Chassis 1 x BPN-SAS-815TQ-O-P Backplane 1 x 8pin to 8pin ribbon cable with tube for SGPIO, 40cm, PBF 1 x SATA SET OF 4-56/45.5/35/23CM ROUND S-RA 1 x CD For X8 series 1 x RISER CARD 1U PCI-E 16X TO 16X 1 x 1U PASSIVE CPU HS FOR INTEL LGA1366 (HTP) 1 x 1U PASSIVE CPU HS FOR X8DTL MB (must be placed on FRONT CPU) 1 x 1U 350W MULTI OUTPUT 80PLUS GOLD PWS 1 x Front ctrl cable 16 PIN TO 16 PIN, LF, Flat (L=54cm) 1 x ROUND FLOPPY CABLE 60CM FOR 5013S, LF 4 x 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M 1 x THIRD GENERATION GUIDE RAIL ASSY. Outer slides extendable length: 26" to 33.5" 4 x Hot-swappable Hard Drive Tray |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What processors are compatible with this barebone system?
The Supermicro SYS-6016T-MTLF supports two Intel Xeon processors using the Socket B LGA-1366 interface. You will need to purchase compatible Xeon CPUs separately, as this barebone system does not include processors. The included passive CPU heatsinks are designed for LGA1366 sockets and the X8DTL motherboard layout.
How much memory can I install, and what type is supported?
This system supports up to 48 GB of DDR3 SDRAM across six memory slots. The memory standard is DDR3-1333/PC3-10600. You can install compatible DDR3 modules to meet your performance needs, with the total capacity limited by the motherboard's design and chipset constraints.
What storage configuration does this server support?
The barebone includes four hot-swappable 3.5" drive bays, which are connected via a BPN-SAS-815TQ-O-P backplane. The integrated Serial ATA/300 controller supports RAID levels 0, 1, 1+0, and 5, allowing for performance optimization or data redundancy. You can install SATA hard drives or SSDs into the provided hot-swap trays.
What expansion slots are available for add-in cards?
The system has one PCI Express x16 slot, which is accessible through the included riser card. This slot can accommodate various expansion cards, such as additional network interfaces, storage controllers, or GPUs, to extend the server's functionality. The riser card is designed for the 1U form factor.
Does this system include a power supply, and what are its specifications?
Yes, the barebone includes a 1U 350W multi-output power supply with 80PLUS Gold certification for high energy efficiency. It accepts input voltages of 110V AC or 220V AC, making it suitable for global deployment. The power supply is pre-installed in the chassis and provides stable power to all components.
What is included for rack mounting and cooling?
The package includes a third-generation guide rail assembly with outer slides that extend from 26 inches to 33.5 inches for easy installation in standard 19-inch racks. Cooling is handled by four 4028mm 13K RPM 4-pin PWM fans, which provide high airflow and are controlled via PWM for efficient thermal management in the 1U chassis.
