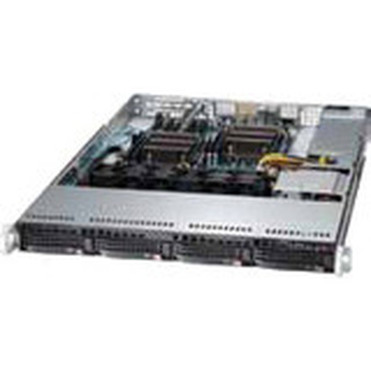

Supermicro SYS-6017R-TDAF SuperServer Barebone System - 1U Rackmount - Dual Socket R LGA-2011 - Intel C602 Chipset - 256GB DDR3
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SuperServer barebone features a memory architecture supporting up to 256 GB of DDR3 SDRAM across eight slots, with a standard speed of DDR3-1600/PC3-12800. The Serial ATA/600 controller provides high-speed data transfer for up to four 3.5" drive bays, with RAID 0, 1, 1+0, and 5 support for data redundancy and performance optimization.
Connectivity includes Gigabit Ethernet for network integration and a PCI Express x16 expansion slot for adding graphics, networking, or storage cards. The 600 W power supply ensures stable operation under load, while the 1U rack design maximizes density in standard server cabinets.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The SYS-6017R-TDAF combines enterprise-grade hardware with a compact rackmount form factor, making it ideal for organizations needing reliable server infrastructure without excessive space consumption.
Dual Processor Ready
Supports two Intel Xeon processors for scalable compute performance, enabling parallel processing and high availability configurations.
- Socket R LGA-2011
- 64-bit architecture
Integrated Storage Management
Serial ATA/600 controller with hardware RAID support ensures fast, reliable storage operations and data protection for critical applications.
- RAID 0, 1, 1+0, 5
- Four SATA interfaces
Rack-Optimized Design
1U height minimizes rack space while providing full server functionality, with dimensions of 1.70" H x 17.20" W x 25.60" D for standard cabinet compatibility.
- 1U form factor
- RoHS compliant
Deployment / Use Cases
This barebone system is well-suited for IT environments requiring customizable server builds with enterprise reliability. Its dual-processor support and expandable memory make it a strong candidate for virtualization hosts, where multiple virtual machines demand high core counts and RAM allocation.
In storage server roles, the four 3.5" bays and RAID capabilities allow for NAS or backup server configurations. The Gigabit Ethernet and PCIe x16 slot also support network-intensive applications or additional I/O expansion, fitting into web hosting, database servers, or small business infrastructure deployments.
Virtualization Host
Deploy as a hypervisor platform for VMware, Hyper-V, or KVM, leveraging dual CPUs and up to 256 GB RAM for efficient VM consolidation.
Storage Server
Configure with SATA drives in RAID arrays for file serving, backups, or media storage, using the integrated controller for performance and redundancy.
Physical Profile
The chassis measures 1.70 inches in height, 17.20 inches in width, and 25.60 inches in depth, conforming to standard 1U rackmount specifications. Its compact design allows dense deployment in server racks, with a weight-optimized build that includes RoHS compliance for environmental safety. The front-accessible drive bays and rear I/O panel facilitate easy maintenance and cable management in data center settings.
- Width
- 17.20" (436.88 mm)
- Depth
- 25.60" (650.24 mm)
- Height
- 1U
Highlights
- Supports dual Intel Xeon processors via Socket R LGA-2011 for high-performance computing
- Up to 256 GB DDR3-1600 memory across eight slots for multitasking and application scaling
- Four 3.5" drive bays with Serial ATA/600 interface and hardware RAID 0,1,1+0,5 support
- 1U rackmount form factor maximizes cabinet density while maintaining full server functionality
- Gigabit Ethernet connectivity ensures fast network integration for enterprise workloads
- 600 W power supply delivers stable operation under heavy processor and storage loads
- Single PCI Express x16 expansion slot for adding graphics, networking, or storage cards
- RoHS compliant and backed by a 3-year limited warranty for reliable long-term deployment
Specifications
| Specifications | |
|---|---|
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-6017R-TDAF |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | 6017R-TDAF |
| Product Name | SuperServer 6017R-TDAF Barebone System |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket R LGA-2011 |
| Processor Supported | Xeon |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C602 |
| Memory | |
| Maximum Memory Supported | 256 GB |
| Memory Technology | DDR3 SDRAM |
| Memory Standard | DDR3-1600/PC3-12800 |
| Total Number of Memory Slots | 8 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 1+0, 5 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of 3.5" Bays | 4 |
| Total Number of Expansion Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of SATA Interfaces | 4 |
| Power Description | |
| Maximum Power Supply Wattage | 600 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 25.60" (650.24 mm) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What processors are compatible with this barebone system?
The SYS-6017R-TDAF supports Intel Xeon processors using the Socket R LGA-2011 interface. It accommodates up to two CPUs, enabling dual-socket configurations for enhanced parallel processing and server-grade performance in virtualization or database applications.
How much memory can this server support?
This system supports a maximum of 256 GB of DDR3 SDRAM across eight memory slots. The memory standard is DDR3-1600/PC3-12800, providing fast data access for memory-intensive tasks like virtualization, data analytics, or application hosting.
What storage options are available?
The barebone includes four 3.5" drive bays with Serial ATA/600 interfaces, supporting high-speed data transfer. It features a hardware RAID controller that supports RAID levels 0, 1, 1+0, and 5, allowing for performance optimization, data redundancy, or a combination of both based on your storage needs.
What expansion capabilities does it offer?
A single PCI Express x16 expansion slot is available for adding cards such as graphics adapters, additional network interfaces, or storage controllers. This allows customization for specific workloads, like GPU acceleration or 10GbE networking, while maintaining the compact 1U form factor.
Is this server rack-mountable?
Yes, the SYS-6017R-TDAF is designed as a 1U rack-mountable system. Its dimensions are 1.70" H x 17.20" W x 25.60" D, fitting standard 19-inch server racks. This compact design optimizes data center space while providing full server functionality.
What power supply is included?
The system includes a maximum 600 W power supply, ensuring stable power delivery for dual processors, memory modules, storage drives, and expansion cards. This capacity supports enterprise workloads under full load, contributing to reliable operation in server environments.
