Supermicro SYS-5039A-I SuperWorkstation Barebone System - Mid-tower - Socket R4 LGA-2066 - Intel C422 - 512GB DDR4 - 900W 80Plus Gold
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The technical architecture of the SYS-5039A-i centers on the Intel C422 platform, designed to unlock the capabilities of Intel Xeon processors in the LGA-2066 socket. This chipset provides the foundation for enterprise-grade features including support for high-speed DDR4 memory up to 2666 MHz, advanced storage management with Serial ATA/600 interfaces and RAID functionality, and integrated 5 Gigabit Ethernet networking for high-bandwidth connectivity.
Storage and expansion flexibility is a key strength, with six SATA interfaces supporting both traditional hard drives and solid-state drives. The system includes six total drive bays—two external 5.25" and four internal 3.5"—providing ample storage capacity for large datasets, project files, and application libraries. Four PCI Express expansion slots, including three full-length x16 slots, accommodate professional graphics cards, specialized I/O cards, or additional network adapters to tailor the system to specific workflow requirements.
Key Product Advantages
The SYS-5039A-i combines enterprise-grade components with workstation-optimized design to deliver reliable performance for professional users. The system's balanced approach to expansion, connectivity, and power efficiency makes it suitable for a wide range of demanding applications where stability and capability are paramount.
Professional Expansion Platform
With four PCIe slots including three x16 slots, the system accommodates multiple high-performance graphics cards for GPU-accelerated workflows or specialized expansion cards for data acquisition, audio processing, or additional connectivity.
- 3 x PCIe x16 slots for graphics or compute cards
- 1 x PCIe x4 slot for additional expansion
- Six drive bays for storage flexibility
Comprehensive Connectivity

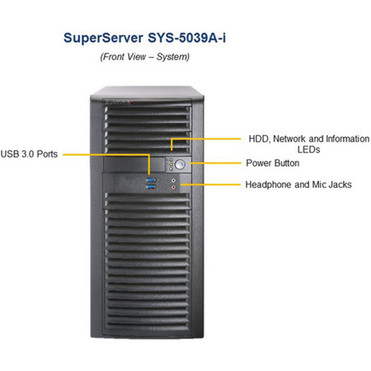

Fourteen USB ports, including six USB 3.0 ports, provide extensive peripheral connectivity for input devices, external storage, and specialized equipment. Integrated 5 Gigabit Ethernet delivers high-speed network access for collaborative workflows and data transfer.
- 14 total USB ports for peripheral connectivity
- 6 x USB 3.0 for high-speed devices
- 5 Gigabit Ethernet for network performance
Deployment / Use Cases
The SYS-5039A-i SuperWorkstation serves as an ideal platform for professional environments requiring reliable computing performance with substantial expansion capabilities. Its balanced specifications and flexible configuration options make it suitable for both standalone workstation deployments and integrated systems within larger technical workflows.
Engineering and design professionals will appreciate the system's support for professional graphics cards through multiple PCIe x16 slots, enabling complex 3D modeling, simulation, and rendering tasks. Research and development teams can leverage the high memory capacity and storage options for data analysis, computational modeling, and scientific visualization applications. Media production studios can configure the system for video editing, animation, and audio production workflows where both CPU performance and expansion capabilities are essential.
Engineering & Design Workstation
Configure with professional graphics cards and high-capacity storage for CAD, CAM, CAE, and architectural visualization applications where precision and performance are critical.
Scientific & Research Computing
Utilize the high memory capacity and expansion capabilities for data analysis, simulation, and visualization tasks in research environments.
Physical Profile

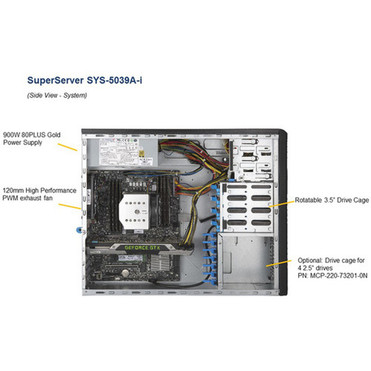

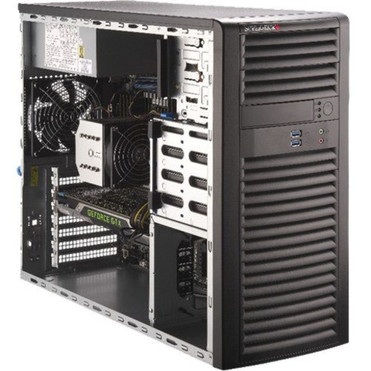

The mid-tower chassis measures 16.70" high × 7.60" wide × 20.68" deep (424.18 × 193.04 × 525.27 mm), providing a compact yet accessible form factor for workstation deployment. The black finish offers a professional appearance suitable for office or lab environments. The chassis design includes adequate ventilation and cable management features to support reliable operation with installed components. The included 900W 80Plus Gold power supply delivers efficient power delivery while minimizing energy consumption during operation.
- Width
- 7.60" (193.04 mm)
- Depth
- 20.68" (525.27 mm)
- Height
- 16.70" (424.18 mm)
What's in the Box
This barebone system includes all necessary components to begin building a complete workstation. The package contains the core hardware elements required for system assembly and initial setup.
Highlights
- Intel C422 chipset with Socket R4 LGA-2066 for Intel Xeon processors
- Supports up to 512GB of DDR4-2666 memory across eight slots
- Serial ATA/600 storage controller with RAID support
- Four PCIe expansion slots including three x16 slots
- 14 USB ports total with six USB 3.0 ports
- Integrated 5 Gigabit Ethernet networking
- 900W 80Plus Gold power supply for efficient operation
- Mid-tower chassis with six drive bays
- Black finish with professional appearance
- RoHS compliant and environmentally friendly
Specifications
| Specifications | |
|---|---|
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-5039A-i |
| Brand Name | Supermicro |
| Product Line | SuperWorkstation |
| Product Model | 5039A-i |
| Product Name | SuperWorkstation SYS-5039A-i (Black) |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Processor Socket | Socket R4 LGA-2066 |
| Processor Supported | Xeon |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C422 |
| Memory | |
| Maximum Memory Supported | 512 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2666/PC4-21300 |
| Total Number of Memory Slots | 8 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Display & Graphics | |
| Graphics Controller Manufacturer | ASPEED |
| Network & Communication | |
| Ethernet Technology | 5 Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 6 |
| Number of External 5.25" Bays | 2 |
| Number of 3.5" Bays | 4 |
| Total Number of Expansion Slots | 4 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x16 Slots | 3 |
| Interfaces/Ports | |
| Total Number of USB Ports | 14 |
| Number of USB 3.0 Ports | 6 |
| Number of SATA Interfaces | 6 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 1 |
| Maximum Power Supply Wattage | 900 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Mid-tower |
| Height | 16.70" (424.18 mm) |
| Width | 7.60" (193.04 mm) |
| Depth | 20.68" (525.27 mm) |
| Miscellaneous | |
| Package Contents | SuperWorkstation SYS-5039A-i (Black) 1 x Super X11SRA Motherboard 1 x 3U Mid-Tower Chassis 4 x SATA,INT,FLAT,57.7CM,26AWG 1 x Parts 1 x 5039A-I Quick Reference Guide 1 x PS2 900W Multi-Output Power Supply 80Plus Gold |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | 1 Year |
FAQ
What processors are compatible with this barebone system?
The SYS-5039A-i supports Intel Xeon processors using the Socket R4 LGA-2066 interface. This platform is designed for single-socket configurations, providing support for a wide range of Xeon processors that deliver enterprise-grade performance, security features, and reliability for professional workstation applications.
How much memory can this system support?
This system supports up to 512GB of DDR4 memory using the DDR4-2666/PC4-21300 standard. The motherboard includes eight memory slots, allowing for flexible memory configurations to meet the requirements of memory-intensive applications such as 3D rendering, simulation software, and large dataset processing.
What expansion capabilities does this workstation offer?
The system provides four PCI Express expansion slots: three PCIe x16 slots and one PCIe x4 slot. These slots accommodate professional graphics cards, specialized compute cards, or additional I/O expansion cards. The chassis also includes six drive bays—two external 5.25" and four internal 3.5"—for storage expansion.
What connectivity options are included?
Connectivity includes 14 USB ports total, with six supporting the USB 3.0 standard for high-speed peripheral connections. The system features integrated 5 Gigabit Ethernet for network connectivity, six SATA interfaces for storage devices, and supports RAID configurations through the Serial ATA/600 controller for data protection and performance.
What power supply is included with this system?
The system includes a 900W PS2 multi-output power supply with 80Plus Gold certification. This power supply delivers efficient power conversion with minimal energy waste, supporting the power requirements of high-performance processors, multiple expansion cards, and storage devices while maintaining reliable operation.
What is included in the package contents?
The barebone package includes the SuperWorkstation SYS-5039A-i chassis in black, the Super X11SRA motherboard, a 3U mid-tower chassis, four SATA cables, miscellaneous parts, a quick reference guide, and the 900W 80Plus Gold power supply. These components provide the foundation for building a complete workstation system.
