StarTech.com SV231TDVIUA 2-Port Triple Monitor DVI KVM Switch with Audio & USB 2.0 Hub - 1920 x 1200 Resolution - Rack/Desktop
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview

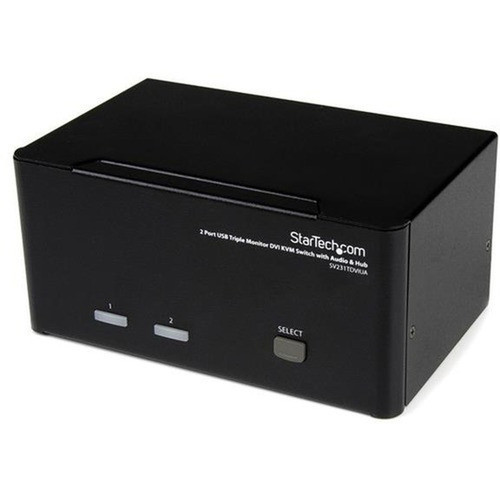

The StarTech.com SV231TDVIUA is a professional-grade KVM switch designed for multi-monitor workstation environments. It enables seamless control of two computers, each driving three DVI monitors, from a single keyboard, video, and mouse setup. This switch integrates audio switching and a USB 2.0 hub, creating a centralized management point for complex desktop or rack-mounted configurations.
Built with an all-metal chassis, the SV231TDVIUA offers durability for continuous operation in IT, control room, trading desk, or design studio applications. Its OS-independent design requires no software or drivers, ensuring compatibility with Windows, macOS, Linux, and other operating systems. The switch supports high-definition DVI resolutions up to 1920x1200 on all three monitors per computer, maintaining clear video quality across extended desktop setups.
Relevant factors for this section include Number of Computers Supported, Graphic Mode, Maximum Video Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Technical Overview

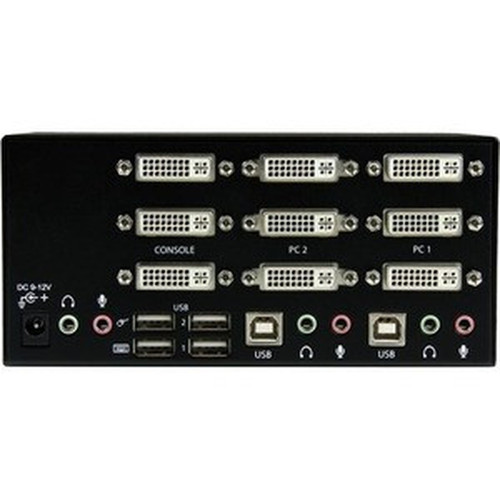

This KVM switch delivers robust technical performance with dedicated DVI and USB connectivity. It features nine DVI ports—three per computer plus three for monitors—supporting WUXGA resolution at 1920x1200 with HDCP compliance for protected content. The six USB ports include hub functionality for peripherals like keyboards, mice, webcams, and storage devices, operating at High-Speed USB 2.0 rates.
Switching between computers is facilitated through front-panel push buttons or keyboard hotkeys, providing flexible control without interrupting workflow. The audio switching capability allows independent routing of audio devices, such as speakers or headsets, alongside video and USB peripherals. Power is supplied via a universal AC adapter supporting 110V to 240V input, suitable for global deployment.
Relevant factors for this section include Number of Computers Supported, Graphic Mode, Maximum Video Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The SV231TDVIUA stands out with its triple-monitor support per computer, a feature that enhances productivity in multi-screen workflows. Its all-metal construction ensures long-term reliability in demanding environments, while the rack-mountable design allows integration into server racks or AV cabinets alongside desktop use.
Simplified Multi-Computer Management
Consolidate control of two computers with three monitors each, reducing desk clutter and streamlining access to different systems.
- Eliminates multiple keyboards and mice
- Centralizes peripheral connections
- Supports hotkey switching for efficiency
High-Definition Video Integrity
Maintains crisp DVI video signals across all monitors with support for 1920x1200 resolution, ensuring visual clarity for detailed tasks.
- WUXGA graphic mode
- HDCP compliance for content protection
- Stable signal transmission
Deployment / Use Cases
This KVM switch is ideal for environments where operators need to manage multiple computers with extensive monitor arrays. Its triple-monitor capability suits financial trading desks, video editing suites, network operation centers, and software development stations, where screen real estate is critical.
In rack-mounted setups, the SV231TDVIUA integrates neatly into server rooms or control panels, allowing technicians to switch between test and production systems. Desktop deployments benefit from the reduced cable clutter and centralized control, especially in offices with space constraints or shared workstations.
Trading and Financial Desks
Switch between market data servers and trading platforms across three monitors, maintaining real-time visibility without hardware swaps.
IT and Network Management
Control monitoring servers and admin workstations from a single console, streamlining troubleshooting and system administration tasks.
Physical Profile
The switch measures 6.30" wide, 3.90" deep, and 2.90" high, with a weight of 1.99 lb, making it compact for desktop or rack installation. Its dual form factor includes rubber foot pads for stable desktop placement and rack-mount compatibility for organized IT environments. The sturdy metal chassis resists wear and supports continuous operation in professional settings.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2.90" (73.66 mm), 6.30" (160.02 mm), 3.90" (99.06 mm), 1.99 lb (901.51 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 6.30" (160.02 mm)
- Depth
- 3.90" (99.06 mm)
- Height
- 2.90" (73.66 mm)
- Weight
- 1.99 lb (901.51 g)
What's in the Box
The package includes all necessary components for immediate setup and use.
Highlights
- Switch between two computers, each supporting three DVI monitors
- Supports DVI video resolutions up to 1920x1200 (WUXGA) on all monitors
- Independent audio device switching for speakers or headsets
- Front panel push button and hot-key functions for computer selection
- OS independent operation with no software or drivers required
- All-metal chassis for enhanced durability and long-term use
- Hub port supports High-Speed USB 2.0 devices like keyboards and mice
- HDCP compliant for protected content playback
- Rack-mountable and desktop form factor options
- Universal power adapter supports 110V to 240V AC input
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | SV231TDVIUA |
| Brand Name | StarTech.com |
| Product Name | 2 Port Triple Monitor DVI USB KVM Switch with Audio & USB 2.0 Hub |
| Packaged Quantity | 1 Each |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 2 |
| Video | |
| Graphic Mode | WUXGA |
| Maximum Video Resolution | 1920 x 1200 |
| Interfaces/Ports | |
| USB | Yes |
| DVI | Yes |
| Number of USB Ports | 6 |
| Number of DVI Ports | 9 |
| Power Description | |
| Input Voltage Range | 110V AC to 240V AC |
| Physical Characteristics | |
| Form Factor | Rack-mountable,Desktop |
| Height | 2.90" (73.66 mm) |
| Width | 6.30" (160.02 mm) |
| Depth | 3.90" (99.06 mm) |
| Weight (Approximate) | 1.99 lb (901.51 g) |
| Miscellaneous | |
| Package Contents | 2 Port Triple Monitor DVI USB KVM Switch with Audio & USB 2.0 Hub 4 x Rubber Foot Pads 1 x Universal Power Adapter (NA/UK/EU) 1 x User Manual |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
How many computers and monitors does this KVM switch support?
The StarTech.com SV231TDVIUA supports two computers, with each computer capable of driving three DVI monitors simultaneously. This allows for a total of six monitor connections managed through a single switch, ideal for multi-screen workstation setups.
What video resolution and interfaces are supported?
This switch supports DVI video interfaces with a maximum resolution of 1920 x 1200 (WUXGA) on all three monitors per computer. It is HDCP compliant, ensuring compatibility with protected digital content across connected displays.
Does the switch include audio switching capabilities?
Yes, the SV231TDVIUA includes independent audio switching, allowing you to route audio devices like speakers or headsets alongside video and USB peripherals. This feature enables seamless audio control when switching between computers.
How do I switch between computers with this KVM?
Switching can be done using front panel push buttons or keyboard hotkeys. The hotkey functions provide quick, software-free control without interrupting your workflow, making it convenient for frequent switching in professional environments.
What is the form factor and mounting options?
The switch features a dual form factor, supporting both desktop placement with included rubber foot pads and rack-mountable installation. Its compact dimensions of 6.30" wide, 3.90" deep, and 2.90" high allow flexible deployment in various setups.
What power requirements and warranty does this product have?
It uses a universal power adapter that accepts input voltages from 110V AC to 240V AC, suitable for global use. The product comes with a 3-year limited warranty and complies with environmental standards like RoHS and WEEE for responsible manufacturing.
