StarTech.com SV431DUSBU 4-Port USB KVM Switch with OSD - 1U Rackmount - VGA - 1920 x 1440 Resolution
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The StarTech.com SV431DUSBU is a 4-port USB KVM switch designed for efficient multi-computer management in rackmount or desktop environments. This switch enables control of up to four VGA computers from a single keyboard, mouse, and monitor setup, streamlining workspace organization and reducing hardware clutter.
Featuring an on-screen display (OSD) for intuitive navigation, the SV431DUSBU supports a maximum video resolution of 1920 x 1440, ensuring clear visual output across connected systems. Its plug-and-play operation eliminates the need for drivers or software, making it compatible with various operating systems without additional configuration.
Relevant factors for this section include Number of Computers Supported, Number of Local Users Supported, Maximum Video Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Technical Overview

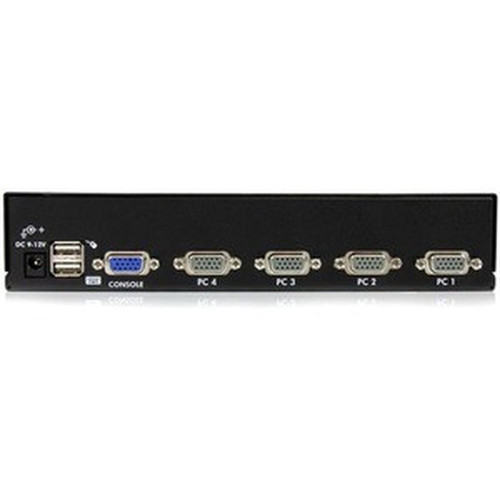

This KVM switch delivers robust technical performance with USB console connections and VGA video support. It includes two USB ports and one VGA port per computer connection, facilitating seamless peripheral integration. The auto-scan function automatically cycles through connected computers, while front-panel push-button and hotkey switching provide flexible access options.
The OSD allows users to rename connected computers for easy identification and offers security features such as password protection for individual PCs. Supported resolutions include wide-screen formats like 1920x1200 and 1920x1080, as well as 4:3 ratios up to 1920x1440, ensuring compatibility with diverse monitor setups.
Relevant factors for this section include Number of Computers Supported, Number of Local Users Supported, Maximum Video Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The SV431DUSBU stands out with its combination of user-friendly features and reliable performance. The on-screen display simplifies computer selection and management, while plug-and-play functionality ensures quick deployment without technical hurdles.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include OSD Security, Flexible Switching, Universal Compatibility.
OSD Security
Password protection for each connected PC enhances security in shared or sensitive environments.
- Individual PC passwords
- Controlled access management
Flexible Switching
Multiple switching methods, including front-panel buttons and hotkeys, provide convenient control options.
- Front-panel push-button
- Hotkey switching
- Auto-scan function
Universal Compatibility
OS-independent operation and a universal power adapter support deployment across various regions and systems.
- No drivers required
- NA/EU/UK/AU power adapter
- Wide resolution support
Deployment / Use Cases
Ideal for IT administrators, data centers, and office environments, the SV431DUSBU simplifies the management of multiple computers from a centralized console. Its 1U rack-mountable design makes it suitable for server rooms or network closets, while the desktop form factor allows for flexible placement on workstations.
Common use cases include monitoring and controlling server racks, managing test benches in labs, or consolidating workstations in educational or corporate settings. The ability to rename computers via OSD and secure them with passwords adds value in collaborative or secure access scenarios.
Data Center Management
Efficiently oversee multiple servers from a single KVM console, reducing space and hardware requirements.
Office Workstation Consolidation
Streamline desktop setups by connecting several computers to one keyboard, mouse, and monitor, optimizing workspace efficiency.
Physical Profile
The SV431DUSBU features a compact 1U rack-mountable design with dimensions of 1.70" (43.18 mm) in height, 8.70" (220.98 mm) in width, and 5.10" (129.54 mm) in depth, making it suitable for standard rack installations. Its approximate weight of 2.11 lb (957 g) ensures easy handling and installation. The included foot pads allow for stable desktop use, providing versatility in deployment options.
- Width
- 8.70" (220.98 mm)
- Depth
- 5.10" (129.54 mm)
- Height
- 1U
- Weight
- 2.11 lb (957 g)
What's in the Box
The package includes all necessary components for immediate setup and operation.
Highlights
- OS Independent - No drivers or software required
- Auto-scan function automatically selects computer sequentially

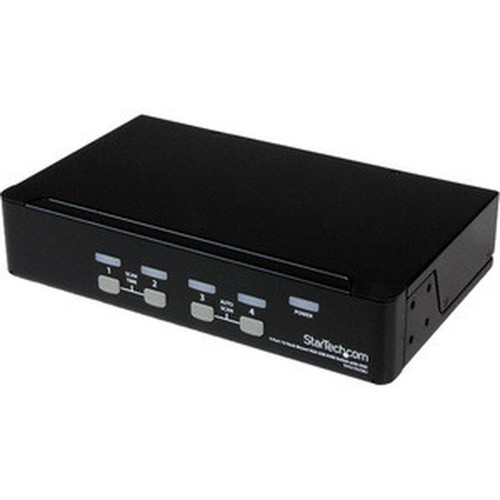

- Front panel push-button and Hotkey switching allow easy computer access
- Identifies and selects computers by the names assigned using the OSD
- USB console connections
- Rename connected computers for easy identification
- OSD security allows each PC to be password protected
- Plug-and-play system configuration
- Supported Wide Screen Resolutions: 1920x1200, 1920x1080, 1680x1050, 1400x1050, 1440x900, 1360x768
- Supported 4:3 Resolutions: 1920x1440, 1600x1200, 1280x1024, 1024x768
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | SV431DUSBU |
| Brand Name | StarTech.com |
| Product Model | SV431DUSBU |
| Product Name | 4 Port 1U Rackmount USB KVM Switch with OSD |
| Packaged Quantity | 1 Each |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 4 |
| Number of Local Users Supported | 1 |
| Video | |
| Maximum Video Resolution | 1920 x 1440 |
| Interfaces/Ports | |
| USB | Yes |
| VGA | Yes |
| Number of USB Ports | 2 |
| Number of VGA Ports | 1 |
| Physical Characteristics | |
| Form Factor | Rack-mountable,Desktop |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 8.70" (220.98 mm) |
| Depth | 5.10" (129.54 mm) |
| Weight (Approximate) | 2.11 lb (957 g) |
| Miscellaneous | |
| Package Contents | 4 Port 1U Rack Mount USB KVM Switch with OSD 4 x Foot Pads 1 x Universal power adapter (NA/EU/UK/AU) 1 x Instruction Manual |
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
How many computers can I control with this KVM switch?
The StarTech.com SV431DUSBU supports up to four computers, allowing you to manage multiple systems from a single keyboard, mouse, and monitor setup. This makes it ideal for environments like data centers, labs, or offices where space efficiency and centralized control are priorities.
What video resolution does this KVM switch support?
This switch supports a maximum video resolution of 1920 x 1440, ensuring high-quality visual output for connected monitors. It also accommodates various wide-screen and 4:3 resolutions, including 1920x1200, 1920x1080, and 1280x1024, providing flexibility for different display setups.
Is this KVM switch rack-mountable?
Yes, the SV431DUSBU features a 1U rack-mountable design, making it suitable for installation in standard server racks. It also includes foot pads for desktop use, offering deployment versatility in both rack and workstation environments.
Does this KVM switch require software or drivers?
No, this switch operates independently of software or drivers, thanks to its plug-and-play functionality. This OS-independent design ensures compatibility with various operating systems and simplifies setup without additional installations.
What security features does the on-screen display (OSD) offer?
The OSD includes security features such as password protection for each connected PC, allowing you to control access in shared or secure environments. You can also rename computers via the OSD for easy identification, enhancing management efficiency.
What is included in the package with this KVM switch?
The package contains the 4 Port 1U Rack Mount USB KVM Switch with OSD, four foot pads for desktop stability, a universal power adapter compatible with NA, EU, UK, and AU regions, and an instruction manual. These components support immediate deployment and flexible use.
