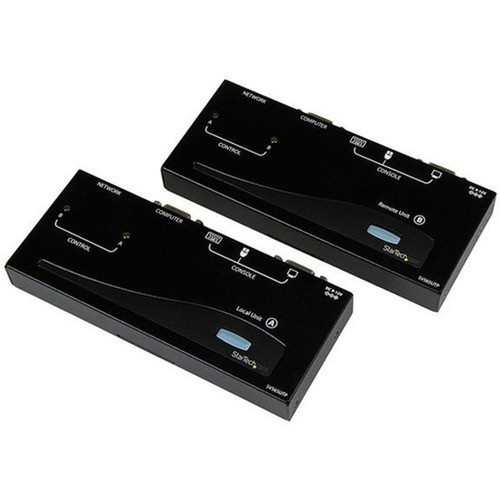

StarTech.com SV565UTP PS/2 + USB KVM Console Extender - Cat5 Up to 150 m - VGA 1024 x 768 - Desktop
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This KVM console extender delivers analog VGA video at resolutions up to 1024x768, with four VGA ports available for flexible connection scenarios. The system supports both USB and PS/2 computer interfaces at host and remote locations, though PS/2 keyboard and mouse are required for the remote console operation.
Network connectivity is facilitated through two RJ-45 ports that utilize industry-standard UTP cabling for signal transmission. The extender features auto-switching capability between host and remote users or can be configured for dedicated control, with intuitive hotkey commands simplifying operation and management.
Relevant factors for this section include Connectivity Technology, KVM Technology, Number of Computers Supported, Graphic Mode. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This extender simplifies remote computer management by eliminating distance limitations while maintaining compatibility with existing infrastructure. The use of standard Cat5 cable reduces deployment costs and complexity compared to specialized cabling solutions.
Extended Reach
Operate computers from up to 150 meters away without signal degradation, ideal for secure server room access or distributed equipment management.
- 500 ft maximum distance
- Uses standard UTP network cable
- Maintains signal integrity
Flexible Integration
Connect directly to a single computer or integrate with an existing KVM switch infrastructure, providing backward compatibility with legacy PS/2 systems while supporting modern USB interfaces.
- Single computer support
- KVM switch compatible
- USB and PS/2 interfaces
Deployment / Use Cases
The SV565UTP is designed for environments where computer equipment must be physically separated from operator workstations. Data centers benefit from secure server room access without requiring personnel to enter sensitive areas, while industrial control rooms can maintain computers in protected environments while providing operator consoles in control areas.
Educational institutions and corporate IT departments can use this extender to centralize computer equipment in locked closets or server rooms while providing classroom or office access. The system also supports digital signage applications where content management computers can be secured while displays are positioned in public areas.
What's in the Box
This complete kit includes everything needed for immediate deployment of the KVM console extension system.
Highlights
- Extends VGA, USB, and PS/2 signals up to 150 m over Cat5 cable
- Supports single computer or integration with existing KVM switches
- Auto-switching between host and remote users with dedicated control option
- Compatible with both USB and PS/2 computers (PS/2 required for remote console)
- Maximum video resolution of 1024x768 at extended distances
- Intuitive hotkey commands for easy operation and switching
- Desktop form factor with compact black design
- Includes complete kit with local unit, remote unit, and power adapters
- TAA compliant for government and educational procurement
- Backed by 2-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | SV565UTP |
| Brand Name | StarTech.com |
| Product Name | PS/2 USB KVM Console Extender |
| Packaged Quantity | 1 Kit |
| Product Type | KVM Console/Extender |
| Technical Information | |
| Connectivity Technology | Wired |
| KVM Technology | Analog |
| Number of Computers Supported | 1 |
| Maximum Operating Distance | 500 ft (152400 mm) |
| Video | |
| Graphic Mode | VGA |
| Maximum Video Resolution | 1024 x 768 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| PS/2 Port | Yes |
| VGA | Yes |
| Number of VGA Ports | 4 |
| Number of Network (RJ-45) Ports | 2 |
| Number of PS/2 Ports | 4 |
| Power Description | |
| Input Voltage | 120 V AC,240 V AC |
| Input Voltage Range | 110V AC to 240V AC |
| Power Consumption | 5.40 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Desktop |
| Transmitter Height | 0.80" (20.32 mm) |
| Transmitter Width | 6.10" (154.94 mm) |
| Transmitter Depth | 3" (76.20 mm) |
| Receiver Height | 0.80" (20.32 mm) |
| Receiver Width | 6.10" (154.94 mm) |
| Receiver Depth | 3" (76.20 mm) |
| Transmitter Weight (Approximate) | 1.35 lb (613 g) |
| Receiver Weight (Approximate) | 1.35 lb (613 g) |
| Miscellaneous | |
| Package Contents | 1 x Local Unit 1 x Remote Unit 2 x Packs Rubber Feet 2 x Power Adapters 1 x Instruction Manual |
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the maximum distance this KVM extender supports?
The StarTech.com SV565UTP supports extension distances up to 500 feet (152400 mm or approximately 150 meters) using standard Cat5 UTP network cable. This substantial reach allows you to position computer equipment in secure server rooms or distant locations while maintaining full keyboard, video, and mouse control from a remote console location.
What types of computers are compatible with this extender?
This extender is compatible with both USB and PS/2 computers at both host and remote locations. For the remote console operation, PS/2 keyboard and mouse are required. The system works with a single computer directly or can be integrated with an existing KVM switch infrastructure, providing flexibility for various deployment scenarios.
What video resolution does this extender support?
The extender supports VGA video at resolutions up to 1024 x 768 pixels. This analog video standard is maintained across the full extension distance without degradation, making it suitable for server management, industrial control applications, and basic computing tasks where high-resolution graphics are not required.
What cables are needed for installation?
Installation requires standard Cat5 UTP network cable for the extension connection between the local and remote units. The system includes power adapters for both units but does not include the Cat5 cable itself or the VGA, USB, or PS/2 cables needed to connect to computers and peripherals. These standard cables are readily available separately.
Does this extender support auto-switching between users?
Yes, the SV565UTP supports auto-switching between host and remote users, allowing multiple operators to access the same computer system. Alternatively, it can be configured for dedicated control where one user maintains exclusive access. Intuitive hotkey commands simplify switching between modes and managing the extended console environment.
What is included in the package?
The complete kit includes 1 local unit, 1 remote unit, 2 packs of rubber feet for stable placement, 2 power adapters (one for each unit), and an instruction manual. This provides everything needed for immediate deployment of the KVM extension system, with the exception of the Cat5 network cable and peripheral connection cables.
