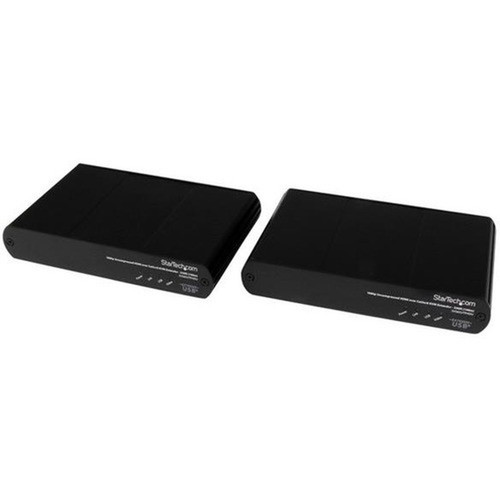

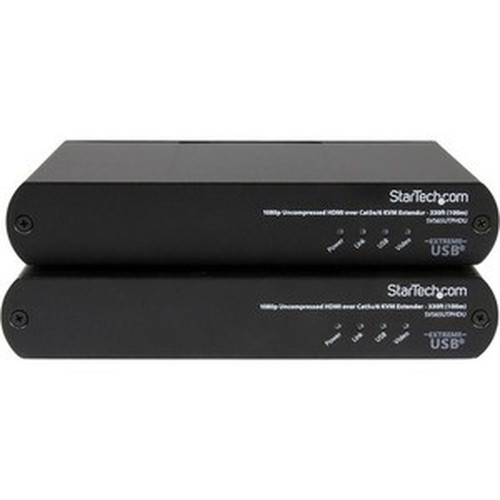

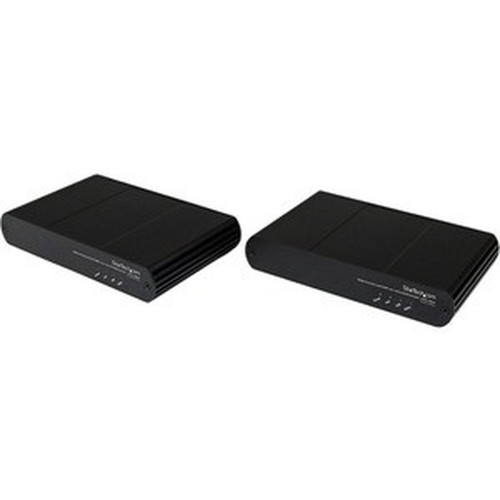

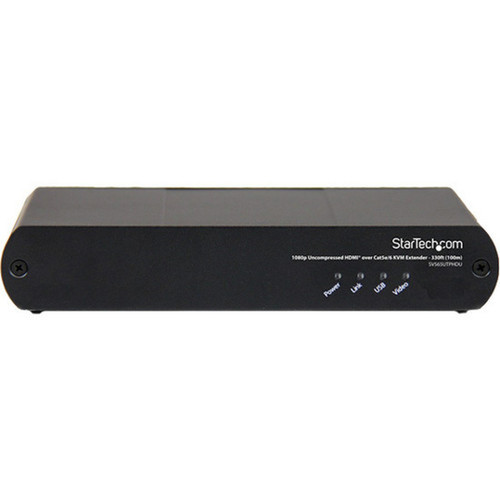

StarTech.com SV565UTPHDU KVM Console Extender - USB HDMI over Cat5e/Cat6 - 330ft (100m) - 1080p Uncompressed Video
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The StarTech.com SV565UTPHDU KVM Console Extender delivers uncompressed USB and HDMI signal extension over standard Cat5e or Cat6 network cable. This professional-grade solution extends both video and peripheral connectivity up to 330 feet (100 meters) from the source computer, enabling flexible workspace configurations and remote equipment management.
Operating without software or drivers, this extender maintains full HD video quality at 1080p resolution while supporting HDCP, CEC, and Lip Sync pass-through. The system includes both transmitter and receiver units with universal power adapters for global deployment, making it ideal for control rooms, server racks, digital signage, and educational environments where distance limitations restrict traditional cable runs.
Relevant factors for this section include Connectivity Technology, Number of Computers Supported, Number of Local Users Supported, Graphic Mode. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Technical Overview
This KVM extender transmits uncompressed video signals at resolutions up to 1920x1200 (WUXGA) across two HDMI ports, ensuring zero latency and pristine image quality for monitoring and control applications. The six USB 2.0 ports support data transfer rates up to 30Mbps, accommodating keyboards, mice, and other HID devices without performance degradation.
The dual RJ-45 ports facilitate signal transmission over a single Cat5e or Cat6 cable, simplifying installation compared to multiple dedicated cable runs. With support for HDCP content protection and automatic Lip Sync adjustment, the extender maintains compatibility with protected media sources and eliminates audio-video synchronization issues.
Relevant factors for this section include Connectivity Technology, Number of Computers Supported, Number of Local Users Supported, Graphic Mode. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This extender eliminates the distance limitations of traditional USB and HDMI cables while maintaining signal integrity across enterprise environments. The uncompressed video transmission ensures real-time monitoring without compression artifacts, critical for technical applications where visual accuracy matters.
Plug-and-Play Operation
No software installation or driver configuration required. The extender works immediately with Windows, macOS, Linux, and other operating systems, reducing deployment time and IT support overhead.
- OS independent
- No driver installation
- Universal compatibility
Extended Peripheral Support
Supports most keyboard and mouse combinations, including wireless sets with USB receivers. The extender maintains reliable connectivity for input devices across the full 330-foot distance.
- Wireless device support
- HID compatibility
- Stable connection
Cascading Flexibility
Can connect directly to a single computer or integrate with existing KVM switch infrastructure. This flexibility allows for expansion of current KVM systems without replacing entire setups.
- Single computer support
- KVM switch integration
- Infrastructure expansion
Deployment / Use Cases
The SV565UTPHDU addresses distance challenges in various professional environments where computers must be located separately from user workstations. Its 330-foot reach enables practical solutions for space-constrained facilities while maintaining full control capability.
In server room and data center applications, this extender allows technicians to operate equipment from comfortable workstations outside noisy or climate-controlled environments. For digital signage deployments, it enables centralized media players while placing displays in optimal viewing locations. Educational institutions benefit from extending classroom computers to projector rooms or lecture halls without sacrificing video quality or peripheral functionality.
Control Room Integration
Extend operator consoles from equipment racks to control room workstations, maintaining high-resolution video monitoring and precise input control across facility distances.
Retail and Hospitality
Centralize media players in secure locations while extending signals to displays in public areas, simplifying content management and reducing equipment theft risk.
What's in the Box
The complete kit includes all necessary components for immediate deployment with standard Cat5e or Cat6 cable.
Highlights
- Extends USB and HDMI signals up to 330 feet over Cat5e/Cat6 cable
- Uncompressed 1080p video transmission with 1920x1200 maximum resolution
- HDCP, CEC, and Lip Sync pass-through support for protected content
- OS independent operation with no software or drivers required
- Six USB 2.0 ports with 30Mbps transfer rates for peripherals
- Supports connection to single computers or cascading with KVM switches
- Compatible with most keyboard and mouse combinations including wireless
- Universal power adapters for North American, European, and UK outlets
- Includes mounting brackets for rack or under-desk installation
- Backed by 2-year limited warranty and manufactured in Canada
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | SV565UTPHDU |
| Brand Name | StarTech.com |
| Product Name | KVM Console/Extender |
| Packaged Quantity | 1 Kit |
| Product Type | KVM Console/Extender |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Computers Supported | 1 |
| Number of Local Users Supported | 1 |
| Maximum Operating Distance | 330 ft (100584 mm) |
| Video | |
| Graphic Mode | WUXGA |
| Maximum Video Resolution | 1920 x 1200 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| HDMI | Yes |
| Number of HDMI Ports | 2 |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 6 |
| Power Description | |
| Input Voltage | 120 V AC,240 V AC |
| Input Voltage Range | 100V AC to 240V AC |
| Power Consumption | 15 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Transmitter Height | 1.20" (30.48 mm) |
| Transmitter Width | 4.40" (111.76 mm) |
| Transmitter Depth | 6.90" (175.26 mm) |
| Receiver Height | 1.20" (30.48 mm) |
| Receiver Width | 4.40" (111.76 mm) |
| Receiver Depth | 6.90" (175.26 mm) |
| Transmitter Weight (Approximate) | 1.87 lb (847 g) |
| Receiver Weight (Approximate) | 1.87 lb (847 g) |
| Miscellaneous | |
| Package Contents | 1 x Local Transmitter Unit 1 x Remote Receiver Unit 4 x Mounting Brackets 1 x HDMI Cable 1 x USB Cable 2 x Universal Power Adapters (NA, EU ,UK) 1 x Quick-start guide |
| Environmentally Friendly | Yes |
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the maximum distance this KVM extender supports?
The StarTech.com SV565UTPHDU extends USB and HDMI signals up to 330 feet (100 meters) over a single Cat5e or Cat6 network cable. This distance enables flexible workspace configurations where computers must be located separately from user workstations, such as in server rooms, control centers, or media distribution applications.
Does this extender require special software or drivers?
No software installation or driver configuration is required. The extender operates independently of the operating system, working immediately with Windows, macOS, Linux, and other platforms. This plug-and-play functionality reduces deployment time and eliminates compatibility concerns across different computing environments.
What video resolutions does this extender support?
The extender supports uncompressed video transmission at resolutions up to 1920x1200 (WUXGA), including full 1080p HD. It maintains HDCP content protection pass-through for encrypted media sources and includes automatic Lip Sync adjustment to eliminate audio-video synchronization issues across the extended distance.
How many USB devices can I connect through this extender?
The system provides six USB 2.0 ports with data transfer rates up to 30Mbps. These ports support keyboards, mice, and other human interface devices, including wireless combinations with USB receivers. The extender maintains reliable peripheral connectivity across the full 330-foot operating distance without performance degradation.
Can this extender work with existing KVM switch infrastructure?
Yes, the extender supports cascading with existing KVM switch systems. It can connect directly to a single computer or integrate with current KVM infrastructure, allowing expansion of control capabilities without replacing entire setups. This flexibility makes it suitable for upgrading existing server room or control center environments.
What power requirements does this extender have?
The extender operates on 100-240V AC universal input voltage, with power consumption of 15 watts. The kit includes two universal power adapters compatible with North American, European, and UK outlets, ensuring global deployment capability. The low power consumption makes it suitable for continuous operation in professional environments.
