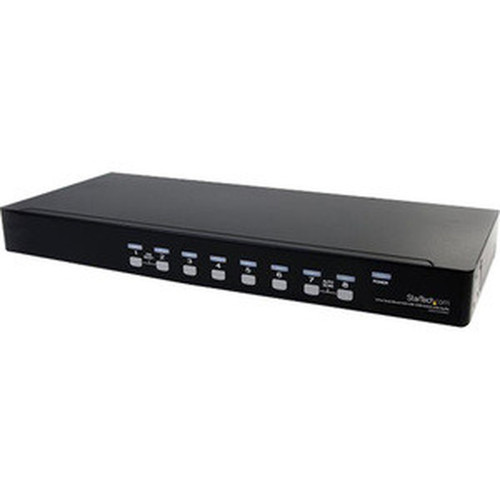

StarTech.com SV831DUSBAU 8-Port Rackmount KVM Switch - USB VGA Audio - 1920 x 1440 - 1U - 110-240V AC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The StarTech.com SV831DUSBAU is an 8-port rackmount KVM switch designed for centralized management of multiple VGA and USB computers from a single console. This switch supports audio transmission alongside video and USB control, making it suitable for environments where both visual and audio monitoring are required.
Built with a 1U rack-mountable form factor, the switch can be installed in standard server racks or used as a desktop unit with included foot pads. The device supports a maximum video resolution of 1920x1440 and includes comprehensive switching methods through hotkeys, front-panel buttons, and an on-screen display menu.
Relevant factors for this section include Number of Computers Supported, Maximum Video Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Technical Overview
This KVM switch provides robust connectivity with 2 USB ports and 9 VGA ports, allowing control of up to 8 computers. The USB console interface enables plug-and-play configuration, and the switch supports USB keyboard and mouse combinations through a single USB connection for streamlined setup.
Video compatibility includes both widescreen and 4:3 resolutions, with supported widescreen resolutions up to 1920x1200 and 4:3 resolutions up to 1920x1440. The switch operates on a universal 110-240V AC power input, making it suitable for international deployment without requiring voltage converters.
Relevant factors for this section include Number of Computers Supported, Maximum Video Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The SV831DUSBAU offers multiple switching methods and management features that enhance operational efficiency in multi-computer environments. The on-screen display menu allows administrators to assign descriptive names to each connected computer and implement password protection for secure access control.
Flexible Switching Options
Switch between computers using hotkey combinations, front-panel push buttons, or the intuitive OSD menu. The auto-scan function cycles through connected computers automatically for monitoring purposes.
- Hotkey switching
- Front-panel buttons
- OSD menu navigation
- Auto-scan function
Enhanced Security Features
Implement password protection for individual computers through the OSD security settings, preventing unauthorized access while maintaining convenient management capabilities.
- Per-computer password protection
- OSD security settings
- Access control management
Deployment / Use Cases
This KVM switch is ideal for data centers, server rooms, and IT labs where multiple computers require centralized management. The rack-mountable design makes it suitable for integration into standard server racks, while the desktop configuration option provides flexibility for smaller environments.
The cascade configuration capability allows expansion of the system beyond 8 computers by connecting multiple switches together. This makes the SV831DUSBAU scalable for growing IT infrastructures that need to manage increasing numbers of servers or workstations from a single control point.
Data Center Management
Centralize control of multiple servers in rack-mounted configurations, reducing clutter and improving administrator efficiency through single-console access.
IT Lab Environments
Manage multiple testing or development computers from a single workstation, with audio support enabling comprehensive monitoring of system outputs.
Physical Profile
The switch measures 1.80" (45.72 mm) in height, 21.30" (541.02 mm) in width, and 7.10" (180.34 mm) in depth, with an approximate weight of 5.74 lb (2602.49 g). The 1U rack height allows efficient use of vertical space in server racks, while the included mounting brackets and foot pads support both rack and desktop installation.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1U, 21.30" (541.02 mm), 7.10" (180.34 mm), 5.74 lb (2602.49 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 21.30" (541.02 mm)
- Depth
- 7.10" (180.34 mm)
- Height
- 1U
- Weight
- 5.74 lb (2602.49 g)
What's in the Box
The package includes all necessary components for immediate deployment of the KVM switch system.
Highlights
- Controls up to 8 VGA and USB computers from a single console
- Supports audio transmission alongside video and USB control
- Maximum video resolution of 1920x1440 with widescreen compatibility
- Hotkey, front-panel button, and OSD menu switching methods
- OSD security with per-computer password protection
- Auto-scan function for automatic computer cycling
- Cascade configuration for system expansion beyond 8 computers
- USB console interface with plug-and-play setup
- 1U rack-mountable form factor with desktop installation option
- Universal 110-240V AC power input for international deployment
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | SV831DUSBAU |
| Brand Name | StarTech.com |
| Product Line | StarView |
| Product Name | 8 Port Rack Mount USB VGA KVM Switch w/ Audio |
| Packaged Quantity | 1 Each |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 8 |
| Video | |
| Maximum Video Resolution | 1920 x 1440 |
| Interfaces/Ports | |
| USB | Yes |
| VGA | Yes |
| Number of USB Ports | 2 |
| Number of VGA Ports | 9 |
| Power Description | |
| Input Voltage Range | 110V AC to 240V AC |
| Physical Characteristics | |
| Form Factor | Rack-mountable,Desktop |
| Rack Height | 1U |
| Height | 1.80" (45.72 mm) |
| Width | 21.30" (541.02 mm) |
| Depth | 7.10" (180.34 mm) |
| Weight (Approximate) | 5.74 lb (2602.49 g) |
| Miscellaneous | |
| Package Contents | 8 Port Rack Mount USB VGA KVM Switch w/ Audio 2 x Mounting Brackets 8 x 6ft. Green Audio Cables and Red Microphone Cables (16 in Total) 4 x Foot Pad 1 x Power Cord 1 x User Manual |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
How many computers can this KVM switch control simultaneously?
The StarTech.com SV831DUSBAU KVM switch can control up to 8 computers simultaneously from a single console. This includes management of VGA video, USB peripherals, and audio for each connected computer through the centralized switching system.
What video resolutions does this KVM switch support?
This switch supports a maximum resolution of 1920x1440 for 4:3 displays and includes compatibility with widescreen resolutions up to 1920x1200. Specific supported resolutions include 1920x1080, 1680x1050, 1400x1050, 1440x900, 1360x768, 1600x1200, 1280x1024, and 1024x768 for comprehensive display compatibility.
Can this KVM switch be installed in a server rack?
Yes, the SV831DUSBAU features a 1U rack-mountable form factor with included mounting brackets for standard server rack installation. The switch can also be used as a desktop unit with the provided foot pads, offering deployment flexibility for different environment requirements.
What switching methods are available for selecting computers?
This KVM switch provides three primary switching methods: hotkey combinations using keyboard shortcuts, front-panel push buttons on the device itself, and an on-screen display menu that allows visual navigation and computer selection. The auto-scan function also automatically cycles through connected computers at adjustable intervals.
Does this KVM switch support audio transmission?
Yes, the SV831DUSBAU includes audio support alongside video and USB control. The package contains 8 green audio cables and 8 red microphone cables (16 total) for connecting audio between the switch and computers, enabling comprehensive audio monitoring through the centralized console.
What power requirements does this KVM switch have?
The switch operates on a universal 110-240V AC power input, making it compatible with standard power outlets in North America, Europe, and other regions without requiring voltage converters. This broad voltage range supports international deployment and flexibility in various electrical environments.
