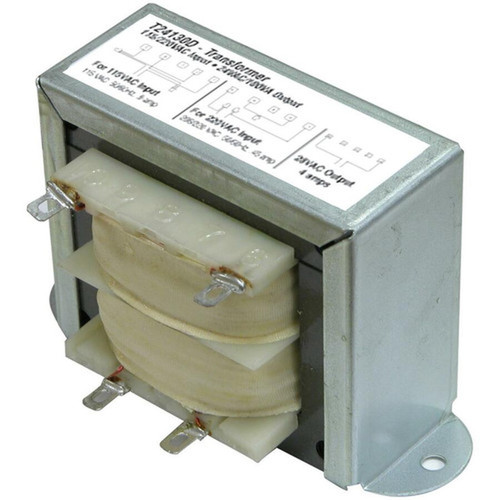

Altronix T24130D Step Down Transformer - 100 VA - 110/220 V AC Input to 24 V AC Output
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This transformer operates with a 100 VA power capacity, delivering up to 4 A of current at its 24 V AC output. The dual input voltage capability accepts both 110 V AC and 220 V AC sources, providing flexibility for deployment in different electrical environments without requiring separate models.
Constructed as an open-frame transformer, the T24130D offers efficient heat dissipation and simplified mounting options. The design prioritizes reliability and longevity in continuous operation scenarios common in security and automation systems.
This section brings together practical product details such as Power Rating, Input Voltage, Output Voltage, Maximum Line Current, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The T24130D combines essential power conversion features with a practical physical profile that supports easy installation in space-constrained environments. Its dual voltage input eliminates the need for separate transformers when dealing with different power sources, reducing inventory requirements and simplifying system design.
Voltage Flexibility
Accepts both 110 V AC and 220 V AC inputs, making it compatible with standard North American and international power systems without modification.
- No voltage selector switch required
- Single unit handles multiple installations
Compact Footprint
With dimensions of 2.57" H × 2.25" W × 4.13" D, this transformer fits easily into electrical boxes, enclosures, or equipment racks where space is limited.
- Minimal panel space required
- Lightweight at 1.50 kg
Deployment / Use Cases
The Altronix T24130D step-down transformer is specifically designed for applications requiring reliable 24 V AC power from standard line voltage sources. Its robust construction and consistent performance make it suitable for continuous operation in professional environments.
Common deployment scenarios include access control systems where electric locks and strikes require 24 V AC power, surveillance installations powering multiple cameras from a central transformer, and building automation systems controlling HVAC components or lighting relays. The transformer's open-frame design also facilitates integration into custom electrical assemblies and prototype development.
Security Systems
Provides stable 24 V AC power for access control panels, electric locks, and security gate operators that require consistent low-voltage operation.
Low-Voltage Lighting
Suitable for landscape lighting, signage illumination, and other 24 V AC lighting applications where voltage conversion from standard mains power is necessary.
Physical Profile
Measuring 2.57" in height, 2.25" in width, and 4.13" in depth, the T24130D presents a compact footprint that facilitates installation in electrical enclosures, equipment racks, or behind wall panels. The approximate weight of 1.50 kg ensures secure mounting without excessive load on supporting structures. The open-frame construction allows for efficient airflow around the transformer windings, supporting reliable operation in enclosed spaces while providing multiple mounting options through its chassis design.
- Width
- 2.25" (57.15 mm)
- Depth
- 4.13" (104.90 mm)
- Height
- 2.57" (65.28 mm)
- Weight
- 1.50 kg
Highlights
- 100 VA power rating for reliable low-voltage power conversion
- Accepts both 110 V AC and 220 V AC input voltages
- Delivers stable 24 V AC output at up to 4 A current
- Open-frame design for efficient heat dissipation
- Compact dimensions: 2.57" H × 2.25" W × 4.13" D
- Lightweight construction at approximately 1.50 kg
- Manufactured in the United States
- Ideal for access control, surveillance, and automation systems
Specifications
| Specifications | |
|---|---|
| Manufacturer | Altronix Corporation |
| Manufacturer Part Number | T24130D |
| Brand Name | Altronix |
| Product Model | T24130D |
| Product Name | T24130D Step Down Transformer |
| Product Type | Step Down Transformer |
| Technical Information | |
| Power Rating | 100 VA |
| Power Description | |
| Input Voltage | 110 V AC,220 V AC |
| Output Voltage | 24 V AC |
| Maximum Line Current | 4 A |
| Physical Characteristics | |
| Height | 2.57" (65.28 mm) |
| Width | 2.25" (57.15 mm) |
| Depth | 4.13" (104.90 mm) |
| Weight (Approximate) | 1.50 kg |
| Miscellaneous | |
| Country of Origin | United States |
FAQ
What is the power capacity of the Altronix T24130D transformer?
The T24130D has a 100 VA power rating, which represents its maximum apparent power handling capability. This capacity supports delivering up to 4 A of current at the 24 V AC output voltage, making it suitable for powering multiple low-voltage devices or systems with moderate power requirements.
What input voltages does this transformer accept?
This step-down transformer accepts dual input voltages of 110 V AC and 220 V AC. This flexibility allows installation in both standard North American 110-120 V systems and international 220-240 V environments without requiring a different transformer model or external voltage conversion equipment.
What is the output voltage and current capability?
The transformer provides a 24 V AC output with a maximum line current of 4 A. This output specification is commonly used in security, automation, and low-voltage lighting applications where 24 V AC is the standard operating voltage for devices like electric locks, surveillance cameras, and relay controls.
What are the physical dimensions of this transformer?
The T24130D measures 2.57 inches in height, 2.25 inches in width, and 4.13 inches in depth (approximately 65.28 mm × 57.15 mm × 104.90 mm). This compact size facilitates installation in electrical boxes, equipment enclosures, or rack-mounted configurations where space optimization is important.
What applications is this transformer best suited for?
The T24130D is ideal for access control systems, surveillance camera installations, building automation, and low-voltage lighting applications that require conversion from standard line voltage to 24 V AC. Its dual input voltage capability makes it particularly useful in facilities with mixed power systems or international installations where voltage standards may vary.
