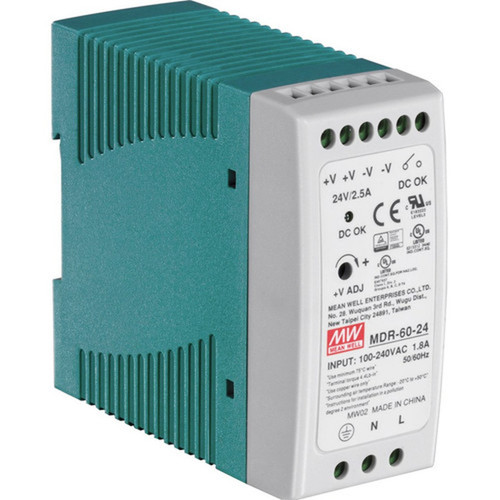

TRENDnet TI-M6024 60W Industrial DIN-Rail Power Supply - 24V DC @ 2.5A - Universal AC Input - 20 to 70°C Operating Range
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This industrial power supply converts universal AC input (120V or 230V) to a stable 24V DC output, capable of delivering up to 2.5A continuous current. It achieves high efficiency (86%) with low power dissipation, reducing heat buildup and energy costs. The unit supports a wide output voltage range of 24-30V DC, accommodating slight variations in connected device requirements.
Advanced protection circuits guard against short circuits, overloads, and over-voltage conditions, preventing damage to both the power supply and connected equipment. A built-in DC OK relay contact provides remote monitoring capability, signaling when output power is within normal parameters. The TI-M6024 undergoes 100% full load burn-in testing before shipment, ensuring reliability from day one.
Relevant factors for this section include Input Voltage, Output Voltage, Output Voltage Detail, Form Factor. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The TI-M6024 combines industrial durability with practical features that simplify deployment in network infrastructure. Its extreme temperature tolerance allows installation in unheated enclosures, outdoor weatherproof boxes, or hot equipment rooms without performance degradation. The 150% peak load capability handles momentary power surges from device startups, preventing nuisance tripping.
Robust Protection Suite
Comprehensive safeguards including short circuit, overload, and over-voltage protection ensure connected devices receive clean, stable power even during electrical disturbances.
- Short circuit protection
- Overload protection
- Over-voltage protection
- DC OK relay contact
Industrial-Grade Construction
Built to meet UL 62368 safety standards and featuring IP30 rating, this power supply withstands challenging environments while maintaining reliable operation.
- UL 62368 approved
- IP30 rated
- 100% burn-in tested
- TAA compliant
Deployment / Use Cases
The TI-M6024 is specifically compatible with TRENDnet switches including the TI-G50, TI-G62, TI-G80, and TI-F11SFP models, providing dedicated power for these networking devices. Its application extends to powering network cameras, wireless access points, and other low-voltage DC equipment in commercial and industrial settings.
Ideal for security system installations, the power supply can be mounted in NEMA enclosures alongside network video recorders and camera controllers. In warehouse or manufacturing environments, it reliably powers wireless access points that require 24V PoE or direct DC input. The universal AC input allows deployment in facilities with either 120V or 230V electrical systems without requiring different SKUs.
Physical Profile
The compact DIN-rail form factor measures 5" (127 mm) wide by 3" (76.20 mm) high, with a weight of approximately 10.58 oz (300 g). This streamlined design maximizes power density while minimizing occupied space in crowded equipment racks. The integrated DIN-rail clip allows tool-less installation on standard 35mm DIN rails commonly found in industrial control panels and network cabinets.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3" (76.20 mm), 5" (127 mm), 10.58 oz (300 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 5" (127 mm)
- Height
- 3" (76.20 mm)
- Weight
- 10.58 oz (300 g)
Highlights
- 60W industrial DIN-rail power supply with 24V DC @ 2.5A output
- Universal AC input (120V/230V) for global deployment flexibility
- Extreme operating temperature range: -20 to 70°C (-4 to 158°F)
- High efficiency (86%) with natural air convection cooling
- 150% peak load capability for handling startup surges
- Comprehensive protection: short circuit, overload, over-voltage
- UL 62368 approved and IP30 rated for industrial environments
- Built-in DC OK relay contact for remote monitoring
- 100% full load burn-in tested before shipment
- 3-year limited warranty with TAA compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TIM6024 |
| Brand Name | TRENDnet |
| Product Model | TI-M6024 |
| Product Name | DIN Rail 24V 60W Power Supply for TI-G50, TI-G62, TI-G80, TI-F11SFP |
| Product Condition | New |
| Product Type | Proprietary Power Supply |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Output Voltage | 24 V DC |
| Output Voltage Detail | 24 V DC @ 2.5 A |
| Output Current | 2.50 A |
| Output Power | 60 W |
| Physical Characteristics | |
| Form Factor | DIN Rail |
| Height | 3" (76.20 mm) |
| Width | 5" (127 mm) |
| Weight (Approximate) | 10.58 oz (300 g) |
| Miscellaneous | |
| Compatibility | Network Cameras Access Points TRENDnet Switches: Ti-G50 Ti-G62 Ti-G80 Ti-F11sfp |
| Country of Origin | China |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What devices is this power supply compatible with?
The TI-M6024 is specifically designed for TRENDnet switches including TI-G50, TI-G62, TI-G80, and TI-F11SFP models. It also works with network cameras, wireless access points, and other equipment requiring 24V DC power. The universal AC input (120V/230V) makes it suitable for global deployments without needing voltage-specific versions.
What protection features does this industrial power supply include?
This unit incorporates multiple protection mechanisms: short circuit protection prevents damage during wiring faults, overload protection safeguards against excessive current draw, and over-voltage protection maintains safe output levels. Additionally, a built-in DC OK relay contact provides remote monitoring capability to signal when output power is within normal operating parameters.
How does the extreme temperature range benefit installations?
The -20 to 70°C operating range allows deployment in environments where standard power supplies would fail. This includes unheated outdoor enclosures, hot equipment rooms, industrial facilities with temperature fluctuations, and locations without climate control. The wide temperature tolerance ensures reliable operation year-round in challenging conditions.
What does the 150% peak load capability mean for my installation?
The 150% peak load capability means the power supply can temporarily deliver up to 90W (150% of its rated 60W) for short durations. This handles inrush currents when devices power on, preventing nuisance tripping or shutdowns. It's particularly valuable when powering multiple devices that may start simultaneously or equipment with high initial power demands.
How is this power supply cooled, and does it require maintenance?
The TI-M6024 uses natural air convection cooling without fans, making it completely silent and maintenance-free. The high efficiency (86%) design minimizes heat generation, while the convection cooling passively dissipates what heat is produced. This eliminates fan failure points and reduces maintenance requirements in industrial environments.
What certifications and compliance does this product have?
This power supply is UL 62368 approved for safety, IP30 rated for basic solid object protection, and TAA compliant for government procurement. It undergoes 100% full load burn-in testing before shipment and comes with a 3-year limited warranty. These certifications and testing procedures ensure reliability and compliance in commercial and industrial applications.
