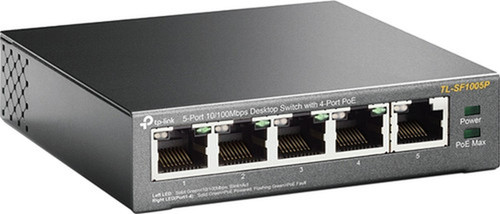

TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE+ - 5 Ports - Fast Ethernet - 10/100Base-T - 2 Layer Supported - 1.90 W Power (TL-SF1005P)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- 5-Port 10/100Mbps Desktop Switch with 4-Port PoE+
- Power Adapter
- User Guide
Total Number of Network Ports: 5
Network (RJ-45): Yes
Uplink Port: No
Modular: No
Stack Port: No
Port/Expansion Slot Details: 1 x Fast Ethernet Network,4 x Fast Ethernet PoE+
Media Type Supported: Twisted Pair
Ethernet Technology: Fast Ethernet
Network Technology: 10/100Base-T
Layer Supported: 2
Networking Standards: IEEE 802.3af,IEEE 802.3at,IEEE 802.3x
Manageable: No
PoE (RJ-45) Port: Yes
PoE Budget: 67 W
Power Source: Power Adapter
Redundant Power Supply Supported: No
Power Consumption: 1.90 W
Product Material: Metal
Form Factor: Desktop
Height: 0.98" (25 mm)
Width: 3.93" (99.80 mm)
Depth: 3.86" (98 mm)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
Limited Warranty: 5 Year
- Flexible 5-Port PoE Configuration: 4x PoE+ (802.3at/af) 10/100/1000 Mbps RJ45 ports providing up to 30W per port and total PoE power budget of 65W, together w/ 1x Non-PoE Port for stable connections.
- Plug and Play: Easy setup with no software installation or configuration needed.
- Extend Mode: Up to 250m data and power PoE transmission range under Extend Mode, ideal for surveillance system (Speed will be downgraded to 10 Mbps).
- Priority Mode: Support Priority mode for ports 1-2, guarantee high quality of video or voice data transmission.
- Sturdy Metal Case: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
- Reliable and Quiet: IEEE 802.3X flow control provides reliable data transfer and a fanless design ensures quiet operation.
[custom-specifications]
| Specifications | |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | TL-SF1005P |
| Manufacturer Website Address | http://www.tp-link.com |
| Brand Name | TP-Link |
| Product Model | TL-SF1005P |
| Product Name | 5-Port 10/100Mbps Desktop Switch with 4-Port PoE+ |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 5 |
| Network (RJ-45) | Yes |
| Uplink Port | No |
| Modular | No |
| Stack Port | No |
| Port/Expansion Slot Details | 1 x Fast Ethernet Network,4 x Fast Ethernet PoE+ |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3af,IEEE 802.3at,IEEE 802.3x |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 67 W |
| Power Source | Power Adapter |
| Redundant Power Supply Supported | No |
| Power Consumption | 1.90 W |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Desktop |
| Height | 0.98" (25 mm) |
| Width | 3.93" (99.80 mm) |
| Depth | 3.86" (98 mm) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 5 Year |
[/custom-specifications]
