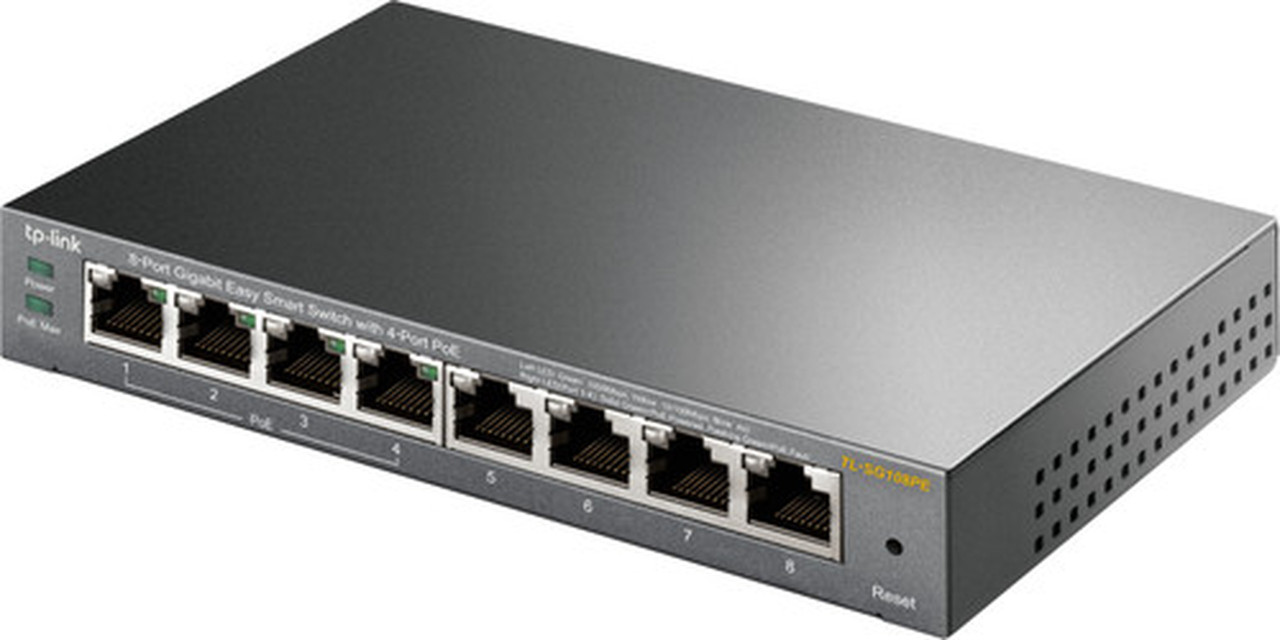

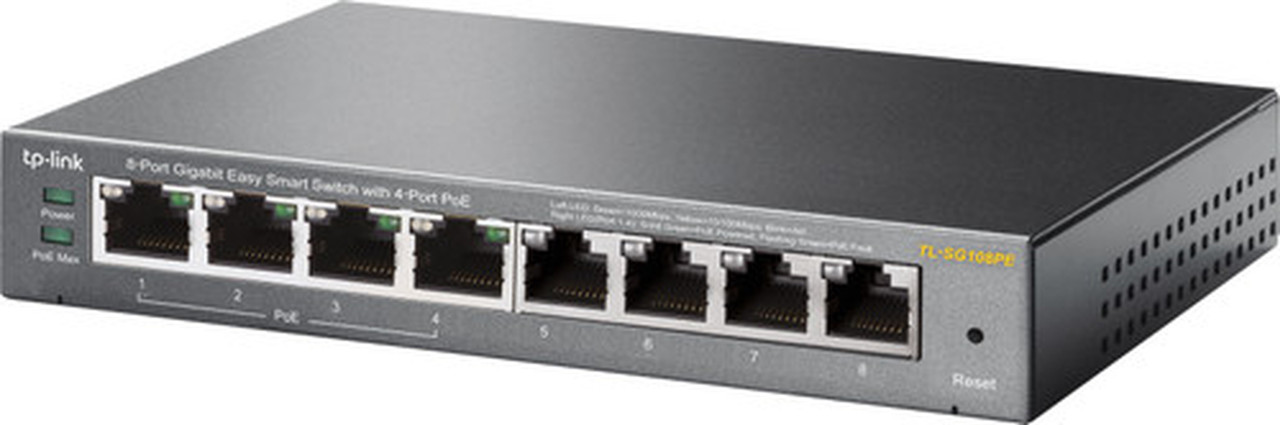

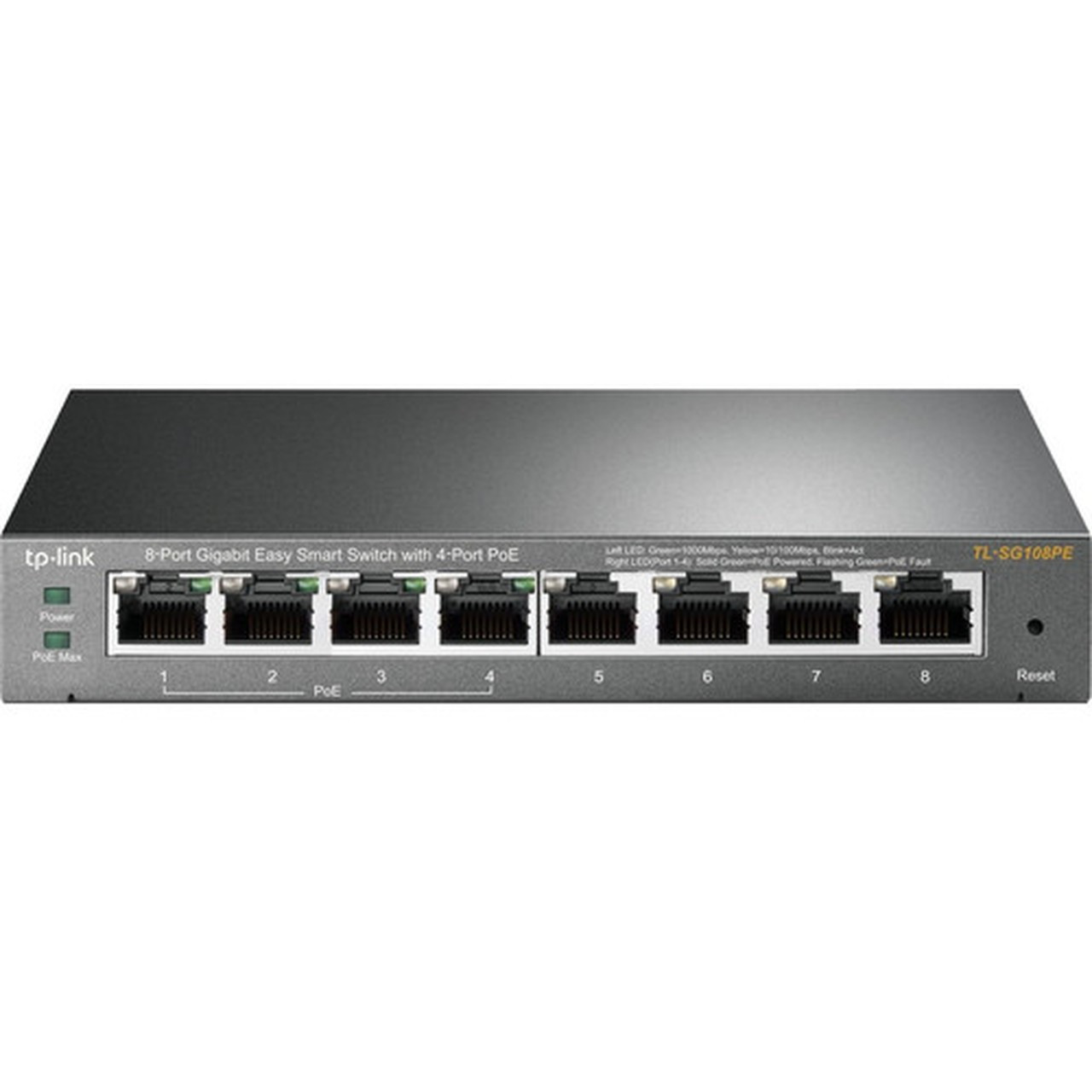

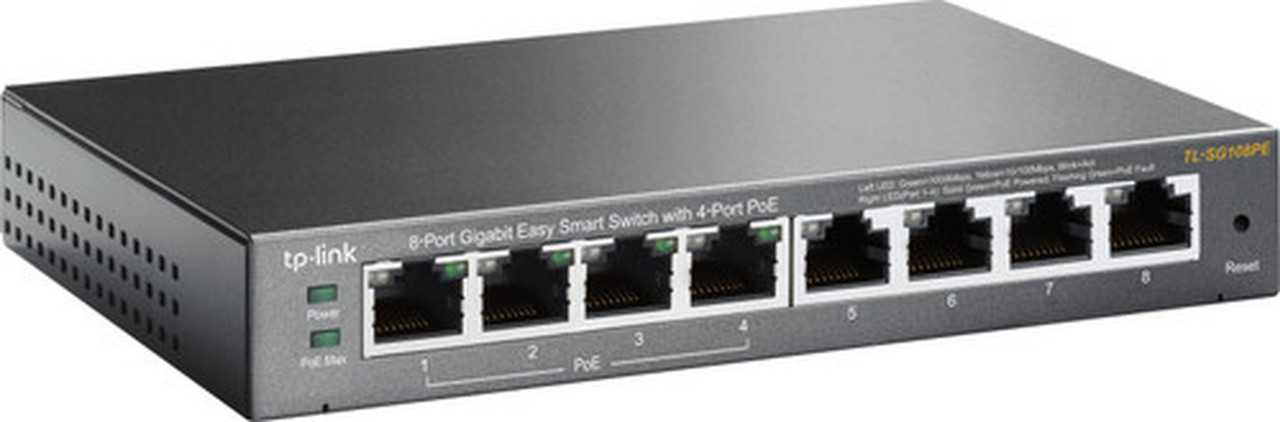

TP-LINK TL-SG108PE 8-Port Gigabit Easy Smart Switch - 4-Port PoE+ - 55W Budget - Layer 2 Managed - Desktop/Wall Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The switch operates at Gigabit Ethernet speeds across all eight ports, supporting 10/100/1000 Mbps auto-negotiation for seamless integration with existing network infrastructure. It complies with key IEEE standards including 802.3af/at for PoE, 802.1Q for VLAN support, 802.1p for QoS, and 802.3x for flow control, ensuring reliable performance and interoperability.
The four PoE+ ports automatically detect and supply power to compatible devices, with a total PoE budget of 55W. The switch's power consumption is minimal at 5.20W under typical operation, contributing to energy efficiency. Its compact dimensions—1" height, 6.20" width, and 4" depth—allow for flexible placement on desktops or wall mounting using included rubber feet.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Uplink Port, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The TL-SG108PE combines ease of use with robust features, making it a versatile choice for growing networks. Its PoE Auto Recovery function automatically reboots unresponsive PoE devices, reducing downtime and manual intervention. The switch also supports advanced software features like IGMP snooping for efficient multicast traffic handling and port-based QoS to prioritize voice or video data.
Easy Smart Management
Configure and monitor your network through a user-friendly web interface, with no software installation required for basic operation.
- Web-based management
- VLAN support for segmentation
- Traffic prioritization with QoS
PoE Flexibility
Power up to four PoE+ devices simultaneously, with automatic detection and power delivery to compatible endpoints.
- 4 PoE+ ports
- Up to 30W per port
- 55W total budget
Deployment / Use Cases
This switch is well-suited for small to medium-sized business environments where reliable connectivity and PoE support are essential. Its compact form factor and wall-mount capability make it ideal for space-constrained installations such as retail counters, office cubicles, or conference rooms.
Common applications include powering and connecting IP surveillance cameras in security systems, supporting VoIP phones in office communications, and linking wireless access points for extended Wi-Fi coverage. The switch's VLAN features allow for secure network segmentation, separating guest traffic from internal resources in hospitality or educational settings.
Small Office Networking
Connect computers, printers, and PoE devices like phones or cameras with a single, managed switch.
Retail & Hospitality
Deploy in point-of-sale systems or guest networks with VLANs for security and traffic management.
Physical Profile
Constructed from durable metal, the TL-SG108PE features a low-profile design that fits easily on desktops or mounts securely to walls. Its dimensions—1 inch in height, 6.20 inches in width, and 4 inches in depth—ensure it occupies minimal space while providing eight Gigabit ports. The included rubber feet prevent slipping and reduce vibration, and the wall-mount option allows for clean cable management in installations where desk space is limited.
- Width
- 6.20" (157.48 mm)
- Depth
- 4" (101.60 mm)
- Height
- 1" (25.40 mm)
What's in the Box
The package includes all necessary components for immediate deployment.
Highlights
- 8 Gigabit Ethernet ports with 4 PoE+ ports for device powering
- 55W total PoE budget supporting up to 30W per PoE port
- Layer 2 managed with web-based Easy Smart interface
- Supports VLAN, QoS, IGMP snooping, and PoE auto recovery
- Compact metal design, desktop or wall mountable
- Low power consumption at 5.20W for energy efficiency
- Plug-and-play setup with no software required for basic use
- Complies with IEEE 802.3af/at, 802.1Q, 802.1p standards
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | TL-SG108PE |
| Brand Name | TP-Link |
| Product Line | EasySmart |
| Product Model | TL-SG108PE |
| Product Name | 8-Port Gigabit Easy Smart Switch with 4-Port PoE |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Network (RJ-45) | Yes |
| Uplink Port | No |
| Modular | No |
| Stack Port | No |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet PoE,4 x Gigabit Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3x,IEEE 802.1Q,IEEE 802.1p |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 55 W |
| Power Source | Power Adapter |
| Power Consumption | 5.20 W |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Desktop,Wall Mountable |
| Height | 1" (25.40 mm) |
| Width | 6.20" (157.48 mm) |
| Depth | 4" (101.60 mm) |
| Miscellaneous | |
| Package Contents | 8-Port Gigabit Easy Smart Switch with 4-Port PoE Power Adapter Installation Guide Rubber Feet |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
How many PoE ports does this switch have, and what is the total PoE budget?
The TP-Link TL-SG108PE has four PoE+ ports that support the IEEE 802.3af/at standards. These ports can deliver up to 30W per port, with a total PoE budget of 55W. This allows you to power multiple PoE devices such as IP cameras, VoIP phones, or wireless access points simultaneously without needing separate power adapters.
Is this switch manageable, and what management features are included?
Yes, this is a Layer 2 managed switch with TP-Link's Easy Smart management interface. It offers web-based configuration for features like VLAN setup for network segmentation, port-based QoS for traffic prioritization, IGMP snooping for efficient multicast handling, and PoE auto recovery to automatically reboot unresponsive devices. These tools provide control without the complexity of enterprise-grade management.
What are the physical dimensions and mounting options for this switch?
The switch measures 1 inch in height, 6.20 inches in width, and 4 inches in depth. It is constructed from metal and includes rubber feet for desktop placement, as well as support for wall mounting. This compact design makes it suitable for installations where space is limited, such as on desks, shelves, or mounted on walls in offices or retail environments.
Does this switch support Gigabit speeds on all ports?
All eight ports on the TL-SG108PE support Gigabit Ethernet speeds, with auto-negotiation for 10/100/1000 Mbps connections. This ensures high-speed data transfer for connected devices like computers, NAS systems, or servers, while maintaining backward compatibility with older Fast Ethernet equipment for seamless network integration.
What is the power consumption of this switch under normal operation?
The switch consumes approximately 5.20W of power during typical operation. This low power draw contributes to energy efficiency and reduces operating costs, especially in always-on deployments. The included power adapter provides the necessary power for both the switch's operation and PoE output to connected devices.
What is included in the warranty for this switch?
The TP-Link TL-SG108PE comes with a 3-year limited warranty. This warranty covers defects in materials and workmanship under normal use, providing peace of mind for business deployments. For support, TP-Link offers technical assistance to help with setup, troubleshooting, and maintenance throughout the warranty period.
