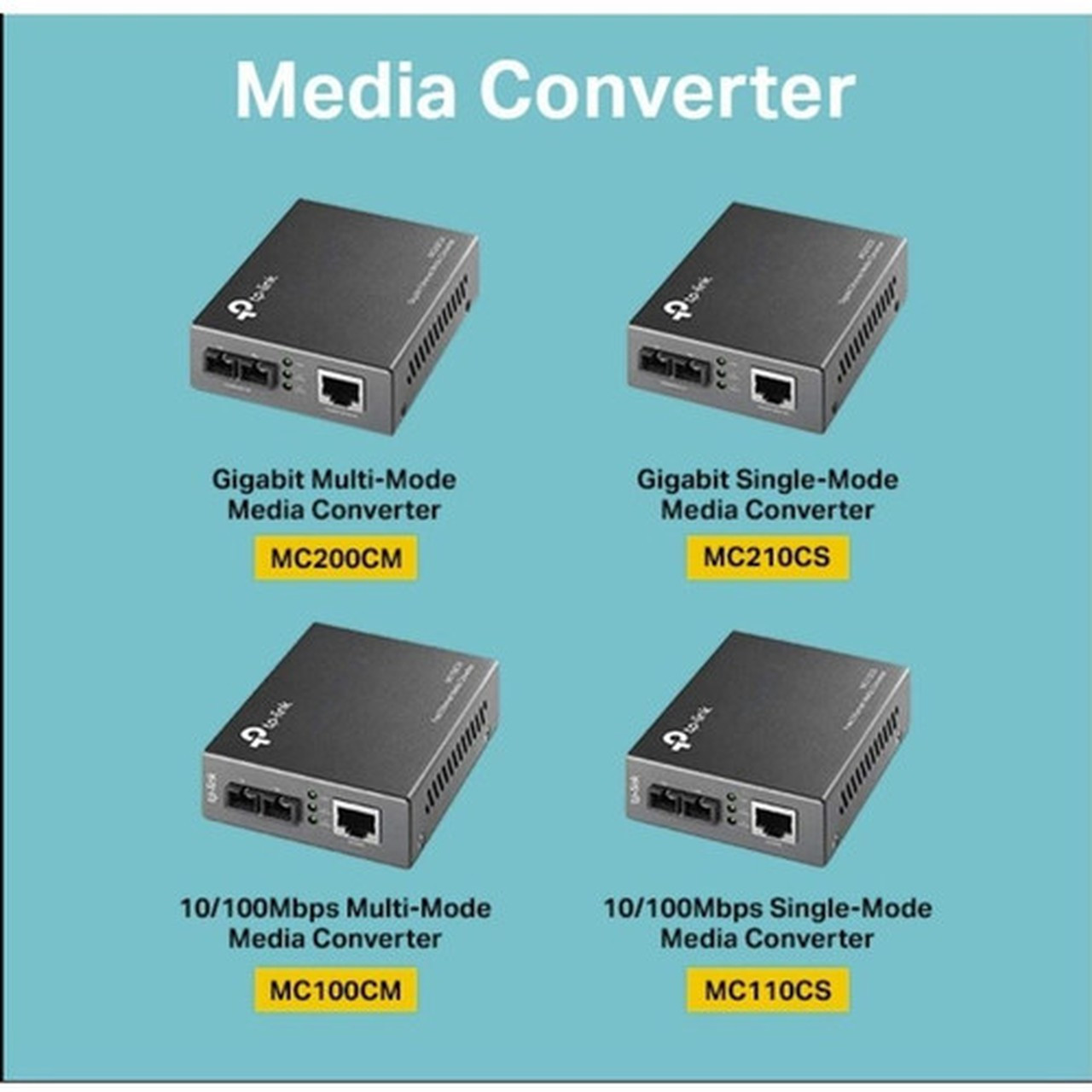

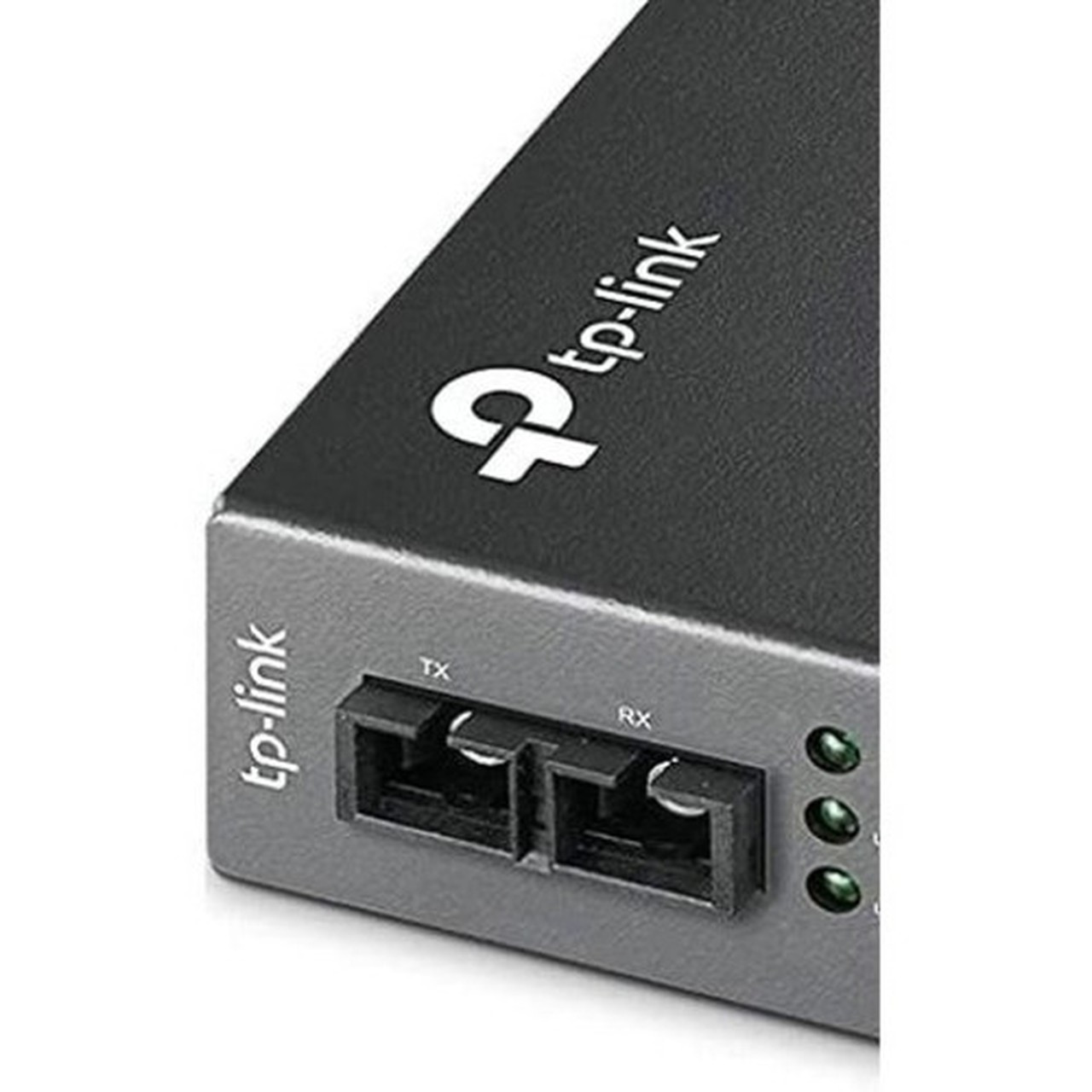

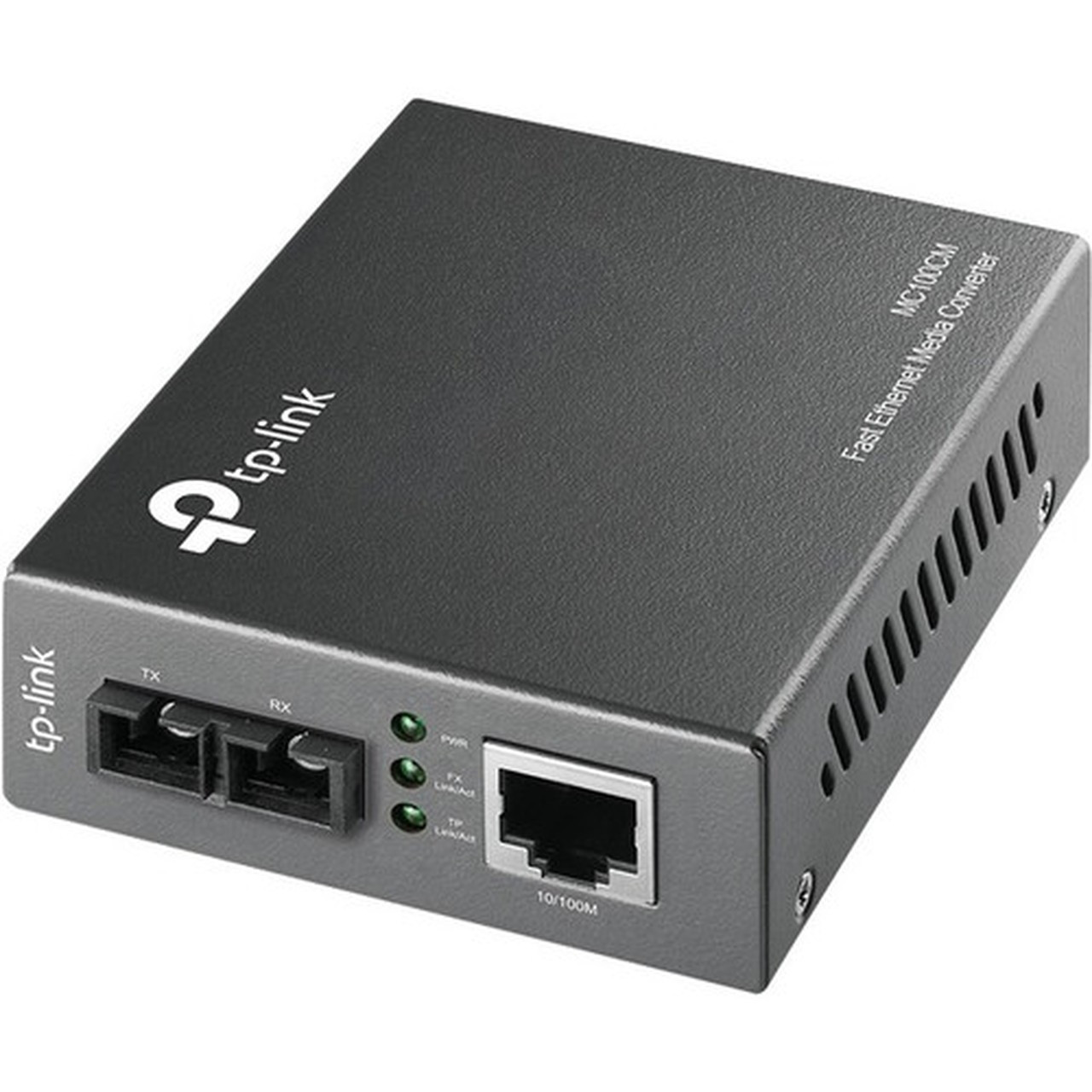

TP-Link MC100CM Fast Ethernet Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - Multi-mode - Fast Ethernet - 10/100Base-TX, - 1.2 (MC100CM)
- MC100CM Fast Ethernet Media Converter
- Power Adapter
- Installation Guide
Marketing Information:
The MC100CM is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector.
Total Number of Ports: 2
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
Number of SC Ports: 1
Media Type Supported: Optical Fiber
Fiber Mode Supported: Multi-mode
Fiber Optic Wavelength: 1310 nm
Maximum Distance Supported: 1.2 Mile
Ethernet Technology: Fast Ethernet
Network Technology: 10/100Base-TX,100Base-FX
Power Source: Power Adapter
Power Consumption: 2.40 W
Form Factor: External
Height: 1.10" (27.94 mm)
Width: 3.70" (93.98 mm)
Depth: 2.90" (73.66 mm)
Package Contents:
Environmentally Friendly: Yes
- Designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa.
- Works at 100Mbps in Full-Duplex mode for both TX port and FX port.
- Supports auto MDI/MDIX for TX port and provides switch configuration of Force/Auto transfer mode for FX port.
- Extends fiber distance up to 1.2 mile (2km).
- Easy-to-view LED indicators provide status to monitor network activity easily.
- External power supply. Wave Length: 1310nm. Max Power Consumption: 2.4W.
[custom-specifications]
| Specifications | |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | MC100CM |
| Manufacturer Website Address | http://www.tp-link.com |
| Brand Name | TP-Link |
| Product Model | MC100CM |
| Product Name | MC100CM Fast Ethernet Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Wavelength | 1310 nm |
| Maximum Distance Supported | 1.2 Mile |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-TX,100Base-FX |
| Power Description | |
| Power Source | Power Adapter |
| Power Consumption | 2.40 W |
| Physical Characteristics | |
| Form Factor | External |
| Height | 1.10" (27.94 mm) |
| Width | 3.70" (93.98 mm) |
| Depth | 2.90" (73.66 mm) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
[/custom-specifications]
