TP-LINK ARCHER T3U PLUS AC1300 Dual-Band Wi-Fi 5 USB 3.0 Adapter - 1.27 Gbit/s - 5 dBi Antenna - MU-MIMO
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Wi-Fi adapter operates on the IEEE 802.11ac wireless LAN standard, classified as Wi-Fi 5, which provides improved performance over previous generations. It supports both ISM (2.4 GHz) and UNII (5 GHz) bands, allowing users to switch between frequencies based on network congestion and range requirements.
The adapter's external design includes advanced 5 dBi high-gain antennas that significantly boost signal reception and transmission strength. This hardware enhancement, combined with MU-MIMO capabilities, ensures stable connections even in environments with multiple connected devices. The compact physical dimensions make it portable and easy to install without occupying excessive desk space.
Relevant factors for this section include Wi-Fi Generation, Wireless LAN Standard, Network Band, Host Interface. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ARCHER T3U PLUS stands out with its MU-MIMO technology, which optimizes network throughput by allowing the router to communicate with multiple devices simultaneously. This reduces latency and improves overall network efficiency, making it ideal for households or offices with several connected devices.
High-Speed Dual-Band Connectivity
Delivers up to 867 Mbps on the 5 GHz band and 400 Mbps on the 2.4 GHz band, providing fast and reliable internet access for bandwidth-intensive applications.
- AC1300 Wi-Fi performance
- Reduced interference with dual-band flexibility
Enhanced Signal Strength
Equipped with 5 dBi high-gain antennas that improve wireless range and stability, ensuring consistent connectivity in larger or multi-room setups.
- External antenna design
- Improved reception in weak signal areas
Deployment / Use Cases
This adapter is particularly effective in environments where running Ethernet cables is impractical. It supports a wide range of operating systems, including Windows 11 down to XP and macOS 10.9 through 10.15, ensuring compatibility with both modern and legacy systems.
For small offices or home offices, the adapter facilitates reliable connections to dual-band routers, enabling seamless video conferencing, cloud backups, and online collaboration. Its RoHS compliance and environmentally friendly design align with sustainable IT procurement practices.
Desktop Computer Enhancement
Ideal for desktop PCs lacking built-in Wi-Fi or requiring an upgrade from older wireless standards. The USB 3.0 interface ensures minimal performance loss compared to internal cards.
Notebook Connectivity Boost
Useful for notebooks with weak or outdated Wi-Fi modules, providing a plug-and-play solution to achieve faster speeds and better range without hardware modifications.
Physical Profile
The external form factor measures 6.83 inches in height, 2.28 inches in width, and 0.71 inches in depth, making it compact enough for portable use while housing the necessary antennas for optimal performance. Its design prioritizes functionality without bulky enclosures, allowing it to fit neatly beside computers or in laptop bags.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 6.83" (173.48 mm), 2.28" (57.91 mm), 0.71" (18.03 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.28" (57.91 mm)
- Depth
- 0.71" (18.03 mm)
- Height
- 6.83" (173.48 mm)
What's in the Box

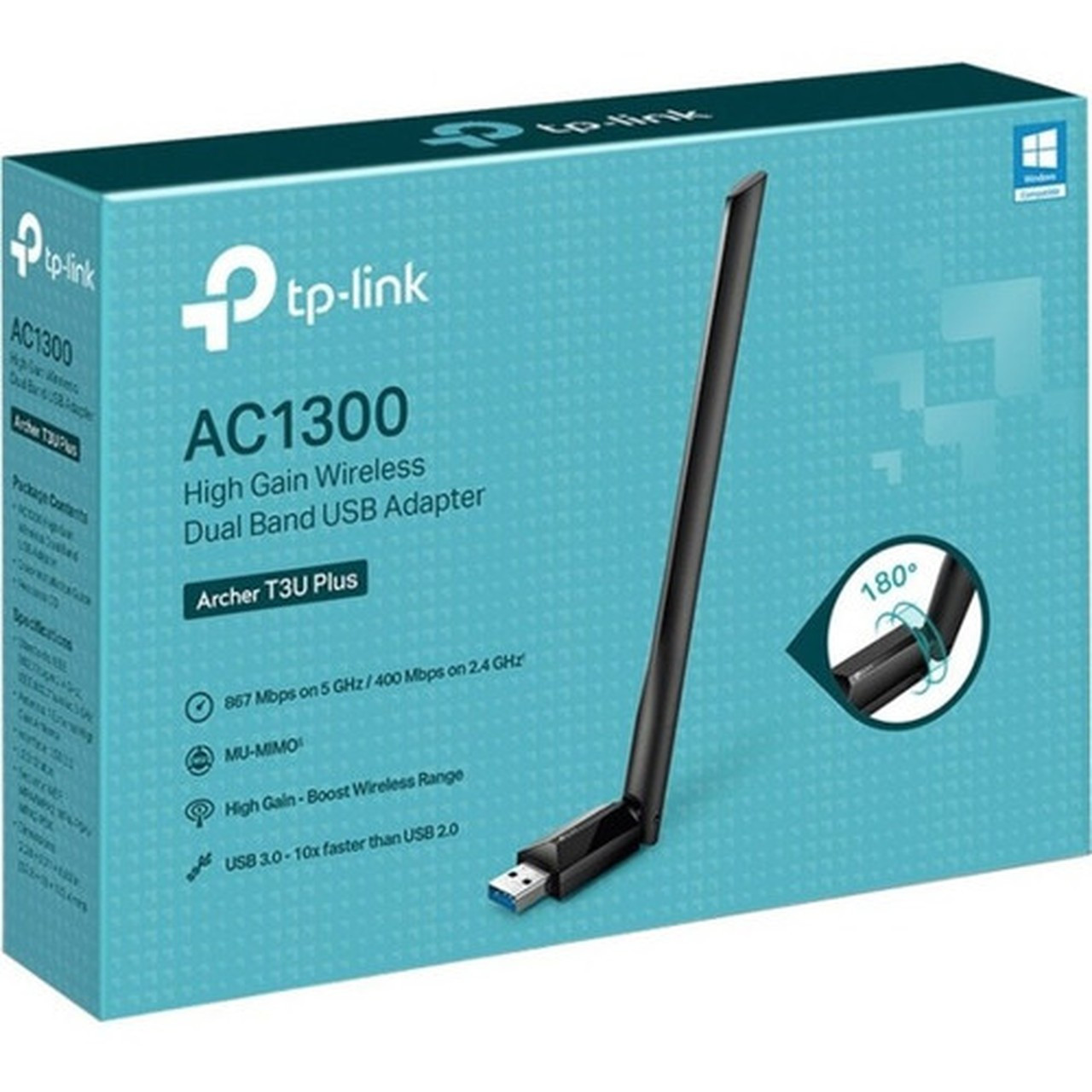

The package includes the AC1300 High Gain Wireless Dual Band USB Adapter, a quick installation guide, and a resource CD with drivers and documentation. This ensures users have everything needed for immediate setup and operation.
Highlights
- AC1300 dual-band Wi-Fi 5 (802.11ac) adapter with speeds up to 1.27 Gbit/s
- USB 3.0 interface for high-speed data transfer and backward compatibility
- Dual-band operation on 2.4 GHz and 5 GHz frequencies for flexible connectivity
- MU-MIMO technology improves network efficiency with multiple devices
- 5 dBi high-gain antennas enhance wireless range and signal strength
- Compatible with Windows 11/10/8.1/8/7/XP and macOS 10.9-10.15
- External form factor with compact dimensions for easy portability
- RoHS compliant and environmentally friendly design
- Includes quick installation guide and resource CD for straightforward setup
- 2-year limited warranty for added reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | ARCHER T3U PLUS |
| Brand Name | TP-Link |
| Product Model | T3U Plus |
| Product Name | AC1300 High Gain Wireless Dual Band USB Adapter |
| Product Type | Wi-Fi Adapter |
| Technical Information | |
| Wi-Fi Generation | Wi-Fi 5 |
| Wireless LAN Standard | IEEE 802.11ac |
| Network Band | Dual Band |
| ISM Band | Yes |
| UNII Band | Yes |
| ISM Maximum Frequency | 2.40 GHz |
| UNII Maximum Frequency | 5 GHz |
| Wireless Transmission Speed | 1.27 Gbit/s |
| Interfaces/Ports | |
| Host Interface | USB 3.0 |
| Physical Characteristics | |
| Form Factor | External |
| Height | 6.83" (173.48 mm) |
| Width | 2.28" (57.91 mm) |
| Depth | 0.71" (18.03 mm) |
| Miscellaneous | |
| Package Contents | AC1300 High Gain Wireless Dual Band USB Adapter Quick Installation Guide Resource CD |
| Device Supported | Desktop Computer,Notebook |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the maximum wireless speed of the ARCHER T3U PLUS adapter?
The ARCHER T3U PLUS supports a maximum wireless transmission speed of 1.27 Gbit/s. This speed is achieved through Wi-Fi 5 (802.11ac) technology, with theoretical rates of up to 867 Mbps on the 5 GHz band and 400 Mbps on the 2.4 GHz band, providing fast connectivity for streaming, gaming, and file transfers.
Which operating systems are compatible with this Wi-Fi adapter?
This adapter is fully compatible with Windows 11, 10, 8.1, 8, 7, and XP, as well as macOS versions 10.9 through 10.15. Drivers and installation resources are included on the provided CD, ensuring broad support for both current and legacy systems without requiring additional purchases.
How does MU-MIMO technology benefit my network?
MU-MIMO (Multi-User, Multiple-Input, Multiple-Output) allows the adapter to handle simultaneous data streams to multiple devices on the network. This reduces latency and improves overall throughput, making it especially useful in environments with several connected devices like smartphones, tablets, and computers accessing the internet at the same time.
Can I use this adapter with both desktop computers and notebooks?
Yes, the ARCHER T3U PLUS is designed to support both desktop computers and notebooks. Its USB 3.0 interface provides a plug-and-play solution for devices lacking built-in Wi-Fi or needing an upgrade, without requiring internal hardware installation, making it versatile for various computing setups.
What are the advantages of the 5 dBi high-gain antennas?
The 5 dBi high-gain antennas significantly enhance signal reception and transmission strength compared to standard antennas. This results in improved wireless range, better connectivity through walls or obstacles, and more stable performance in areas with weak signals, ensuring reliable internet access across larger spaces.
What is included in the package with the adapter?
The package contains the AC1300 High Gain Wireless Dual Band USB Adapter, a quick installation guide, and a resource CD with necessary drivers and documentation. These items provide all essentials for immediate setup and operation, allowing users to get connected quickly without searching for additional software online.
