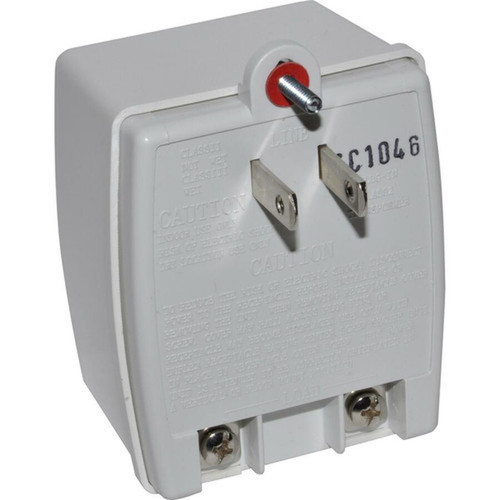

Altronix TP1650 Step Down Transformer - 50 VA - 110 V AC Input to 16. 5 V AC Output
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The TP1650 transformer operates with a maximum line current of 3 A, supporting efficient power transfer while maintaining electrical integrity. This specification ensures the transformer can handle typical load demands without overheating or performance degradation.
Built to meet standard electrical requirements, the unit facilitates safe voltage stepping for equipment that operates on lower AC voltages. The transformer's design prioritizes reliability, with components selected for durability under continuous use.
This section brings together practical product details such as Power Rating, Input Voltage, Output Voltage, Maximum Line Current, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Altronix TP1650 offers precise voltage conversion in a space-efficient package, making it ideal for installations where footprint and power accuracy are critical. Its 50 VA capacity provides sufficient power for typical low-voltage devices while maintaining operational safety.
Voltage Conversion Accuracy
Delivers consistent 16.5 V AC output from 110 V AC input, ensuring stable power for sensitive equipment.
- Maintains voltage stability
- Reduces electrical noise
- Supports equipment longevity
Compact Footprint
Measures only 2.60" wide by 3.40" deep, allowing installation in confined spaces without sacrificing performance.
- Minimal space requirements
- Easy integration
- Flexible mounting options
Deployment / Use Cases
This transformer is commonly deployed in commercial settings where standard AC power needs conversion to lower voltages for specialized equipment. Its 16.5 V AC output makes it suitable for powering low-voltage lighting systems, control circuits, and certain types of electronic devices that require reduced operating voltages.
Industrial applications include integration into machinery control panels, security system power supplies, and telecommunications equipment racks. The transformer's compact dimensions facilitate installation in electrical enclosures, junction boxes, and equipment cabinets where space optimization is essential.
Commercial Lighting Systems
Provides appropriate voltage for low-voltage lighting installations in retail, office, and hospitality environments.
Control Circuit Power
Supplies reduced voltage to control panels, relays, and automation equipment in industrial settings.
Physical Profile
The TP1650 transformer features a compact rectangular design measuring 2.30" in height, 2.60" in width, and 3.40" in depth. With an approximate weight of 703.1 grams, the unit is lightweight yet durable, constructed to withstand typical environmental conditions in commercial and industrial installations. The transformer's modest footprint allows for flexible mounting in various orientations to accommodate different space constraints.
- Width
- 2.60" (66.04 mm)
- Depth
- 3.40" (86.36 mm)
- Height
- 2.30" (58.42 mm)
- Weight
- 703.1 g
Highlights
- 50 VA power rating for reliable low-voltage power conversion
- Converts 110 V AC input to 16.5 V AC output
- Maximum line current of 3 A supports typical load requirements
- Compact dimensions: 2.30" H × 2.60" W × 3.40" D
- Lightweight design at approximately 703.1 grams
- Suitable for commercial and industrial applications
- Step down transformer for voltage reduction applications
- Manufactured by Altronix Corporation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Altronix Corporation |
| Manufacturer Part Number | TP1650 |
| Brand Name | Altronix |
| Product Model | TP1650 |
| Product Name | TP1650 Step Down Transformer |
| Product Type | Step Down Transformer |
| Technical Information | |
| Power Rating | 50 VA |
| Power Description | |
| Input Voltage | 110 V AC |
| Output Voltage | 16.5 V AC |
| Maximum Line Current | 3 A |
| Physical Characteristics | |
| Height | 2.30" (58.42 mm) |
| Width | 2.60" (66.04 mm) |
| Depth | 3.40" (86.36 mm) |
| Weight (Approximate) | 703.1 g |
| Miscellaneous | |
| Country of Origin | China |
FAQ
What is the power rating of the Altronix TP1650 transformer?
The Altronix TP1650 has a 50 VA power rating. This specification indicates the transformer's capacity to handle power conversion tasks, making it suitable for applications requiring moderate power levels at reduced voltage. The 50 VA rating ensures reliable performance for typical low-voltage devices while maintaining electrical efficiency.
What input voltage does this transformer accept?
The TP1650 transformer accepts 110 V AC input voltage. This standard voltage level allows the transformer to connect directly to typical North American electrical systems without additional conversion equipment. The transformer is designed to work with this input voltage to produce the specified 16.5 V AC output.
What output voltage does the TP1650 provide?
The transformer delivers 16.5 V AC output voltage. This reduced voltage level is appropriate for powering equipment that operates on lower AC voltages, such as certain lighting systems, control circuits, and electronic devices. The output remains stable when the input voltage is maintained at the specified 110 V AC level.
What is the maximum line current supported?
The TP1650 supports a maximum line current of 3 A. This current rating determines the transformer's ability to handle electrical load without overheating or performance issues. The 3 A maximum ensures the transformer can power typical low-voltage devices while maintaining safe operating conditions.
What are the physical dimensions of this transformer?
The transformer measures 2.30" in height, 2.60" in width, and 3.40" in depth. These compact dimensions make the unit suitable for installations where space is limited, such as electrical enclosures, control panels, and equipment cabinets. The modest footprint allows for flexible mounting in various commercial and industrial settings.
What applications is this transformer designed for?
The Altronix TP1650 is designed for applications requiring voltage reduction from 110 V AC to 16.5 V AC. Common uses include powering low-voltage lighting systems, control circuits in industrial equipment, security system components, and certain electronic devices. Its compact size and reliable performance make it suitable for both commercial and industrial environments where precise voltage conversion is needed.
