Product Features
Technical Overview
The TFC-110S60 implements Fast Ethernet technology with auto-negotiation and auto-MDIX on its RJ-45 port, simplifying connectivity by automatically detecting speed, duplex mode, and cable polarity. The SC duplex fiber port uses single-mode optics to maintain signal integrity over extended distances.
Status LED indicators provide real-time monitoring for power, link/activity, full-duplex operation, and speed. The converter supports full-duplex mode on both interfaces, ensuring efficient bidirectional data flow without collisions.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), Number of Network (RJ-45) Ports, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This media converter delivers reliable fiber extension for Fast Ethernet networks with features that reduce deployment complexity and ensure long-term operation.
Extended Reach
Single-mode fiber support enables connections up to 60 km, far beyond the limitations of copper cabling, ideal for remote locations or infrastructure with separation challenges.
- 60 km maximum distance
- Single-mode fiber compatibility
- SC duplex connectors
Simplified Connectivity
Auto-negotiation and auto-MDIX eliminate manual configuration for speed, duplex, and cable orientation, reducing setup time and potential errors.
- Auto-negotiation on RJ-45 port
- Auto-MDIX for cable flexibility
- Plug-and-play operation
Deployment Flexibility
The wall-mountable form factor allows for discreet installation in telecom closets or equipment rooms, while chassis compatibility offers rack integration for scalable deployments.
- Standalone or chassis use
- Wall mountable design
- LED status indicators
Deployment / Use Cases
The TFC-110S60 is engineered for scenarios where extending Ethernet beyond copper limits is necessary. Its robust design and compliance features make it a fit for diverse environments.
Common applications include connecting network segments between separate buildings on a campus, linking remote surveillance cameras or IoT devices over long distances, and integrating fiber backbones into existing copper-based LANs. The NDAA/TAA compliance ensures eligibility for U.S. and Canadian government or institutional projects requiring approved hardware.
Campus and Building Links
Extend network connectivity across large properties or between structures without signal degradation, using single-mode fiber for clarity and distance.
Industrial and Outdoor Networks
Deploy in environments with electrical noise, moisture, or temperature extremes where fiber immunity to interference provides reliable operation.
Physical Profile
The converter features a compact, wall-mountable enclosure measuring 4 inches in height, 11 inches in width, and 16 inches in depth. Its approximate weight of 5.72 pounds ensures stability when mounted, and the design facilitates airflow for consistent performance. The physical build supports installation in standard network cabinets or direct wall attachment using appropriate hardware.
- Width
- 11" (279.40 mm)
- Depth
- 16" (406.40 mm)
- Height
- 4" (101.60 mm)
- Weight
- 5.72 lb (2594.55 g)
Highlights
- Converts 100Base-TX to 100Base-FX for fiber extension up to 60 km
- Single-mode SC duplex fiber port with long-distance capability
- Auto-negotiation and auto-MDIX on the RJ-45 port for easy setup
- Full-duplex operation on both copper and fiber interfaces
- Wall-mountable form factor for flexible installation
- Status LEDs for power, link/activity, full-duplex, and speed
- NDAA/TAA compliant for U.S. and Canadian deployments
- Compatible with TFC-1600 fiber chassis for rack integration
- 3-year lifetime warranty from TRENDnet
- Fast Ethernet technology supporting 10/100Base-TX and 100Base-FX
Specifications
| Specifications | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TFC-110S60 |
| Brand Name | TRENDnet |
| Product Model | TFC-110S60 |
| Product Name | 10/100Base-TX to 100Base-FX Single Mode Fiber Converter (60KM) |
| Product Condition | New |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| SC Port Type | Duplex |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Maximum Distance Supported | 60 km (37.28 Mile) |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-TX,100Base-FX |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Height | 4" (101.60 mm) |
| Width | 11" (279.40 mm) |
| Depth | 16" (406.40 mm) |
| Weight (Approximate) | 5.72 lb (2594.55 g) |
| Miscellaneous | |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year Lifetime |
User Manual
FAQ
What does this media converter do?
The TFC-110S60 converts Fast Ethernet signals from 100Base-TX over twisted-pair copper cable to 100Base-FX over single-mode fiber optic cable. It extends network connections up to 60 kilometers, bridging copper and fiber segments for longer reach and noise immunity.
What type of fiber connector does it use?

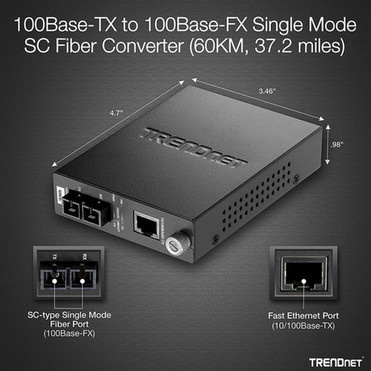

This converter uses an SC duplex fiber port. SC connectors are common in single-mode applications, providing a reliable, push-pull connection for fiber optic cables in network extension scenarios.
How far can it transmit over fiber?
It supports a maximum distance of 60 kilometers (approximately 37.28 miles) over single-mode fiber. This makes it suitable for long-haul connections between buildings, across campuses, or in remote installations where copper cabling is impractical.
Does it require manual configuration?
No, the RJ-45 port features auto-negotiation and auto-MDIX, automatically determining speed, duplex mode, and cable polarity. This plug-and-play functionality simplifies deployment and reduces configuration errors.
Can it be used in a rack setup?
Yes, while it operates as a standalone wall-mountable unit, it is also compatible with the TRENDnet TFC-1600 fiber chassis. This allows for centralized management and rack integration in larger deployments requiring multiple converters.
What warranty does it include?
TRENDnet provides a 3-year lifetime warranty for this product. This coverage supports long-term reliability and is backed by the manufacturer's commitment to quality in networking hardware.
