TRENDnet TPI-06 Managed Rackmount PDU - 6 Outlets - 1 Bypass - Surge Protection - 120V AC - 1U - Hive Cloud Management
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This PDU operates on a 120V AC input with a voltage range of 100-120V AC, compatible with standard North American power infrastructure. The unit includes a Gigabit Ethernet port for network connectivity, enabling remote management through TRENDnet's Hive Cloud platform. Each of the six primary outlets can be controlled independently, with features like scheduled power cycles, reboot automation, and power-on/off delays.
The integrated surge protection defends against voltage spikes and dangerous electrical conditions, while AC filtering reduces noise for cleaner power delivery. With a power rating of 6.87W, the PDU itself consumes minimal energy, contributing to overall rack efficiency.
This section brings together practical product details such as PDU Type, Receptacle Type, Receptacle Detail, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages

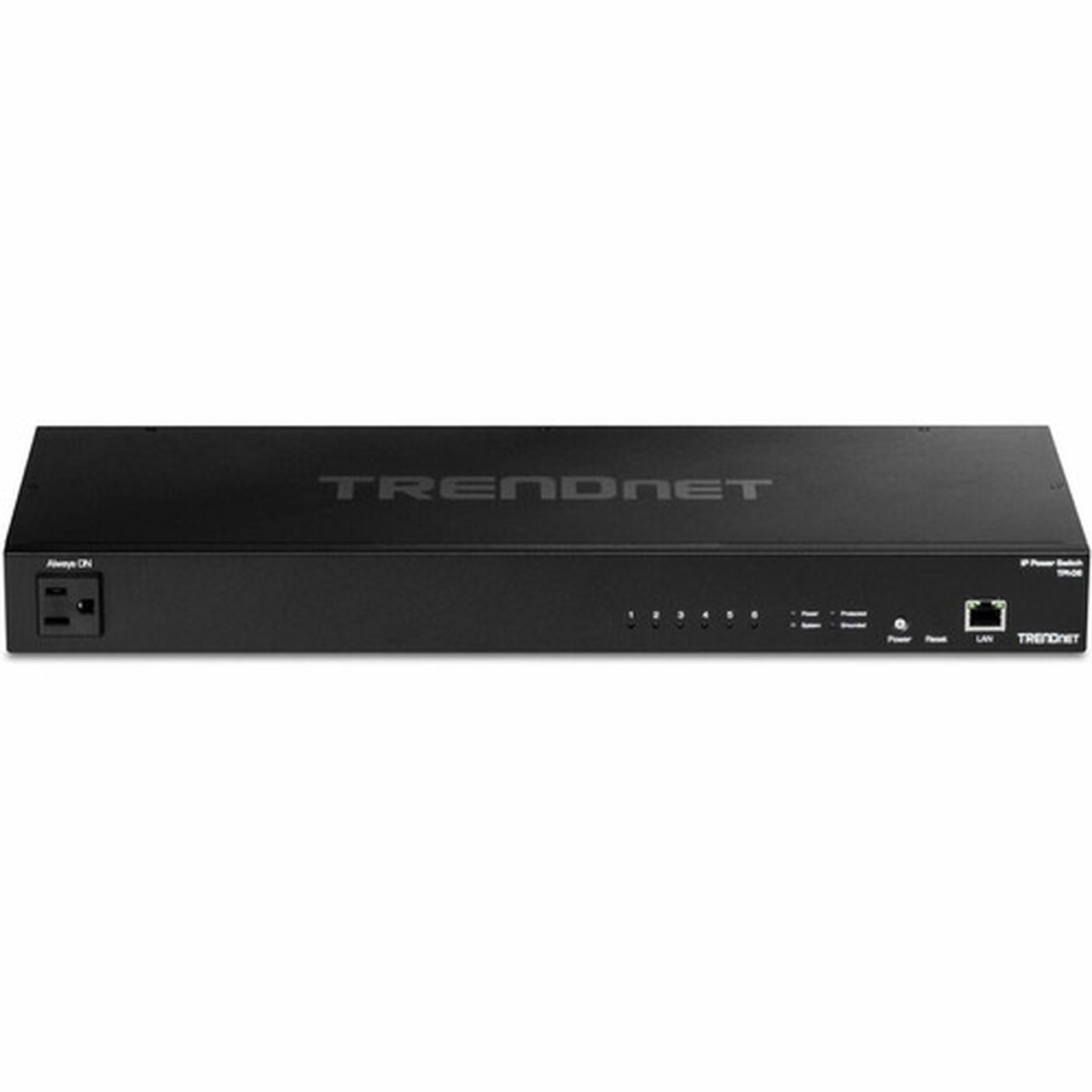

The inclusion of a dedicated bypass outlet provides a always-on power source for critical devices that must remain operational during maintenance or management events. LED indicators offer at-a-glance status monitoring for AC ground and outlet activity.
Granular Outlet Management

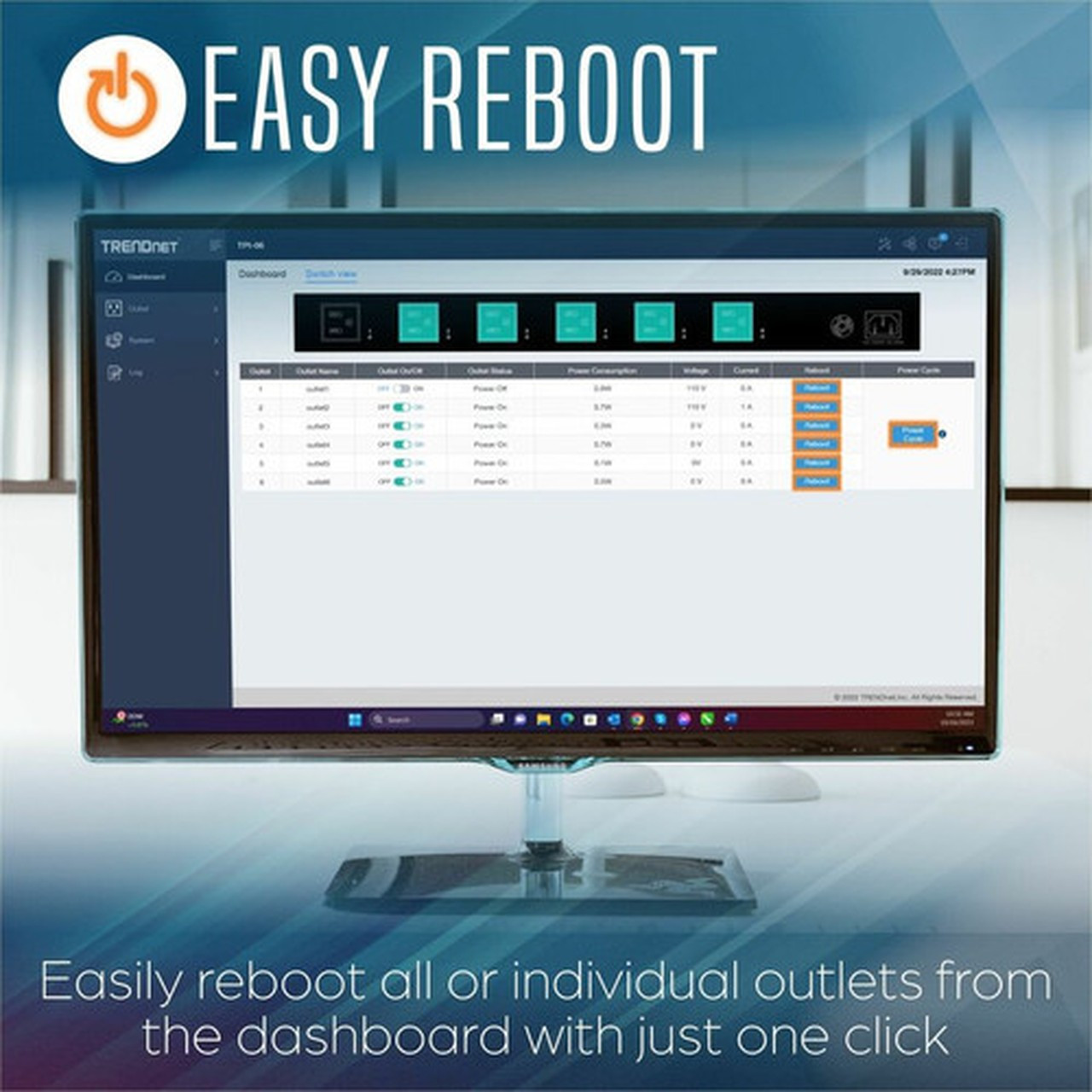

Control each of the six outlets individually via the Hive Cloud interface. Set automated reboot schedules, configure power-on/off delays for staged equipment startup, and monitor real-time power consumption per outlet.
- Individual outlet control
- Automated reboot settings
- Per-outlet power monitoring
Enhanced Power Protection
Surge protection circuitry shields connected devices from voltage spikes and transient events. AC filtering ensures clean power delivery, reducing electrical noise that can affect sensitive server and networking equipment performance.
- Surge protection
- AC filtering
- Voltage range compliance
Deployment / Use Cases
This PDU is specifically designed for server rack and cabinet environments where centralized power management, equipment protection, and space efficiency are priorities. The remote management capabilities via Hive Cloud enable IT teams to control power distribution from anywhere, reducing the need for physical access to equipment racks.
The unit supports power scheduling to reduce energy consumption during off-hours, and event email notifications alert administrators to power events or connection issues. These features make it suitable for both production environments and development/testing labs where controlled power cycling is beneficial.
Data Center Rack Power Management
Install in standard 19" server racks to distribute and manage power to multiple servers, switches, and storage devices. The 1U height preserves valuable rack space while providing full outlet control and monitoring capabilities.
Network Closet & IT Room Power Distribution
Deploy in network closets or small server rooms where organized power distribution and remote management are needed. The surge protection and filtering ensure reliable operation of networking equipment like switches, routers, and firewalls.
Physical Profile
The PDU features a compact 1U rack-mountable design with dimensions of 6.69" height, 17.32" width, and 1.73" depth (169.93 × 439.93 × 43.94 mm). This standard 1U form factor fits seamlessly into 19" server racks without consuming excessive vertical space. The unit weighs approximately 5.25 lb (2380 g), making it lightweight yet durable for rack installation.

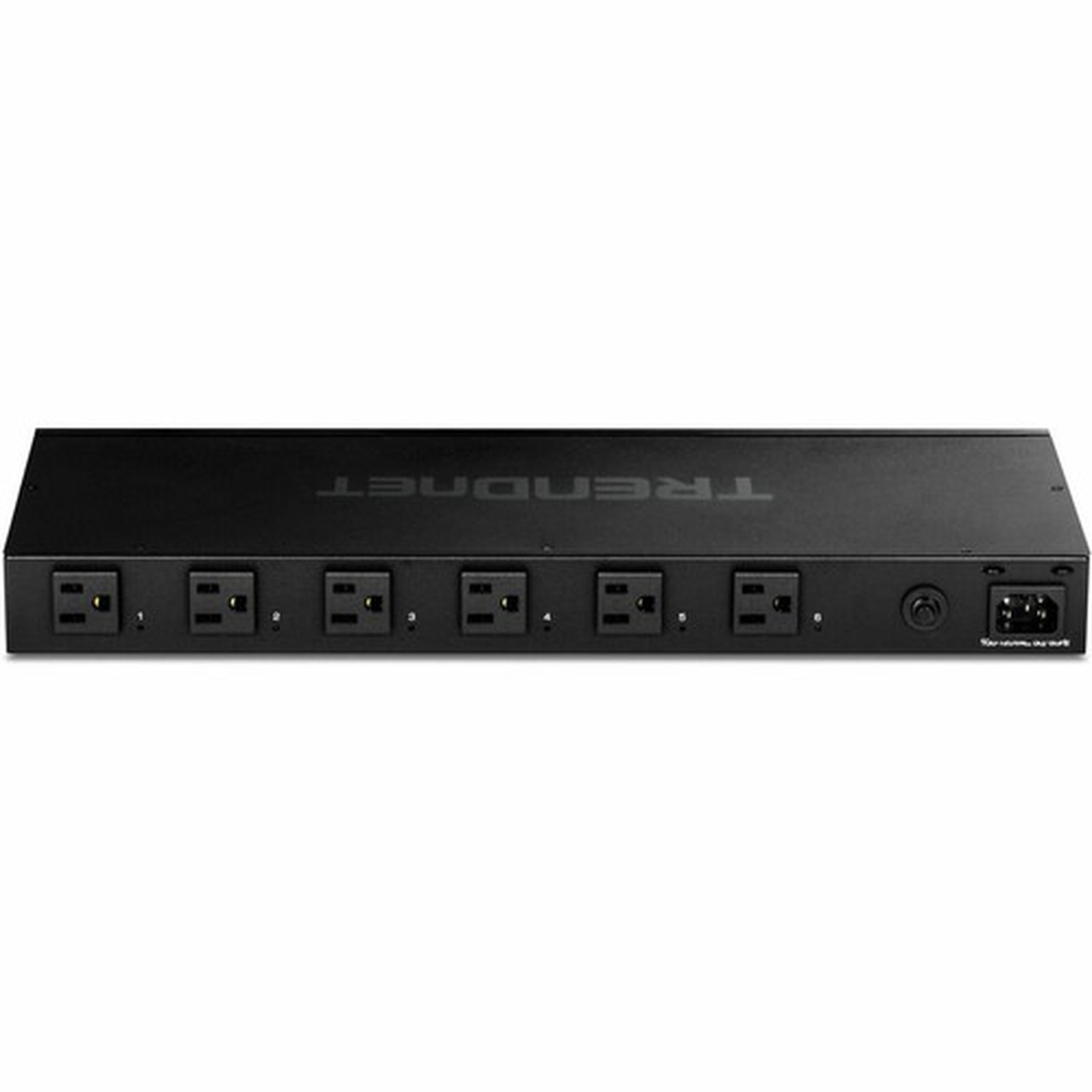

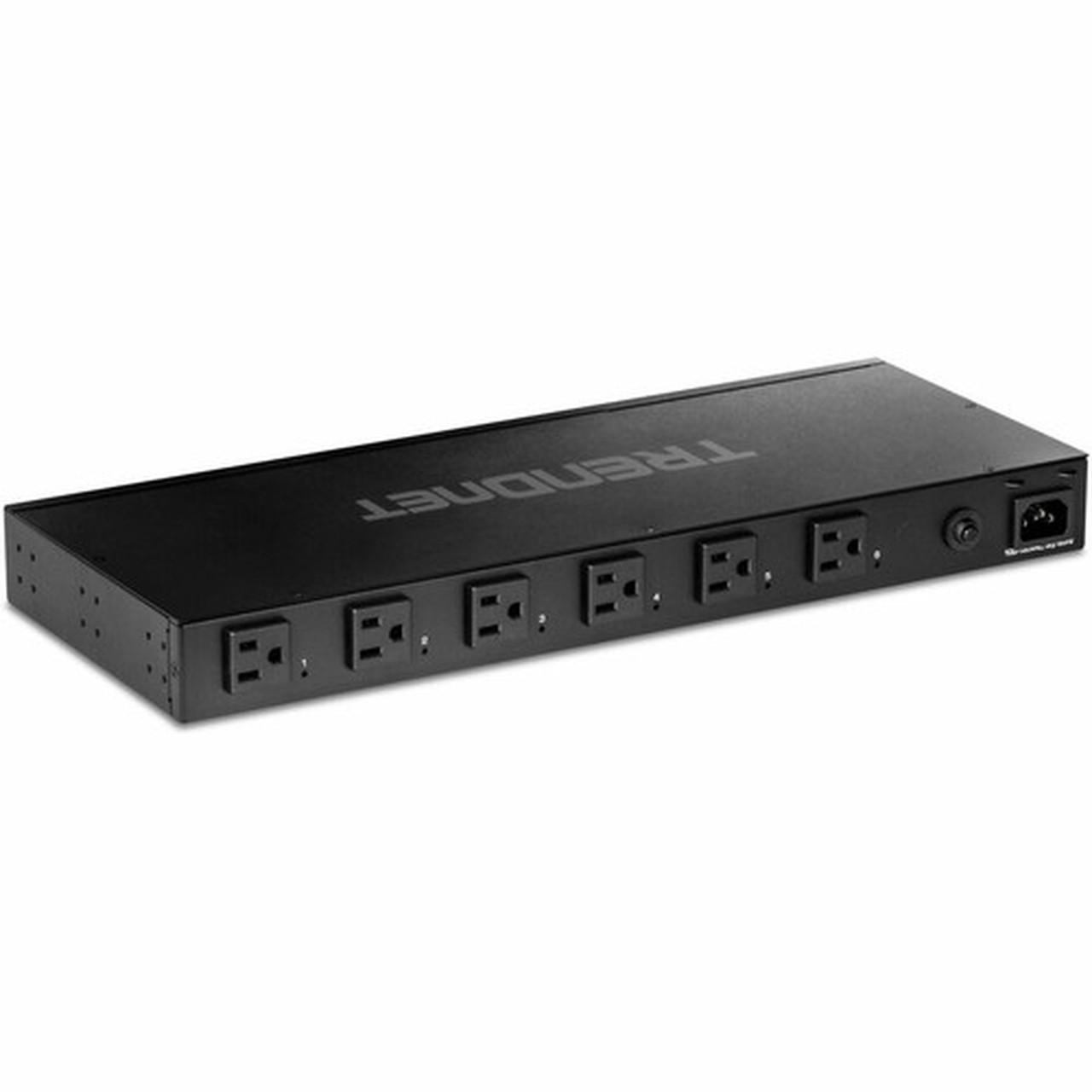

The front-facing NEMA 5-15R outlets are spaced appropriately for standard power cords, and the included rack mount kit facilitates secure installation. The slim profile ensures compatibility with various rack configurations while maintaining accessibility to all outlets and status indicators.
- Width
- 17.32" (439.93 mm)
- Depth
- 1.73" (43.94 mm)
- Height
- 1U
- Weight
- 5.25 lb (2380 g)
What's in the Box
The package includes all necessary components for immediate deployment in a rack environment.
Highlights
- 6 individually controllable NEMA 5-15R power outlets
- 1 dedicated bypass NEMA 5-15R outlet for always-on power
- Surge protection with AC filtering for clean power delivery
- Remote management via TRENDnet Hive Cloud platform
- 1U rack-mountable design for space-efficient installation
- Individual outlet control with reboot automation
- Power consumption monitoring per outlet
- Gigabit Ethernet port for network connectivity
- LED indicators for AC ground and outlet status
- 3-year limited warranty for reliable long-term use
Specifications
| Specifications | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TPI-06 |
| Brand Name | TRENDnet |
| Product Model | TPI-06 |
| Product Name | 6-Outlet Managed Rackmount Power Distribution Unit |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Managed,Bypass |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R,1 x NEMA 5-15R |
| Protection Type | Surge Protection |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage Range | 100 V AC - 120 V AC |
| Output Voltage Range | 100 V AC - 120 V AC |
| Power Source | Power Supply |
| Power Rating (Watt) | 6.87 W |
| Management | |
| Management | Hive Cloud |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 6.69" (169.93 mm) |
| Width | 17.32" (439.93 mm) |
| Depth | 1.73" (43.94 mm) |
| Weight (Approximate) | 5.25 lb (2380 g) |
| Miscellaneous | |
| Package Contents | 6-Outlet Managed Rackmount Power Distribution Unit Quick Installation Guide Power Cord (1.8m / 6 ft.) Rack Mount Kit |
| Application/Usage | Server Rack/Cabinet |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What type of outlets does this PDU have?
The TRENDnet TPI-06 PDU features six NEMA 5-15R outlets that are individually controllable through the management interface, plus one additional NEMA 5-15R bypass outlet that remains always-on. All outlets use the standard North American 15-amp configuration suitable for servers, networking equipment, and other rack-mounted devices.
How is this PDU managed remotely?
This managed PDU connects via its built-in Gigabit Ethernet port to your network, enabling remote access through TRENDnet's Hive Cloud platform. The cloud interface allows administrators to control individual outlets, set power schedules, monitor energy consumption, configure automated reboots, and receive email notifications for power events from any location with internet access.
What power protection features are included?
The PDU incorporates surge protection to safeguard connected equipment against voltage spikes and transient electrical events. It also includes AC filtering that reduces electrical noise, ensuring clean power delivery for sensitive electronics. These protection mechanisms help prevent damage to servers, switches, and other critical infrastructure components.
What are the physical dimensions and rack compatibility?
This PDU measures 6.69" in height, 17.32" in width, and 1.73" in depth (169.93 × 439.93 × 43.94 mm), designed as a standard 1U rack-mountable unit. It includes a rack mount kit for secure installation in 19" server racks and cabinets. The compact 1U form factor maximizes vertical space efficiency in rack environments.
What input voltage does this PDU support?
The PDU operates on 120V AC input with a voltage range of 100-120V AC, making it compatible with standard North American electrical systems. The output maintains the same 100-120V AC range, ensuring consistent power delivery to connected equipment within typical data center and office environment specifications.
What is included in the package?
The package contains the 6-outlet managed rackmount power distribution unit itself, a quick installation guide for setup instructions, a 1.8-meter (6-foot) power cord for connecting to your power source, and a complete rack mount kit with all necessary hardware for secure installation in standard 19" server racks.
What power capacity is listed for this UPS?
The listed power specification is 6.87 W, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC, which helps position the unit for the right load level and installation role.
