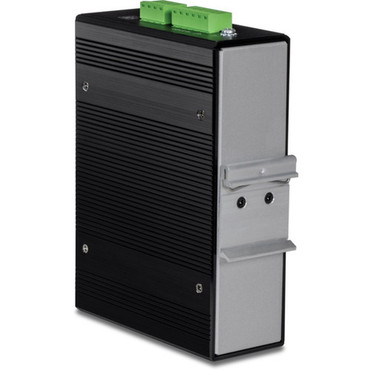

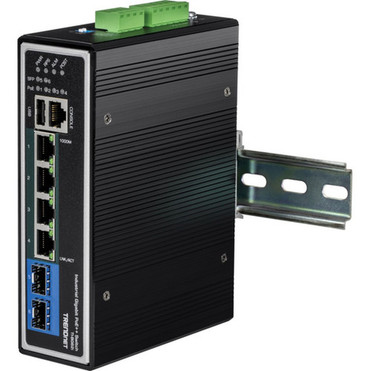

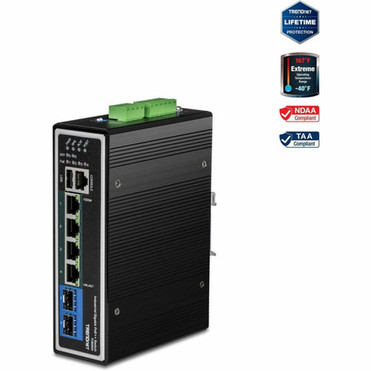

TRENDnet 6-Port Industrial Gigabit L2+ Managed PoE++ DIN-Rail Switch - 6 Ports - Manageable - Gigabit Ethernet - 1000Base-T, - TAA - 3 (TI-BG62I)

Marketing Information:

• 4 x Gigabit PoE++ ports
• 2 x SFP slots
• Supports 1000Base-FX fiber SFP modules
• 360W PoE power budget
• Perpetual PoE provides PoE power to connected devices at booting
• Fast PoE remembers per port PoE power draw of connected devices at booting
• PoE alive check restarts unresponsive PoE powered devices
• 12Gbps switching capacity
• Hardened IP30 rated metal housing
• Includes DIN-Rail mounting bracket
• Operating temperature range of -40° - 75° C (-40° - 167° F)
• Supports LACP, STP/RSTP, VLAN, and IGMP Snooping
• IEEE 802.1p QoS with queue scheduling support
• CLI (Console / Telnet / SSH), Web (HTTP / HTTPS), SNMP v1 / 2c / 3 management
• 802.1Q / Q-in-Q VLAN and IGMP Snooping / MLD / MVR support
• 802.1p / DSCP / Queue Scheduling (SPQ / WRR) QoS support
• Bandwidth control per port
• Dual inputs provide redundant power with overload current protection
• Alarm output triggered by power failure
• Supports Ethernet Ring Protection Switching (ERPSv2)
• Power supply sold separately (model: TI-S48048)
• NDAA / TAA compliant
• Lifetime Warranty

TRENDnet's Industrial Gigabit L2+ Managed DIN-Rail Switch series offers advanced layer 2 managed features with enhanced traffic controls to meet the evolving demands of today's SMB networks. Each industrial layer 2 managed switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments. Our industrial layer 2 managed switch models feature copper Gigabit ports for high-speed device connections, and SFP slots that support 1000Base-FX modules for long distance fiber networking applications.

These industrial layer 2 managed DIN-Rail switches provide an intuitive web-based management interface. Each TRENDnet industrial layer 2 managed switch supports advanced traffic management controls, troubleshooting, and SNMP monitoring. Advanced managed switch features include LACP to group ports together to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring making each TRENDnet industrial layer 2 managed switch a powerful solution for SMB networks.

This industrial 802.3bt PoE++ switch has four gigabit PoE++ ports with a 360W PoE power budget, plus two SFP slots for long distance fiber applications. Advanced PoE technology supported includes Perpetual PoE, Fast PoE, and PoE Alive Check.

More from the Manufacturer

Total Number of Network Ports: 6

Network (RJ-45): Yes

Modular: Yes

Port/Expansion Slot Details: 4 x Gigabit Ethernet PoE++,2 x Gigabit Ethernet Expansion Slot

Media Type Supported: Twisted Pair,Optical Fiber

Ethernet Technology: Gigabit Ethernet

Network Technology: 1000Base-T,1000Base-FX

Expansion Slot Type: SFP

Number of SFP Slots: 2

Layer Supported: 3

Networking Standards: IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1w,IEEE 802.1x,IEEE 802.1ab,IEEE 802.1AX,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.1s

Manageable: Yes

PoE (RJ-45) Port: Yes

PoE Budget: 360 W

Input Voltage: 48 V DC,57 V DC

Power Source: Power Supply

Power Consumption: 20 W

Plug/Connector Type: Terminal Block

Product Material: Metal

Form Factor: DIN Rail Mountable,Enclosure

Height: 1.97" (50 mm)

Width: 6.69" (170 mm)

Depth: 4.65" (118 mm)

Weight (Approximate): 956 g

Package Contents:

• TI-BG62i
• Quick Installation Guide
• Removable terminal block
• DIN rail mounting bracket

Country of Origin: Taiwan

TAA Compliant: Yes

Limited Warranty: 3 Year
