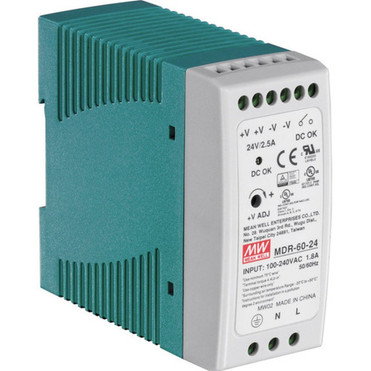

TRENDnet 60 W Single Output Industrial DIN-Rail Power Supply - DIN Rail - 120 V AC, 230 V AC Input - 60 W / 24 V DC (TI-M6024)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
- Industrial power supply with integrated DIN-rail mount
- Provides up to 60 Watts of power (24 V, 2.5 A)
- Universal AC input
- Short circuit/overload/over voltage protection
- UL 508 approved
- 100% full load burn-in test
- Extreme -20 to 70 °C (-4 to 158 °F) operating temperature range
- NDAA / TAA compliant
- Network Cameras
- Access Points
- Ti-G50
- Ti-G62
- Ti-G80
- Ti-F11sfp
Marketing Information:
TRENDnet's 60 W Single Output Industrial DIN-Rail Power Supply, model TI-M6024 (Mean Well MDR-60-24), supplies up to 60 Watts of power to industrial PoE equipment such as switches, network cameras, and WiFi access points. This power supply comes with an integrated DIN-rail mount and overload current protection.
60 Watt PowerProvides up to 60 Watts (24 V, 2.5 A) of power for PoE devices such as switches, network cameras, and access points.
Overload ProtectionOverload/short circuit/over voltage protection
Full Load TestThis power supply undergoes a 100 % full load burn-in test
Passive CoolingCooling by free air convection
DIN-Rail MountMetal enclosure with integrated DIN-rail mount
Extreme TemperaturesRated for an operating temperature range of -20 to 70 °C (-4 to 158 °F)
Safety CertificationsCertified for UL 508, UL 60950-1, TUV EN60950-1, and Class I, Div. 2 Group A, B, C, D hazardous locations T4
Electro Magnetic Emission/ImmunityCompliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2/3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, and criteria A
Vibration ResistantRated for vibration (IEC 60068-2-6)
LED indicator confirms power to the unit
Input Voltage: 120 V AC,230 V AC
Output Voltage: 24 V DC
Output Voltage Detail: 24 V DC @ 2.5 A
Output Current: 2.50 A
Output Power: 60 W
Form Factor: DIN Rail
Height: 3" (76.20 mm)
Width: 5" (127 mm)
Weight (Approximate): 300 g
Compatibility:
Country of Origin: China
TAA Compliant: Yes
Limited Warranty: 3 Year
- Industrial power supply with integrated DIN-rail mount
- Provides up to 60 Watts of power (24 V, 2.5 A)
- Universal AC input
- Short circuit/overload/over voltage protection
- UL 508 approved
- 100% full load burn-in test
- Extreme -20 to 70 °C (-4 to 158 °F) operating temperature range
- NDAA / TAA compliant (U.S. and Canada only)
[custom-specifications]
Specifications | |
Manufacturer | TRENDnet |
Manufacturer Part Number | TIM6024 |
Manufacturer Website Address | http://www.trendnet.com |
Brand Name | TRENDnet |
Product Model | TI-M6024 |
Product Name | DIN Rail 24V 60W Power Supply for TI-G50, TI-G62, TI-G80, TI-F11SFP |
Product Condition | New |
Product Type | Proprietary Power Supply |
Power Description | |
Input Voltage | 120 V AC,230 V AC |
Output Voltage | 24 V DC |
Output Voltage Detail | 24 V DC @ 2.5 A |
Output Current | 2.50 A |
Output Power | 60 W |
Physical Characteristics | |
Form Factor | DIN Rail |
Height | 3" (76.20 mm) |
Width | 5" (127 mm) |
Weight (Approximate) | 300 g |
Miscellaneous | |
Compatibility |
|
Country of Origin | China |
TAA Compliant | Yes |
Warranty | |
Limited Warranty | 3 Year |
[/custom-specifications]
