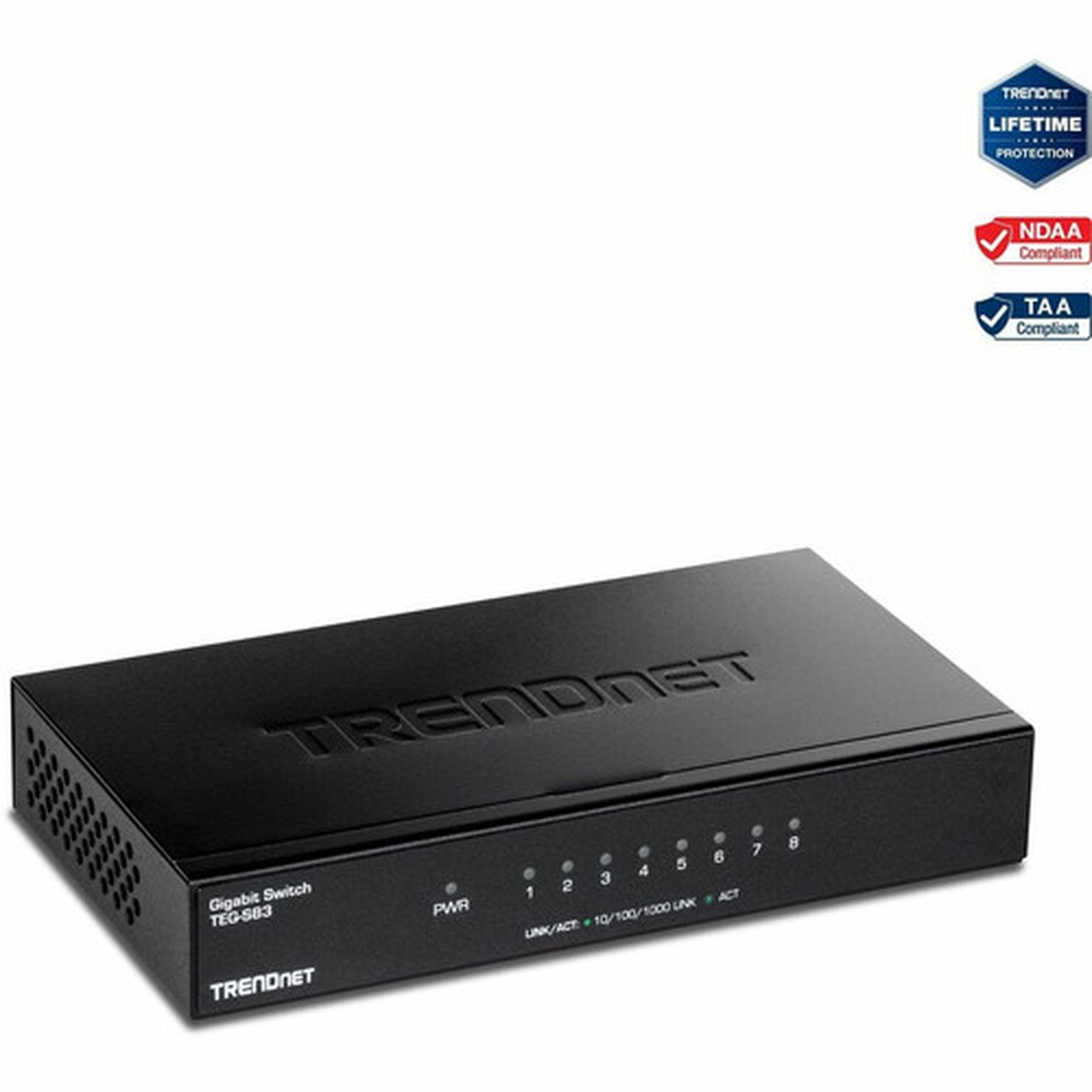

TRENDnet 8-Port Gigabit Desktop Switch - 8 Ports - Gigabit Ethernet - 1000Base-T - TAA Compliant - 2 Layer Supported - 3.20 W Power - (TEG-S83)

Marketing Information:

• DEVICE INTERFACE: 8 x Gigabit RJ-45 ports; LED indicators
• SWITCHING CAPACITY: This 8-port gigabit switch has a 16Gbps switching capacity with a forwarding rate of 11.9Mpps (64-byte packet size)
• DATA TRANSFER RATE: Ethernet: 10 Mbps (half duplex); 20 Mbps (full duplex); Fast Ethernet: 100 Mbps (half duplex); 200 Mbps (full duplex);Gigabit: 2000 Mbps (full duplex)
• COMPACT DESKTOP DESIGN: Sturdy lightweight metal housing is well-suited for desktop installations.
• FANLESS DESIGN: The network switch fanless design lowers energy consumption and eliminates operating noise.
• TRENDnet LIFETIME PROTECTION: The TEG-S83 8-Port Gigabit Desktop Switch is backed by TRENDnet's Lifetime Manufacturer Protection.
• NDAA / TAA compliant (U.S. and Canada only)

The 8-Port Gigabit Desktop Switch, model TEG-S83, provides high-bandwidth performance, ease of use, and reliability. This gigabit switch boosts office network efficiency and eliminates network congestion. It features gigabit speeds and a total switching capacity of 16Gbps with full-duplex mode. Integrate this sturdy metal gigabit switch for reliable high-speed network connectivity.

Gigabit Speeds

Gigabit ports provide high-speed network connections to five devices, and a 16Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.

Compact Design

With a compact and lightweight metal housing design, this gigabit switch is well-suited for desktop installations.

Fanless

Fanless design lowers energy consumption, and eliminates distracting noise for quiet environments that require silent operation.

NETWORKING SOLUTION | FEATURES | Easy Setup

Simply power up the switch and plug in connected devices

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance

LED Indicators

LEDs convey power, link, and activity

Ports

8 x Gigabit Ethernet ports

Fanless

Fanless design lowers energy consumption and eliminates operating noise

Switching Capacity

10Gbps switching capacity

Housing Design

Compact and lightweight metal housing

More from the Manufacturer

Features: Fanless

Total Number of Network Ports: 8

Network (RJ-45): Yes

Port/Expansion Slot Details: 8 x Gigabit Ethernet Network

Media Type Supported: Twisted Pair

Ethernet Technology: Gigabit Ethernet

Network Technology: 1000Base-T

Layer Supported: 2

Networking Standards: IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x

Power Source: Power Adapter

Power Consumption: 3.20 W

Product Material: Metal

Form Factor: Desktop,Compact

Height: 4.29" (109 mm)

Width: 0.98" (25 mm)

Length: 6.30" (160 mm)

Weight (Approximate): 414 g

Package Contents:

• 8-Port Gigabit Desktop Switch
• Quick Installation Guide
• Power Adapter (5V DC, 1A)

Country of Origin: Taiwan

TAA Compliant: Yes

Limited Warranty: 3 Year
