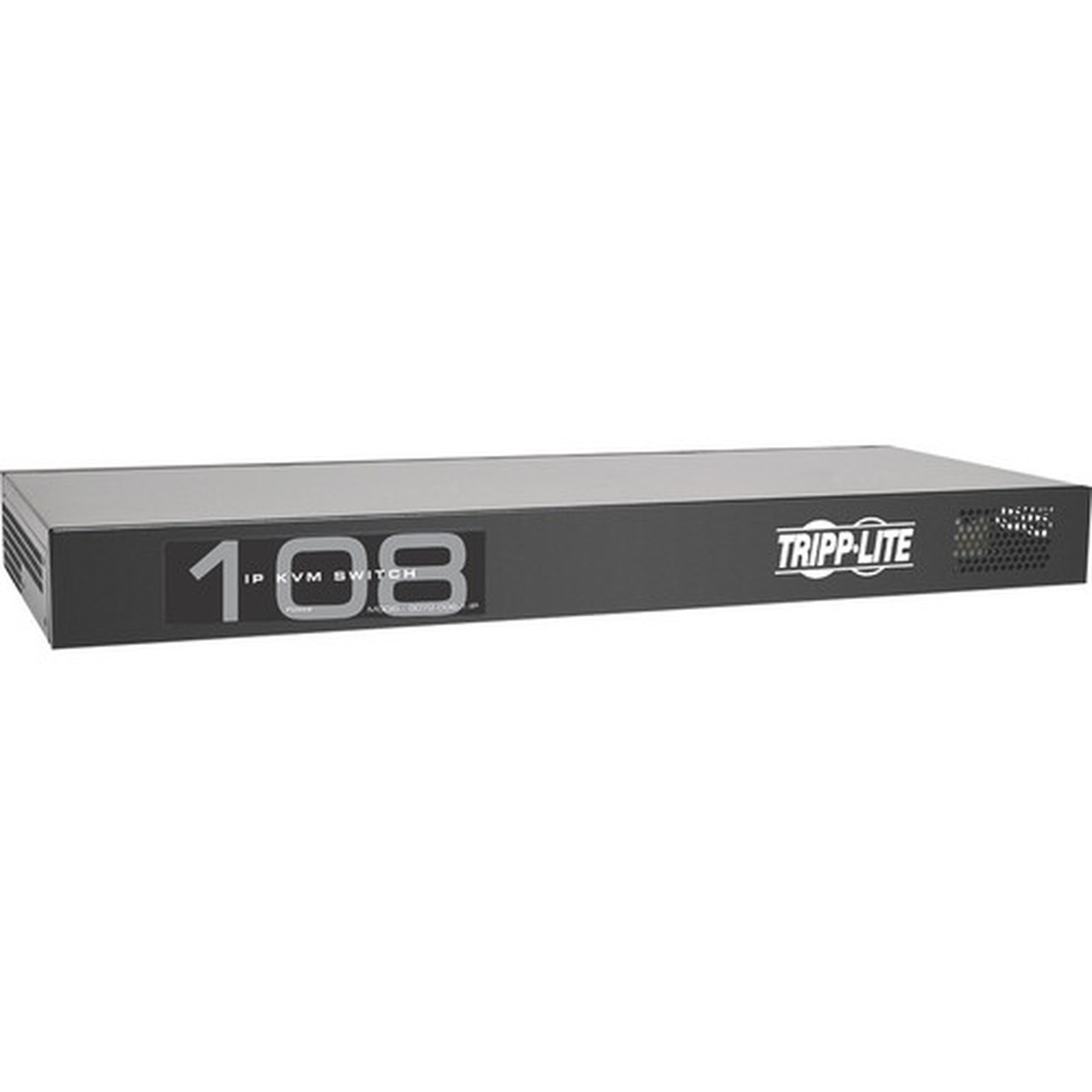

Tripp Lite by Eaton B072-008-1-IP NetCommander 8-Port 1U Rackmount Cat5 KVM Switch with IP - 8 Computers - 2 Users - 1920 x 1080
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This NetCommander KVM switch operates on digital KVM technology, supporting eight computers with one local user and one remote user concurrently. It features 12 network RJ-45 ports, three USB ports, and one VGA port, facilitating comprehensive device connectivity. The switch achieves a maximum video resolution of 1920x1080 in Full HD graphic mode, ensuring detailed display output for server management interfaces.
Network redundancy is enhanced through dual Ethernet ports, providing failover protection in case of connection issues. The unit supports both IPv4 and IPv6 protocols, ensuring compatibility with modern network infrastructures. Remote authentication mechanisms include RADIUS and LDAP/S, adding layers of security for authorized access control in enterprise environments.
Relevant factors for this section include KVM Technology, Number of Computers Supported, Number of Local Users Supported, Graphic Mode. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The B072-008-1-IP NetCommander delivers advanced KVM functionality with integrated IP management, streamlining server administration across local and remote locations. Its Java-based web application allows secure browser-based control from any device, eliminating the need for dedicated client software in many scenarios. For environments with strict browser security policies, a non-browser client is available to bypass Java security prompts, ensuring uninterrupted access.
Unified Management Interface
Free management software consolidates control of multiple Tripp Lite NetCommander IP KVM switches (B070 and B072 series) into a single dashboard, simplifying oversight of large-scale deployments.
- Centralized device management
- Cross-series compatibility
- Reduced administrative overhead
Extended Device Control
PDU control functionality enables integration with IP power distribution units, allowing administrators to power cycle or manage servers directly through the KVM interface. Dual serial ports support connectivity to serial-manageable devices like PDUs, firewalls, and routers.
- Power management integration
- Serial device connectivity
- Enhanced remote control capabilities
Deployment / Use Cases
This KVM switch is engineered for data centers, server rooms, and IT closets where centralized management of multiple servers is required. Its 1U rackmount form factor makes it suitable for high-density environments where space optimization is critical. The 100-foot Cat5 operating distance allows flexible placement relative to managed equipment, accommodating various rack layouts and cable runs.
Remote management capabilities make it valuable for distributed IT teams managing servers across multiple locations. The simultaneous support for local and remote users enables collaborative troubleshooting sessions where on-site and off-site technicians can work together. Integration with PDUs and serial devices extends its utility beyond basic KVM functions, supporting comprehensive infrastructure management workflows.
Data Center Server Management
Ideal for managing blade servers, rack servers, and network appliances in centralized data center environments, providing both local console access and remote administration capabilities.
- Blade server compatibility
- Remote administration
- High-density rack support
Remote Branch Office Support
Enables IT teams to manage servers in remote offices without physical presence, reducing travel costs and improving response times for maintenance and troubleshooting tasks.
- Geographically distributed management
- Reduced onsite visits
- Faster incident resolution
What's in the Box
The package includes all necessary components for immediate deployment in rack environments.
Highlights
- Simultaneously supports 2 users (1 local, 1 remote) for collaborative management
- Java-based web application enables secure browser control from any location
- Non-browser client available to bypass Java security prompts for uninterrupted access
- Free management software consolidates control of multiple NetCommander IP KVMs
- Remote authentication via RADIUS and LDAP/S enhances security
- Dual Ethernet ports provide network redundancy for reliable connections
- PDU control allows power management of connected servers through the KVM interface
- Dual serial ports support connectivity to serial-manageable devices
- Supports both IPv4 and IPv6 for modern network compatibility
- Fast Virtual Media KVM System with patented technology (US 9,417,720)
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B072-008-1-IP |
| Brand Name | Tripp Lite series |
| Product Line | NetCommander |
| Product Model | B072-008-1-IP |
| Product Name | 8-Port NetCommander 1U Rackmount Cat5 KVM Switch w/ IP |
| Product Type | KVM Switchbox |
| Technical Information | |
| KVM Technology | Digital |
| Number of Computers Supported | 8 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 1 |
| Maximum Operating Distance | 100 ft (30480 mm) |
| Video | |
| Graphic Mode | Full HD |
| Maximum Video Resolution | 1920 x 1080 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 12 |
| Number of USB Ports | 3 |
| Number of VGA Ports | 1 |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Miscellaneous | |
| Package Contents | 8-Port NetCommander 1U Rackmount Cat5 KVM Switch w/ IP Rackmount Bracket Kit 6ft Power Cord 6ft Serial Cable |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
How many computers can this KVM switch support simultaneously?
The Tripp Lite by Eaton B072-008-1-IP NetCommander supports up to eight computers simultaneously. This allows centralized management of multiple servers or workstations from a single KVM interface, making it suitable for data centers and server rooms where multiple systems need coordinated oversight.
What types of users can access this KVM switch?
This KVM switch supports two simultaneous users: one local user with direct physical access to the unit and one remote user accessing via IP connection. This dual-access capability enables collaborative troubleshooting scenarios where both onsite and offsite technicians can work together on managed systems.
What is the maximum operating distance for this Cat5 KVM switch?
The maximum operating distance is 100 feet (30,480 mm) using Cat5 cabling. This extended distance provides flexibility in equipment placement within server racks and data center environments, allowing the KVM switch to be positioned conveniently relative to the managed computers.
What video resolution does this KVM switch support?
This switch supports Full HD video resolution up to 1920 x 1080. The digital KVM technology maintains crisp visual quality for server management interfaces, ensuring administrators can clearly view system information, configuration screens, and troubleshooting displays during remote sessions.
How does the IP remote management work?
IP remote management functions through a Java-based web application that allows secure browser access from any location. Administrators can control connected servers via a web interface over IP networks. For environments with restrictive browser security settings, a non-browser client is available to bypass Java security prompts while maintaining full functionality.
What additional devices can be managed through this KVM switch?
Beyond basic KVM functions, this switch can integrate with IP power distribution units (PDUs) to enable power cycling of connected servers. It also features dual serial ports for connecting to serial-manageable devices such as PDUs, firewalls, and routers, extending control capabilities beyond traditional keyboard, video, and mouse functions.
