Tripp Lite by Eaton B140-101X Tripp Lite DVI over Cat5 Active Extender Kit - 1 x 1200 ft Range - 1920 x 1080 Full HD - Wall Mountable - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

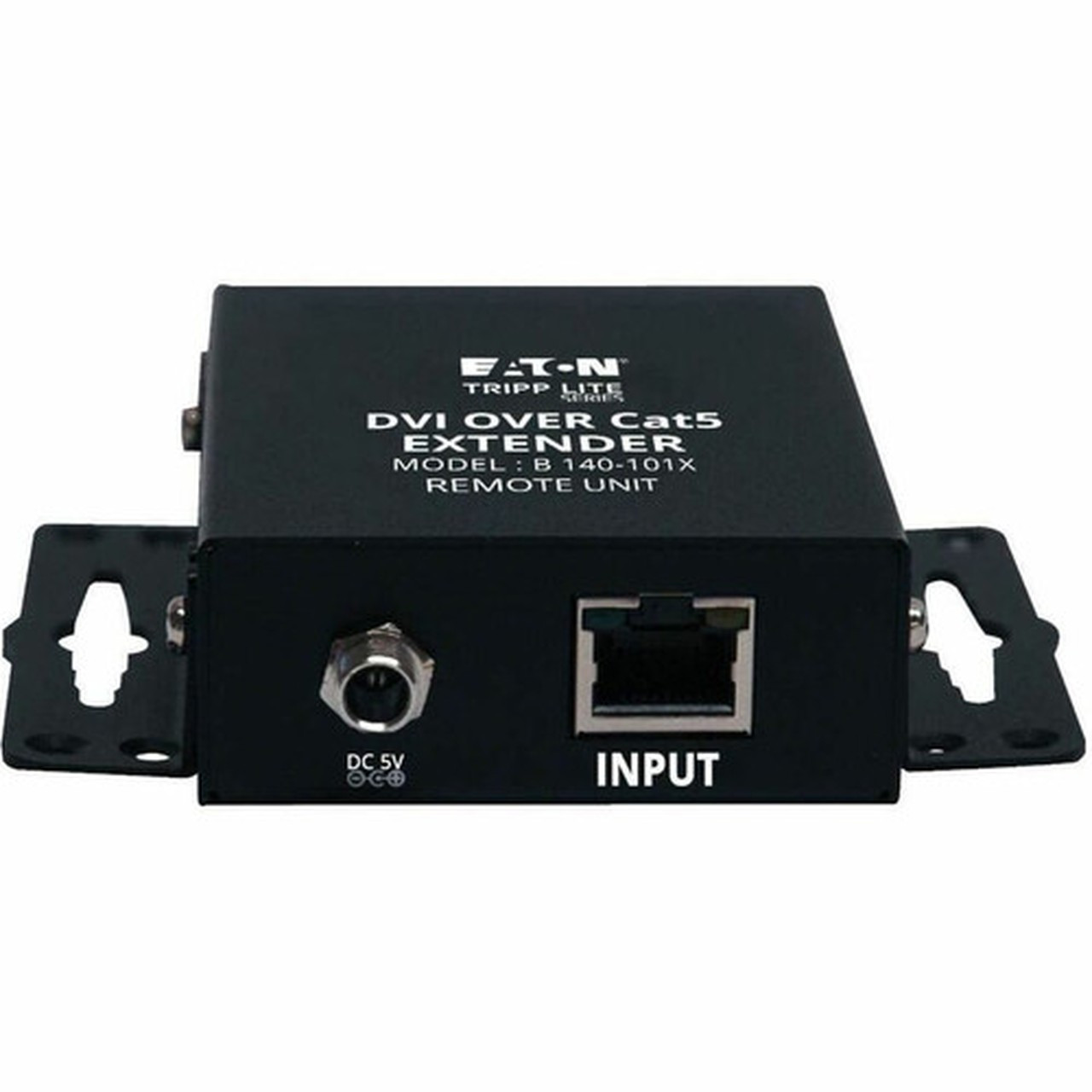

This video extender operates over Category 6 twisted-pair cable, supporting maximum distances of 150 feet at 1920x1080 resolution (60Hz) or 200 feet at 1024x768 resolution (60Hz). The system requires 24AWG solid wire Cat5e or Cat6 cable, such as Tripp Lite's N202-Series, to achieve optimal performance. The transmitter and receiver units connect via standard RJ-45 ports, with separate DVI input and output connections for source and display integration.

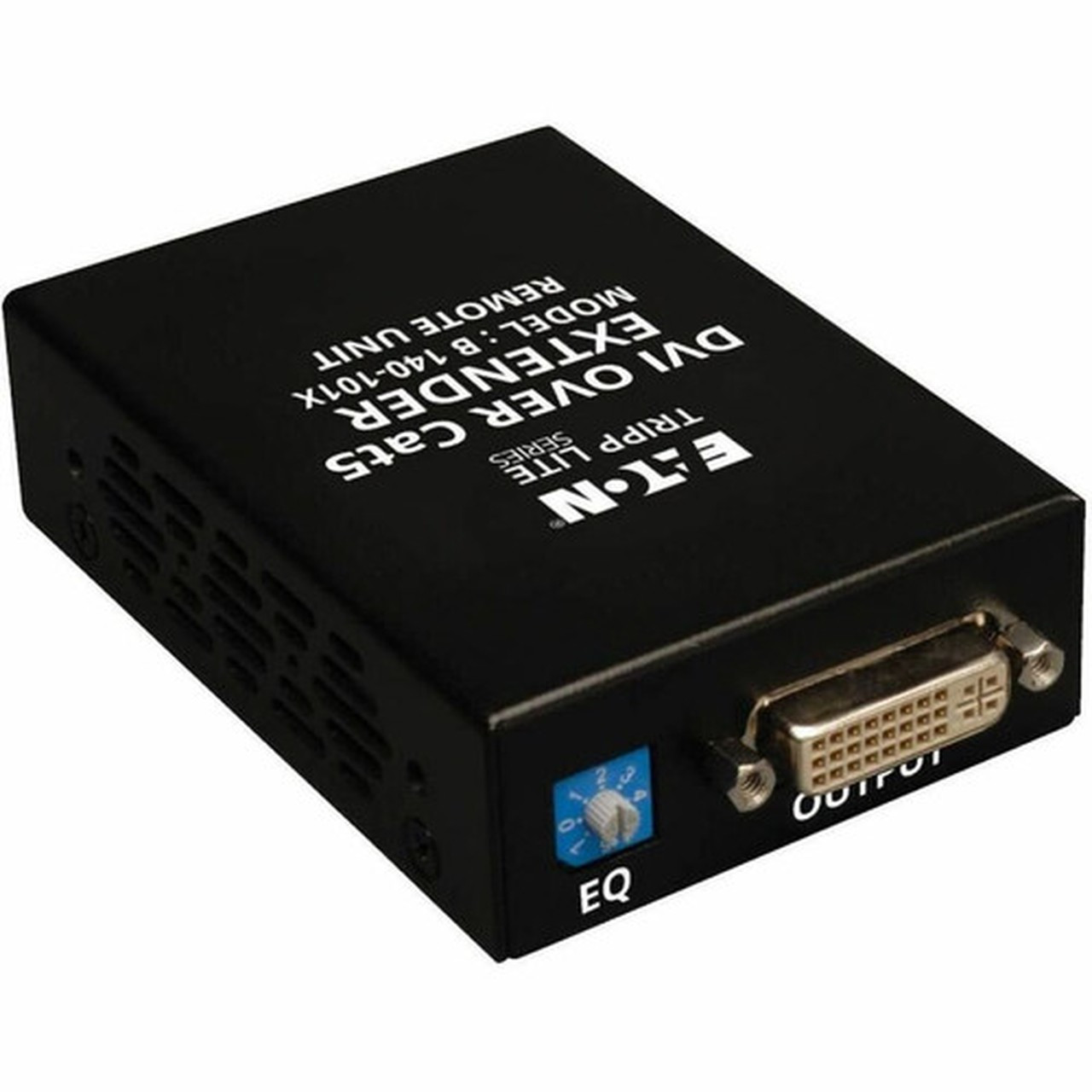

Built-in equalization control allows for fine-tuning of the video image to compensate for cable length and signal degradation. The extender supports Full HD graphics modes and maintains compatibility with all operating systems without requiring additional software or drivers. External power supplies (input: 100-240V, 50/60Hz, 0.5A; output: 5V, 2A) are included for both transmitter and receiver operation.
Relevant factors for this section include Connectivity Technology, Number of Input Devices Supported, Number of Output Devices Supported, Graphics Modes. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This extender kit delivers professional-grade video extension with several distinct advantages for AV integrators and IT professionals. The complete package includes everything needed for immediate deployment, reducing setup time and ensuring compatibility between components.
Extended Range Flexibility
Achieve reliable video transmission up to 200 feet using cost-effective Cat5e/6 cabling instead of expensive specialized DVI cables. The system maintains signal quality across the entire operating distance.
- 150 ft at 1920x1080
- 200 ft at 1024x768
- Uses standard network cable
Simplified Installation
No software or drivers are required for operation, making this a true plug-and-play solution. The wall-mountable design and included mounting hardware facilitate clean, professional installations in various environments.
- No software needed
- Wall mountable
- Includes mounting hardware
System Expansion Capability
The extender system can be expanded by adding B140-110 repeaters to further increase range or support additional monitors. This modular approach provides scalability for growing AV requirements.
- Add repeaters for more range
- Support multiple displays
- Modular expansion
Deployment / Use Cases
The B140-101X extender kit is particularly valuable in environments where source equipment and displays must be separated by significant distances. Its reliable performance and straightforward installation make it suitable for both permanent installations and temporary setups requiring extended video connectivity.
In corporate settings, this extender enables clean conference room installations where media sources can be housed in equipment racks while displays remain wall-mounted at presentation locations. For digital signage applications, it allows centralized control of multiple displays throughout a facility using existing network infrastructure. Educational institutions benefit from extending classroom computer signals to projection systems or large format displays at the front of rooms.
Conference Room AV
Extend laptop or media player signals to wall-mounted displays or projectors while keeping source equipment at instructor stations or equipment racks.
Digital Signage Networks
Distribute high-definition video content from centralized media players to multiple displays throughout retail spaces, lobbies, or transportation hubs.
What's in the Box
This complete kit includes all necessary components for immediate deployment of the DVI extension system.
Highlights
- Extends DVI-D Single-Link video up to 200 feet using Cat5e/6 cable
- Supports 1920x1080 Full HD resolution at 60Hz refresh rate

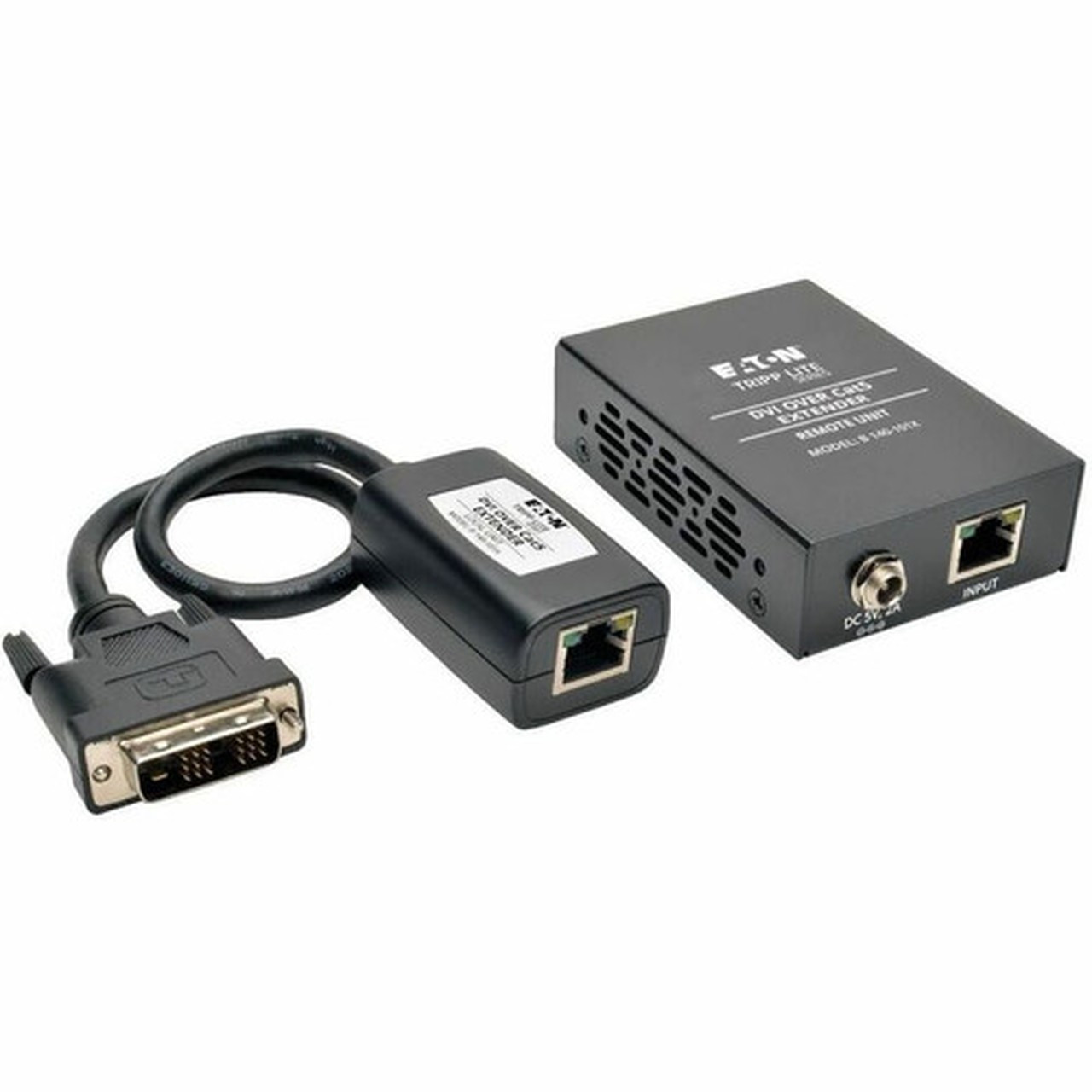

- Includes both transmitter and receiver units in complete kit
- Plug-and-play operation with no software or drivers required
- Built-in equalization control for video image adjustment
- Wall-mountable design with included mounting hardware
- Compatible with all operating systems
- TAA compliant for government and educational procurement
- 1-year limited warranty backed by Eaton Corporation
- Environmentally friendly design and manufacturing
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B140-101X |
| Brand Name | Tripp Lite series |
| Product Model | B140-101X |
| Product Name | DVI over Cat5 Active Extender Kit |
| Product Type | Video Extender Transmitter/Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 200 ft (60960 mm) |
| Video | |
| Graphics Modes | Full HD |
| Maximum Video Resolution | 1920 x 1080 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| DVI In | Yes |
| DVI Out | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of DVI Inputs | 1 |
| Number of DVI Outputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Wall Mountable |
| Miscellaneous | |

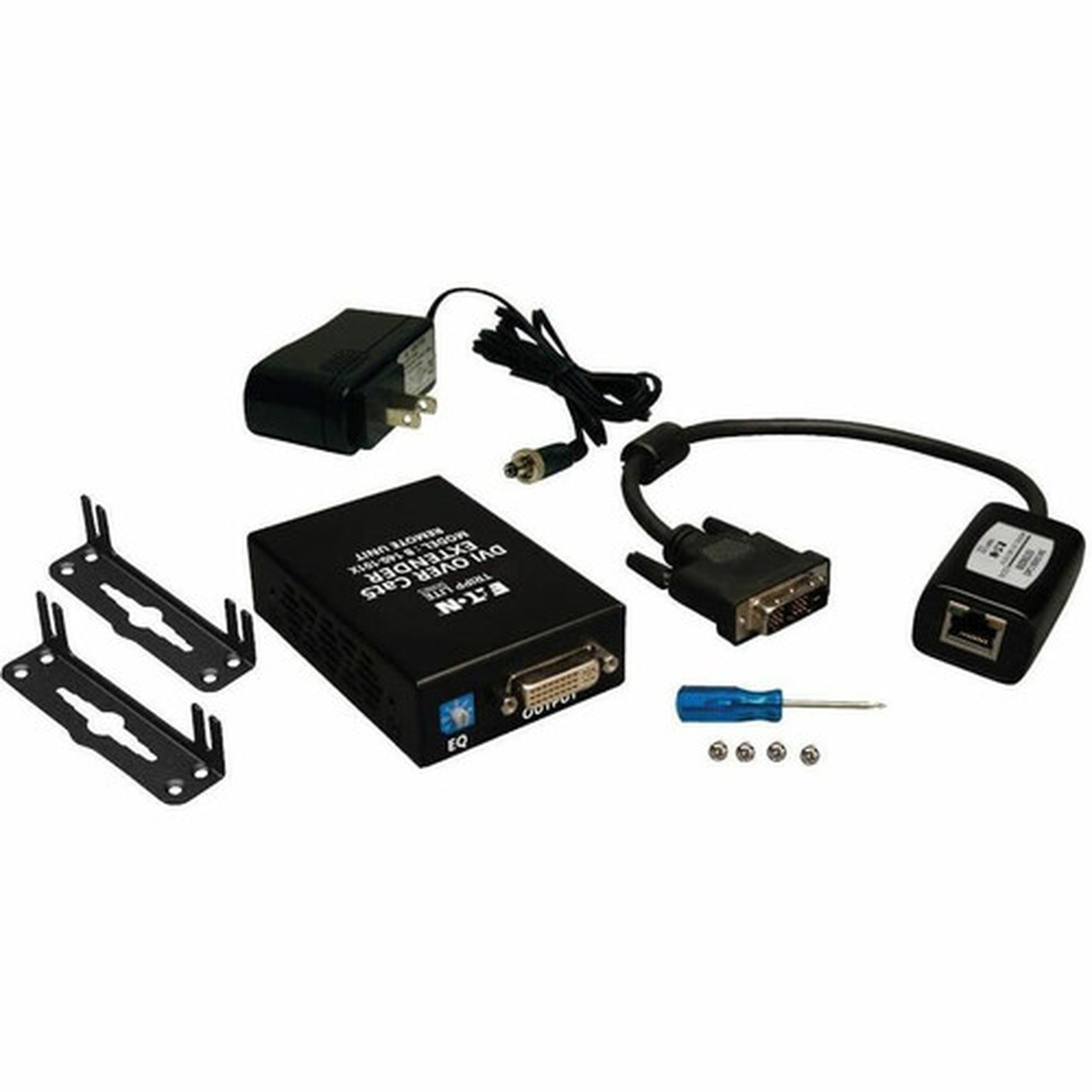

| Package Contents | B140-101X Local Transmitter Unit B140-101X Remote Receiver Unit Screwdriver (used for Equalization control) Mounting Hardware for Receiver Unit External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A) Owner's Manual |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What maximum resolution does this DVI extender support?
The Tripp Lite B140-101X supports DVI-D Single-Link video resolutions up to 1920 x 1080 (Full HD) at 60Hz. This makes it suitable for extending high-definition content from computers, media players, or other DVI sources to displays while maintaining image quality across the extended distance.
How far can I extend the video signal with this kit?
This extender kit supports maximum operating distances of 150 feet when transmitting 1920x1080 resolution at 60Hz, or 200 feet when transmitting 1024x768 resolution at 60Hz. These distances are achieved using 24AWG solid wire Category 5e or Category 6 twisted-pair cable between the transmitter and receiver units.
What type of cable do I need to connect the transmitter and receiver?
You need 24AWG solid wire Category 5e or Category 6 twisted-pair network cable to connect the transmitter and receiver units. Tripp Lite recommends their N202-Series cable for optimal performance. Standard stranded patch cables may not achieve the maximum distance or resolution capabilities.
Can I expand this system to support longer distances or more displays?
Yes, you can expand the system by adding B140-110 repeaters between the transmitter and receiver to further increase the operating distance. The modular design also allows for expanding to support additional monitors by incorporating appropriate distribution equipment in your AV setup.
Is any software or driver installation required?
No software or drivers are required for operation. This is a plug-and-play hardware solution that works with all operating systems. Simply connect the DVI source to the transmitter, run network cable to the receiver, connect the receiver to your display, and apply power to both units.
What is the equalization control and how do I use it?
The built-in equalization control allows adjustment of the video image to compensate for signal degradation over longer cable runs. A small screwdriver (included in the package) is used to make fine adjustments to optimize image quality based on your specific cable length and installation conditions.
What screen size is listed?
Tripp Lite series DVI over Cat5 Active Extender Kit - 1 Input Device - 1 Output Device - 200 ft (60960 mm) Range - 2 x Network (RJ-45) (B140-101X) is best judged through its screen, connectivity, and installation specifications, which help buyers confirm visual fit and deployment suitability.
